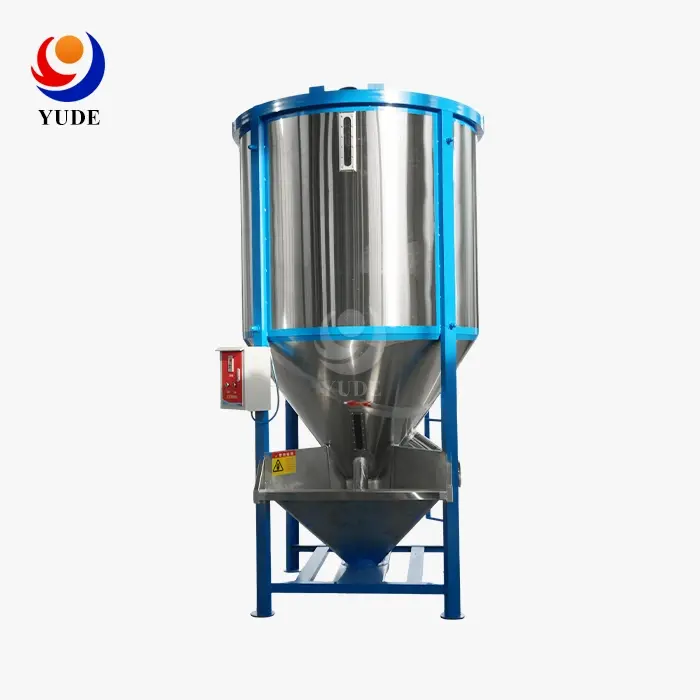

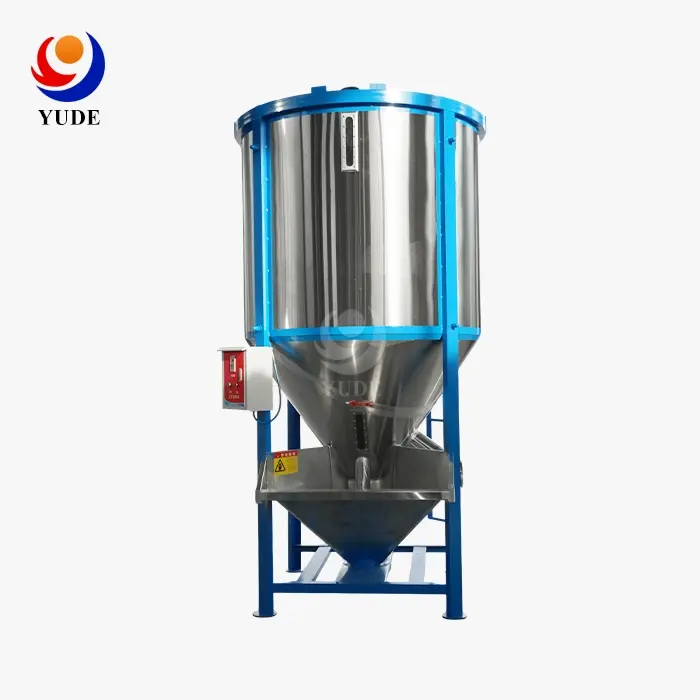

What Types of Plastic Pellets Can a 3 Ton Vertical Plastic Particle Mixer Handle?

The vertical plastic particle mixer of 3 tons, also known as a 3 Ton vertical plastic particle mixer, can mix a wide range of thermoplastic pellets, including polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polystyrene (PS), ABS, polycarbonate (PC) and nylon (PA). Rated loading capacity 3,000 kg, effective mixing volume 4,500–4,800 L, mixing homogeneity ≥98%, suitable for commodity resins and engineering-grade polymers. The vertical Archimedes screw circulation quietly takes pellets from the bottom and distributes them overhead for complete homogenization without thermal degradation and is a reliable alternative for large-volume plastic processing operations.

Overview of Plastic Pellet Types Suitable for 3 Ton Vertical Plastic Particle Mixers

Understanding which pellet types work well in a large-capacity vertical mixer is the first step toward optimizing your blending process. Let me walk you through the main categories.

Commodity Thermoplastics

The most typical materials processed in vertical silo mixers are pellets of PE, PP and PVC. These resins typically have bulk densities in the range of 0.6 to 0.8 g/cm³ which is well within the operating range of this mixer. Uniform blending is especially important to producers of PVC pipe compound to eliminate color fluctuation in extrusion lines.

Engineering Plastics

ABS, PC, and nylon (PA6/PA66) granules are also suitable. These materials frequently need careful moisture management before processing. For example, nylon absorbs air moisture quickly and can create surface flaws in completed products. Consistent batch-to-batch quality is achieved by the vertical mixer with pre-drying process.

Recycled and Regrind Materials

The mixer may blend post consumer regrind and recycled PE or PP flakes with virgin pellets. Regrind particles tend to be irregular in shape and have a broader size distribution. The variability is adequately taken care of in the vertical circulation pattern, however mixing time may extend to the 20 min end of the adjustable 12-20 min cycle.

The pellet type and its physical parameters (density, moisture content and particle shape) are known so operators can fine tune the mixing cycle from the outset, cutting down on wasted cycles and rejected output.

How a 3 Ton Vertical Plastic Particle Mixer Works with Different Pellet Types?

Many production managers encounter problems they assume are formula-related, when the real cause is uneven blending. This section explains how the vertical mixing mechanism addresses that issue across different material types.

The Vertical Screw Circulation Principle

At the heart of the 3 Ton vertical plastic particle mixer is an Archimedes screw that constantly elevates pellets from the bottom of the hopper to the top, where they are ejected in a fountain pattern. This leads to a 360-degree recirculating flow. For normal PE or PP pellets, a full 3,000 kg batch produces ≥98% mixing homogeneity in 12–15 minutes with motor power of 11–15 kW.

Handling Flowability and Static Charge Issues

Certain masterbatch concentrations and low density polyethylene (LDPE) build up static charge that causes the pellets to clump together. The low rotational speed of the vertical mixer reduces the heat from friction, which is much lower than in a high-speed friction mixer. This prevents heat sensitive PVC and LDPE from fusing on the surface while also breaking up electrostatic bunches by constant gentle movement.

Color Masterbatch and Additive Dispersion

A specific example: a PVC pipe producer with three extrusion lines that needs color constancy over hundreds of meters of pipe. The mixer removes the chromatic fluctuation observed when bags of compound are fed directly without pre-blending. In one cycle, the mixer pre-blends 3,000 kg of PVC compound with 1-3% color masterbatch. The same applies to the dispersion of the UV stabilizer and flame retardant in the PP pellets.

These properties make the vertical blending strategy ideally suited to those enterprises that require lot consistency and cannot tolerate color or performance variance from production shift to production shift.

Comparing Vertical Plastic Particle Mixers with Other Solutions for Various Pellet Types

Choosing the right mixing technology involves weighing several practical trade-offs. Here is how vertical silo mixers compare against common alternatives for large-batch polymer blending.

Vertical vs. Horizontal Ribbon Blenders

Horizontal ribbon blenders do an excellent job of blending, but they take up a lot more floor space. The vertical unit is Ø 1800 mm × H 2200 mm, while a 3-ton horizontal blender needs a drum length of more than 3 meters. The vertical design provides a considerable advantage in settings where floor space is limited – without sacrificing mix quality.

Energy Consumption Comparison

The 11–15 kW motor on a vertical mixer is moderate in relation to batch size. Horizontal paddle mixers of comparable size usually take 18–22 kW. In facilities operating on two or three batches per shift over a 24 hour period the difference in electricity use becomes meaningfully significant during a year of production.

When Horizontal Mixers Are a Better Fit?

High powder concentration formulations (i.e. if the powder is greater than 30% of the overall batch) can perform better in horizontal equipment as ribbon agitation physically breaks apart powder agglomerates more aggressively. The 3 Ton vertical plastic particle mixer design fits the production requirements well in the case of standard pellet-dominant batches (powder content less than 5%).

This side-by-side comparison provides procurement teams with a clear decision matrix: vertical silo mixers are the practical solution for pellet-dominant, large-volume applications where floor space and energy draw are a concern.

Maintenance and Operational Tips Tailored to Different Plastic Pellet Types

For constant results, you have to use tools the right way, even if it was made well. Here are some helpful tips, broken down by type of content.

Managing Abrasive Pellets

However, the screw flights and the inside of the drum wear out faster if they are manufactured from PP or PA pellets with glass fibers. When running GF filled products, inspect screw and drum lining every 500 hours. Having an extra screw assembly on hand will save machine downtime for maintenance.

Controlling Humidity for Moisture-Sensitive Resins

Nylon and PC pellets absorb water which is detrimental to the external finish and increases the melt thickness. Pack these things in containers that can't be opened until you load them and start the mixing cycle as soon as you load them. If you live in a muggy place, blowing dry air into the drum (before the cycle starts) might help get rid of a lot of the water that's left in it.

Troubleshooting Pellet Segregation

Selation is the breaking up of pellets of significantly differing densities or sizes on release. The pellets move slower as the discharge rate through the bottom slide gate is reduced. During the discharge phase the same mixing ratio is maintained. Operators must also ensure that the mixing cycle is completed before initiating the discharge.

Mixing consistency is ≥98% across shifts and batches; it means less waste when you pay attention to these parts of the work every time for batches that don’t meet requirements.

Procurement Considerations When Selecting a 3 Ton Vertical Plastic Particle Mixer for Various Pellet Types

Before committing to a purchase, procurement teams typically evaluate several non-obvious factors beyond the headline specifications.

Material Construction and Contact Surface Quality

All material-contact parts of this mixer (screw, drum interior, discharge gate) are made of 201 or 304 stainless steel. This minimizes rust contamination of food-packaging-grade PE or PP and facilitates color-changing cleaning. A smooth inside finish minimizes pellet carryover from batch to batch.

Here are the core equipment specifications buyers should confirm during supplier evaluation:

• Rated Loading Capacity: 3,000 kg (bulk density 0.6–0.8 g/cm³)
• Effective Mixing Volume: 4,500–4,800 L
• Mixing Uniformity: ≥98%
• Single Mixing Time: 12–20 minutes (adjustable)
• Motor Power: 11–15 kW | Voltage: 380V/50Hz
• Drum Dimensions: Dia. 1800 mm × H 2200 mm
• Control System: Industrial push-button panel

These specifications give engineering teams the data points needed for technical committee review without relying on vague supplier claims.

Customization and OEM Capabilities

A range of production environments exists. A mixer going to a PVC pipe facility in the Middle East might require power conversion and bilingual panel labeling. Suppliers offering OEM configuration and non-standard volume or temperature control options lessen the integration complexity on the buyer’s side.

After-Sales Support and Lead Times

When dealing with large-format equipment, such as a 3 Ton vertical plastic particle mixer, post-install support is just as important as the machine. 24-hour production schedules cannot afford to be out of service for days. Verify that supplier provides 4-hour technical response availability remotely and spare-parts availability on essential worn components.

FAQ

Can this mixer handle pellets of different densities at the same time?

Yes. During the cycle, the vertical screw action keeps mixing the pellets, which keeps the bigger pellets from falling to the bottom. As long as the bulk density stays between 0.6 and 0.8 g/cm³, the mixer gets ≥98% uniformity in 12 to 20 minutes.

How does pellet moisture content affect mixing quality?

Because pellets stick together when they're wet, circulation isn't as good and blend accuracy is lower. When loading materials that soak up water quickly, like nylon or PC, it is very important that they are dried to the manufacturer's recommended levels of wetness. In this way, there are no more clumps while mixing and issues with processing later on.

What customization options are typically available?

The suppliers can change the screen language, the size of the drum, the shape of the screws, and the grade of stainless steel. Manufacturers that you can trust will gladly do things like add OEM logos for wholesalers and change the height to something other than the standard for buildings with low ceilings.

What is the typical lead time for a 3-ton unit?

It takes about 15 to 25 business days to ship standard configurations. One to two weeks are added to the wait time for custom specs, depending on how quickly the parts can be found.

Ready to Find the Right Plastic Pellet Mixer for Your Line?

In more than 30 countries, Yude Plastic Machinery has sent 3 Ton vertical plastic particle mixer units to sites that process plastic. This kind of plant makes engineering plastic compounders and PVC pipe extruders, among other things. The company makes direct 3 Ton vertical plastic particle mixers and has a customer service system that is open 24 hours a day, seven days a week. They also offer OEM configuration and competitive factory prices. You can email the team at sales@yudemachinery.com or visit yudemachinery.com to get project needs and a quote.
