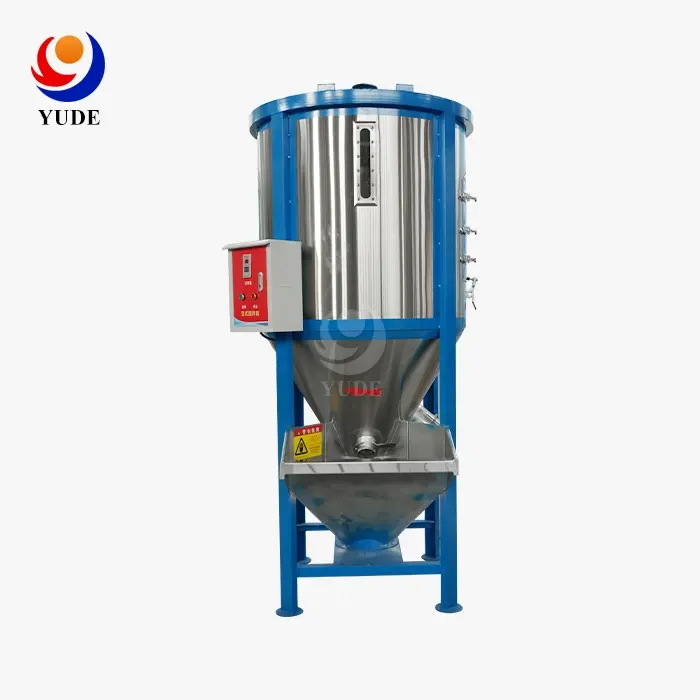

Vertical Color Mixer for Injection Molding

If you run an injection molding or masterbatch operation, you already know that color consistency is not optional—it is a production requirement. A pellets vertical color mixer solves one of the most persistent problems in plastic processing: getting every granule coated with colorant before the material reaches the screw. This guide covers how these machines work, how to compare your options, what to look for before purchasing, and how to keep your equipment running reliably over time.

Understanding Pellets Vertical Color Mixer Technology

You should know what this kind of gear does and why the design is important before you set a budget or compare models.

How the Vertical Spiral Lifting System Works?

Some color mixers have a rotating screw in the middle of a cone-shaped cylinder. The screw moves the plastic pellets and masterbatch from the bottom of the hopper to the top. The screw turns slowly, about 8 to 25 times per minute. The stuff then falls down the smooth inner wall on its own, creating a steady flow that looks like a fountain. With this low-shear rolling action, the color is spread out over all the pellets without breaking or hurting the material. There are different types of resin and masterbatch concentrations, so the total time for mixing can be anywhere from 15 to 40 minutes.

Key Technical Specifications to Know

How often the mixture is changed is the main way to judge how efficient it is. Up to 99% uniformity can be reached with industrial-grade vertical color mixers. This means that batch-to-batch color deviation (Delta E) stays below 1.0, which is what most companies in the appliance, car, and packing industries need. Big production lines that work all the time can hold up to 10 tons, while small compounders can only hold up to 300 kg. An electric control cabinet in one place makes it easy to use, and the motor protects itself automatically from overload and overheating.

Where These Mixers Are Used?

It's more useful than most buyers think. To mix the colors, this is the first step in the process for injection molding, film blowing, and extruder lines. They work great with high-gloss consumer goods and color-sensitive packing materials, where the quality can be seen right away in the way the surface looks. People who make masterbatches also use this machine to mix color powder with base resin pellets before they are pelletized. And facilities that regrind use it to mix controlled amounts of new material with recycled material.

Comparing Vertical Color Mixer Types and Alternatives

Not every mixing technology fits every production scenario. Understanding the differences helps you avoid over-specifying or under-specifying your equipment.

Vertical vs. Horizontal Mixers

Horizontal ribbon blenders impart mechanical shear which is good for powder-heavy formulations but may break up brittle pellets or create fines. A vertical design utilizes gravity assisted circulation which is more gentle on pellet integrity. In color matching applications where the goal is to coat surfaces rather than change the structure, the vertical design always provides a more uniform pigment dispersion at lower energy consumption per ton of material processed.

Vertical Mixers vs. Drum and Tumble Blenders

Drum mixers and tumble blenders are good for small quantities that are handled by hand. But they are challenged by the density differential between smooth virgin pellets and uneven regrind chips. This typically leads to a stratification in the hopper before the material reaches the injection molding machine. The vertical screw motion of a pellets vertical color mixer continually recirculates the mix for the entire cycle, regardless of the particle shape or the variation in their bulk density, thus counteracting stratification.

When a Screw or Gravimetric Blender Makes More Sense?

Gravimetric blenders provide accurate dosing at the throat of the injection molding machine but are expensive and must be calibrated each time a recipe is changed. If you need to make multiple color SKUs in a shift, need to prepare big, pre-blended batches, or need to create a buffer between the upstream material supply and the injection press, a dedicated vertical color mixer is a more practical solution. If you’re doing more than four color changes a day, the vertical mixer’s quick-clean design will minimize your changeover time drastically.

How to Choose the Best Pellets Vertical Color Mixer for Injection Molding?

If you want to buy the right machine, you need to make sure that the specs match the way you make things.

Mixing Uniformity and Material Compatibility

At least 99% mixing consistency should be your first level of trust. It's important that the inside of the machine is as smooth as a mirror. It is possible for pigment residue to get on other colors when you change from dark to light colors on rough surfaces. 304 stainless steel is the best building material for companies that use more than one color because it doesn't stain easily with chemicals, cleans up quickly with compressed air, and doesn't let metal get in the way of color accuracy. Q235 carbon steel is a useful and cheap choice for jobs that only need one color or are not very sensitive.

Capacity, Heating, and Control Precision

Match the mixer's rated capacity to the size of your batch, but leave at least 10% empty space below the highest level so the tumbling flow stays smooth. If your mix has chemicals that don't like heat or a main ingredient that is wax-based, look for heating that is built in and has PID temperature control that is accurate to within 1.5°C. With this level of accuracy, you can be sure that the heating element will help the color spread out without melting the material at high temperatures. This is very important for industrial resins like PC mixes or ABS.

Certifications, After-Sales Support, and Total Cost of Ownership

Make sure you get proof that the sides are made of 304 or 316 stainless steel. Having CE and ISO paperwork is important for importing goods into Europe and the Middle East. Before you buy something, you should think about how quickly you can get replacement parts, how quickly the supplier can answer technical questions, and whether they can show proof of the mixing process, which is something that many OEM customer audits need.

Maintenance, Troubleshooting, and Operational Tips

It's important to have regular maintenance habits if you want things to keep working well for a long time.

Preventive Maintenance Schedule

Every week, look for signs of wear on the spiral screw bearing and seal. This is very important if you work with masterbatch that is full of mineral or glass fibers, because the contact surfaces wear down faster. Manufacturers say that the parts of the gear reducer should be oiled every so often. Also, check the motor protection relay to make sure it doesn't trip when the engine is cold. If you keep an inspection log, you can find patterns of wear before they cause unplanned downtime.

Cleaning Protocol for Color Changes

It's best to load the base pellets first and then add the masterbatch for a smooth start. Clear the cylinder with natural-colored new pellets and make sure there is no more discharge before adding the next batch. This will change the color from dark to light. To dry clean the inside walls of a pellets vertical color mixer, you should only use compressed air or an ATEX-rated vacuum. Electrical parts should never get wet. Before working with resins that tend to pick up static electricity, like PP or PS, ground the machine frame. This will help the color flow better on the chamber wall.

Troubleshooting Common Issues

Many times, the first shots after blending don't show the colors spread out evenly. This is because you either didn't mix them long enough or filled the tank too much. Drop the fill level to 90% of the recommended amount and make the cycle last for an extra five minutes. If the drive unit is making strange noises, it's likely that the gear reducer doesn't have enough oil or that the screw shaft bearing needs to be changed. These two issues won't get worse and break the motor or screw shaft if you fix them right away.

Why Yude Plastic Machinery Vertical Color Mixers Stand Out?

Vertical color mixers from Yude Plastic Machinery can hold anywhere from 300 kg to 10 tons. They can be used by both small masterbatch compounders and big injection molding factories. Some of the best things about this line of goods are:- The colors of the masterbatch and base resin are always the same in every batch because of a vertical spiral rising circulation structure. This makes the mixing ≥99% uniform.

• The vertical spiral lifting circulation structure guaranties the mixing uniformity ≥99%, and the color matching of masterbatch and base resin is consistent in each batch.
• Dual material options: Q235 carbon steel for cost sensitive single color lines and 304 stainless steel for multi color operations where rapid and contamination free changeovers are needed.
• ±1.5°C PID temperature control, works with heat-assisted pigment dispersion for wax-based and powder-blend compositions.
• Overload and thermal protection of the motor through the integrated electric control cabinet. Less need for operator interaction and protection of drive components.
• Custom mixing process validation paperwork available upon request for customer factory audits and OEM compliance requirements.

Inconsistent pigment spread and cross-contamination during color changes are the two most common problems that color matching has to deal with. Yude has done work for people in South America, Europe, Southeast Asia, and the Middle East. Before completing an order, Yude's expert team can test samples to make sure they work with your specific recipe.

Conclusion

Your customers will be happy, the quality of the product will improve, and the speed of production will go up if you get the right mixing equipment for your injection molding line. If you pick the right pellets vertical color mixer, it will give you even color spread, faster color changes, and consistency from batch to batch that you can't get by mixing by hand. The best way to keep getting good results is to make sure that the machine's build, capacity, and control features are all right for your production conditions. This is true whether you're using standard polyolefin masterbatch or high-load engineered compounds.

FAQ

How long does a typical mixing cycle take?

Pellet blending times are generally between 15 and 40 minutes depending upon pellet size, type of resin and master batch concentration. Even with a high ratio of masterbatch or an odd form to the regrind particles it takes more cycles most of the time to get the spread.

When should I choose a vertical mixer over a gravimetric blender?

There are times when you need a cheap buffer between the material supply and the injection press, when you need to make big batches that have already been mixed, or when you need to run more than one color SKU per shift. This type of system is better for dosing in real time at the machine's throat, but it costs more and takes longer to set up.

What maintenance does the mixer need most frequently?

Once a week, check the bearings and seals, grease the gear reducer, and clean the chamber with the dry method every time the color changes. This takes care of most of the upkeep needs. You need to check the screws and inner walls more often when you use rough fillers like glass fiber.

Can Yude customize the mixer for non-standard batch sizes?

If there is enough room, Yude's engineering team can make the screw geometry, chamber volume, and temperature control parameters fit the needs of a certain formulation.
