Choosing a Plastic Mixer for Film Blowing and Extrusion Production

If you run a PE or PP film blowing line, you already know that color consistency is not optional — it directly determines your scrap rate. Choosing the wrong mixing equipment means uneven masterbatch dispersion, visible color streaks, and rejected rolls. A spiral type large vertical mixer addresses this problem at its root by circulating pellets and color concentrates in a continuous three-dimensional flow, achieving mixing uniformity of ≥98%. This article walks you through everything you need to know before making a purchase decision.

Understanding Spiral Type Large Vertical Mixers in Plastic Mixing

How the Spiral Mechanism Works?

This machine works on a simple principle: a single vertical screw moves material from the bottom of a cylinder-shaped barrel to the top, while material on the outside wall slides back down. This makes a loop that keeps going around and around. The screw speed stays between 30 and 60 r/min, so the action is gentle enough to keep the pellets whole while still distributing them evenly.

Why Film Blowing Demands High Homogeneity?

Any change in the concentration of the masterbatch shows up as a color band across the width of the film when it is extruded. Studies on making polyolefin films show that the number of color errors goes down a lot when mixing consistency goes above 97%. With a uniformity level of ≥98%, spiral vertical mixers are much better than paddle or drum-type alternatives that can handle the same amount of work.

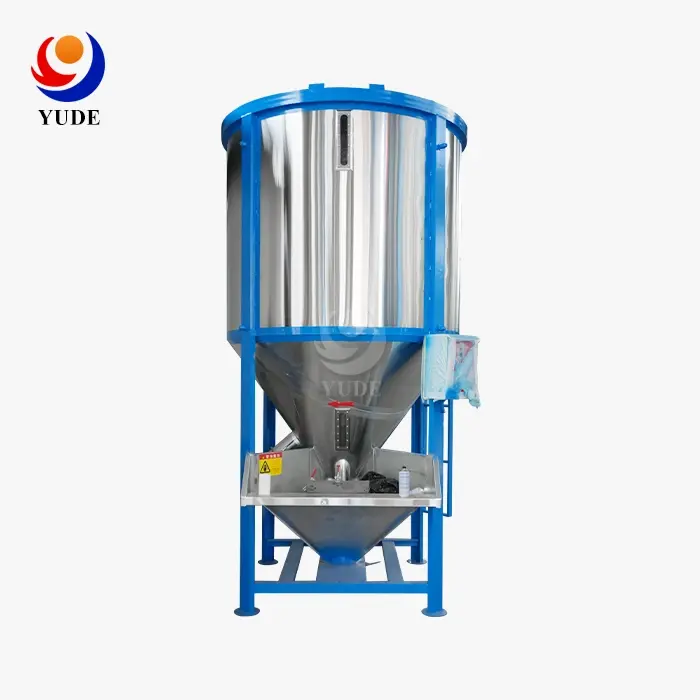

Product Specifications at a Glance

The vertical mixing units made by Yude Plastic Machinery have a Q235 carbon steel barrel with a non-stick finish on the inside and screw blades that don't wear out easily. The drive system has a heavy-duty gear reducer and a three-phase asynchronous motor that work together to keep the power stable, even when the machine is running continuously in multiple shifts. This means that you can perfectly match the machine's capacity to the feed rate of your film line because the effective amount can be changed for each model.

Key Differences: Spiral Type Vertical Mixer vs. Other Mixer Types

Spiral vs. Paddle Mixers

Paddle mixers are good for short-cycle, small-batch jobs, but they have trouble mixing PE or PP pellets with high bulk densities. Their horizontal sweeping action doesn't stir up the material near the discharge port enough. This dead zone isn't there in a spiral type large vertical mixer because the screw goes all the way to the circular bottom of the vessel and pulls everything into circulation.

Spiral vs. Ribbon Blenders

A lot of people use ribbon blenders, but gravity-assisted spiral recirculation uses about 30–50% less energy per ton processed. For a film plant with three shifts, that energy gap means a difference in monthly power costs that can be seen. This is important because film production margins are already low.

Spiral vs. Horizontal Drum Mixers

When compared to their working volume, horizontal drum units need a lot of floor space. Up to 70% less floor space is needed for a vertical spiral mixer with the same capacity. This is helpful in production halls where extrusion lines, winders, and packing stations are already crowded.

The above differences are not small ones. From the first production run on, choosing the right type of mixer protects both the quality of the product and the cost of running the business.

How to Choose the Right Spiral Vertical Mixer for Your Production Needs?

Match Capacity to Your Line Output

The first number you need to come up with is how much resin you use every hour. From 600 kg to 10 tons, Yude's vertical color mixers can mix colors. A single-screw extruder that works at 200 kg/h needs a buffer volume of at least four hours' worth of material that has already been mixed so that the feed doesn't stop. By choosing the right size mixer, you can avoid jams without spending too much on equipment that is too big.

Evaluate Material Compatibility

Even though PE and PP are low-hygroscopic resins, color concentrate powders can still contain water that can leave surface defects in the finished film. Make sure that the model of mixer you choose has a warm-air circulation function in case your masterbatch needs to dry before it can be mixed. The needs of ABS and PVC lines are different, and Yude's range includes all four plastic groups.

Review After-Sales and Spare Parts Terms

On a film line, downtime costs a lot of money. Before you decide on a source, find out how long it takes to get wear parts like screw blades and bottom bearings, which are subject to the most wear and tear. The after-sales service at Yude Plastic Machinery is open 24 hours a day, seven days a week, and covers most of the country's big towns. For domestic customers, they get help within 24 hours, and overseas customers can work with local service teams.

When you put these factors together, you get a useful list that goes beyond just comparing prices and covers the total cost of ownership over the life of the equipment.

Maintenance, Troubleshooting, and Optimizing Mixer Performance

Daily and Weekly Checks

Check the gap between the screw blades and the motor tone every shift for any changes that could mean the bearings are wearing out. Check once a week to make sure the oil level in the gear reducer is correct and that the anti-stick coating on the barrel wall is not scratched. It takes less than ten minutes to do these quick checks, which keep most unexpected stops from happening.

Diagnosing Mixing Inconsistencies

If film color bands show up again after some normal use, screw blade wear in a spiral type large vertical mixer is the first thing that should be looked at. When the flights are worn out, the effective lift height of the material drops, which shortens the mixing cycles. Another common reason is that the barrel is overloaded beyond its rated volume, which makes it harder for the fluid to return to its original state. Once they are found, both problems are easy to fix.

Energy Optimization Practices

It is still possible to get the ≥98% uniformity goal for normal PE/PP blends when the mixer is run at the slower end of the 30–60 r/min speed range. This also lowers the motor load and heat output in warm production halls. When combined with a timer-controlled batch cycle instead of constant idling, this method can significantly lower the amount of energy used per ton over the course of a whole production month.

Procurement Considerations: Ordering, Delivery, and Post-Purchase Support

Ordering Process and Lead Times

Standard models from Yude Plastic Machinery can be delivered in 15–20 days, which is about the same amount of time that film manufacturers usually need to make a choice, which is 2–4 weeks. Before production starts, there needs to be a short technical approval step for custom setups like barrel volumes that aren't standard or control interfaces that can be used in multiple languages for export markets. The schedule stays on track when you ask for a full specification sheet early on.

Shipping and Installation

For buyers from other countries, Yude ships equipment in fumigated wooden crates that have been treated to resist rust and moisture, making them suitable for long sea trips. Help with installation on-site is part of the standard purchase package. The business also helps buyers who need third-party pre-shipment inspections, like those done by SGS or BV, because their import rules require them.

Supplier Credibility and Track Record

Since it began, Yude Plastic Machinery has worked with thousands of customers in China and around the world. Its products have been exported to over 30 countries in Southeast Asia, the Middle East, Europe, and South America. Large-scale batch production lets prices be competitive without lowering the quality of the build; every unit goes through a full inspection process, from when the raw materials are brought in to when it is finally put together.

Conclusion

There are three things that are most important when choosing blending equipment for a film extrusion line: making sure the mixing is uniform, making sure the capacity size matches the feed rate, and finding a supplier that can back up the equipment with quick parts availability and technical support. A well-designed large vertical mixer, such as a spiral type large vertical mixer, can do all three, which can make a quality problem that lasts for a long time go away. From 600 kg to 10 tons, Yude Plastic Machinery's product line includes all the different sizes and types of resins used in film production. It also has the technical depth to support both standard and custom applications.

FAQ

Q1: What is the main technical advantage of a spiral vertical mixer over a paddle mixer for PE film lines?

The spiral screw goes all the way to the bottom of the conical vessel. This gets rid of the areas where material pools that paddle designs leave near the discharge area. Because PE beads don't have a very high bulk density, this full movement is what makes them more regular than the 98% level needed for film quality.

Q2: How do I determine the right capacity for my extrusion output?

Find out how much resin your extruder uses each hour and multiply that number by the number of buffer hours you want to have. A 200 kg/h line with a cushion of four hours needs an 800 kg mixing tank. Once you give them your line speed and shift schedule, Yude's engineering team can make sure they have the right model.

Q3: How often should screw blades be replaced?

Standard PE/PP service means that wear-resistant screw blades usually keep their shape for 12 to 18 months of three-shift work. For compounds that are heavy on glass or minerals, the blade's life is shortened, and hard-facing treatment is suggested. Yude keeps standard wear parts in stock so that they can be sent out quickly.

Q4: Is installation support included in the purchase price?

Yes, standard purchases come with instructions on how to install them, and Yude's after-sales team offers remote commissioning support. For bigger or more specific installations, on-site help can be arranged.

Connect with Yude Plastic Machinery for Your Next Mixer Purchase

When it comes to spiral type large vertical mixers, Yude Plastic Machinery makes everything from 600 kg to 10 tons. When it comes to consistency and energy, our equipment meets the high standards that film processing needs. You can email our technical team at sales@yudemachinery.com or go to https://yudemachinery.com/ to get pricing information, specifications, or a solution that is made just for your production line.
