How Much Does a 5 Ton Vertical Plastic Particle Mixer Cost?

When looking for a large capacity plastic mixing unit to feed a PVC pipe line, a compounding factory or a recycled pellet operation, the issue that typically comes up first is: what is the real price? A 5 Ton vertical plastic particle mixer costs between $8,000 and $28,000 USD, depending on the materials used, the heating system, control system complexity, and the manufacturer's service package. Standard variants without heating start at $8,000–$14,000, and fully equipped heating models with PID temperature control and PLC automation are in the $18,000–$28,000 range. Here's the breakdown of what causes that price discrepancy.

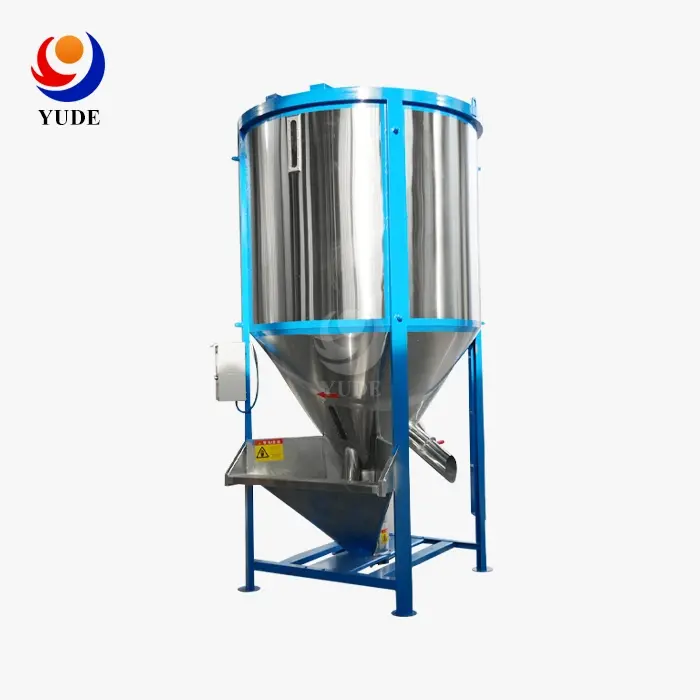

Understanding the 5 Ton Vertical Plastic Particle Mixer

Before comparing prices, it helps to understand what you're actually buying—and why this specific capacity class earns its place on production floors worldwide.

How the Vertical Screw Mixing Principle Works?

A vertical plastic granule mixer pulls material from the bottom of the tank using a central screw auger and sprays it in a continuous fountain pattern. This “umbrella flow” cycle continues until all particles have passed through the mixing zone. The outcome is full homogenization without excessive mechanical shear of resin, a problem in high-filler compound operations.

Core Technical Specifications at 5,000 kg Capacity

Rated loading capacity of 5-ton class is 5,000 kg estimated using plastic granules with bulk density of 0.6-0.8 g/cm3. The effective volume of mixture is roughly 7,500-8,000 L per batch. Mixing homogeneity ≥98% at all times. A single mixing cycle takes 15 to 25 minutes and can be adjusted for particle size and specific gravity. The drive system is powered by a 15-22 kW motor with integrated overload protection . Heating options include a 45-75 kW heating unit with PID temperature control and digital display . The tank is 304 stainless steel, with 316L available for corrosive or food-adjacent applications.

Why the 5-Ton Class Suits Mid-to-Large Production Lines?

At this capacity, one batch can feed numerous extrusion lines concurrently. A 5-ton mixer minimizes feed gaps if a pipe plant is running two or three extruders in tandem, eliminating the need for two smaller units. The economics work: fewer equipment means less maintenance overhead, less floor space and a simpler material handling arrangement.

Key Factors Influencing the Cost of a 5 Ton Vertical Plastic Particle Mixer

To understand the price spread, you need to know what manufacturers really charge for and why those line items are important for the reliability of long-term production.

Material Construction and Tank Grade

Material in the tank is the key cost driver for the base unit. Most PVC and PE compounds will not damage normal 304 stainless steel, however products with a high percentage of glass fibers or minerals are very abrasive. The upgrade to 316L stainless steel costs around 10-15% more for the unit, but gives a substantially longer wear life in tough compounding circumstances. For high mineral applications, hardened inner liners or carbide coated screws add another expense level.

Heating System Configuration and Temperature Control

Combine a basic blending machine with a heating function and you have a drying-mixing system. From pre-warming PP pellets to moisture removal from PA/PC, the 5 Ton vertical plastic particle mixer with the 45 – 75 kW range of heaters can do it all. But the direct approach to safeguard the product quality is to stop the heat-sensitive plastics from degrading. PID control that retains the precision to within ±1.5°C does just that. The heated machines are $4000-$8000 more than non-heated models, but they don’t need a separate hopper drier which is pricey and takes up room.

Automation, Control Systems, and Safety Features

PLC based control for automatic loading, mixing and discharge reduces human labor and eliminates batch to batch variation. The price goes up because of the touch-screen HMI platforms, being able to log lots of data at once, and being able to observe remotely. The agitator features safety interlocks, auto-shutdown protocols for overheating and overload protection, all standard on high grade machines and helping them to achieve CE certification standards. These are not "nice to have" extras that customers of 24 hour manufacturing may do without. They are essential to running the business.

Comparing Vertical Plastic Particle Mixers: Price and Performance Analysis

Not every mixing job needs the same set of tools, and price alone doesn't show how valuable something is over a 10-year lifespan.

Vertical vs. Horizontal Mixer: Cost and Suitability

For the same nominal capacity, horizontal ribbon mixers often have lower entry prices. However, they take up a lot more floor space and use more energy per ton mixed. A vertical screw mixer usually uses less energy and takes up less space when it comes to granular thermoplastics that only need gentle vertical circulation. When working with powder-heavy mixtures, horizontal units are still better because they can use strong ribbon motion to help the powders spread out better.

Price Tiers by Configuration

In the market for 5-ton vertical mixers, there are three main price ranges that buyers can find:

• Standard non-heating model ($8,000–$14,000): 304 SS tank, 15–22 kW motor, manual or semi-automatic control, suitable for dry granule blending of PE/PP/PVC.
• Heating model with PID control ($14,000–$22,000): Adds 45–75 kW heating, PID digital display, double-wall insulation, ideal for hygroscopic resins like ABS, PA, and PC.
• Full PLC automation model ($20,000–$28,000): Integrates auto-loading, programmable mixing cycles, data logging, CE/ISO certification, and 7×24 after-sales support packages.

These price levels reflect real differences in what they can do. The heating and automation tier is needed for a buyer who runs recovered PET through a 24-hour extrusion line. The entry tier may be enough for a masterbatch blender who works with normal PE carrier.

Evaluating Total Cost of Ownership

It costs less than half as much to buy as it does to own for ten years. All adds up to annual maintenance work, availability of spare parts and quantity of energy consumed for a motor load of 15-22 kW. The cost of unplanned downtime can be significantly reduced by manufacturers providing detailed replacement schedules for wear parts and keeping key spares in stock. In a factory where the breakdown of a mixer for an hour may shut down an entire extrusion line, the after-sales reaction time is not a soft benefit. It’s a financial variable.

Maintenance, Safety, and Operational Costs That Affect Total Ownership Cost

In heavy-duty mixing applications, equipment that lasts a long time depends on regular maintenance and good safety habits.

Routine Maintenance Protocols

Screw auger wear, bearing lubrication and seal condition should be checked weekly. Check the gear reducer oil level and motor brush condition once a month to avoid premature drive failures. The inner tank wall must be cleaned after each manufacturing campaign with colorants or mineral fillers to prevent cross-contamination. If the operator adheres to the manufacturer’s recommended lubrication plan, the life of the gearbox will generally exceed the typical 10-year equipment design goal.

Safety Compliance and Its Cost Impact

CE-certified 5 Ton vertical plastic particle mixers have interlock switches that stop people from getting into the mixing zone while it's running, motor overload protection, and an automatic shut-down feature for overheating. To meet these standards, the control cabinet and mechanical structure need to have more engineering work done on them. Buyers who want to send finished goods to the EU or deliver parts to automakers must have CE approval; it is not a choice. The approved unit price includes the costs of safety compliance.

Energy Consumption and ROI

At 85% usage, a 15–22 kW motor that runs in two batches per hour uses about 25–37 kWh of electricity per hour. When compared to tanks that aren't insulated, heated models with double walls cut thermal loss by up to 30%, which directly lowers the cost of electricity per batch. That savings adds up to a measurable return on the insulated tank upgrade over the course of a full production year at industrial electricity rates.

Procurement Considerations: Buying a 5 Ton Vertical Plastic Particle Mixer

Finding the lowest FOB price on a B2B platform is not enough to find the right equipment for your needs.

Supplier Verification and Certification Checks

Suppliers of 5-ton plastic mixers you can trust have ISO 9001 quality management certification and can give you CE declarations of conformity. Whether done in person or by a third-party inspection company like SGS or BV, factory audits make sure that the manufacturing processes match the specs that were given. When buyers don't check with the seller first, they often find that the product brochure and the shipped machine don't match up with the specifications.

Negotiation, Payment Terms, and Logistics

When you buy one unit, most manufacturers offer EXW or FOB terms. People who buy two or more units usually can get a 5–10% discount and consolidated sea freight. In this market segment, it is common to pay 30% down and the rest against a Bill of Lading. Early on, make sure you know the crate's dimensions and gross weight. Because they are so tall, 5-ton mixers with heating systems often need flat-rack containers, which changes the cost of freight.

Installation, Warranty, and After-Sales Expectations

A reputable manufacturer gives the operator the installation and commissioning instructions, wiring diagrams and material for training in the language of the buyer . Most warranties include parts for 12 to 18 months. If you are a buyer from outside your country, make sure that the seller has local service partners that can repair serious problems on-site within 24 hours. Remote diagnostics over a PLC network cuts down the time to repair most control system problems in an emergency.

Conclusion

A 5 Ton vertical plastic particle mixer is a lot of money. The price range of $8,000 to $28,000 is a substantial difference. There is a difference in the quality of the materials, the level of automation, the heating capacity and the dependability of the company after the sale. Buyers that match the configuration tier to their real production needs consistently report lower total ownership costs and fewer unplanned stoppages, rather than selecting the cheapest unit. First, you need to decide what throughput you require, how moisture-sensitive your materials are and how you want to automate the process. Then compare vendors on those aspects as well as price.

FAQ

What is the typical price range for a 5-ton vertical plastic granule mixer?

The common non-heating variants are about $8,000-$14,000 USD. Heating configurations with PID control add $4,000-$8,000 to that range. Generally, the full PLC automation versions with CE certification cost $20,000-$28,000. Pricing will depend on the building grade, heating capacity, and the manufacturer’s service package.

How does a vertical mixer compare in cost to a horizontal ribbon mixer at 5-ton capacity?

Horizontal ribbon mixers often have a somewhat cheaper initial cost, but they occupy more floor area and consume more energy per ton processed. For granular thermoplastics, the vertical design tends to be more energy efficient over a full year of production, thereby justifying the little difference in purchase price.

What ongoing costs should I budget for after purchasing?

Expect annual oil changes to the gearbox, check for wear on the screws and inside wall, check the heating elements on the heated ones, and a spare set of bearings. Critical spare parts, especially the screw auger and main shaft seal, should be stocked on-site to avoid long downtimes.

Can this mixer handle hygroscopic engineering resins like PA or PC?

Yes. The heating model with a 45–75 kW heating unit and PID control maintains temperatures accurately enough to reduce moisture content in PA and PC below the 0.02% threshold typically required before processing. This eliminates the need for a separate hopper dryer in many production layouts.

Is CE certification standard on all 5-ton vertical mixers?

No. CE certification has strict safety engineering and control system design. Always ask for a CE Declaration of Conformity and ensure that covers the whole equipment and not just the electrical cabinet.
