Is a PS plastic mixer suitable for recycled PS pellets?

A PS plastic mixer is well-suited for recycled PS pellets, provided the equipment is correctly configured for the material's specific properties. Recycled PS pellets differ from virgin material in bulk density, particle geometry, and potential contaminant levels. A dedicated polystyrene mixer with an optimized spiral mixing structure, wear-resistant components, and speed control adjusted to PS rheology can process recycled pellets effectively, achieving mixing uniformity of ≥ 98%. The right equipment selection directly reduces waste rates and protects downstream injection molding or extrusion lines from inconsistent feed.

Understanding PS Plastic Mixers and Recycled PS Pellets

What a PS Mixer Actually Does?

A polystyrene mixer is a unique type of additional equipment used to mix PS resins (e.g. GPPS, HIPS or EPS) with colorants, foaming agents or recycled material. It takes into account the amorphous nature of PS and its moderate bulk density (about 0.55-0.65 g/cm 3 for pellets), which is different from a general purpose stirrer. This vertical spiral system creates a controlled circulation loop from bottom to top. Thus all the pellets reach the mixing zone without leaving empty areas.

Properties of Recycled PS Pellets

Recycled PS pellets are derived from streams of old or discarded material, like foam packing, appliance housings, or single-use containers. When granulated they often have a larger particle size distribution, a somewhat lower melt flow index (MFI) and residues of pigment or additives not totally washed out. They can be up to 10-20% difference in bulk density from new pellets, causing variable movement of material through standard feed systems.

How Material Differences Affect Mixing Performance?

You will get density stratification if your mixer does not allow you to vary the speed or has blades with a fixed geometry. Recycled pellets are not as homogeneous as virgin pellets, thus heavier virgin pellets will settle to the bottom and lighter regrind will float to the top. This stratification leads to downstream difficulties such as color streaking on injection-molded parts, non-uniform cell structure in foam products, and greater scrap rates. This is taken care of by equipment built to cope with PS characteristics . By matching the spinning speed and spiral pitch to how the material actually flows .

Evaluating the Suitability of PS Plastic Mixers for Recycled PS Pellets

Design Features That Matter

There are three pieces of equipment that show how well a PS mixer handles recycled pellets. First, the spiral pitch and blade geometry need to move the larger particles around without catching the fine regrind particles. Second, variable speed control (usually 85–200 RPM) lets operators fine-tune the shear based on the make-up of the batch. For example, slower speeds are usually needed for batches with higher regrind ratios to keep friction heat from building up. Third, inner barrel surfaces that are finished to Ra < 0.2 µm keep materials from sticking and make grade changes easier to clean.

Benefits of Using a Purpose-Built PS Mixer with Recycled Material

Companies with closed-loop recycling systems often mix new PS with up to 40% in-house regrind. Here are the main benefits of using tools that was made just for this job:

• Consistent MFI output: By maintaining blend homogeneity, the mixer stabilizes the melt flow index batch to batch, which protects injection screw wear and reduces purging cycles.
• Reduced additive waste: Accurate dispersion of foaming agents or color masterbatches means processors use only what formulations require — no overloading to compensate for poor mixing.
• Lower scrap rates: Mixing uniformity ≥ 98% translates directly to fewer rejected parts from color streaks or density anomalies in foam products.

Potential Challenges and How to Address Them

Recycled PS pellets increase the chance of contamination and make mixing parts wear out faster in a PS plastic mixer. The fine particles from the regrind make the spiral and barrel walls wear down faster. Service times are greatly increased by specifying hardened metal or wear-resistant mixing components from the start. Another real problem is static building. PS is very insulating, and recovered materials that still have additives in them can make this worse. Grounding lines and polished stainless steel cells work well to stop static sticking.

Comparing PS Mixers with Alternative Equipment for Recycled PS Pellets

PS Mixer vs. PVC Mixer

Mixers for PVC work at higher temperatures and have heating jackets that are made to work with PVC's thermal processing needs. When dry blending, PS doesn't need any extra heat from outside sources. Adding heat that isn't needed speeds up degradation and raises volatile emissions. A PS-dedicated mixer works at room temperature with controlled mechanical energy. This makes it better for polystyrene and uses a lot less energy per batch.

Batch vs. Continuous Mixing Systems

If your business works with a lot of different PS grades or color changes often, batch vertical mixers can help. Continuous mixing systems work best for single-grade lines that handle a lot of material and need consistent throughput more than recipe flexibility. Batch systems are the best choice for EPS foam packaging plants that need to switch between density grades. Continuous feeds may be better for injection molding plants that make stable runs of products, but they need to be calibrated more carefully when regrind ratios change.

Equipment Optimized for Recycled PS Processing

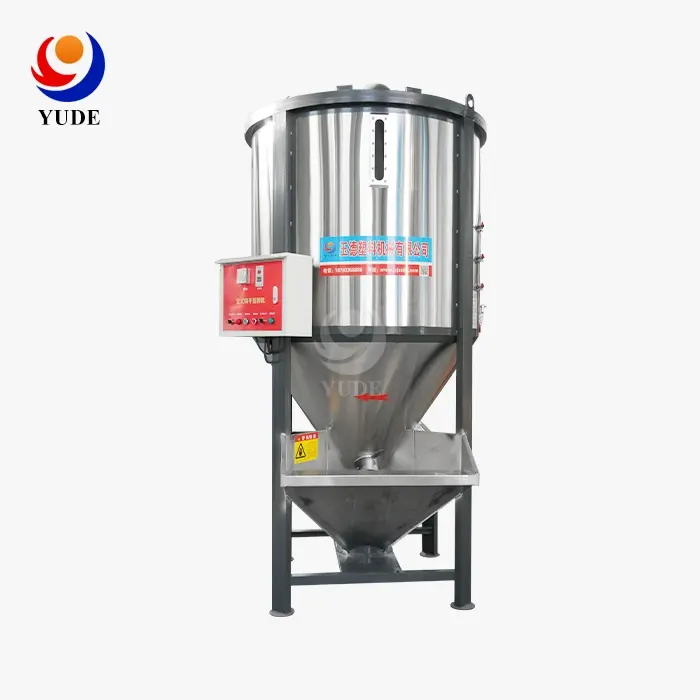

Yude Plastic Machinery's vertical mixer is made to work with PS pellets and has a spiral mixing structure that is perfectly adjusted to the PS pellets' density and flow. The material of the barrel is chosen to match the properties of PS, and wear-resistant mixing parts make the equipment last longer when working with heavy batches of recycled or regrind material. The unit can be used on PS granulation, injection molding feed, and extrusion lines, so it can be used to make everything from EPS foam packing to HIPS device housing.

Practical Considerations for Procurement and Maintenance

Sizing the Equipment Correctly

Do not choose a mixer based on the weight of each shot. Find out how many kg of work the target machine does in an hour, and then choose a mixer that can handle at least 1.5 times that amount. This buffer keeps the injection screw or extrusion hopper from running dry during peak production by keeping track of the time between loading and unloading.

Supplier Credibility and Certifications

It's just as important for B2B procurement teams to check a supplier's quality management system as it is to look at the specifications they give them. The fact that the production process meets recorded quality controls is shown by ISO 9001 approval and compliance with IEC 60204-1 electrical safety standards. Yude Plastic Machinery has a quality inspection system that checks the whole process, from the time that raw materials come in to the time that they are delivered.

Maintenance Practices for Recycled Pellet Applications

Every 1,000 hours of use, bearing assemblies in a PS plastic mixer that are under a lot of regrind loads need to be oiled again. Every year, seals should be checked to make sure that finer regrind particles don't let powder leak out. For regular color changes, like going from black HIPS to clear GPPS, a design that doesn't require any tools lets the stainless steel blades be blown out with compressed air and then cleaned with a solvent. This keeps contamination between runs to a minimum.

Safety Guidelines and Operational Best Practices

Temperature Control and Static Management

PS mixing doesn't need high processing temperatures, but friction heat from working at a high speed can make small particles loose and cause them to stick together. Watching the motor load while it's running lets you know when it's making too much heat before it damages the material. There is a real risk to safety and quality from static electricity. Grounding lines must be used, and in dry areas or high-throughput lines, an ionizer installation or anti-static dosing port gives extra protection.

Compliance with Industrial Safety Standards

The safety rules for equipment used in sites in North America and Europe must be followed. In line with CE marking standards, mechanical and electrical safety interlocks that stop the machine when the feed lid is opened are used. When cleaning the inside of large mixers (600 kg or more), operators should also follow OSHA rules about working in confined spaces.

Operator Training for Regrind Workflows

It is known that worker turnover is a problem in the plastics industry. Equipment with an easy-to-use control panel, clear load signs, and clearly marked release routines cuts down on training time and mistakes. Overload protection on the drive systems of machines keeps them from being loaded incorrectly, which can happen when operators mix new regrind batches that have different bulk densities.

Conclusion

A PS plastic mixer is suitable for recycled PS pellets when the equipment is correctly specified. The key variables are spiral geometry matched to PS fluidity, wear-resistant components for regrind abrasion, and speed control that accommodates bulk density variation. Properly configured equipment achieves ≥ 98% mixing uniformity, stabilizes MFI output, and reduces scrap across foam packaging and injection molding applications. Procurement teams should verify capacity sizing, supplier certifications, and maintenance accessibility before placing an order.

FAQ

Does processing recycled PS pellets shorten mixer service life?

It can if the equipment uses standard stainless steel parts that haven't been hardened any further. Because their sides aren't smooth and there are still inorganic contaminants in them, regrind particles are more likely to wear down than fresh pellets. This is directly dealt with by ordering wear-resistant mixing components. If you choose the right parts and lubricate them on a regular basis, the service life in regrind-heavy operations will be the same as in virgin-material uses.

Does energy consumption increase when running recycled PS?

A little, yes. Because the mass density changes and the particle sizes are spread out more, the motor has to handle a wider range of power, especially at startup. A properly sized drive system with excess safety, on the other hand, can handle this without using a lot more energy. By matching the mixer's capacity to its actual throughput demand instead of oversizing it, the amount of energy used per batch stays at a good level.

Can a mixer be customized specifically for recycled PS applications?

Yes, Yude Plastic Machinery can make custom setups with features like multilingual control interfaces, spiral pitch adjustments for different regrind ratios, and choices for anti-static equipment. Get in touch with the team to talk about your specific production needs and material profile.

Get the Right PS Pellet Mixer for Your Production Line — Talk to Yude Plastic Machinery

Yude Plastic Machinery sells PS plastic mixers that are designed to work with polystyrene and can be used for both recycling and new uses. The company serves clients in over 30 countries with capacities ranging from 300 kg to 10 tons, production that is ISO 9001-certified, and after-sales service that is available 7 days a week, 24 hours a day. To get a quote or see a demo of a trusted PS plastic mixer manufacturer's product, email sales@yudemachinery.com or go to https://yudemachinery.com/ today.

References

1. Harper, C. A. (Ed.). Handbook of Plastics Technologies. McGraw-Hill, 2006.
2. Rosato, D. V., & Rosato, M. G. Injection Molding Handbook (3rd ed.). Springer, 2000.
3. Throne, J. L. Technology of Thermoforming. Hanser Gardner Publications, 1996.
4. Brydson, J. A. Plastics Materials (7th ed.). Butterworth-Heinemann, 1999.
5. Plastics Industry Association. 2023 Size & Impact Report. Plastics Industry Association, 2023.
6. European Plastics Recyclers (EuPR). Plastics Recycling in Europe: Statistics Report 2022. EuPR, 2022.
