What plastic materials can be processed by a 5 ton vertical pellet mixer?

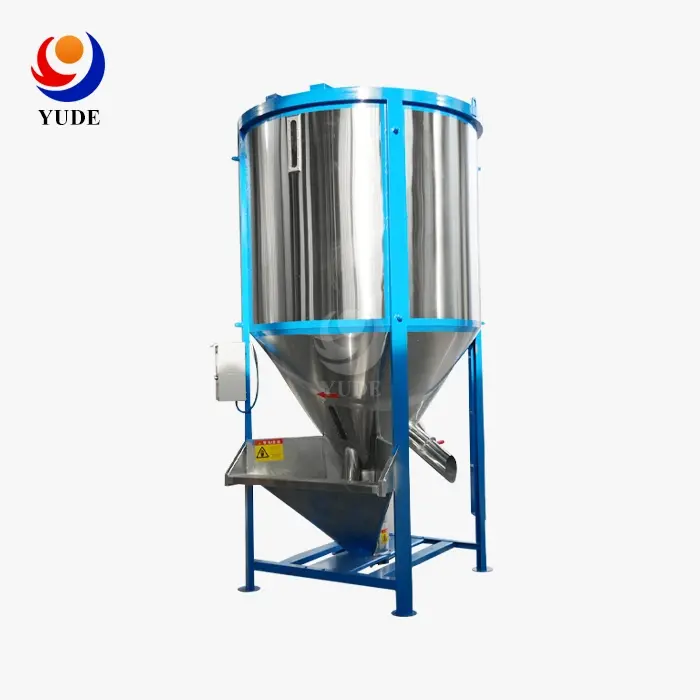

Plastic compounding and pellet blending require stable, high uniformity mixing equipment to adapt to diverse production demands. A 5 Ton vertical plastic particle mixer is one of the most widely used medium capacity mixing devices in the plastic processing industry. It features a vertical gravity circulation structure, low shear operation and large batch processing capacity. This industrial mixer is specially designed for various plastic pellets, recycled materials and modified composite materials. Many plastic manufacturers struggle with equipment matching, such as whether a single mixer can handle commodity plastics, engineering resins and recycled materials at the same time. This article comprehensively sorts out all processable plastic materials of the 5 Ton vertical plastic particle mixer. It also explains its working principle, core advantages and practical operation skills, providing clear and professional reference for factory equipment selection and production formulation adjustment.

Compatible Plastic Materials for a 5 Ton Vertical Plastic Particle Mixer

A 5 Ton vertical plastic particle mixer works well with most common thermoplastic pellets. It handles new raw resin, recycled regrind, color masterbatch and different functional additives. The unit can reach mixing homogeneity higher than 98 percent under correct operating settings. Its rated load capacity sits at 5000 kg. This rating uses bulk density values between 0.6 and 0.8 grams per cubic centimeter. The effective mixing volume ranges from 7500 to 8000 liters. The vertical screw design creates gentle circulation. It protects material quality and avoids excessive shear heat during blending.

General Commodity Plastics Suitable for the 5 Ton Vertical Plastic Particle Mixer

Polypropylene and polyethylene are the most widely processed materials in a 5 Ton vertical plastic particle mixer. These polyolefin pellets mix smoothly with color concentrates and UV stabilizers. General purpose polystyrene and high impact polystyrene also perform well in this mixer. Users can blend these polystyrene grades with flame retardants or antistatic additives to get even distribution. ABS resin benefits greatly from the low shear mixing action of the 5 Ton vertical plastic particle mixer. This gentle mixing keeps the natural surface gloss of ABS intact. PVC compounding is another common application. The machine limits extra heat build up. This feature prevents thermal degradation of PVC while stabilizers and processing aids disperse evenly.

Engineering and Specialty Resin Options

A vertical plastic particle mixer supports mixing work for many high performance engineering resins. Nylon or polyamide pellets can blend with glass fiber reinforcement up to 30 percent loading. The low shear movement reduces fiber breakage during circulation. Polycarbonate maintains its optical clarity when mixed with flow modifiers inside the 5 Ton vertical plastic particle mixer. Acetal copolymer mixes with internal lubricants without crushing pellet particles. TPE and TPU elastomer pellets retain their flexible properties after mixing with color masterbatch in this vertical mixer.

Recycled Regrind and Composite Filled Systems

Many plastic processors use a 5 Ton vertical plastic particle mixer to handle recycled plastic materials. The machine accepts 100 percent regrind feedstock. It also supports custom blends between virgin resin and recycled pellets to match finished part quality rules. The mixer can include powder additives up to 20 percent by weight. This function depends on upgraded bearing seals. The seals stop fine powder from entering internal mechanical parts. Mineral filled compounds with calcium carbonate, talc or barium sulfate gain consistent filler dispersion inside the vertical plastic particle mixer. Wood plastic composites, conductive carbon black compounds and mineral filled blends all work within this equipment when operators adjust bulk density and cycle time correctly.

Now that we have covered the full range of plastic materials compatible with this mixer, it helps to understand how its core design supports reliable blending for such a broad material portfolio. The internal mixing mechanism and key hardware directly decide which materials can run stably without quality defects.

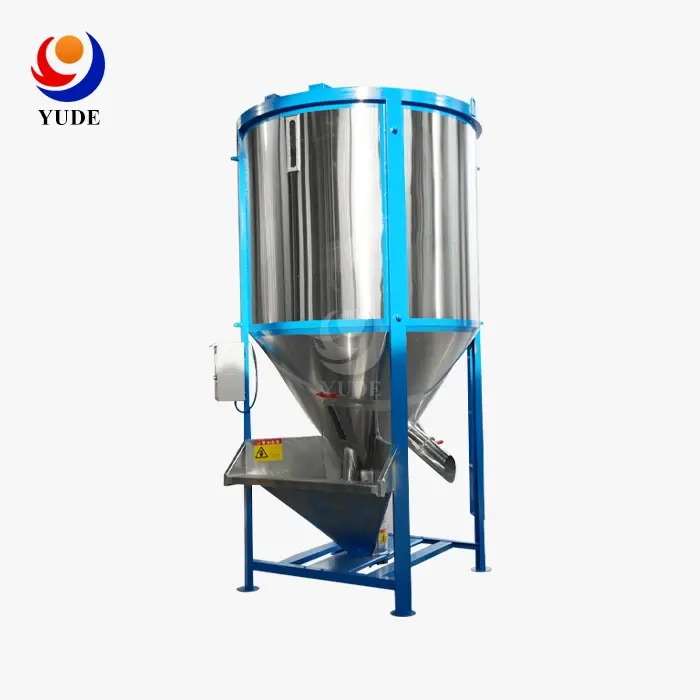

Working Principle and Core Components of the 5 Ton Vertical Plastic Particle Mixer

The 5 Ton vertical plastic particle mixer relies on gravity assisted circulation instead of forced high shear agitation. This simple mechanism makes it suitable for heat sensitive and fragile plastic pellets. The whole system runs on a central vertical screw. The screw lifts pellets from the bottom cone section up to the top of the cylindrical mixing chamber. Material then falls down in a steady fountain pattern. Pellets spread randomly across the full batch. Continuous lifting and falling stops separation caused by differences in material specific gravity. This solves a frequent pain point for processors who blend multiple pellet types with different densities.

Main Hardware and Control Features

A standard 5 Ton vertical plastic particle mixer uses a main motor rated from 15 kW to 22 kW. The motor includes overload protection and connects to the vertical screw through a precision gearbox. The screw agitator uses wear resistant surface treatment. This extends service life when users run abrasive filled or glass fiber reinforced plastics. For heated mixing tasks, the unit adds a PID digital temperature control system. Operators set and hold target temperatures accurately during compounding work. The standard tank body uses 304 stainless steel. Buyers can choose 316L stainless steel for corrosive additive formulations. Procurement teams should check weld quality and bearing seals before purchase. These two parts decide maintenance frequency and total equipment service life of the mixer.

Standard Operating Workflow and Mixing Cycle Rules

Operators load material into the 5 Ton vertical plastic particle mixer through top access hatches or pneumatic conveying lines. Full mixing cycles normally last 15 to 25 minutes. Exact cycle time changes based on pellet size and specific gravity gaps between blended materials. The vertical screw runs slower than paddles inside horizontal mixers. Lower rotation speed cuts shear stress. This design choice becomes critical for delicate additives and glass fiber filled plastic compounds. Operators can adjust cycle time to hit the 98 percent homogeneity target without damaging sensitive plastic materials.

Understanding material compatibility and machine operation sets the foundation. Next we look at the practical benefits this vertical mixer brings to plastic compounding factories and how it improves daily production economics.

Production Benefits and Practical Application Tips for the 5 Ton Vertical Plastic Particle Mixer

A 5 Ton vertical plastic particle mixer creates tangible advantages for plastic manufacturers. It delivers consistent mixing quality while controlling energy use and factory floor space. These advantages fit injection molding, extrusion and compounding workshops with medium to large batch requirements. Many factories with multiple shift schedules see steady savings on power consumption and cleaning downtime after switching to this vertical mixing design.

Consistent Mixing Performance for Reliable Plastic Parts

The fountain circulation method of the 5 Ton vertical plastic particle mixer delivers homogeneity above 98 percent. Random sampling at different points in one batch confirms even color and additive distribution. Good mixing removes common downstream defects. These defects include color streaks on injection molded products and uneven wall thickness on extruded profiles. Manufacturers serving automotive and medical plastic markets value this stability. Stable mixing lowers reject rates and helps production stay within strict material specification limits.

Energy Efficiency and Easy Daily Maintenance

A 5 Ton vertical plastic particle mixer consumes less power per kilogram of plastic compared with horizontal ribbon mixers and tumble blenders. Its design uses gravity to move pellets. It does not need extra power to counteract material weight. The 15 to 22 kW motor handles the full 5000 kg batch efficiently. Factories running long production shifts reduce workshop heat load. This cuts the workload for auxiliary cooling systems. The vertical layout also saves floor space. Ground level access doors and quick release discharge ports speed up color or material change cleaning. Polished inner surfaces prevent material buildup and support fast cleaning with air guns. Technicians complete bearing checks and screw removal without heavy disassembly. Routine maintenance fits easily into planned production breaks.

Custom Configuration Tips Based on Plastic Material Type

Material properties should shape the final configuration of a 5 Ton vertical plastic particle mixer. Hygroscopic resins such as nylon often need the heated mixer option. Heating capacity ranges from 45 kW to 75 kW. Heat keeps pellet moisture low during blending. Glass fiber heavy formulations need hardened alloy screws or tungsten carbide coating. The hardened surface fights abrasive wear from rigid fiber fillers. Buyers should share full material data sheets with the equipment supplier. Detailed information on pellet size, bulk density, temperature limit and filler content helps the supplier select the right screw, seals and heating package for the 5 Ton vertical plastic particle mixer.

Conclusion

The 5 Ton vertical plastic particle mixer offers broad processing flexibility for plastic compounding work. It handles commodity thermoplastics, engineering resins, recycled regrind and mineral filled composite materials. Its gravity driven fountain mixing mechanism reaches over 98 percent homogeneity. The vertical layout saves floor space and runs with good energy efficiency. Teams buying blending equipment should match machine capacity to batch size. They also need to specify material dependent upgrades and confirm long term vendor support. Tuning mixing cycle parameters and sticking to regular maintenance will maximize performance and reduce operating cost. A properly specified 5 Ton vertical plastic particle mixer becomes a reliable asset for plastic processors who want stable mixing quality and flexible material changeovers.

FAQs

Can this mixer handle materials directly from hot pelletizing lines?

The standard 5 Ton vertical plastic particle mixer safely processes pellets up to 80 degrees Celsius. Material temperature above 100 degrees Celsius requires upgraded high temperature bearings. Special grease and thermal expansion joints stop screw binding under sustained heat. Discuss your pellet exit temperature with the equipment supplier at quotation time to get the correct mixer configuration.

How does moisture content affect mixing quality in this vertical pellet mixer?

Too much moisture makes pellets clump together and creates uneven additive dispersion. Hygroscopic resins like nylon perform best in the heated version of the 5 Ton vertical plastic particle mixer. Heat keeps pellets dry through the full mixing cycle. For moisture sensitive plastic grades, users can choose pre drying steps or integrate the heating system on the mixer to prevent quality issues.

What factors most significantly impact energy consumption of the 5 Ton vertical plastic particle mixer?

Material bulk density, actual batch load versus rated capacity and mixing cycle time change total power draw. Operators get the best energy economy when they load the mixer to 70 to 90 percent of its rated capacity. Test to find the shortest cycle time that still meets homogeneity requirements. This reduces power use without hurting finished plastic compound quality.

Can the 5 Ton vertical plastic particle mixer process high glass fiber filled plastics?

Yes, but the standard carbon steel screw will wear quickly. For glass fiber reinforced pellets, order hardened alloy or carbide coated screw components. The low shear mixing action of the 5 Ton vertical plastic particle mixer helps limit fiber breakage compared with high shear horizontal mixing equipment.

Partner With a Trusted Vertical Mixer Manufacturer

Yude Plastic Machinery supplies reliable 5 Ton vertical plastic particle mixer solutions built for tough industrial plastic compounding jobs. Our mixer achieves 98 percent mixing uniformity. It uses 304 stainless steel construction and PID temperature control for stable performance across many plastic pellet types. As an experienced 5 Ton vertical plastic particle mixer supplier, we provide full after sales service. Our 7×24 hour technical support team and global service partners help users solve mixing problems quickly. Our modern production lines support fast order delivery. Strict internal quality checks protect long term equipment reliability. Contact our engineering team at sales@yudemachinery.com to get material specific application advice, full technical datasheets or custom equipment quotes matched to your plastic processing goals and production schedule.
