How does a 2000kg vertical plastic particle mixer work?

Achieving uniform material quality on a large scale in global plastic processing processes is still a problem. More and more, procurement engineers and sourcing managers in charge of injection moulding, pipe extrusion, and recycling facilities are aware that uneven colour distribution or inconsistent additive dispersal leads to mistakes in the production process, lost materials, and expensive downtime. The 2000kg vertical plastic particle mixer solves these problems by consistently mixing batches of materials in medium to large manufacturing settings. Knowing how this equipment works—its mechanical principles, operational workflow, and performance characteristics—helps procurement professionals buy capital equipment that will work well for their companies. This guide gives useful information about the mixer's features, benefits for use, and selection criteria. It gives people who need to make decisions the technical information they need to boost production efficiency and deal with sellers with confidence.

Understanding the 2000kg Vertical Plastic Particle Mixer

What Makes This Mixer Essential for Industrial Operations

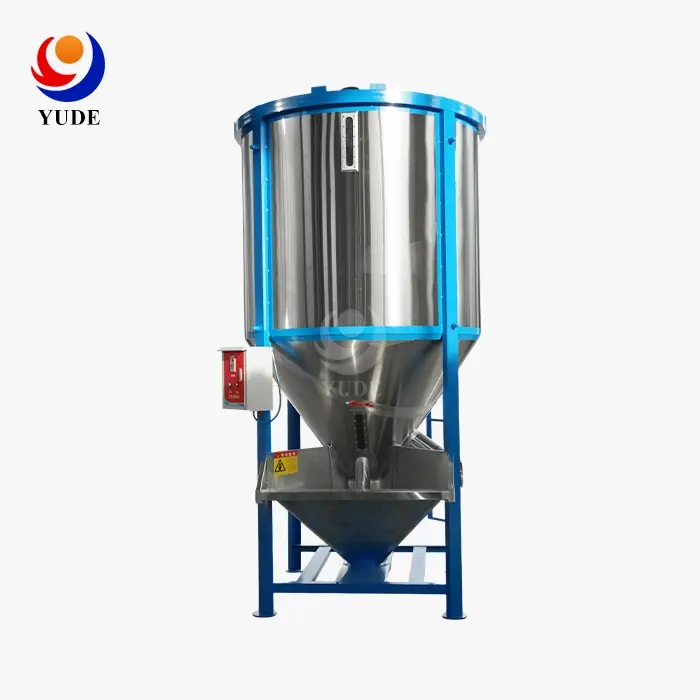

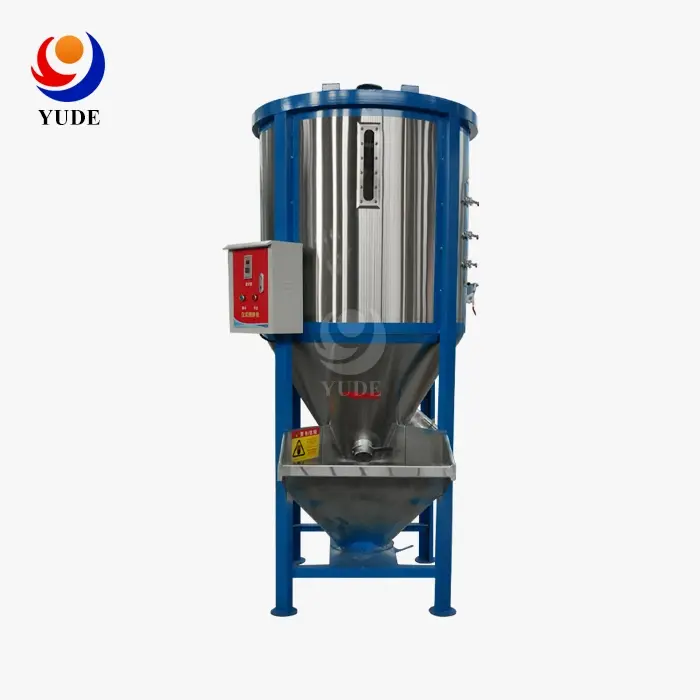

The 2000kg vertical plastic particle mixer is the main piece of equipment in high-volume plastic processing lines. The quality of the end product is directly affected by how consistent the batches are. In contrast to smaller 300-500kg units made for job shops or testing, this industrial-grade equipment can handle high output needs that are common in making auto parts, large-diameter pipes, and recycling polymers. Its estimated loading capacity is based on plastic particles having bulk densities of 0.6 to 0.8g/cm³. This includes popular thermoplastics like polypropylene, polyethylene, ABS, and PVC.

Vertical Versus Horizontal Mixer Configurations

The vertical design philosophy is based on making mixing as efficient as possible while keeping the floor space small. Horizontal ribbon blenders need a lot of room on the sides and have a hard time mixing materials with different bulk densities. The vertical design, on the other hand, uses both gravity and mechanical movement. The 1600mm diameter by 2000mm height drum takes up about 2 square meters of floor space and can mix 3000 to 3200 litres of material. This use of space effectively is especially useful in factories where real estate on the production floor is expensive or where the way the plants are set up currently limits where equipment can be placed.

Industry Applications and Sector-Specific Requirements

These mixers are used by packaging companies to mix new resin with reclaimed resin and colour concentrates. This makes sure that the colour of thousands of injection-molded containers is the same. When adding flame retardants or glass fibre reinforcements to engineering-grade polymers, auto suppliers depend on accurate additive distribution. Pipe extrusion plants benefit from the equipment's ability to mix calcium carbonate fillers with base resin so that there are no differences in density that could affect the uniformity of wall thickness or pressure ratings. The guideline for steady 98% mixing uniformity meets high quality standards in these tough situations.

How Does a 2000kg Vertical Plastic Particle Mixer Work?

Core Components and Mechanical Architecture

When handling food- or medical-grade plastics, the mixing drum made of 304 stainless steel keeps them from getting contaminated and resists corrosion. At the base of the drum, a heavy-duty motor with a power rating of 7.5 to 11kW turns a vertical spiral screw by means of a precise clutch. This system for sending power works with a standard 380V/50Hz/3-phase power supply that works with industrial electrical systems in North America and Europe. It is designed so that the screw's spiral steps have specific pitch angles that maximise lift velocity while minimising particle shearing or degradation during the mixing cycle of the 2000kg vertical plastic particle mixer.

Step-by-Step Operational Workflow

The material is loaded through a hopper on top that has a gate valve that is operated by air pressure. Following the recipe for formation, operators add the base resin, then masterbatches, regrind, or addition packages. The control panel starts the mixing cycle when the target load weight is reached in the mixing chamber. Granules are moved from the bottom collection zone to the middle of the drum by a rotating screw. When particles reach the top discharge point, centrifugal force pushes them outward against the walls of the drum, making a downward flow that keeps going. This pattern of constant movement happens hundreds of times over the course of the 10–18 minute cycle, giving each granule many chances to mix with particles nearby. Temperature sensors check the temperature of the whole material. This is especially important when working with heat-sensitive resins that could break down if there are hot spots caused by too much pressure.

Material Characteristics Influencing Mixing Performance

The shape of the pellets has a big effect on how the mixture moves. Granules with a diameter of 2 to 4 mm move freely and mix quickly, often finishing homogenisation near the shorter end of the cycle time range. Regrind bits or flake materials that don't have a regular shape may need longer mixing times to reach the desired level of regularity. Combining materials with very different bulk densities, like light polyethylene foam regrind and dense mineral-filled compounds, is more difficult. The constant lifting action of the vertical screw works better than horizontal systems at stopping density-based sorting because heavier particles tend to settle along the bottom plane. To work with mixtures that are hard to blend, operators can change the mixing speed between 250 and 350 RPM and make the cycle last longer.

Advantages and Performance Insights of 2000kg Vertical Plastic Particle Mixers

Mixing Uniformity and Quality Consistency

The requirement for a sure 98% mixing regularity has big effects on the steps that come after. In injection moulding, this means that there isn't much colour change from shot to shot, and the part's mechanical features stay the same. When extrusion is done, the melt pressure and die temperature profiles stay stable, so operators don't have to make constant adjustments. This repeatability comes from the shape of the 2000kg vertical plastic particle mixer, which gets rid of dead zones where material that hasn't been mixed could build up. In vertical designs, the active circulation pattern goes through the whole mixing room.

Energy Efficiency and Operational Economics

The energy use is lower when using a 7.5–11kW motor to make 2000kg batches compared to other mixing methods. The small amount of power needed stays the same because the technology uses gravity to its advantage instead of fighting it. When compared to pneumatic blending systems that use compressed air all the time, the electric drive motor usually costs between $1.20 and $1.80 per mixing cycle, based on standard industrial electricity rates. Over the course of a year, when 500 batches are produced, this efficiency advantage adds up to real operational savings. The noise level of less than 80dB makes it possible to put them close to desks without needing large sound enclosures or hearing protection zones. This helps with better ergonomics in the workplace.

Maintenance Requirements and Equipment Longevity

A weekly check of the screw shaft bearings and a monthly check of the motor link position are both part of routine maintenance. The 304 stainless steel touch areas don't rust and are easy to clean between colour changes by wiping them down by hand or using compressed air. Bearing systems usually need to be oiled again every 500 hours of use. This is a simple process that doesn't take long. Compared to more complex automated equipment, this one has fewer possible failure points because it doesn't have any complicated pneumatic controls or hydraulic systems. When processing standard thermoplastic granules, parts that wear out quickly—most notably the screw flights and drum interior surface—have service lives of more than 20,000 hours. This durability rating helps make sure that production plans are reliable and that repair budgets are predictable.

Conclusion

The 2000kg vertical plastic particle mixer has been used successfully by manufacturers who need to make batches that are all the same size on an industrial scale. Its vertical circulation pattern ensures uniform mixing of 98% of the time while taking up very little floor space and using very little energy. When purchasing this equipment, people in charge of buying things should make sure that the capacity matches the needs of production, check the manufacturer's qualifications and support options, and look at customisation options that meet specific practical needs. Proper repair procedures and training for operators make tools last longer and produce more reliably. The mixer's simple mechanical design and strong construction with 304 stainless steel touch surfaces make it ideal for hard plastic processing tasks that need to be done over and over again.

FAQ

What distinguishes vertical mixers from horizontal ribbon blenders for large-capacity applications?

Vertical mixers use both gravity and motorised pulling to make circulation patterns that work especially well for granular materials with different bulk densities. In horizontal designs, density-based division can happen. The upward screw conveyance stops this from happening. Vertical equipment usually takes up 60–70% less floor room than horizontal equipment of the same size. This makes vertical designs better in places where space is limited or where real estate costs are high for the 2000kg vertical plastic particle mixer.

Can this equipment handle both virgin pellets and recycled regrind simultaneously?

The vertical mixing mechanism is great at mixing things that have particles with different shapes and densities. There are no practical problems with mixing new pellets with up to 40% regrind. The pattern of continuous circulation makes sure that the regrind particles are spread out evenly in the virgin resin matrix. Processing 100% regrind material also works well, but mixing cycles may need to be longer, closer to 18 minutes, if the flakes aren't all the same shape.

How does mixing time adjustment affect product quality and operational efficiency?

Mixing rounds that last about 10 minutes are enough for simple mixes, like adding colour concentrate to a single base resin. Longer 15–18 minute cycles are better for complex formulations that have a lot of different additives, reinforcing fibres, or materials with big differences in density. Operators should do initial validation testing to find the best cycle length for each formulation, taking into account both the need for full homogenisation and the need to maximise efficiency. Not mixing enough can lead to problems with the quality, and mixing too much loses energy without making the consistency better.

Partner With a Trusted 2000kg Vertical Plastic Particle Mixer Manufacturer

Yude Plastic Machinery is a specialised company that provides industrial-grade mixing solutions to companies around the world that work in the recycling, packaging, and auto industries. Our 2000kg vertical plastic particle mixer has heavy-duty drive systems, precision-machined 304 stainless steel parts, and control design that has been improved over many years of production engineering. We have complete production facilities that allow us to quickly fill orders and make sure they are of high quality at every step of the process. Our technical team can help you in more than one language, and they can change the specs of the equipment to fit the electrical standards, material handling systems, and formulation needs of your facility. You can talk to our engineering experts at sales@yudemachinery.com about your mixing capacity needs, get full specs, or set up factory acceptance testing. We assist procurement professionals looking for dependable suppliers with track records of meeting customer needs, competitive prices, and quick response times to ensure uninterrupted production lines.

References

1. Manas-Zloczower, I. (2009). Mixing and Compounding of Polymers: Theory and Practice. Cincinnati: Hanser Publications.
2. Rauwendaal, C. (2014). Polymer Mixing: A Self-Study Guide. Munich: Hanser Publishers.
3. Tadmor, Z., & Gogos, C.G. (2013). Principles of Polymer Processing. Hoboken: John Wiley & Sons.
4. Paul, D.R., & Bucknall, C.B. (2000). Polymer Blends: Formulation and Performance. New York: Wiley-Interscience.
5. White, J.L., & Kim, E.K. (2010). Twin Screw Extrusion: Technology and Principles. Munich: Hanser Publications.
6. Ottino, J.M., & Khakhar, D.V. (2000). Mixing and segregation of granular materials. Annual Review of Fluid Mechanics, 32, 55-91.
