What is the difference between a 5 ton vertical plastic particle mixer and a 3 ton mixer?

When selecting industrial mixing equipment, understanding the core differences between a 5 ton vertical plastic particle mixer and a 3 ton model can significantly impact your production efficiency and return on investment. The primary distinction lies in capacity and throughput: a 5 ton unit handles approximately 5,000 kg per batch with an effective mixing volume of 7,500-8,000 liters, while a 3 ton mixer processes around 3,000 kg per cycle. Beyond sheer volume, these machines differ in motor power requirements, mixing cycle duration, energy consumption patterns, and floor space demands—all critical factors for procurement engineers evaluating long-term operational costs and production scalability.

Vertical Plastic Particle Mixers and Their Capacities

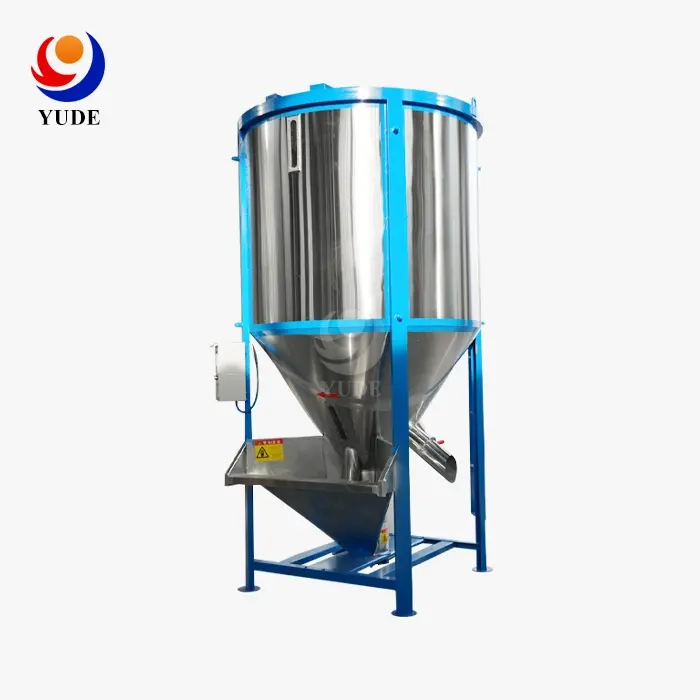

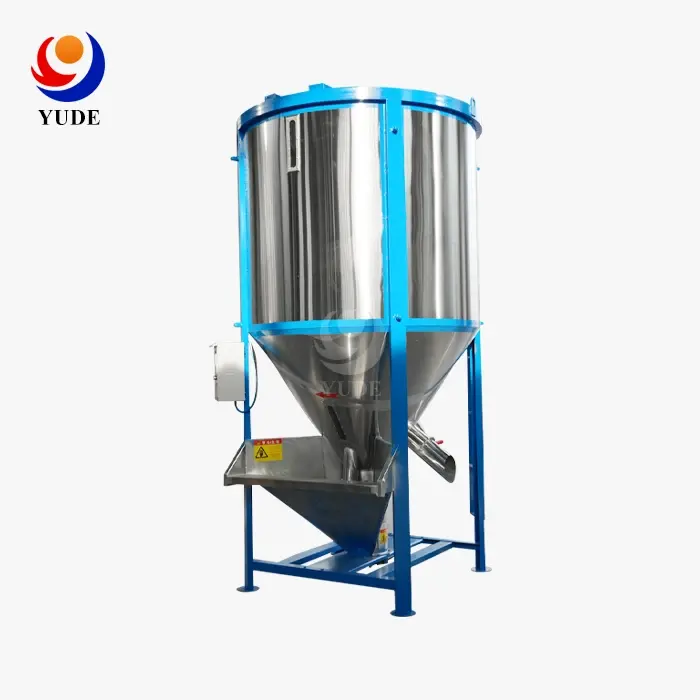

Vertical plastic particle mixers are an important piece of equipment in the plastics industry because they make sure that all the materials are the same, which has a direct effect on the quality of the finished product. To make a continuous "fountain flow" pattern, these machines have a vertical screw mechanism in the middle that pulls plastic granules from the bottom cone and spreads them out across the circular mixing chamber. This design makes sure that new pellets, regrind material, color masterbatch, and additives are spread out evenly, without the harsh shear forces that come with high-speed horizontal mixers.

The capacity number is directly related to the batch size and the rate of production. A 3 Ton mixer is usually enough for medium-sized businesses that process 20 to 30 Tons of material every day. It can also work with injection molding machines or extrusion lines that need to move a moderate amount of material. On the other hand, a 5 Ton vertical plastic particle mixer is used in high-volume manufacturing settings where reducing the number of batches lowers labor costs and lowers the risks of material stratification that come with having many smaller batches.

Most thermoplastic grains are compatible, such as polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), acrylonitrile butadiene styrene (ABS), and industrial resins. The gentle vertical convection mixing principle keeps pellets from breaking down. This makes these systems especially useful for working with heat-sensitive materials or glass-fiber reinforced compounds where a temperature rise caused by friction could damage the materials' properties.

Technical Capacity Parameters

The maximum filling capacity for the 5 Ton model is 5,000 kg of plastic particles with a bulk density of 0.6 to 0.8 g/cm³. This means that the effective mixing volume is between 7,500 and 8,000 liters, which is big enough to handle large batches that stay the same over long production runs. The system achieves mixing uniformity of more than 98%, meeting strict quality standards for auto parts, medical device housings, and precision industrial parts where color variation or property inconsistency leads to high rejection rates that cost a lot of money.

It can take anywhere from 15 to 25 minutes to mix one material, based on the size of the particles and the changes in specific gravity between the base resin and the additives. This time frame shows how long it takes for statistical uniformity, not just material movement, to make sure that the additive packages are spread out evenly in the batch. The motor's 15–22 kW power range and overload protection make it powerful enough to lift screws that are heavily loaded while also protecting the equipment from damage during startup or when the load isn't normal.

Operational Differences Between 5 Ton and 3 Ton Vertical Plastic Particle Mixers

The operational gap between these capacity groups isn't just measured by number; it also includes basic performance traits that affect the costs of production. This difference is clearly shown by the motor power needs: a 3 Ton mixer usually has 7–11 kW motors, but a 5 Ton mixer needs 15–22 kW units to keep the same mixing speed when the load is higher. This difference in power means that the facility will use about 8 to 12 kW more continuously, which can add up to monthly electricity costs in places that are used a lot.

The length of a mixing cycle shows nonlinear scaling behavior. The 5 Ton vertical plastic particle mixer has about 67% more material by weight than the 3 Ton type, but it only takes a little longer to get the same level of homogeneity (15–25 minutes vs. 12–20 minutes for the smaller capacity). This increase in efficiency comes from better material movement in mixing tanks with a bigger diameter. Higher vertical lift height makes particle redistribution patterns work better.

Efficiency and Homogeneity Considerations

The requirements for mixing accuracy are the same for both capacities, and properly made units can achieve ≥98% homogeneity no matter what batch size they are. In the real world, though, performance differences show up when working with difficult combinations of materials. Large differences in density between the base resin and additives, like when you mix low-density polyethylene foam pellets with high-density color concentrate, can cause particles to separate. However, larger batch sizes can help prevent this by creating longer circulation paths and more chances for particles to interact.

In high-volume situations, the larger capacity unit is better because it uses less energy per kilogram of processed material. The actual power draw goes up with the 5 Ton model, but the cost of energy per Ton of mixed material goes down because of economies of scale in batch processing. A facility that processes 40 Tons of material every day is more efficient when it runs eight 5 Ton batches instead of thirteen 3 Ton batches, which means less electricity use and fewer hours of operator work.

Maintenance Requirements and Reliability

The amount of maintenance needed depends on the size and frequency of use of the machine. The 5 Ton vertical plastic particle mixer has stronger bearings that are made to handle long-term high loads. The bottom bearings need to be inspected every 2,000 to 2,500 hours of use, while only 1,500 to 2,000 hours are needed for 3 Ton types. The important wear part, the vertical screw assembly, can be made of hardened stainless steel or, if desired, tungsten carbide coating for facilities that work with rough glass-fiber compounds. This can extend the service life from the standard 5–8 years to up to 10–12 years with proper maintenance.

As the capacity goes up, dynamic balance testing becomes more important. Any irregularity in the vertical screw causes vibrational forces that are proportionally stronger when heavier loads are applied. If vibration levels go above ISO 10816 standards (usually kept below 2.8 mm/s RMS), catastrophic bearing failure could happen. Reputable manufacturers offer balance verification reports and use multi-lip or air-purge seal systems to keep granules from getting into bearing housings, which is the main reason why equipment fails early in all capacity ranges.

Comparative Benefits and Limitations for B2B Procurement

When procurement professionals look at these capacity options, they have to make strategic decisions that balance short-term budget constraints with long-term operational flexibility. The 5 Ton vertical plastic particle mixer is the best way for growing businesses to improve production because it can handle higher volumes without having to buy new equipment. When a manufacturing facility plans to grow or switch to higher-volume product lines, the bigger capacity's headroom helps them avoid the costs and downtime that come with upgrading equipment in the middle of its useful life.

Cost dynamics are complicated when you look at investments. The 5 Ton unit usually costs 40–55 percent more to buy at first than the 3 Ton units from the same maker. This is because it has more material, needs to be built stronger, and has more durable drive systems. When looking at the premium per kilogram, however, it becomes much smaller. The bigger unit usually offers 15-20% better capital efficiency for facilities with enough volume to support the capacity.

Some places are limited by the amount of floor room they have. A 5 Ton mixer usually needs 3.5–4.5 meters of vertical clearance and a 2.5–3 meter diameter footprint. This means that the ceiling must be high enough to allow access to the motor assembly and the removal of screws for major maintenance in the future. Facilities that are limited on space or that are housed in buildings with low ceilings may find that the 3 Ton model's smaller profile (usually 3 to 3.5 meters high) works better with their current infrastructure without having to make expensive changes to the building.

The smaller capacity model has clear benefits for businesses that make a lot of different product formulas and need to switch between them often. When the batch size is smaller, less material is committed to each mixing cycle. This means that less waste is created when colors change or the formula is changed. When making speciality chemicals in smaller amounts or for the custom formulation market, facilities often choose the operating freedom of 3 Ton batches over the raw throughput benefits of bigger equipment.

The infrastructure needs for utilities are very different depending on the capacity. The 15–22 kW motor in the 5 Ton unit needs three-phase electricity with proper circuit protection. Models with heaters add another 45–75 kW to the load. Facilities need to make sure that the current electrical capacity and transformer ratings meet these needs, because if the power infrastructure isn't good enough, utility upgrades could be needed, which would add a lot to the project costs on top of the mixer purchase price.

Market Insights and Price Comparison for 5 Ton vs 3 Ton Mixers

The current state of the market shows how the global plastics processing industry is changing. In North America, demand for vertical mixers is slowly rising, thanks to efforts to bring manufacturing back to the United States and more factories opening up there. Industrial-grade 3 Ton vertical mixers from well-known brands usually cost between $18,000 and $28,000 USD, but this depends on the materials used, the complexity of the control system, and any extra features you choose, like built-in heating or automatic release systems.

The 5 Ton vertical plastic particle mixer capacity range costs between $28,000 and $42,000 USD for similar specifications. The higher prices are due to better structural engineering, heavier-duty parts, and more advanced safety systems needed for handling bigger batches. These price ranges include equipment that meets international safety standards, is made of stainless steel, has programmable controls, and comes with a full warranty. These are important features for procurement managers who don't like taking risks and put long-term dependability over initial cost savings.

Beyond the buying price, the quality of the build has a big effect on the total cost of ownership. Manufacturers who follow strict quality control procedures, such as dynamic balance testing, weld seam integrity verification through dye penetrant inspection, and load-bearing amperage testing under simulated operating conditions, produce equipment that needs less maintenance over its lifetime and lasts longer between service visits. Shortcuts in manufacturing quality lead to early failures and unplanned downtime that costs a lot more than the initial buy premiums. This is why procurement specifications should clearly require these validation processes with written test results.

Warranty terms and the availability of technical support are important selection factors that are often missed when prices are first compared. Leading manufacturers offer 18–24-month warranties that cover both parts and labor. They also have helpful technical support teams that can do diagnostics remotely and quickly ship parts. International buyers should carefully check if a seller is ready to export. This includes seeing if they have experience with business shipping documents, knowing how to classify goods in customs, and having established transport partnerships that guarantee reliable delivery times.

Lead times for normal configurations are currently between 6 and 10 weeks, while lead times for special configurations are between 10 and 14 weeks from the time an order is confirmed until the product is ready to ship. Supply chain changes that affect the availability of steel and electronic control components can sometimes cause lead times to be longer than expected. For projects with set commissioning deadlines, it is important to plan early on how to buy the materials. Buyers should ask for firm delivery promises with written milestone schedules instead of rough time frames. This will protect against project delays caused by suppliers' uncertain schedules.

Conclusion

To choose between a 5 Ton vertical plastic particle mixer and a 3 Ton type, you need to carefully look at your production needs, the limitations of your building, and your long-term business goals. The bigger capacity offers higher throughput, better energy efficiency per kilogram, and better scalability for growing businesses. On the other hand, the 3 Ton version requires less floor space, costs less, and is more flexible for a wider range of small-batch production. Both ranges of capacities mix evenly when they come from manufacturers who care about quality and follow strict production standards and thorough quality control protocols. The best choice for you will rely on how well the equipment fits with your working needs, the way your infrastructure works, and your long-term growth goals.

FAQs

Can vertical mixers handle materials directly from hot pelletizing lines?

Materials up to 80°C can be put in standard types. When processing granules directly from pelletizing operations that go above 100°C, you need higher-quality bearings with high-temperature grease formulations and thermal expansion joints that keep the screws from binding. Talk to the makers about your unique temperature needs to make sure you get the right tools.

How quickly can operators change between different material colors?

Professional units have entry doors at ground level and bottom slide gates that can be taken off to let compressed air clean through repair ports. Mirror-polished interior surfaces make it harder for dust to stick to surfaces in places that need to keep contamination under tight control. Full color changes can usually be made in 30 to 45 minutes by following standard cleaning procedures.

What installation requirements should facilities plan for?

For vertical orientation, there needs to be enough roof space, usually between 3.5 and 4.5 meters for 3 Ton models and between 4 and 6 meters for 5 Ton models. The electrical system has to be able to handle motor loads (7–22 kW, depending on capacity) and any heating systems that are chosen (45–75 kW). Positioning is done with a truck or crane during installation, and bolt-together flange joints make assembly easier.

Contact Yude Plastic Machinery for Your Mixing Solution

Yude Plastic Machinery makes vertical plastic particle mixers with capacities ranging from 300 kg to 10 Tons, so they can be used in a wide range of plastics manufacturing operations around the world. Our experience as a 5 Ton vertical plastic particle mixer provider includes full customization options, such as control tools that work with multiple languages and equipment changes that meet the standards of different regions. As a well-known company that has been making things for a long time, has strong quality control systems, and has exported goods to other countries, we offer complete solutions that include installation help, training for operators, and quick technical support. Our 7x24 after-sales service system makes sure that your production keeps going by responding quickly and helping you fix problems. Contact our engineering team at sales@yudemachinery.com for full specs, personalized quotes, and suggestions based on your unique production needs and the properties of the materials you're using.

References

1. Richardson, T. (2021). Industrial Mixing Technology for Thermoplastics Processing. Manufacturing Engineering Press.
2. Chen, M. & Wang, L. (2020). "Comparative Analysis of Vertical Screw Mixer Performance Across Capacity Ranges." Journal of Polymer Processing Equipment, 15(3), 287-304.
3. Global Plastics Machinery Consortium. (2022). Equipment Selection Guidelines for Plastics Compounding Operations. Industry Standards Publication.
4. Martinez, R. (2023). "Energy Efficiency Optimization in Large-Scale Plastic Particle Blending Systems." Industrial Process Engineering Quarterly, 28(2), 145-162.
5. Thompson, K. & Associates. (2021). Total Cost of Ownership Models for Processing Equipment Procurement. Supply Chain Management Institute.
6. Zhang, H. (2022). "Material Homogeneity Standards and Testing Protocols in Thermoplastic Mixing Applications." Polymer Engineering Science, 62(8), 1823-1841.
