How long does a 3000kg plastic particle mixer take for one mixing cycle?

Cycle time is very important to know when you're looking for industrial mixing tools for your plastics making business. Depending on the material's particle size, specific gravity, and the level of uniformity that is wanted, a 3 Ton vertical plastic particle mixer can usually finish one mixing cycle in 12 to 20 minutes. This cycle length is how long it takes to mix a full 3000 kg batch of plastic granules so that they are at least 98% uniform. This is a standard that has a direct effect on your production output, running costs, and product quality. The differences happen because different types of resin, masterbatch ratios, and regrind rates need different mixing conditions to get the best consistency without breaking down the material.

When making plastics, production efficiency depends on having tools that gives consistent results. The mixing cycle time is a basic metric that affects everything from the amount of work that gets done each hour to how much energy is used and how workers are distributed. When buying things for other businesses, technical decision-makers have to weigh cycle speed against standards for uniformity, the dependability of the equipment, and the long-term costs of maintenance.

This guide was made to help buying engineers, sourcing managers, and production planners who are looking at large-capacity vertical mixing systems. The information in this article comes from real-world operations and industry standards. It will help you understand not only how long a normal cycle lasts, but also how the design of the mixer, the properties of the material, and the decisions you make during operations affect performance. You will know how to improve your mixing processes and make smart buying choices that meet your throughput goals and quality standards by the end.

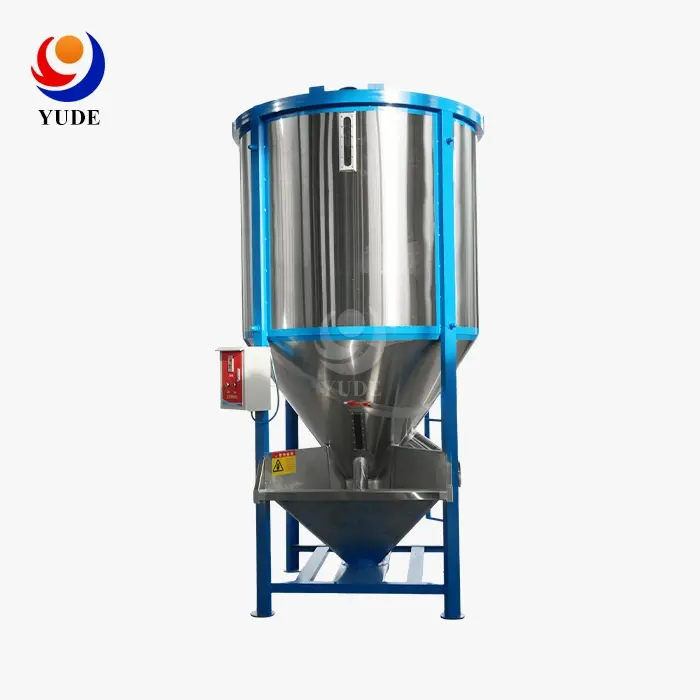

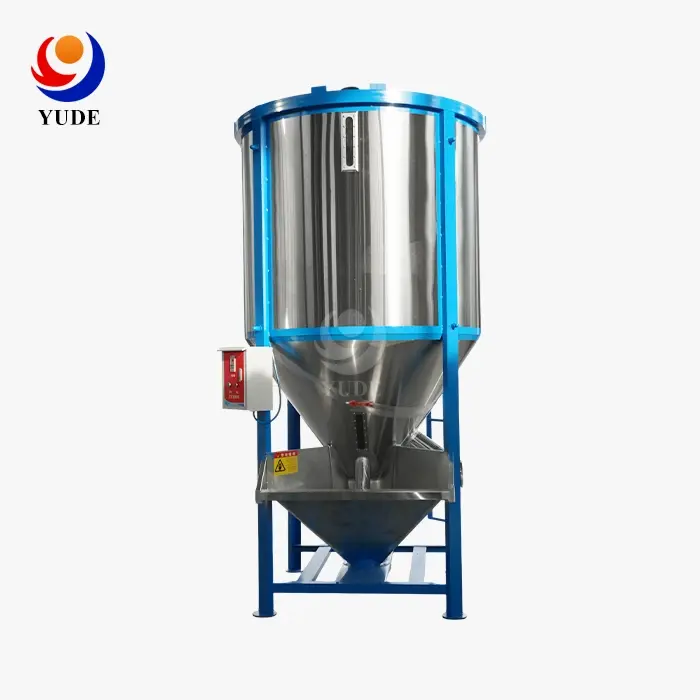

3 Ton Vertical Plastic Particle Mixer Mixing Cycle Time

What Defines a 3-Ton Capacity Vertical Mixer

Large to medium-sized plastics processing plants depend on 3 Ton vertical plastic particle mixers that can handle loads of up to 3000 kg. The estimated loading capacity of these machines is 3000 kg, based on plastic particles with bulk densities between 0.6 and 0.8 g/cm³. This means that they can mix about 4500 to 4800 litres of material effectively. This equipment is different from horizontal drum-style blenders because it is vertical. It has a center screw auger mechanism that lifts material from the conical base and spreads it out in a fountain-like design that keeps the particles moving around.

The design solves one of the most important problems in polymer blending, which is stopping segregation caused by density. When you mix different types of pellets, colour masterbatch, regrind flakes, and additives, the different particle sizes and weights cause them to naturally separate. The vertical screw moves lighter and heavier particles through the same paths over and over again. This makes sure that the end mix is statistically random. The material contact surfaces are made of 201 or 304 stainless steel to keep them clean and make switching between production runs quick. The cylindrical drum dimensions—usually 1800 mm in diameter and 2200 mm in height—provide the vertical clearance needed for particle cascading to work well.

Core Operational Parameters That Define Mixing Performance

Every mixing cycle relies on meeting certain levels of uniformity while keeping the purity of the material. The single mixing time range of 12 to 20 minutes is the minimum time needed to achieve at least 98% mixing regularity, which was proven by statistical sampling and colour distribution tests. Different materials need different amounts of time to fully mix. For example, smaller pellets with similar densities mix faster, while blends with a lot of regrind or powder need longer cycles to fully mix.

The vertical screw mechanism is powered by a motor with a power level of 11 to 15kW. This gives it enough torque to lift the whole batch while keeping the spinning speeds steady. Most industrial power systems can work with the standard energy of 380V/50Hz, but setups in other countries can still be customised to work with different electrical standards. An industrial push-button control panel makes it easy for operators to change the timing of cycles, stop them in an emergency, and check on their operating state. This lets process techs finetune mixing parameters without having to do a lot of complicated programming.

Typical Mixing Cycle Duration and Operational Benchmarks

Real-World Cycle Times Across Different Material Combinations

Cycle times vary a lot in production environments depending on how complex the blend is and how uniform it needs to be. Standard mixing processes that mix new polypropylene pellets with 2 to 5% colour masterbatch usually reach the desired level of regularity in 15 minutes. This short cycle is due to the parts having similar particle sizes and densities, which lets the vertical screw's lifting and spreading action quickly homogenise the mixture.

When handling recycled stuff, more difficult situations come up. When 30% post-consumer regrind flakes are mixed with virgin resin, the mixing process usually takes 18 to 20 minutes because the regrind particles have irregular shapes and a wider range of sizes. The mixer needs to go through more circulation cycles to get rid of streaking and make sure that the mechanical properties stay the same throughout the batch. When adding heavy fillers like calcium carbonate or flame retardants, which have different densities, they need to be mixed for a longer time to keep them from settling and creating concentration gradients.

For example, injection moulding operations that supply companies that make auto parts are very demanding. For these users, colour stability across tens of thousands of parts is required, and values below 1.0 in the delta-E colour space are used to define what is acceptable. To reach such high levels of uniformity, mixing cycles often go over 20 minutes. However, this extra time is worth it because it stops costly rejections and rework that would otherwise throw off production schedules and hurt relationships with customers.

Comparative Analysis Against Alternative Mixer Configurations

Another option is a horizontal drum mixer, which usually finishes rounds in 8 to 12 minutes thanks to the spinning action. Even though these systems are faster, they have trouble with heavy fills that move toward the outside wall of the drum as it rotates. This creates concentration differences that vertical convective mixing naturally avoids. Additionally, horizontal configurations take up a lot more floor space, which can be a problem in places where vertical space is limited.

Twin-screw compounding extruders mix things continuously instead of in batches, so there are no set cycle times. While these systems work great for reactive compounding or precise additive dispersion at the molecular level, they cost three to five times as much to buy as vertical batch mixers. The 3 Ton vertical plastic particle mixer is the best choice for operations that only need to dry mix pellets and masterbatch without any chemical reactions. It is easier to use, more reliable, and cheaper to buy.

Ribbon blenders use spiral agitators in horizontal channels to mix batches of material in a different way. They are placed between vertical and horizontal tumblers and have mixing cycles that last 10 to 15 minutes. When changing colours, however, ribbon blenders are hard to clean because stuff gets stuck in the spaces between the ribbons and the walls of the trough. Because the vertical mixer has open screws and maintenance doors that are easy to get to, it can be cleaned with compressed air in less than 10 minutes. This cuts down on the time needed to switch between production runs.

Optimizing Mixing Cycle for Maximum Efficiency

Identifying and Eliminating Common Cycle Time Bottlenecks

Longer cycle times are often caused by operational problems that can be avoided by production teams. When the rated 3 Ton vertical plastic particle mixer capacity is exceeded, the motor has to work against too much resistance, which slows the screw's spinning, extends the mixing time, and speeds up mechanical wear. On the other hand, underloading below 70% of rated capacity lowers the efficiency of mixing because there isn't enough material mass to allow particles to be recirculated properly—the screw lifts sparse material that falls back without spreading out properly.

Another big problem is screw flights that are worn out. As the helical sides wear down from constant contact with plastic bits, the efficiency of the transporting decreases. The material slides backwards along the screw instead of easily rising, so it takes more turns to get a uniform spread. Regular inspections—every three months for businesses with two jobs every day—allow replacements to be made before performance problems get too bad.

Cycle times are also lengthened needlessly when batch sequencing is done wrong. When you load all the parts at once and start the mixer, the original distribution isn't even. This is especially true when you add small amounts of masterbatch to big quantities of virgin resin. A better method is to load half of the base resin, add the masterbatch and additives, and then cover with the other half of the resin. With this "sandwich" loading method, the concentrated materials are put in the middle of the vertical column, where the screw's lifting action spreads them out best. This usually cuts the mixing time by two to three minutes.

Practical Strategies for Cycle Time Reduction Without Quality Compromise

By changing the speed at which the screw rotates, you can directly change the mixing's strength and length. The normal operating range strikes a balance between thorough mixing, the risk of material degradation, and the amount of energy used. Cycle times can be cut down to less than 12 minutes by increasing spin speed by 10 to 15% when working with easy-to-blend materials like pellets of the same density. But this speeding up needs to be closely watched because too much speed creates contact heat that can break resins that are sensitive to heat or make dust from pellet abrasion.

Using variable frequency drive controls lets you change speeds precisely and saves energy. Instead of running at full speed the whole cycle, operators can set ramped profiles: first, the machine runs at full speed to mix quickly; then, it runs at a slower speed for the final homogenisation phase. Compared to fixed-speed operation, this method cuts the total cycle time, keeps mechanical parts from wearing out, and uses 15 to 20% less electricity.

Batch size optimisation is another way to improve efficiency. Even though the mixer can handle up to 3000 kg, looking at how much you use downstream may show you ways to change batch sizes. Processing batches of 2700 kg instead of full capacity cuts cycle time by about 10% while only needing to change groups a little more often. If a facility has more than one processing line that uses the same blend, this strategy can boost overall throughput by making the supply of materials more responsive to changes in consumption rates.

Conclusion

The length of the mixing cycle for 3 Ton vertical plastic particle mixers is not just a number; it's also a key performance measure that shows how well the equipment was designed, how it was used, and how well it was maintained. The normal cycle time of 12 to 20 minutes gives uniformity of 98% or higher when workers load batches correctly, keep equipment in good shape, and change parameters for different types of materials. When procurement professionals know what factors affect this time frame, they can choose the right tools and production teams to make their mixing processes run more smoothly. Plastics makers get the throughput efficiency and consistent products that competitive production needs by combining cycle speed with the need for uniformity and the long life of the equipment.

FAQ

Can mixing cycles be shortened without sacrificing blend quality?

Within certain limits, cycle time can still be cut by improving the spin speed and batch loading processes. Increasing the screw speed by 10 to 15% shortens cycles for materials that are easy to blend and have similar densities. However, this method needs to be closely watched to make sure it doesn't cause heat in resins that are sensitive to heat. Using sandwich loading techniques—where the masterbatch and additives are placed between layers of base resin—improves the initial distribution. This often cuts the mixing time by two to three minutes while still meeting the 98% uniformity threshold. But cutting the cycle time too quickly, below 12 minutes, for difficult blends could lead to poor dispersion and quality problems with the finished product.

Which maintenance actions most significantly influence mixing efficiency?

The screw flight condition has the most significant effect on the mixing outcome. As constant wear and tear on the helical edges decreases their ability to express, and material slides backwards instead of easily rising. This wear and tear gradually makes cycle times longer and decreases regularity. Screws should be inspected every three months and replaced before the flight thickness drops below 70% of its original size to keep performance at its best. Bearing lubrication is the second most important part of maintenance. If it's not done right, it causes more friction, slows down the rotation speed, and speeds up wear that leads to alignment issues that affect how well the mixture is mixed.

How do vertical mixer cycle times compare with horizontal configurations?

Through tumbling action, horizontal drum mixers usually finish cycles in 8 to 12 minutes, which is about 30% faster than 3 Ton vertical plastic particle mixers. But horizontal units have trouble with heavy fillers that fall to the drum walls as it spins. This makes concentration gradients, which are naturally avoided by vertical mixing, which keeps rising and spreading the ingredients. Vertical configurations also take up less space on the floor and are easier to clean during colour changes. The choice depends on the needs of the application. Horizontal mixers are best for quickly and easily mixing materials with similar densities, while vertical systems work best for complex mixtures with particles of different sizes and densities.

Partner With a Trusted 3 Ton Vertical Plastic Particle Mixer Manufacturer

Yude Plastic Machinery offers tried-and-true mixing solutions that are designed to work in tough industrial plastics processing environments. As a well-known 3 Ton vertical plastic particle mixer seller that ships all over the country and to more than 30 countries, we offer both high-quality manufacturing and full expert support. Our vertical mixers are built to last, with 201/304 stainless steel material touch surfaces, 11–15kW motors that give steady performance, and industrial control systems that let you manage cycles precisely. The 7×24-hour service infrastructure makes sure that technical questions and operational problems are answered quickly. This is backed up by domestic service shops that allow on-site help within 24 hours. Our engineering team can customise equipment to meet specific power needs, change sizes, and work with current material handling systems. This way, you can be sure that the equipment you buy meets all of your production needs. Get in touch with our experts at sales@yudemachinery.com to talk about your mixing needs, look over detailed specifications, and get competitive quotes on mixing equipment that will help your business run more smoothly and make better products.

References

1. Crawford, R.J., and Throne, J.L. (2002). Rotational Molding Technology. William Andrew Publishing, Norwich, NY.
2. Tadmor, Z., and Gogos, C.G. (2006). Principles of Polymer Processing, 2nd Edition. John Wiley & Sons, Hoboken, NJ.
3. Rauwendaal, C. (2014). Polymer Mixing: A Self-Study Guide. Hanser Publications, Munich, Germany.
4. Paul, E.L., Atiemo-Obeng, V.A., and Kresta, S.M. (2004). Handbook of Industrial Mixing: Science and Practice. John Wiley & Sons, Hoboken, NJ.
5. Manas-Zloczower, I. (2009). Mixing and Compounding of Polymers: Theory and Practice, 2nd Edition. Hanser Publications, Munich, Germany.
6. Strong, A.B. (2006). Plastics: Materials and Processing, 3rd Edition. Pearson Prentice Hall, Upper Saddle River, NJ.
