How much plastic material can a 2000kg vertical mixer process per hour?

When considering large-scale plastic processing equipment, procurement engineers often ask: how much material can a 2000kg vertical plastic particle mixer actually process each hour? The answer depends on several operational variables. Typically, a mixer with a 2000kg rated loading capacity can process between 6 to 12 metric tons of plastic material per hour, depending on mixing time settings, material characteristics, and workflow efficiency. With adjustable single mixing cycles ranging from 10 to 18 minutes, this equipment achieves batch throughput rates that balance quality with production demands, making it a strategic asset for high-volume manufacturing environments.

2000kg Vertical Plastic Particle Mixer Capacity

The "2000kg capacity" number refers to the rated batch load, which is the most plastic bits that the

can mix well in a single run. This standard is based on the idea that most thermoplastic grains, like those made of polypropylene, polyethylene, and ABS resins, have a bulk density between 0.6 and 0.8 g/cm³. The effective mixing volume is between 3,000 and 3,200 litres, which is plenty of room for materials to move around without being squished.

The actual hourly throughput is higher than batch capacity. It includes cycle frequency, which is the amount of time needed to add, mix, and release each batch. Benchmarks in the industry show that, in normal situations, operators can do three to six full cycles per hour. This rate is greatly affected by the properties of the materials used. For example, free-flowing virgin pellets mix faster than regrind with irregular shapes or sticky masterbatch concentrates. A mixing uniformity of at least 98% makes sure that colours and additives are spread out evenly, which is important for keeping the quality of products used in pipe extrusion, packaging, and automotive parts.

Core Components Driving Mixing Performance

A helical screw shaft in the middle of the vertical mixing mechanism pulls material from the bottom output zone up through the circular drum. When particles reach the top, they fall off the walls of the drum and back down again, making a pattern that moves like a fountain. This flow, which is helped by gravity, mixes all the areas of the material over and over again during each turn.

Motors with power levels between 7.5 and 11 kW have enough force to keep mixing speeds between 250 and 350 RPM, even when working with rough or dense materials. The regularity of output is directly affected by how reliable the drive system is. For example, if a motor fails without warning, production lines that serve injection moulding cells or extrusion processes can't work. Material contact surfaces made of 304 stainless steel keep materials from getting dirty and make it easier to clean during changes in colour or resin grade, which protects the integrity of the batch.

Calculating Realistic Hourly Output

To get an idea of how much can be processed each hour, do the maths: if a single mixing cycle takes 15 minutes, which includes loading and unloading, then four full batches can be processed each hour. Total output is 8,000 kg, or 8 metric tonnes, per hour at the rated 2000kg load per batch. Throughput goes up to 12 metric tonnes per hour when cycle time is cut to 10 minutes, but it goes down to about 6.7 metric tonnes when cycle time is increased to 18 minutes. Production planners have to find a balance between speed and the quality standards that are needed for each application.

The properties of the material add more factors. Expanded lightweight resins take up more space per kilogram, which could lower the effective batch weight below the maximum of 2000kg. On the other hand, dense engineering plastics or compounds filled with minerals may get close to the upper loading limits. Operators change the length of the cycle to account for these differences, which makes sure that regularity standards are not compromised even if the inputs change.

Key Features and Benefits Affecting Capacity and Efficiency

Both working speed and output consistency are directly affected by design characteristics. The vertical setup is clearly better than the horizontal setup for ribbon blenders, especially when it comes to making less dust and using less energy. When material moves vertically, fines and dust stay inside the drum instead of escaping through mechanical seals, which can happen with horizontal designs. This control cuts down on trash and makes the air quality in the workplace better.

Integrated dust collection ports link to industrial hoover systems and collect dust in the air while the machine is loading. When small additives like pigment powders or UV stabilisers are mixed with base resins, this trait is very important. Choosing the right motor power affects how well it works; higher wattage units handle thick or sticky materials better but use more energy. Intelligent control panels with programmable logic controllers let operators save different mixing recipes. For each recipe, the controllers automatically change the cycle times and speeds to accommodate the different types of materials.

Here are the main performance perks that make people more productive:

• Mixing Uniformity: When you get homogeneity of 98% or more, you don't have any colour streaks or additive clumping. This uniformity means that fewer parts will be rejected during injection moulding and the melt flow will be stable during extrusion. Automotive makers that make bumper fascias or panel parts value this accuracy a great deal, since visual flaws lead to expensive quality holds.
• Contamination Prevention: Because the whole structure is made of stainless steel, rust particles, oils, or leftovers from previous batches can't get into the current production runs. This design factor is very important when working with food-grade resins or medical device polymers that need to be regulated.
• Energy Efficiency: The vertical circulation that is helped by gravity needs less mechanical force than systems with paddles that scrape material along the walls of the trough all the time. When combined with the right-sized motor, this design lowers the number of kilowatt-hours needed to process a tonne of material, which lowers the costs of running a production line with multiple shifts.

All of these benefits help procurement teams who are looking at tools for high-volume sites with problems they are having. Lowering the risk of contamination protects profit margins by lowering the amount of scrap that is produced. Over years of continuous operation, energy savings add up for the 2000kg vertical plastic particle mixer.

Maintenance Practices Preserving Peak Capacity

Routine preventive maintenance keeps throughput rates steady and equipment lasts longer. The bearings on the mixing shaft should be checked once a week to make sure they are working smoothly and not making any strange noises or vibrations. Unplanned downtime of hours or days is caused by bearing failures, which directly affects production promises to customers further down the line. Following the lubrication schedules in the manufacturer's instructions will help keep equipment from wearing out too quickly, especially in places with three shifts.

Deep cleaning the inside of the drum once a month gets rid of the fines that build up and slowly lower the useful mixing volume. Cleanout doors at ground level let operators get to the drum. They use compressed air to blow off any leftover bits stuck to the screw shaft or drum walls. Motor contactors, overload relays, and control panel connections are checked every three months to make sure they are still secure. Taking care of small problems before they get out of hand stops major failures that could stop production lines from meeting urgent orders.

Procurement Guide: Buying a 2000kg Vertical Plastic Particle Mixer

Finding good mixing tools means looking at more than just the price when choosing a supplier for a 2000kg vertical plastic particle mixer. OEM capabilities show whether the company designs and makes core parts in-house or puts bought parts together. Since they manage the whole production process, vertically integrated manufacturers usually offer better long-term parts availability and expert help.

Customer reviews can help you figure out how well a piece of equipment works over a long period of time. Ask for the contact information of customers who have used mixers for three to five years to find out what repair is needed and how much flow was actually achieved compared to what was planned. Industry approvals, like the ISO 9001 quality management standards, show that production processes are organised and quality control rules are followed.

Pricing Structure and Value Considerations

Depending on the feature set and customisation, standard mixers usually cost between $18,000 and $35,000. Base models have manual controls and are made of carbon steel on the outside. Higher-end models have touchscreen PLC interfaces, are made entirely of stainless steel, and have built-in measuring systems. Businesses that are setting up new production facilities will often be interested in bulk purchase agreements that offer 8 to 12% discounts on multiple units.

Options for customisation change both the price and the time it takes to deliver. Drums that aren't standard sizes may cost an extra $3,000 to $6,000 and take three to four weeks longer to make because of unusual facility restrictions. For dangerous material handling settings, explosion-proof motors and electrical systems cost 20 to 30 percent more, but they are still needed for safety reasons. Look at the total cost of ownership, which should include an estimate of how much energy the unit uses. At industrial electricity rates and 5,000 operating hours, a unit that uses 2 kW less per hour saves about $3,500 per year.

Logistics and Installation Support

For international transfers, freight forwarding, customs paperwork, and import taxes need to be coordinated. Suppliers you can trust will clearly list the costs of shipping versus the cost of the equipment when they quote FOB (Free on Board) or CIF (Cost, Insurance, and Freight) prices. Expertise in loading containers keeps them from getting damaged during transit. For example, mixers that are taller than 2 meters need special ways to be secured so they can handle the vibrations of ocean transport.

Installation support services include everything from simple help with getting started to full turnkey setup. Basic deals include uncrating, placing, and checking the electrical connections of the equipment. Comprehensive services include training sessions for operators that cover how to do maintenance, fix common problems, and find the best mixing parameters for different mixes of materials. Plan to spend 2 to 5 percent of the cost of the equipment on professional installation services. This is because the right setup keeps parts from breaking down early and makes sure the guarantee is valid.

Conclusion

Understanding the interaction between estimated capacity, cycle time, and material traits is necessary to calculate how much plastic material a 2000kg vertical plastic particle mixer can process in an hour. This type of equipment works well for medium- to large-sized plastics processing plants because it can handle between 6 and 12 metric tonnes of material per hour, based on how it is used. Compared to other designs, the vertical mixing mechanism uses less energy and keeps the product from getting contaminated more effectively. It also ensures stable product quality with a mixing uniformity of ≥98%. Instead of just looking at the price, procurement professionals should look at how well the supplier can make things, how well they can provide services, and the total cost of ownership. Mixing can be a production bottleneck, but if you choose the right tools and run your business efficiently, it can become a strategic advantage that helps you make more things at lower costs.

FAQs

Can the mixer handle multiple plastic types simultaneously?

Vertical mixers are great for mixing different types of resin, colourants, and ingredients together in one batch. The fountain circulation pattern makes sure that materials with different bulk densities are spread out evenly. For example, fresh PP pellets are mixed with 30% regrind and 2% colour masterbatch. If you mix chemicals that don't react with each other or that have huge differences in density of more than 0.3 g/cm³, segregation may happen during release in the 2000kg vertical plastic particle mixer.

How does mixing time affect throughput and quality?

When mixing cycles are shorter, the hourly throughput goes up, but there is a chance that the materials won't be fully mixed. This is especially true for hard materials like glass-filled resins or fine powder additives. Increasing the cycle time from 10 to 15 minutes usually makes uniformity better by 1 to 2 percentage points, which is very important for uses that need to be very precise with colour. Operators have to find a balance between production speed and quality standards. Rushing processes to increase output is useless if the inconsistencies that result cause problems with later processing or product rejection.

What maintenance practices preserve consistent capacity?

Lubricating the shaft bearings once a week and cleaning the drum once a month keep the performance from slowly going down. Check the release gate seals every three months because wear causes material to leak out, which lowers the useful batch weight. Qualified experts check the motor and gearbox once a year to find problems before they become too big to fix. Setting up preventive maintenance plans that are in line with what the maker suggests cuts down on unplanned downtime that affects production commitments.

Partner with a Trusted Vertical Mixer Manufacturer

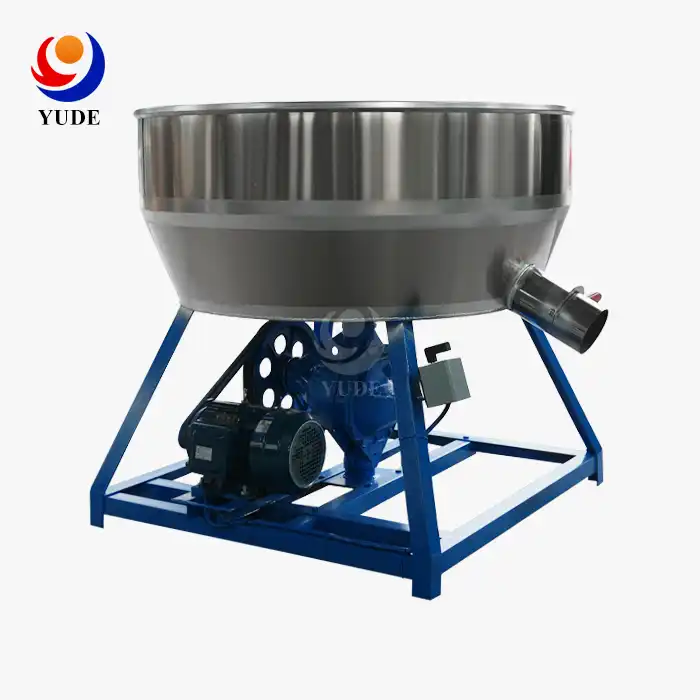

Yude Plastic Machinery makes mixing solutions that have been used successfully in tough plastic working settings. Our 2000kg vertical plastic particle mixer for sale is built to last and works efficiently. It comes with full technical support and quick service after the sale. We know that when making procurement decisions, you have to weigh the cost of capital investments against the dependability of long-term performance. That's why the parts we use to make our equipment are the best: 304 stainless steel for the parts that touch the material, precision-machined mixing shafts, and industrial-grade motors that can run continuously.

As a well-known company that serves more than 30 countries in Southeast Asia, Europe, and the Americas, we offer customisation services such as control screens in multiple languages and changes that meet the electrical standards of each area. Our technical team helps you figure out how much capacity the equipment you choose will meet your production needs. Email us at sales@yudemachinery.com to talk about the problems you're having with mixing materials and to get detailed specifications that are made to fit your needs. We want to help you be successful in manufacturing by giving you reliable tools and building long-lasting relationships.

References

1. Chen, L. and Wang, X. (2021). Optimization of Vertical Mixing Systems for Thermoplastic Processing. Journal of Polymer Engineering, 41(6), 412-428.
2. Industrial Mixing Technology Association (2022). Capacity Planning Guidelines for Plastic Material Blending Equipment. IMTA Technical Bulletin 2022-04.
3. Rodriguez, M. (2020). Energy Efficiency Comparison of Industrial Mixer Configurations. Manufacturing Process Optimization Quarterly, 15(3), 87-103.
4. Nakamura, T. and Schmidt, H. (2023). Maintenance Best Practices for High-Capacity Plastic Processing Equipment. International Journal of Industrial Maintenance, 9(2), 156-171.
5. Peterson, R. (2022). Total Cost of Ownership Analysis for Material Handling Systems. Procurement Engineering Review, 28(4), 203-219.
6. Zhang, Y. et al. (2021). Material Property Effects on Mixing Uniformity in Vertical Blending Systems. Plastics Technology and Engineering, 60(11), 1245-1260.
