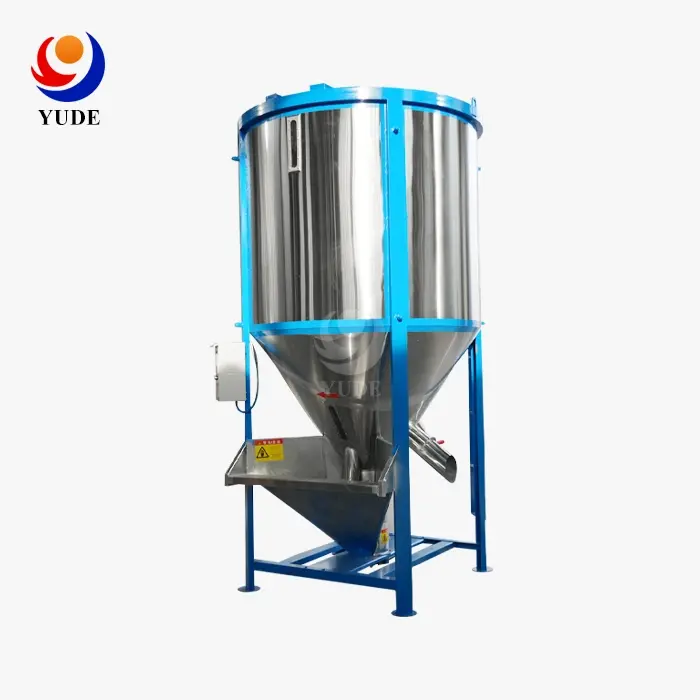

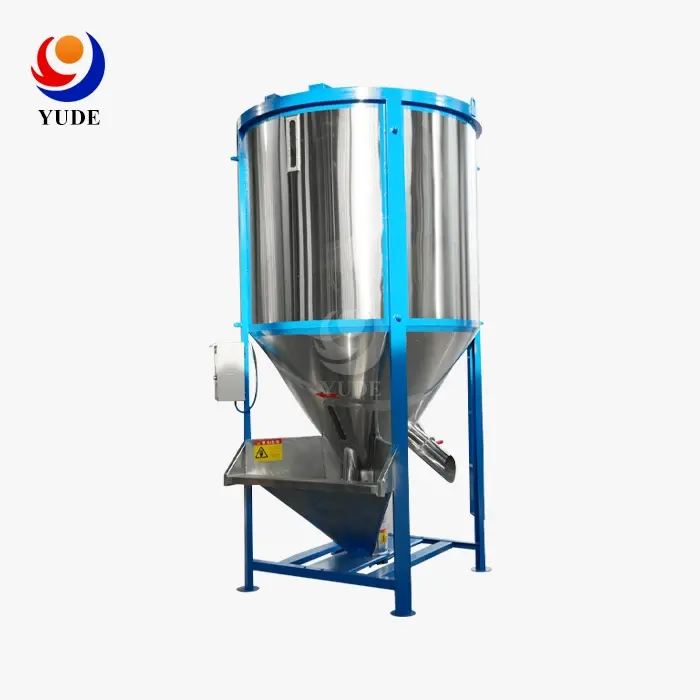

Key Features of 5 Ton vertical plastic particle mixer

Plastic compounding plants and injection molding workshops need reliable mixing equipment to stabilize batch quality and control operating costs. Many procurement teams compare vertical and horizontal mixing units before final investment. 5 Ton vertical plastic particle mixer works well for virgin pellets, recycled regrind and functional additives. Buyers need clear information on its structural design, performance limits and customization options. This article breaks down the core features of this industrial mixer. It covers practical operating benefits and key supplier selection rules for B2B buyers in the plastic processing sector.

Core Structure And Technical Specifications Of The 5 Ton Vertical Plastic Particle Mixer

The mechanical layout defines the working performance of this blender. Its vertical tank and central screw design separate it from horizontal mixing models. Every structural choice targets even particle distribution and easy daily cleaning.

Working Principle And Main Hardware Composition

The 5 Ton vertical plastic particle mixer relies on gravity assisted fountain flow to blend plastic materials. The central vertical screw lifts pellets from the cone bottom up to the top zone. Material falls back across the full tank cross section. Repeated lifting and falling reduces separation caused by different pellet density or particle size. This mechanism works well for color masterbatch, regrind and engineering resin blends. Standard tank material is 304 stainless steel. Users can upgrade to 316L stainless steel for corrosive additives or food contact plastic production. The main motor runs from 15 kW to 22 kW and carries built in overload protection. The overload function stops sudden motor damage when the mixer starts with a full load. Buyers who need heat controlled blending can select a PID digital temperature control system. Operators set and hold target temperature for heat sensitive plastic pellets during compounding.

Rated Capacity And Mixing Cycle Parameters

The rated loading capacity of the 5 Ton vertical plastic particle mixer reaches 5000 kg. This rating uses plastic pellets with bulk density between 0.6 and 0.8 grams per cubic centimeter. Its effective mixing volume ranges from 7500 to 8000 liters. A full mixing cycle normally takes 15 to 25 minutes. The exact run time changes with raw material conditions. Large density gaps between two pellet types need longer mixing cycles to hit the 98 percent homogeneity target. Large batch capacity cuts repeated loading and unloading work for multi shift factories. It also lowers total energy use per kilogram of finished blend compared with smaller mixers.

With a clear view of the mechanical structure and basic parameters, we can move to the practical performance strengths that make this vertical blender popular in modern plastic workshops. These performance features directly solve common pain points for molders and compounding factories.

Practical Performance Advantages Of The 5 Ton Vertical Plastic Particle Mixer

Buyers evaluate industrial mixers based on real production output, not just printed datasheet numbers. This equipment delivers value through stable mixing quality, controlled power consumption and broad material compatibility.

Mixing Uniformity And Protection For Reinforced Resins

The 5 Ton vertical plastic particle mixer can achieve mixing uniformity above 98 percent under correct operation. Even additive distribution removes common defects such as color streaks and inconsistent material properties. Stable blend quality helps injection molding and extrusion lines keep consistent finished part specs. The vertical screw creates gentle lifting force with low shear stress. This feature is critical for glass fiber filled plastic. Standard screw versions can handle glass fiber loading up to 30 percent without severe fiber breakage. Factories processing engineering plastics preserve impact strength and tensile properties after mixing.

Energy Saving And Long Term Operational Reliability

The gravity assisted flow design reduces power demand during each batch. Its 15 kW to 22 kW motor runs more efficiently than high shear horizontal mixers for the same batch weight. Factories running continuous production see steady electricity savings month after month. Built in overload protection extends equipment service life. It avoids motor burnout during heavy load startup. Reliable operation cuts unexpected downtime risk for factories with tight delivery schedules. Less unplanned maintenance also reduces spare part cost and production loss.

Material Compatibility And Additive Handling Ability

This vertical blender supports most common thermoplastic materials. It works for polyethylene, polypropylene, polystyrene and ABS. It also handles nylon, polycarbonate and other specialty engineering resins. One mixer model covers multiple material formulas and reduces the need for extra mixing machines. With upgraded bearing seals and dust collection accessories, it accepts powder additives up to 20 percent by weight. Processors can add UV stabilizers, flame retardants and impact modifiers directly inside the mixer. This step simplifies the whole compounding workflow and removes extra pre compounding work.

Strong machine performance only creates value when buyers select a qualified manufacturer. Next we cover supplier verification standards and available customization options. These checks help buyers avoid low quality equipment and match the mixer to unique production requirements.

Supplier Selection Guidelines And Customization Options For The 5 Ton Vertical Plastic Particle Mixer

Price should not be the only factor when sourcing this blender. Smart B2B buyers verify manufacturing quality, testing standards and after sales support before signing purchase contracts.

Key Quality Checks And Technical Document Verification

When sourcing the 5 Ton vertical plastic particle mixer, buyers should ask for screw dynamic balance test records. Unbalanced screw assembly creates extra vibration and speeds up bearing wear under 5000 kg load. Trusted manufacturers provide vibration test reports following ISO 10816. Vibration readings normally stay below 2.8 mm/s RMS for stable long term operation. Buyers also need to inspect weld quality on the stainless steel tank. Full penetration TIG welding and polished inner surfaces reduce material residue. Smooth inner walls shorten cleaning time during color switching and lower cross contamination risk for food contact plastic products.

Supplier Strength And Global Service Support

A reliable supplier needs stable in house inspection procedures. Incoming material check, mid production monitoring and pre delivery testing keep consistent quality across all equipment batches. Export experience across multiple regions helps the supplier handle international shipping, certification paperwork and multilingual operation training. 7×24 hour technical support is a key advantage for overseas buyers. Fast remote troubleshooting and local service partner networks reduce waiting time when problems appear on site. Responsive support keeps multi shift production lines running on schedule.

Customization Solutions For Special Production Needs

Standard configuration fits most general pellet blending jobs. Special formulas need targeted upgrades. Glass fiber heavy mixing tasks can select hardened alloy screws or tungsten carbide coating. High powder additive formulas need reinforced bearing seals. Users who require in tank heating can add integrated heating modules. Buyers should share material bulk density, additive type and target cycle time with the engineering team. Customized design prevents premature wear and maintains mixing uniformity for non standard recipes.

Conclusion

The 5 Ton vertical plastic particle mixer offers a practical large batch blending solution for plastic compounding and molding plants. Its fountain flow structure delivers high mixing uniformity with low shear force. It supports common thermoplastics, recycled regrind and moderate ratios of powder additives. The compact vertical footprint saves factory floor space while keeping energy consumption under control. Successful investment depends on three key steps. First, confirm structural quality and test documents from the manufacturer. Second, select suitable customization based on your material formula. Third, lock in clear after sales support and spare part plans. A properly specified unit stabilizes product quality, cuts waste and supports consistent long term production for plastic processors.

FAQ

Can the mixer handle materials directly from hot pelletizing lines?

The standard 5 Ton vertical plastic particle mixer safely processes pellets up to 80 degrees Celsius. Material above 100 degrees Celsius requires upgrades. Upgrades include high temperature bearing grease, screw thermal expansion joints and enhanced motor cooling. These changes stop screw binding under sustained high temperature feed.

What procedures ensure thorough cleaning during color changes?

This vertical blender includes ground level maintenance doors and detachable bottom discharge gates. Operators use compressed air to clear residual pellets on screw flights and inner tank walls. Mirror polished interior finishes reduce particle adhesion and speed up cleaning. Standard color change cleaning work usually finishes within 45 minutes when operators follow the standard procedure.

How does the vertical design affect glass fiber reinforced materials?

Low shear fountain flow limits glass fiber breakage. Standard screw versions work for formulations with glass fiber content up to 30 percent. Formulas with higher fiber loading should choose hardened alloy or carbide coated screws to resist abrasive wear.
