How to select the right size plastic particle mixer for large-scale plastic production?

Selecting the appropriate mixer size profoundly impacts production efficiency and product quality in industrial plastic processing. A 3 ton vertical plastic particle mixer emerges as the optimal choice for large-scale operations, balancing throughput capacity with operational flexibility. With a rated loading capacity of 3,000 kg and effective mixing volumes between 4,500 to 4,800 liters, this equipment addresses the critical needs of procurement engineers and sourcing managers seeking reliable, high-volume homogenization solutions. This guide provides technical insights and procurement strategies to help you make informed investment decisions that minimize downtime and maximize return on capital.

Core Requirements of Large-Scale Plastic Mixing

Large-scale plastic production usually means operations that run all the time and process several tonnes of material every day. The quality of the final product depends on how consistent the batches are. In these settings, mixing equipment has to do a lot of different things than it does in small-batch processes.

Defining Large-Scale Production Parameters

Plastic factories that make a lot of plastic usually handle between 20 and 100 tonnes of material every day. Even small changes in the way colours are spread out or the quantity of additives add up to a lot of waste and extra work at this level. For the required output, mixers must be able to handle batches of several tonnes while keeping cycle times that work with extrusion or injection moulding equipment further down the line.

Technical Specifications That Matter

A vertical mixer that is the right size has certain performance features that meet the needs of industry. The motor power ranges from 11 to 15 kW, and the equipment needs a 380V/50Hz power supply to work. The diameter of a drum is usually 1,800 mm and its height is 2,200 mm. It can hold materials with bulk densities of 0.6 to 0.8 g/cm³. Surfaces that touch materials that are made of 201 or 304 stainless steel keep them clean and avoid contamination between production runs. These requirements make sure that the material can be used with common thermoplastic resins, such as polypropylene, polyethylene, and PVC compounds.

Common Production Challenges Addressed

If the mixer is too small, it can cause problems that slow down the whole production process. To meet daily output goals, undersized equipment needs to be blended more than once, which increases the cost of labour and energy use. On the other hand, mixers that are too big or don't work at their best potential waste floor room and money. When mixing uniformity is less than the industry standard of 98%, finished goods will have different colours, melt flow rates that aren't constant, and changes in their mechanical properties. To avoid these expensive wastes, procurement teams must balance the need for capacity with the limitations of the building.

How Does a 3 Ton Vertical Plastic Particle Mixer Work and Its Advantages

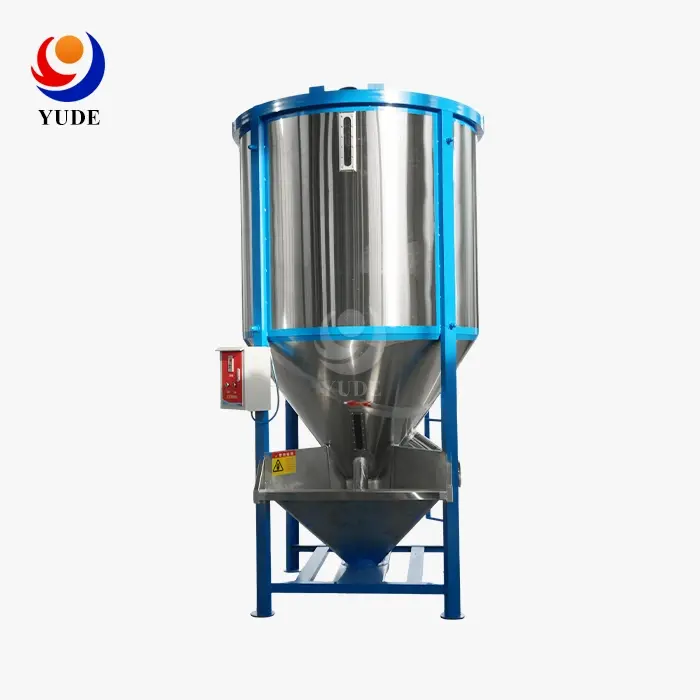

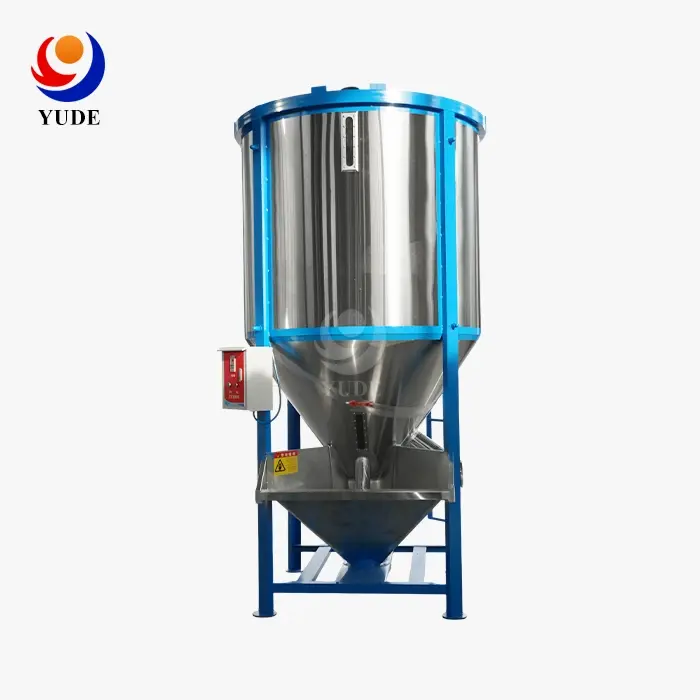

When you understand how vertical mixing systems work, you can see why they are so popular in large-scale plastic processing uses. The 3 Ton vertical plastic particle mixer employs a central screw auger placed inside a cylindrical drum.

Operational Mechanics and Material Flow

The spinning screw moves the stuff from the bottom cone to the top release point, making a fountain flow pattern that never stops. As the particles fall through the mixing box due to gravity, they are spread out in different places at random. Within 12 to 20 minutes, depending on the particle size distribution and differences in specific gravity between components, this convective circulation will have mixed the materials evenly. The process doesn't make a lot of frictional heat, which keeps heat-sensitive polymers from breaking down.

Comparative Advantages Over Alternative Designs

When compared to horizontal tumblers or ribbon blenders, vertical designs are clearly better. The small size takes up about 40% less floor space than horizontal models with the same capacity, which is helpful in factories that don't have a lot of room for production. Gravity-assisted material movement keeps energy use low, which lowers operational costs over the lifecycle of the equipment. The vertical orientation makes maintenance easier because access panels on the bottom make it easier to get to drive parts and bearing assemblies.

The vertical form works especially well when working with materials that have big differences in density. Heavy fillers, like calcium carbonate or glass fibre, don't settle at the ends of the chamber during the mixing cycle. This is a problem that always comes up in horizontal designs. This ability is very important for companies that make filled materials for use in building or cars.

Energy Efficiency and Environmental Impact

Less power use means higher savings on costs and a smaller impact on the environment. High-intensity batch mixers that use 30 kW or more are not as good as a normal mixing cycle that uses 11 to 15 kW every 15 minutes. The annual energy savings add up to a lot over many daily rounds. This improves business margins and supports corporate sustainability efforts that are becoming more and more important to North American procurement departments.

Critical Factors to Consider When Selecting the Right Mixer Size

For equipment to be properly specified, production parameters, material properties, and operational limits must be carefully considered.

Aligning Capacity with Production Volume

Figure out how much fresh resin, regrind, masterbatch, and chemicals you need to move every day. To figure out the hourly capacity, you need to take into account the mixer cycle time, which is usually 12 to 20 minutes, as well as the loading and discharge intervals. One 3-ton batch that is processed four times during the shift makes 12 tonnes of mixed material over the course of eight hours of work. To avoid production problems, make sure that this output matches or beats the rates at which downstream equipment is used. Adding 15-20% capacity headroom lets production go up without having to replace equipment right away.

Material Compatibility Considerations

Different families of polymers mix in different ways. Pelletised resins that are free to flow, like HDPE or PP, mix easily in vertical mixers, meeting uniformity requirements within normal cycle times. Materials that have particles with odd forms or a wide range of sizes may need more time to mix. Hygroscopic engineering resins like nylon or polycarbonate work better with stainless steel construction because it makes it easier to clean thoroughly between batches, which keeps quality problems from happening because of moisture. These needs are met by the usual 201/304 stainless steel contact areas on good equipment.

Facility Constraints and Installation Requirements

The vertical mixing height, which is usually more than 3.5 to 4 meters, needs enough ceiling space to allow for installation and upkeep. The structural floor must be able to hold the weight of the tools plus safety factors. This usually means that the foundations need to be made of reinforced concrete. The electrical system should provide steady 380V three-phase power with the right circuit safety. Plan the operations of moving materials, such as using overhead conveyors or air transfer systems to connect the output of a mixer to processing equipment. These issues with space and infrastructure have a big effect on the total cost of the project and should be taken into account when choosing equipment.

Total Cost of Ownership Analysis

The purchase price is only one part of the total costs over the life of the product. Rates of energy use, availability of maintenance parts, and expected service intervals should all be looked at. Standard industrial components, such as common motor sizes, easily available bearings, and standard fasteners, are used to make equipment that requires less upkeep and has less unexpected downtime. Capital investments are protected by warranties and quick service from suppliers. This is especially important for international purchases where logistics can make fixing equipment harder.

Why Opt for a 3 Ton Vertical Plastic Particle Mixer?

By looking at all the choices on the market, procurement workers can find the best equipment in terms of value and efficiency. Choosing a 3 Ton vertical plastic particle mixer provides the flexibility to adjust formulas between production runs, which is helpful for contract manufacturers who work with a wide range of customers.

Market Overview and Quality Benchmarks

The 3-ton capacity segment is an established market segment with well-known makers having tried-and-true designs. Quality equipment has stickers on it that show it meets electrical safety standards and mechanical design rules that are used in industrial gear. Reliable makers give out a lot of technical information, like engineering sketches, lists of parts, and data on how well the product works. These materials make it easier for quality management systems in the automotive and medical device supply chains to qualify equipment.

Direct Comparison with Alternative Mixer Types

In some situations, horizontal mixers have faster cycle times, but they take up a lot more floor space and usually cost more to buy. The trade-off makes vertical designs more likely in buildings that want to save space and keep costs down. Twin-screw continuous mixers work best for very high-volume tasks (more than 20 tonnes per hour), but they need special feeding systems and process control integration that most batch operations can't do.

These benefits can be seen in real-life practice. Automotive injection moulders use vertical mixers to make sure that the look of thousands of parts is the same when they mix raw polypropylene with impact modifiers and colour masterbatch. When recycling processes homogenise streams of variable-quality regrind, they get stable melt flow features that make extrusion processing reliable. When pipe makers mix PVC plastic with calcium carbonate fillers, they stop density stratification that would make the product's dimensions less consistent.

Pricing Structures and Supplier Evaluation

Prices for equipment range from $8,000 to $18,000, depending on how well it was built, how automated it is, and what accessories come with it. Entry-level types made of carbon steel and controlled by hand are good for situations where price is important. If you want to buy something that will last, mid-range tools with stainless steel contact surfaces, variable frequency drives, and industrial control screens is the best deal. Premium options come with advanced robotics, built-in dust collection, and the ability to make custom mounting combinations.

Check the supplier's skills beyond the price of the equipment. Manufacturers who back their goods with a collection of extra parts, English-language expert literature, and helpful customer service lower operating risk. Companies that have exported before know how to ship goods internationally, how to fill out paperwork, and how to customise power and frequency for North American setups.

Conclusion

In conclusion, to choose the right mixer size, you need to use both scientific research and a realistic purchasing strategy. The 3 Ton vertical plastic particle mixer has been used successfully in large-scale operations that need to evenly mix plastic particles, recycled materials, and additives. The mixing ability of the equipment should match the production throughput needs, taking into account the properties of the materials and the limitations of the building. Compared to other designs, vertical configurations save space, use less energy, and are easier to maintain. A careful evaluation of suppliers that focuses on their ability to manufacture, provide service support, and offer warranties protects capital investment and ensures long-term operational success. These ideas help procurement workers choose technology that improves the quality and efficiency of production.

FAQs

How do vertical and horizontal mixers differ in practical applications?

Vertical mixers use gravity to help the flow of material, so they take up less floor space and use less energy. They're great at working with materials whose densities vary. Horizontal designs allow for faster cycles with equal particles, but they require bigger areas and more money to start up.

How do I figure out how big of a mixer I need for my production?

Multiply the amount of material used per hour by the run time of the working equipment, which includes loading and unloading. Add 15 to 20 percent more extra space. A 3-ton mixer that goes through four rounds every hour can produce about 12 tonnes in an eight-hour shift.

What maintenance practices extend equipment operational life?

Check the grease levels in the bearings once a month and keep them at the right level. Use compressed air through entry holes to clean the inside of surfaces between colour changes. Every three months, check the tension of the drive belt and replace it when signs of wear show up. A professional inspection once a year finds problems before they become too big to fix.

Can this mixer handle high percentages of powder additives?

The machinery works well with materials whose bulk densities are between 0.6 and 0.8 g/cm³. Colour concentrates with low powder ratios (2% to 5%) mix easily. When there is more powder, you need special bearing seals to keep it from leaking and getting contaminated.

Partner with Yude Plastic Machinery for Superior Mixing Solutions

Yude Plastic Machinery stands as a trusted 3 ton vertical plastic particle mixer manufacturer serving global plastic processing operations. Our equipment delivers ≥98% mixing uniformity within 12 to 20-minute cycles, backed by comprehensive technical support and responsive service. We manufacture a complete range from 300 kg laboratory units through 10-ton industrial systems, all featuring precision-machined components and durable stainless steel construction. Our engineering team provides customization services including multilingual control interfaces and modifications meeting regional standards. Contact our specialists at sales@yudemachinery.com to discuss your specific production requirements. We offer competitive pricing, detailed technical documentation, and reliable delivery schedules supporting your procurement timeline. Let us demonstrate how our mixing equipment enhances your manufacturing capabilities.
