How to choose a 2000kg plastic pellet mixer for industrial production?

Choosing the right 2000kg vertical plastic particle mixer is critical for ensuring efficient, consistent, and high-quality industrial production. When your production line handles tons of plastic material daily, even small inconsistencies in blending can cascade into expensive quality issues—color streaks in molded parts, uneven distribution of additives, or compromised mechanical properties. This guide focuses on helping procurement managers, engineers, distributors, and OEM clients understand the key aspects of these mixers, empowering informed decisions for their production lines. By examining mixer functions, selection criteria, comparisons, sourcing strategies, and operational best practices, this resource delivers a comprehensive overview tailored to the demands of modern global B2B procurement. The investment in a large-capacity mixer is substantial, and selecting equipment that aligns with your throughput requirements, material characteristics, and quality standards will directly impact your operational efficiency and profitability.

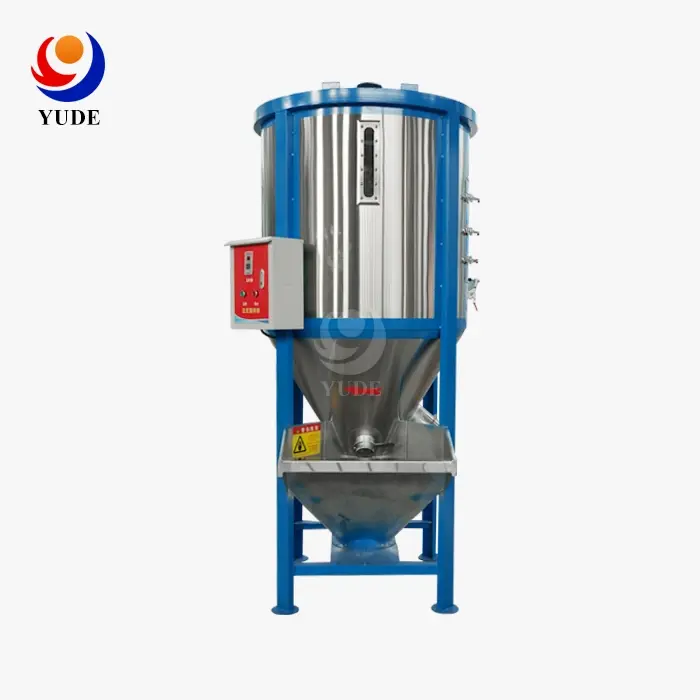

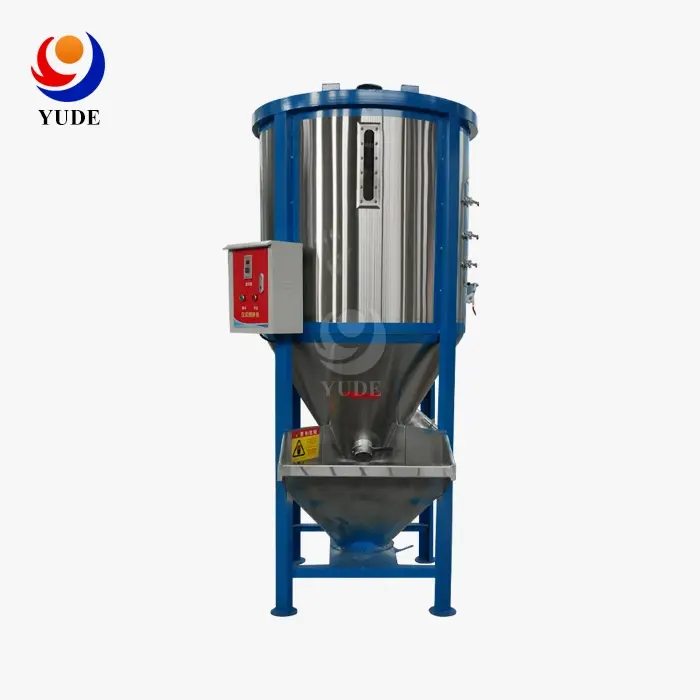

Basics of a 2000kg Vertical Plastic Pellet Mixer

A 2000kg vertical plastic particle mixer is a large-scale industrial machine made to mix plastic pellets the same way. A vertical helical screw mechanism in these units lifts material from the bottom of a cylinder-shaped mixing chamber and spreads it out at the top, making a continuous flow that looks like a fountain. This design makes sure that all of the raw resins, regrind, masterbatches, and additives are thoroughly mixed into the whole batch. These mixers improve batch accuracy and material quality, which are very important for extrusion and injection moulding operations that follow. They are mostly used in the plastics manufacturing, chemical processing, and packing industries.

Core Working Mechanism and Components

The vertical form makes good use of room and mixes things well by using gravity and motorised agitation. A strong motor (usually 7.5 to 11kW) drives the central screw at speeds between 250 and 350 RPM. This motor is at the heart of the system. The mixing chamber usually has a drum diameter of about 1600 mm and a height of 2000 mm. It can effectively mix 3000 to 3200 litres of material. Surfaces that come into contact with materials are made of 304 stainless steel to keep them clean and protect them from corrosion caused by chemical additives. Understanding how the equipment works, including important parts like the mixing chamber, motor, and stirrer arms, helps you compare performance benefits over other options and makes sure that the equipment fits your production needs. The estimated loading capacity of 2000kg is based on the fact that most plastic pellets have bulk densities between 0.6 and 0.8g/cm³. This means that the equipment can handle a range of materials without getting too heavy.

Operational Parameters and Performance Metrics

Modern vertical plastic mixers can mix materials evenly to a level of ≥98%, which means that samples taken from anywhere in the batch will not show any statistically significant differences in makeup. The length of a single mixing cycle can be changed depending on the features of the material. Longer cycles may be needed for more complicated recipes with many additives or materials with big changes in density. Most of the time, these machines run on a three-phase 380V power supply and keep their noise levels below 80dB. This means they can be used in enclosed production spaces without needing any special soundproofing.

Key Criteria to Consider When Choosing a 2000kg Plastic Pellet Mixer

To choose the best 2000kg vertical plastic particle mixer, you need to know how to match its capacity with your production volumes. This way, you can make sure that throughput meets demand without lowering quality. When your production schedule calls for working on multiple batches during each shift, the time it takes to mix one batch becomes a key bottleneck metric. A mixer that can reach the desired level of regularity in 12 minutes instead of 18 minutes can boost daily flow by up to 30%, which will directly affect your ability to keep delivery dates.

Evaluating Mixing Time and Energy Efficiency

Both mixing time and energy economy are very important because faster cycles and less power use lower costs. Whether it's 7.5kW or 11kW, the motor power level should match the complexity and viscosity of your average batch. Higher-powered units can keep mixing speeds steady even when adding a lot of material or different types of additives at the same time. Models that use less energy have variable frequency drives that keep the motor speed at the best level during the mixing cycle. This cuts electricity use by 15 to 20 percent compared to models with fixed speeds.

Maintenance Accessibility and Safety Features

Long-term dependability and worker safety are protected by checking how easy it is to maintain and what safety features are included. Look for designs that have entry points at ground level for cleaning, hinged viewing doors for checking screws, and modular bearing kits that can be changed by techs without taking the whole drive system apart. Safety interlocks should keep the lid from opening while the machine is running, and emergency stop buttons should be easy to reach from different parts of the machine. Overload safety circuits keep motors from getting damaged by material jams, and temperature sensors can find bearings that are getting too hot before they break.

Build Quality and Supplier Credentials

Putting an emphasis on build quality, material durability, warranty coverage, and the reputation of the supplier all help protect the value of an investment even more. Because plastic working areas often have chemical vapours and high humidity, the frame should be made of heavy-gauge steel that has been coated to prevent corrosion. Long-term structural stability is directly affected by the quality of the weld. Continuous welds that are done by professionals last years longer than spot-welded parts. A full insurance should cover everything for at least 18 to 24 months and make it clear which parts are covered, such as motors, gearboxes, and computer controls. A smart mix of these factors will lead to better production processes with little downtime in the end.

Best Practices for Operating and Maintaining Your 2000kg Vertical Plastic Pellet Mixer

To maintain operational excellence, you need to follow standard procedures that improve mixing quality and extend the life of your 2000kg vertical plastic particle mixer. Write down instructions that explain how to charge the machine. For example, adding the masterbatch before the regrind will help the powders spread out better, and adding fine powder additives halfway through the cycle will keep them from building up at the screw base. Write down the best times to mix each type of material you work with. These recipes become valuable institutional knowledge that stays with the company even when employees leave.

Preventive Maintenance Protocols

Regular checks and replacing worn parts at the right time are examples of preventive maintenance that keeps things from breaking down without warning and costing a lot of money. Make it a weekly habit to check the oil level in the gearbox, listen for strange noises coming from the bearings and look at the drive belts for wear. As part of monthly maintenance, exposed bearings should be oiled, safety interlocks should be checked to make sure they work properly, and dust should be cleaned off of the motor cooling fins. Every year, professional technicians check the electrical connections, use thermal imaging of the control panels to find hot spots, and clean the inside of the mixing chamber to get rid of polymer buildup.

Troubleshooting and Safety Compliance

Dealing with common problems quickly also cuts down on working interruptions. Material bridging at the output port generally means that the mixing time wasn't long enough or that the material blend has too many fines. Increasing the cycle time or screening out the powder fractions usually fixes the problem. Inconsistent batch quality is usually caused by mistakes in charging rather than problems with the equipment. This problem can be solved by using different coloured containers for different raw materials and checking them off on a checklist. Setting safety rules as a top priority, especially when it comes to training, protective features, and compliance checks, helps keep workers and equipment safe and productive. All operators should get hands-on training that covers how to shut down the machine in an emergency, how to handle materials so they don't get dusty, and how to recognise sounds that aren't normal that mean mechanical problems are starting to happen.

Conclusion

Picking the best large-capacity 2000kg vertical plastic particle mixer is a smart investment that affects the quality of the product, how well it runs, and how much money it makes in the long run. Procurement professionals can find equipment that consistently produces good results while keeping total ownership costs as low as possible by carefully checking capacity alignment, mixing performance, energy efficiency, and source capabilities. When working with limited room and a wide range of materials, the vertical mixer configuration has a lot of benefits. This is especially true when paired with makers who offer full professional support and quick after-sales service. Doing your research before making a choice, such as checking references, making sure the specs are correct, and making sure the contract terms are clear, is important for making sure that the technology works well together and for many years to come.

FAQ

What mixing duration should I expect for a 2000kg batch?

Depending on how complicated the recipe is, mixing rounds usually last between 10 and 18 minutes. Simple mixes of virgin resin and a single-color masterbatch finish closer to the shorter end of this range. More complicated mixtures that include regrind, multiple additives, and materials with big differences in density need longer cycles that last close to 18 minutes to meet the ≥98% uniformity standard.

How does energy consumption compare with horizontal mixers?

Most of the time, horizontal ribbon blenders with the same volume use 15-20% more energy than 2000kg vertical plastic particle mixers. Because of gravity-assisted circulation, less mechanical work is needed to mix the materials thoroughly, and the compact vertical design means that less material needs to be constantly stirred. A normal 2000kg vertical mixer with a 7.5-11kW motor uses between 0.15 and 0.20 kWh of power for every kilogram of material it processes.

Can manufacturers customize these mixers for specific requirements?

Reputable manufacturers let you make a lot of changes, like changing the shape of the hoppers to make it easier for tough materials to flow, adding heating or cooling jackets for formulations that need to be kept at a certain temperature, making the motors explosion-proof for areas that process fine powders, and changing the control system to work with other automation systems in the plant. Talk about your customisation needs early on in the buying process to make sure it's possible and to figure out how much it will cost.

Get Your Industrial-Grade 2000kg Vertical Plastic Particle Mixer from a Trusted Manufacturer

Yude Plastic Machinery is ready to help you with your large-scale mixing needs with tried-and-true 2000kg vertical plastic particle mixer options and full tech support. We are a well-known 2000kg vertical plastic particle mixer seller, and we make full equipment lines ranging from 300kg small-scale units to 10 tonnes industrial systems. We work with companies around the world that make auto parts, extrude pipes, and recycle plastic. Our mixers achieve ≥98% regularity in 10 to 18 minute cycles while using minimal energy. This is possible by carefully designing the screw shapes and motor sizes. Through our global service network, which spans over 30 countries, we offer technical documentation in multiple languages, customisation services that are in line with regional compliance standards, and after-sales support 24 hours a day, seven days a week. You can email our team at sales@yudemachinery.com to talk about your specific production needs, get detailed technical specifications, or set up a virtual factory tour to see how we control quality and make things.

References

1. Parker, R.D. (2021). "Industrial Mixing Technology for Polymer Processing: Equipment Selection and Optimization Strategies." Journal of Plastics Engineering, Vol. 47, No. 3, pp. 112-128.
2. Chen, L. & Morrison, K. (2020). "Comparative Analysis of Vertical and Horizontal Mixing Systems in High-Volume Plastics Manufacturing." International Journal of Advanced Manufacturing Technology, Vol. 108, pp. 2847-2861.
3. Thompson, M.J. (2022). "Total Cost of Ownership Models for Capital Equipment Procurement in Polymer Processing Facilities." Industrial Equipment Management Quarterly, Vol. 34, No. 2, pp. 67-84.
4. Zhang, W., Kumar, S., & O'Brien, T. (2019). "Energy Efficiency Optimization in Large-Capacity Plastic Pellet Blending Operations." Energy and Industrial Systems, Vol. 15, No. 4, pp. 445-459.
5. Rodriguez, A.M. (2023). "Maintenance Protocols and Reliability Engineering for Polymer Processing Equipment: A Practitioner's Guide." Society of Plastics Engineers Technical Papers, Annual Conference Proceedings, pp. 1567-1582.
6. Williams, D.R. & Shah, P.K. (2021). "Global Supply Chain Considerations for Industrial Machinery Procurement: Risk Mitigation and Supplier Qualification Frameworks." Journal of Supply Chain Management in Manufacturing, Vol. 29, No. 1, pp. 93-110.
