Is a 5000kg plastic mixer suitable for continuous production lines?

When procurement managers and production engineers evaluate equipment for high-volume manufacturing environments, one question consistently surfaces: Can a 5000kg capacity mixer seamlessly integrate into continuous production workflows? The answer depends on multiple operational and technical factors. A 5 ton vertical plastic particle mixer can indeed support continuous production lines, particularly when designed with appropriate throughput capacity, automated material handling integration, and consistent cycle efficiency. With a rated loading capacity of 5000kg (calculated at plastic particle bulk density of 0.6-0.8g/cm³), an effective mixing volume of approximately 7500-8000L, and mixing uniformity exceeding 98%, this equipment class delivers reliable batch consistency critical to uninterrupted production cycles. Achieving homogeneity within 15-25 minutes per batch allows coordination with upstream pelletizing and downstream extrusion or molding equipment, maintaining steady material flow without creating bottlenecks. The key lies in matching mixer cycle time to production line demand and implementing robust material feeding and discharge automation.

Role of a 5000kg Plastic Mixer in Continuous Production Lines

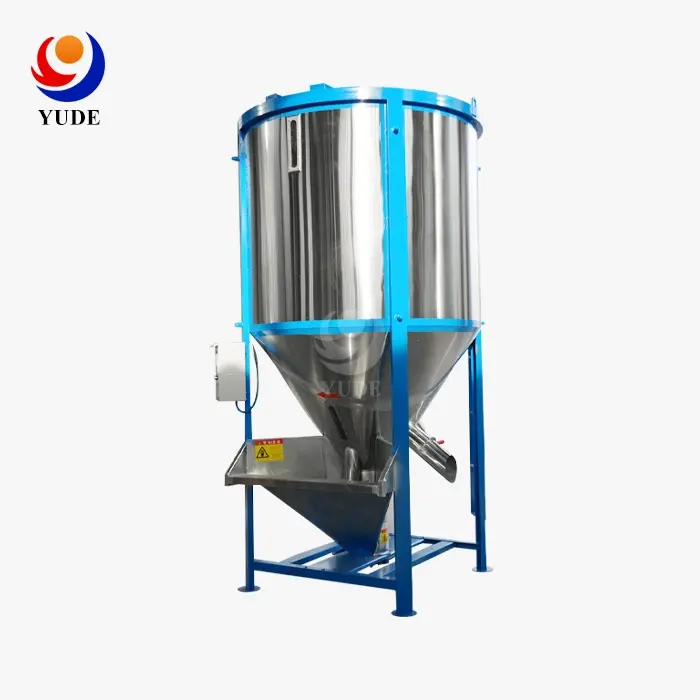

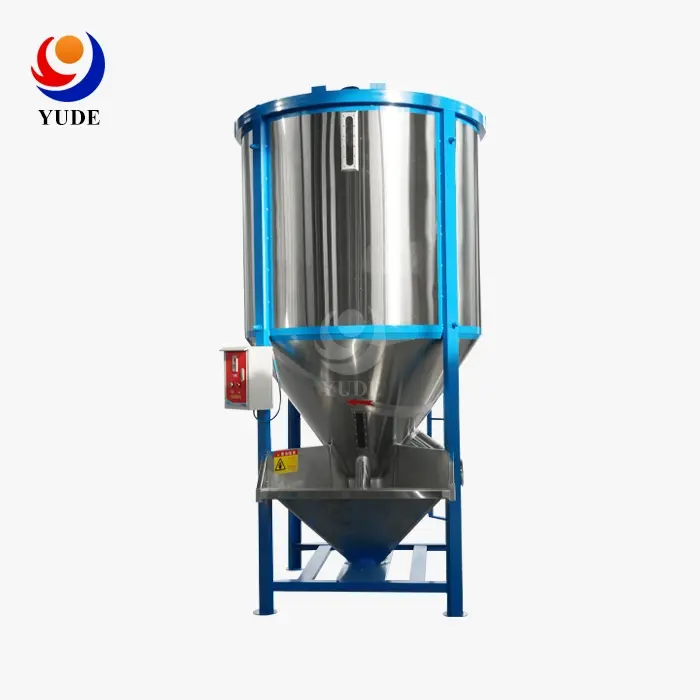

Equipment for continuous production lines needs to be able to give consistent output, keep the quality of the materials, and work well with processes that are next to it. A 5 Ton vertical plastic particle mixer works with a center vertical screw mechanism inside a cylinder-shaped bin to create a controlled "fountain flow" pattern. The material goes in at the bottom, goes up through the rotating screw, spreads out at the top, and then goes down along the walls around the outside. This makes sure that the particles are spread out in a statistically random way throughout the batch.

Core Design Features and Operating Principles

The vertical shaft design has clear benefits in environments where production is ongoing. Horizontal mixers take up a lot of floor space, but vertical configurations make good use of height, which makes them perfect for plants that don't have a lot of production floor space. The strong mixing blades are made of 304 stainless steel (316L is available for materials that are more likely to rust), and they can handle a wide range of plastic granules, from new pellets to masterbatch and regrind blends, without damaging the materials.

When something is mechanically operated, it mostly uses low-shear agitation and gentle convective mixing. The motor's power, which ranges from 15 to 22 kW and has overload safety, turns the screw at fixed speeds to keep frictional heat to a minimum. This is very important when mixing heat-sensitive plastics like PVC or low-melt LDPE because it keeps the materials from sticking together or fusing together by accident. The digital display and PID temperature control system make it easy to keep an eye on things. Heating models with 45–75 kW of power can also be used as drying mixers, lowering the moisture content while blending at the same time.

Integration Advantages in Production Workflows

Coordinating with pelletisers upstream and processing equipment downstream is needed to connect a vertical mixer to a continuous line. Most of the time, material moves into the mixing through pneumatic or gravity feed systems from cooling systems or storage tanks. Once the desired level of uniformity is reached (≥98%), the material is discharged directly into extrusion hoppers, injection moulding machines, or intermediate storage bins through bottom slide gates or pneumatic valves.

Throughput capacity is based on the single mixing time, which can be changed based on the amount and specific gravity of the materials. This time ranges from 15 to 25 minutes. For production lines that need 10–12 tonnes of mixed material every hour, running two mixers in opposite cycles makes sure that the material is always available. When one mixer finishes mixing and empties, the second unit hits the middle of its cycle, keeping the supply chain going. Advanced control systems allow for automatic scheduling, which cuts down on the need for human help and the cost of labour.

Key Factors to Evaluate When Selecting a 5 Ton Plastic Mixer for Continuous Production

To match equipment specs to production needs, you have to look at a lot of technical and economic factors. When making procurement choices, you should think about both short-term business needs and long-term strategic goals for your 5 Ton vertical plastic particle mixer investment.

Capacity Alignment and Throughput Optimization

Assuming that the mass density of the plastic particles is between 0.6 and 0.8g/cm³, the rated loading capacity of 5000 kg means that the effective mixing volume is between 7500 and 8000L. Figuring out how much material is needed for each shift is needed to match this capacity to the rate at which the production line uses it. For an extrusion line that can handle 800 kg per hour, a single mixer that can finish a batch every 20 minutes gives the line an extra 150 kg per hour of capacity, once loading, mixing, and unloading time are taken into account. This cushion keeps output from stopping while equipment is being fixed or when delays happen out of the blue.

When the mixer's capacity is too small, cycles have to be rushed, which hurts the consistency. Injection moulding operations have shown that cutting mixing time from 20 minutes to 12 minutes to meet demand can lower homogeneity from 98% to 91%, which can make finished parts have visible colour streaks and differences in their mechanical properties. Oversizing, on the other hand, raises capital costs and wastes energy because mixers that are only partly full mix less efficiently and take longer to run.

Safety Features and Regulatory Compliance

Continuous work settings make safety rules stricter. Reputable manufacturers build overload protection into their motor assemblies so that they don't burn out when mixing loads of materials that are very thick or viscous. There are emergency stop buttons at ground level and on raised platforms that allow the system to shut down quickly in case of an emergency.

Following international standards guarantees the quality of the design. When something has a CE mark on it, it means that it meets European machinery directives for things like electrical safety, mechanical hazards, and noise emissions. ISO approval shows that a quality management system is being followed throughout the whole production process. Making sure that electrical parts meet NEMA standards and motor efficiency meets DOE rules is an important part of U.S. buying because it makes sure that the goods will work with the country's power grid and support green efforts.

Energy Efficiency and Total Cost Analysis

Lifecycle costs include more than just the original buy price. At $0.12 per kWh, a mixer that uses 18 kW and runs 16 hours a day costs about $12,600 a year in power. Upgrading to a high-efficiency motor that cuts energy use by 2 kW saves $1,400 a year, covering the cost of the extra equipment within 3–4 years and lowering the carbon footprint at the same time.

Models with heating can do two things at once: mix the ingredients and lower the wet level. When you combine drying and blending, you don't need separate drying equipment for hygroscopic resins like nylon or PET. This saves money on capital costs and floor space. During normal mixing cycles, the 45–75 kW heating power can lower the moisture content from 0.3% to below 0.05%. This meets the requirements for extrusion and injection moulding without the need for extra processing steps.

Blade Design Impact on Product Quality

The shape of the screw movement affects how the particles mix and how well they stick together. Standard screw designs have continuous helical flights with pitch angles that are best for keeping the lifting speed and material turnover at a healthy level. When working with fragile materials or ingredients, reduced-pitch setups slow down the pulling speed. This lowers mechanical stress and keeps the particle structure.

When working with glass-fiber-reinforced materials that have more than 30% fibre content, using hardened metal screws or tungsten carbide coatings can make the tools last longer and keep the dimensions the same. Standard stainless steel screws start to wear out after 8 to 12 months of being used in these rough conditions. As the space between the screw flights and the barrel walls grows, the screws become less effective at mixing.

Procurement Guide: Buying and Implementing a 5 Ton Vertical Plastic Particle Mixer

To find your way around the global equipment market, you need to look at what suppliers can do, understand how prices work, and plan how to put your plans into action. Decisions about strategic sourcing for a 5 Ton vertical plastic particle mixer affect both the initial investment and the success of operations in the long run.

Identifying Reliable Manufacturers and Suppliers

There are manufacturers of industrial mixing tools from many different areas, and each one has its own benefits. Chinese manufacturers, such as well-known ones like Shandong Yude Plastic Machinery Co., Ltd., offer competitive prices, the ability to make changes, and more and more advanced technology. When you deal directly with a manufacturer, you avoid the markups that distributors add, and you can change the specifications to fit your specific production needs.

European providers usually put a lot of emphasis on high-quality engineering, advanced automation integration, and detailed paperwork. Buying from these sources is good for situations that need a lot of paperwork to show that they follow the rules or that need to connect to current production lines made in Europe. While North American wholesalers usually charge 30–40% more than direct importers, they offer localised support, easier transportation, and faster access to replacement parts.

Understanding Pricing Structures and Investment Protection

The price of a 5 Ton vertical plastic particle mixer runs from $15,000 to $45,000, based on the features, building materials, amount of automation, and where the seller comes from. Base models with manual controls and normal 304 stainless steel construction are cheaper. Fully automatic units with 316L construction, built-in heating systems, and advanced PLC controls that can be monitored from afar are more expensive.

When you buy in bulk, you can save money. Manufacturers often offer 8–12% savings on orders of three or more units, as well as better guarantee terms and spare parts sets that come together. It's easier to keep track of cash flow when buying capital equipment if you can negotiate longer payment terms, like 30% down payment, 60% before shipment, and 10% after installation and testing.

Customization Options and Lead Time Planning

Standard mixer configurations work well for many uses, but changes are often needed to meet the needs of a specific production. Customisation requests often include non-standard discharge heights to match existing conveyor heights, explosion-proof electrical parts for facilities that work with flammable materials, and unique surface finishes like electropolished interiors for use in pharmaceutical or food-grade settings.

Yude Plastic Machinery can change the sizes of equipment, how it's controlled, and the specifications of its parts to fit the production environments of its customers. This flexibility is especially useful when adding mixers to automated material handling systems that are already in place or when changing equipment to work with power supplies that are set up in a certain way at a facility.

After-Sales Support and Service Considerations

Full after-sales help cuts down on downtime and increases the life of tools. Reliable suppliers keep technical support hotlines open and offer troubleshooting advice at the start-up stage and throughout the system's life. The customer service team at Yude Plastic Machinery is available seven days a week, twenty-four hours a day. They can be reached at sales team and will answer any technical questions you may have quickly.

Availability of spare parts has a huge effect on planning upkeep. Making sure that sources have common wear parts like bearings, seals, and control panel parts in stock and can ship replacements within 72 hours keeps production from stopping for long periods of time. Building ties with local service partners who can do regular maintenance and fixes in an emergency makes it less necessary to send technicians from other countries.

Conclusion

When properly specified, installed, and maintained, a 5 Ton vertical plastic particle mixer works well for continuous production lines. When you have solid group consistency of more than 98% uniformity, the ability to integrate automatically, and the right cycle times, you can easily coordinate with processes upstream and downstream. To be successful at procurement, you need to carefully consider capacity alignment, know the pros and cons of both vertical and horizontal layouts, and build relationships with makers who can provide full support. Companies that spend money on good operator training, follow strict repair procedures, and find the best operational factors get better production efficiency and longer equipment life, which means they get the most out of their mixing equipment investment.

FAQs

Can the mixer handle materials directly from high-temperature pelletizing lines?

Standard models can handle materials up to 80°C without any changes. When hot pelletising processes send materials above 100°C, they need better bearings with high-temperature grease formulas and thermal expansion joints to keep the screws from sticking. Talking to manufacturers about your specific temperature needs during the procurement process makes sure that the right 5 Ton vertical plastic particle mixer is set up.

How quickly can operators change between different material colors?

Compressed air cleaning is made easier by ground-level entry doors and bottom slide gates that can be taken off. A basic cleanout can usually be done in 30 to 45 minutes. Mirror-finish inner surfaces make it easier to clean and keep dust from sticking to operations that need to keep contamination under tight control. If there will be a lot of changes, ask for shiny stainless steel innards when you buy them.

Does the mixing action damage glass-fiber reinforced plastics?

The gentle vertical screw lifting mechanism creates a lot less shear stress than high-speed paddle mixers, which keeps the integrity of the fibres in mixtures with up to 30% glass fibre. If the concentration of the material is higher than this, hardened metal screws or tungsten carbide coatings can be used to keep gaps and mixing efficiency high while working with rough fiber-filled resins.

Partner with a Trusted 5 Ton Vertical Plastic Particle Mixer Manufacturer

With years of experience in vertical mixing technology, Yude Plastic Machinery is ready to help you meet your continuous production needs. As a specialised manufacturer, we make equipment that is built to last, has exact engineering, and is priced competitively. Purchasing professionals in the compounding, manufacturing, and plastic processing industries count on our products. Our production services include full customisation, from non-standard sizes to custom control interfaces, to make sure that our equipment fits right into your current production environment. The 7x24 after-sales support system, which is backed by technical experts, makes sure that you can get help whenever you need it. You can email our team at sales@yudemachinery.com to talk about your specific application needs, get full specs, and find out how our 5 Ton vertical plastic particle mixer supplier can help you make your production more efficient and your products more consistent.
