What is the working principle of a 5 Ton vertical plastic particle mixer?

Vertical plastic particle mixers play a critical role in achieving consistent, high-quality blends in plastic processing industries. Understanding their working principles is essential for procurement managers, engineers, and distributors who seek efficient, reliable equipment tailored to their production needs. This guide offers an in-depth look at the operational mechanics, maintenance best practices, and practical purchasing insights for 5 ton vertical mixers. By combining technical explanations with strategic procurement advice, the content aims to support informed decision-making, ensuring optimal mixer performance and long-term value for global B2B clients in plastics manufacturing.

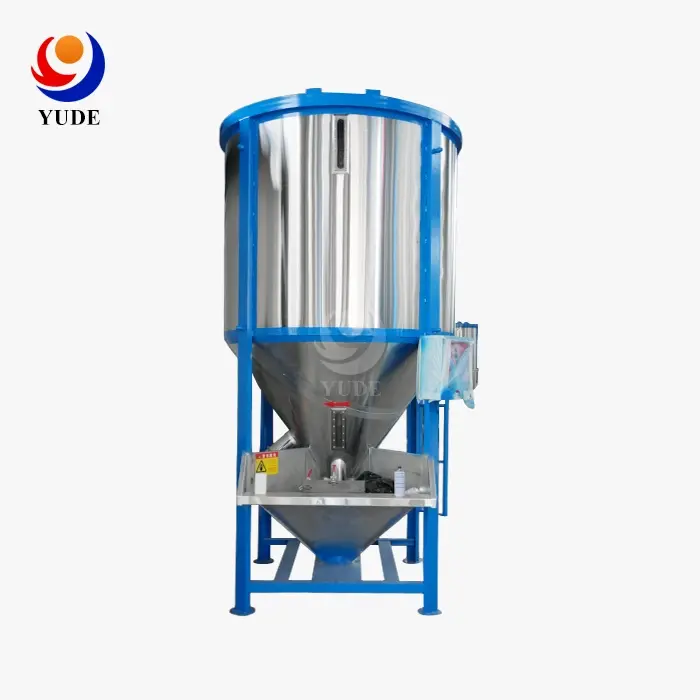

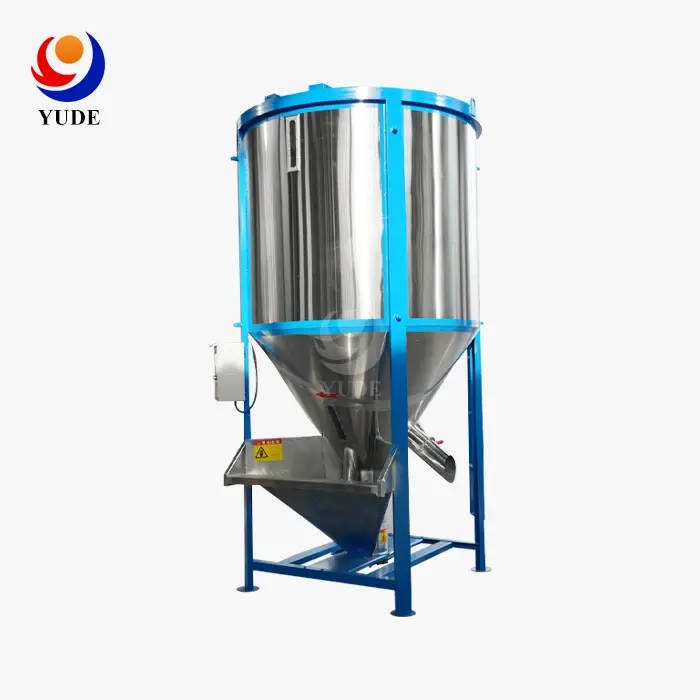

The 5 Ton vertical plastic particle mixer operates through a central vertical screw auger mechanism housed within a cylindrical stainless steel silo. The screw lifts material from the bottom cone to the top of the vessel, creating a controlled "fountain flow" pattern that ensures statistically random particle distribution. This continuous circulation achieves mixing uniformity of ≥98% within 15-25 minutes, handling a rated loading capacity of 5,000 kg based on typical plastic particle bulk densities of 0.6-0.8g/cm³ across an effective mixing volume of approximately 7,500-8,000 liters.

Working Principle of a 5 Ton Vertical Plastic Particle Mixer

The 5 Ton vertical plastic particle mixer mechanism is very different from paddle types that are laid out horizontally. At the heart of this industrial mixing system is a vertical shaft with helical flights that spin inside a cylinder-shaped vessel with a cone-shaped bottom. When the motor starts, which is usually a 15–22 kW unit with overload protection, the screw starts to turn at a controlled speed that is best for gentle convective mixing instead of rough shearing.

How the Vertical Screw Creates Material Circulation

The bottom discharge cone is where the material flow starts. This is where the rotating screw picks up plastic particles. The helical flights move the granules up along the center line, and the vertical shape of the vessel uses gravity to its advantage. When the particles get to the top of the screw, centrifugal force spreads them out in a radial pattern. The granules then fall along the walls of the tank, making a constant circulation loop. This fountain-like movement makes sure that every particle moves through several areas of the mixer. This helps to fully combine new pellets, used pellets, masterbatch colorants, and performance additives without creating too much friction heat that could damage temperature-sensitive plastics.

Energy Efficiency and Operational Mechanics

When compared to high-speed horizontal mixers, the vertical configuration saves a measurable amount of energy. Because the design works with gravity instead of against it, the gentle lifting action needs less power. Our units work best in the 15–22 kW range. A precise gearbox is driven by the motor and changes the speed of spinning to the best screw RPM for convective mixing. This method keeps mechanical stress on parts to a minimum and lowers the cost of doing business. The PID temperature control system with digital display lets workers keep an eye on the temperature. This is especially important when working with heat-sensitive materials like PVC compounds or low-melt polyolefins, since too much friction could cause them to melt or clump together too soon.

Material Compatibility and Processing Versatility

The design of 304 stainless steel makes it very compatible with a wide range of plastics. Standard commodity resins like polyethylene, polypropylene, polystyrene, and ABS can all be mixed in the mixer without any problems. The smooth inner surface, which can be specified with a mirror finish, keeps materials from sticking and makes changing colors easier. The standard stainless steel screw works well with engineering plastics that have up to 30% glass fiber reinforcement. For higher fiber concentrations, the optional tungsten carbide coating makes the part last longer. There is a range of useful mixing volumes to suit different bulk densities. For example, the 7,500–8,000 liter capacity means that 5,000 kg of plastic particles can be loaded.

Advantages and Best Practices for Operating a 5 Ton Vertical Plastic Particle Mixer

Vertical mixers have unique advantages over other types of mixers, such as designs that take up less room, a lower risk of contamination, and less upkeep. The 5 Ton vertical plastic particle mixer features an upright shape that takes up very little floor space, which is important in factories where the cost of real estate has a direct effect on the profitability of manufacturing. The top-loading configuration with bottom discharge makes a flow path that is helped by gravity and naturally stops materials from separating during discharge, keeping the consistency that was reached during mixing.

Knowing about these operational benefits helps procurement teams and plant engineers get the most out of the money they spend on equipment. Cross-contamination is naturally lower in a vertical form because there is only one point of release instead of many seams and joins where leftover material could build up. Maintenance access is better because the motor and gearbox are mounted at the bottom and can be serviced easily from ground level, which isn't possible with some horizontal configurations that use overhead drives.

Step-by-Step Operational Guidelines

Before loading, the discharge gate must be closed and the inside of the vessel must be clean from earlier runs. Operators should put materials in the opposite direction of their mass density. This way, the heavier additions will go in last and settle to the bottom, where they will be caught by the first screw action. The control panel lets you set exact cycle times, which are usually set to be between 15 and 25 minutes, but this depends on the changes in particle size and specific gravity between the blend components. During operation, the digital display shows the motor's amperage in real time and lets workers know if there are any odd loads that could mean that the material isn't being filled properly or is bridging. When the cycle is over, the bottom slide gate opens to let all the material out. The conical bottom design makes sure that the material moves easily without any help from a person or a pneumatic system in most cases.

Maintenance Protocols and Safety Standards

The first step in routine maintenance is to check the bottom bearing assembly once a week. The multi-lip seal design keeps powder out, which is the main reason why bearings fail early. Using high-temperature grease made for continuous-duty applications and lubricating the bearings once a month keeps them in good shape. The ground-level maintenance doors make it easy to check the screws every three months without using overhead cranes or taking the whole thing apart. As a safety measure, operators must follow lockout-tagout processes before they can access internal parts. The overload protection system adds another layer of protection against motor burnout in unusual operating situations. With proper care, equipment can last longer than eight years in standard granule applications. Service manuals that come with each unit make it easy to see when to replace parts.

How to Buy a 5 Ton Vertical Plastic Particle Mixer?

For buying to work well, production needs must be clearly defined and suppliers' skills must be evaluated. Matching capacity starts with a correct analysis of daily throughput needs, material properties, and desired batch frequency. The rated capacity of 5,000 kg is enough for activities that process 20 to 40 tons of material every day, taking into account the rounds of loading, mixing, and emptying. The total cost of ownership for a 5 Ton vertical plastic particle mixer should be calculated by procurement engineers. This should include the costs of installation, changes to the electrical infrastructure, training for operators, and planned upkeep over the equipment's useful life.

Supplier Evaluation Criteria

Supplier dependability goes beyond the quality of the original equipment and includes how quickly technical help responds and how many parts are available. Well-known companies keep a lot of spare parts on hand and keep track of how long it will take to get them, especially for important wear parts like bottom bearings, seals, and screw segments. Professional manufacturing practices are shown by being able to provide FAT documentation, dimensional drawings for planning the facility, and electrical schematics for planning the integration. During the specification phase, experienced providers offer online consultations that help buyers find the best options without having to make site visits, which slow down the buying process.

When planning production, delivery becomes very important. Standard 5-ton units are shipped in containers, which takes about 6 to 8 weeks from the time the order is confirmed until they arrive at the port. Due to height restrictions, units are often sent in two parts, with the upper barrel and base connecting via bolted flanges during installation. To avoid surprise costs that cut into budgets, buyers should make sure that the price they are quoted includes export crating, marine insurance, and handling at the target port.

Working With Specialized Manufacturers

Shandong Yude Plastic Machinery Co., Ltd. has built a strong reputation as a supplier of vertical plastic particle mixers by consistently sending high-quality equipment to markets in China and around the world. From 300 kg laboratory models to 10-ton industrial systems, our factory makes all kinds of units. For mid-sized businesses, the 5-ton capacity is by far the most common. At every step of the production process, from checking the materials that come in to the final load testing that mimics real-life conditions, the company follows strict quality inspection protocols. This methodical approach has led to successful installations in more than 30 countries, such as those in South America, Southeast Asia, and the Middle East.

Yude Plastic Machinery has the technology know-how to make quick answers to customer requests. When customers need non-standard features, like electrical specifications that won't blow up in solvent-filled areas, special coatings for corrosive additives, or built-in weighing systems for automated batching, our engineering team sends them detailed proposals within 48 hours. This timeliness, along with affordable pricing made possible by increased production numbers, puts the company in a good situation for procurement managers who have to balance technical needs with limited budgets. For professional support 24 hours a day, 7 days a week, the after-sales support system works with area service partners who help with installs and commissioning on-site.

Conclusion

5 Ton vertical plastic particle mixers have been shown to be more effective in situations where the materials need to be uniform, installations need to be small, and the machines need to work reliably for a long time. The 5-ton capacity standard meets the needs of mid-range reactors and allows operations to grow as needed. Knowing how things work, like how the vertical screw works and what materials will work with it, helps you make decisions about what equipment to buy that match the needs of the production. For implementation to go well, it needs to combine good operational practices with regular repair methods that keep tools in good shape for longer. When buying tools, it's best to work with well-known companies that offer expert customization, full support, and well-documented quality systems. This lowers the risk of buying something and helps businesses succeed in the competitive plastics processing market.

FAQs

Can the mixer handle high-temperature materials directly from a pelletizer?

Materials up to 80°C can be put in standard types of the 5 Ton vertical plastic particle mixer. Materials that come from hot pelletizing lines that are hotter than 100°C need higher standards, such as high-temperature bearing grease and thermal expansion joints, to keep screws from binding and parts from breaking too soon.

How do you clean the mixer when changing material colors?

Professional units have entry doors at ground level and bottom slide gates that can be taken off. To get rid of any leftover bits, operators use compressed air lances to go through repair holes. For strict rules on contamination control, inner surfaces that are mirror-polished make it harder for dust to stick, allowing white-glove cleanliness standards to be met in 45 minutes.

Does the mixer break or degrade glass-fiber reinforced plastics?

The gentle lifting action creates a lot less shear stress than paddle mixers that work at high speeds. Standard equipment can safely work with materials that have up to 30% glass fiber content. Hardened alloy screws or tungsten carbide coatings help parts last longer by reducing abrasive wear when there are more fibers.

What is the typical mixing cycle time for a full 5-ton load?

When the motor is turned on, the material starts moving right away. Statistical homogeneity of 95% or more usually takes 15 to 25 minutes, but this depends on how different the base granules and additives are in terms of bulk density. Formulations that are complicated and have big changes in specific gravity may need longer rounds near the top of the time range.

Partner With Yude Plastic Machinery for Your Vertical Mixing Solutions

Choosing the right maker for a 5 Ton vertical plastic particle mixer will have long-lasting effects on the quality of the products you make and how efficiently your business runs. Yude Plastic Machinery has a track record of developing, building, and fixing vertical mixing equipment that is used in tough industry settings. Our 5 Ton vertical plastic particle mixers are made with precision engineering, high-quality materials, and careful design features that help plastics makers around the world deal with real-world production problems.

We want buying managers and plant experts to look into how our tools can help your compounding work. Email our sales team at sales@yudemachinery.com to get detailed technical specs, dimensional drawings, and customer references. Our engineering staff offers one-on-one consultations to make sure that the equipment specs match the properties of your materials, your throughput needs, and the limitations of your facility. Feel the difference that focused expert help and reliable equipment performance can make in reaching your production goals.

References

1. Richardson, J.F., Harker, J.H., and Backhurst, J.R. (2002). Particle Technology and Separation Processes. Oxford: Butterworth-Heinemann.
2. Muzzio, F.J., Shinbrot, T., and Glasser, B.J. (2002). "Powder Technology in the Pharmaceutical Industry: The Need to Catch Up Fast." Powder Technology, 124(1-2), 1-7.
3. Paul, E.L., Atiemo-Obeng, V.A., and Kresta, S.M. (2004). Handbook of Industrial Mixing: Science and Practice. Hoboken: John Wiley & Sons.
4. Poux, M., Fayolle, P., Bertrand, J., Bridoux, D., and Bousquet, J. (1991). "Powder Mixing: Some Practical Rules Applied to Agitated Systems." Powder Technology, 68(3), 213-234.
5. Lacey, P.M.C. (1954). "Developments in the Theory of Particle Mixing." Journal of Applied Chemistry, 4(5), 257-268.
6. Harnby, N., Edwards, M.F., and Nienow, A.W. (1992). Mixing in the Process Industries. Oxford: Butterworth-Heinemann.
