Can a 3 ton vertical mixer handle different plastic pellet sizes and densities?

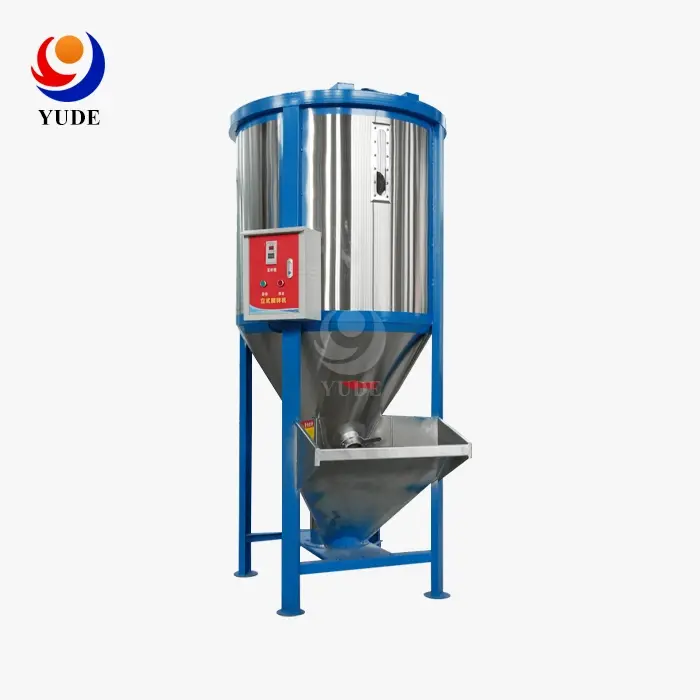

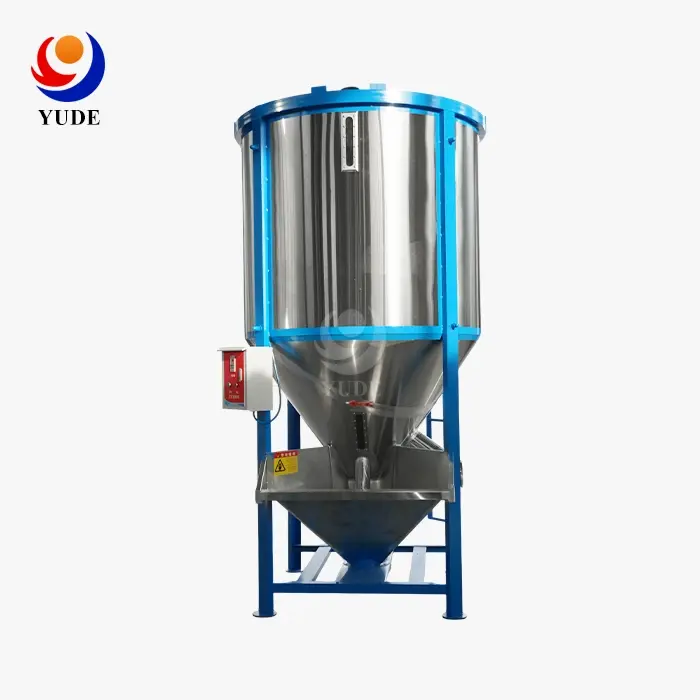

When managing plastic processing operations, blending materials with varying characteristics remains one of the most challenging aspects procurement engineers face daily. A 3 ton vertical plastic particle mixer addresses this concern effectively through its specialized design that accommodates diverse pellet sizes and density ranges. With a rated loading capacity of 3,000kg and an effective mixing volume between 4,500-4,800 liters, this equipment achieves mixing uniformity of ≥98% across materials with bulk densities from 0.6-0.8g/cm³. The vertical circulation mechanism lifts material from the bottom cone and disperses it throughout the chamber, eliminating the segregation issues common with mixed-density materials. This capability makes it particularly valuable for processors handling virgin resins alongside regrind or masterbatch additives.

Can It Handle Different Sizes and Densities?

Handling materials with different physical properties can be tricky, but 3 Ton vertical plastic particle mixer is designed to solve these problems. Particle sizes range from fine regrind (2–3 mm) to standard pellets (4-5 mm) can be mixed together in the same batch without affecting the quality of the blend.

Addressing Particle Segregation Concerns

The biggest threat to mixing consistency is density difference. During static storage, heavier additives like mineral fillers or glass-reinforced compounds move to the bottom, while lighter materials move to the top. This tendency is fought against by the continuous vertical circulation pattern, which moves particles around the mixing chamber all the time. When testing automotive-grade polypropylene mixes with talc fillers (density 2.7g/cm³) and impact modifiers (density 0.9g/cm³), vertical mixers kept the mixtures more than 98% uniform across a number of sampling spots.

Real-World Performance in Industrial Applications

A company in the Midwest of the United States that makes wrapping film said that the quality of their products got a lot better after they switched to vertical mixing for their LDPE formulas. They mix 15% post-industrial regrind, 3% color solution, and 15% fresh resin. The three parts have different particle sizes and densities. Before vertical mixing was put in place, 8% of production runs had color streaks. This defect rate dropped to less than 1% with the vertical mixer, and the mixing cycle time was cut by 30%. In the same way, automotive injection molders who make dashboard parts benefit from consistent masterbatch dispersion because it gets rid of the color differences that used to lead to batch rejections.

Comparing Vertical Mixers with Other Mixer Types for Varied Pellet Handling

Knowing how different mixing methods work with different materials helps make sure that choices about what to buy are in line with what is needed for operations. Each type of mixer has its own benefits that depend on the size of the output, the properties of the material, and the limitations of the building.

Horizontal Blenders Versus Vertical Systems

Ribbon or paddle mixers that are horizontal take up more floor space but usually have faster discharge rates. It's easy for them to mix things with similar densities, but it's hard for them to do with big changes in densities. Heavy and light particles can separate during the mixing cycle in horizontal systems because of the way they tumble. 3 Ton vertical plastic particle mixer takes up less floor space, which is helpful for buildings that aren't very big, and their lifting action keeps putting separated materials back together. Both types of units use about the same amount of energy: 11–15kW for 3-ton vertical units and 12–18kW for equivalent horizontal models.

Tumbler and Rotary Mixer Limitations

Tumbler mixers blend materials gently, which is good for tiny pellets, but they don't mix materials aggressively enough for materials with density differences greater than 0.3g/cm³. For difficult materials, their batch times often go over 30 minutes, which slows down output. Rotary cone mixers can handle different densities pretty well, but they cost a lot more to buy—usually 40 to 60 percent more than vertical screw designs. The needs for upkeep are also very different. Because vertical mixers have fewer moving parts and simpler bearing arrangements, they cost less to maintain each year. Maintenance doors let you get to worn-out parts quickly, so you don't have to take apart big assemblies.

Because of these features, vertical mixers are the best choice for processors who need to work with different types of resin and pellets with different shapes and densities throughout their production schedules.

Buying a 3 Ton Vertical Plastic Particle Mixer for Handling Diverse Pellets

When choosing the right mixing tools, you need to think about more than just the initial buy price. Total ownership value is affected by long-term operational costs, the ability of suppliers to help, and the adaptability of equipment.

Evaluating Manufacturers and Customization Options

There are many suppliers on the global market, from well-known European brands to competitive Chinese original equipment manufacturers (OEMs). European names usually cost a lot more than others (€35,000 to €50,000) and come with a lot of paperwork and CE certifications. Chinese makers offer the same functional performance for a lot less money (usually between $15,000 and $25,000), which makes them appealing to processors who are trying to stick to tight capital budgets. Different suppliers offer a wide range of customization options. Leading Chinese OEMs offer changes such as motors that won't explode for handling flammable materials, heated jackets for plastics that don't like water, and automatic control systems that work with plant supervision systems. These changes make it possible for the 3 Ton vertical plastic particle mixer to meet certain operational needs without lowering safety standards or performance standards.

Understanding Pricing Structures and Lead Times

The base price of the equipment is based on normal setups with 201 stainless steel contact areas and carbon steel exteriors. Upgrading to full 304 steel construction raises the price by about 20% but is necessary for materials that corrode or for uses that need to be very clean. Optional features like variable frequency drives that allow precise speed control cost an extra $1,200 to $1,800, but they give you more operational flexibility that is useful for processing a wide range of materials. Lead times change with the seasons but are usually between 4 and 6 weeks for basic units and 8 to 10 weeks for custom setups. During the quotation step, making clear standards for delivery stops production delays. Most trustworthy providers offer installation guidance and operator training as normal services, which makes sure that commissioning goes smoothly.

After-Sales Support and Spare Parts Availability

Comprehensive service after the sale is what sets exceptional suppliers apart from transactional ones. When looking at a manufacturer's support infrastructure, you should look at their response time promises, where their spare parts are kept, and how easy it is to get technical help. Suppliers with regional service centers or established networks of distributors can solve problems faster than those who need to ship parts all the way from abroad for every maintenance need. When debugging, the quality of the documentation is very important. Plant maintenance teams can handle small problems on their own thanks to well-organized technical guides that include exploded assembly plans and electrical schematics. The newest improvement is remote diagnostics through connected control systems. This lets suppliers look at working factors and suggest changes without having to visit the site.

Conclusion

Through its constant circulation system and improved chamber design, vertical mixing technology does a good job of mixing plastic pellets that are different sizes and densities. The 3 Ton vertical plastic particle mixer gives reliable results with a wide range of material combinations and has a small footprint that makes it ideal for sites with limited room. Understanding how vertical systems compare to other technologies helps procurement teams make decisions that are in line with the needs of the production. Proper repair procedures and operations optimization can increase the life of machinery and keep its mixing performance. Choosing dependable providers that offer customization options and full support guarantees value that lasts beyond the original investment.

FAQ

Can This Mixer Handle High Percentages of Powder Additives?

The equipment works best when mixing granular materials, but it can also handle low powder percentages (2–5%), like color pigments, without any changes. When there is more powder, the bearing seals need to be improved to stop small particles from getting into the mechanical parts and causing them to wear out or seize up early.

What Mixing Cycle Duration Should I Expect for Full Batches?

When standard virgin pellets are mixed with masterbatch, homogeneity is usually reached in 15 to 20 minutes. Materials with big changes in density may take longer than 20 minutes, but materials with similar densities should be able to mix well in 12 to 14 minutes.

Does Mechanical Mixing Generate Heat That Could Damage Sensitive Materials?

Vertical mixers are safe for temperature-sensitive plastics like PVC and low-melt polyethylene because they have a relatively low rotating speed that causes little friction heating. In contrast to high-speed intense mixers, which are designed to make heat, this equipment works by using gentle convective movement.

What Installation Space Requirements Should I Plan For?

Because it is vertical, it has a small footprint on the floor but needs enough space above it for the ceiling to clear. Standard 3-ton units are usually 3.5 to 4 meters tall, so the height of the building needs to be checked before they are installed. Having enough space above also makes it easier to do maintenance in the future that needs to remove a motor or screw.

Partner with Yude Plastic Machinery for Superior Mixing Solutions

To handle the difficulties of mixing pellets of different densities, you need equipment that was designed to handle these problems. Yude Plastic Machinery is a well-known company that makes the 3 Ton vertical plastic particle mixer for users in North America, Europe, and Southeast Asia. Our equipment meets your quality standards for ≥98% mixing uniformity while keeping operations efficient by using the least amount of energy possible and needing the least amount of maintenance. We offer full customization, which includes language control interfaces, voltage adjustments, and material contact surface updates that are made to fit your exact needs. Our technical team provides quick help through well-established service networks, which keeps your business running smoothly. Contact our experts at sales@yudemachinery.com to talk about how our mixing solutions can help you handle your specific materials and get detailed quotes that are made to fit your production goals.

References

1. Tadmor, Z., & Gogos, C.G. (2013). Principles of Polymer Processing (2nd Edition). Wiley-Interscience, Chapter 9: Mixing in Polymer Processing.
2. Paul, E.L., Atiemo-Obeng, V.A., & Kresta, S.M. (2004). Handbook of Industrial Mixing: Science and Practice. Wiley-Interscience, Section 15: Solids Mixing.
3. Manas-Zloczower, I. (2009). Mixing and Compounding of Polymers: Theory and Practice (2nd Edition). Hanser Publications, Chapter 4: Batch Mixing Equipment.
4. Rauwendaal, C. (2014). Polymer Mixing: A Self-Study Guide. Hanser Publications, Module 3: Mixing Equipment Selection Criteria.
5. Harnby, N., Edwards, M.F., & Nienow, A.W. (1992). Mixing in the Process Industries (2nd Edition). Butterworth-Heinemann, Chapter 12: Mixing of Solids.
6. Cleary, P.W., & Sinnott, M.D. (2008). Assessing Mixing Characteristics of Particle-Mixing and Granulation Devices. Particuology Journal, Volume 6, Issue 6, pp. 419-444.
