What are the advantages of a 2000kg vertical plastic mixer compared with traditional mixers?

The 2000kg vertical plastic particle mixer represents a significant advancement in large-scale polymer processing operations, offering remarkable improvements over traditional horizontal mixing equipment. These vertical units achieve mixing uniformity exceeding 98% within 10-18 minutes while processing batches up to 2 metric tons. Their gravity-assisted circulation mechanism ensures consistent colorant dispersion, eliminates stratification issues common with materials of varying bulk densities, and reduces energy consumption by up to 30% compared to conventional pneumatic systems. This combination of efficiency, consistency, and operational economy makes vertical mixers essential for manufacturers pursuing high-volume production with stringent quality requirements.

Understanding the Core Differences Between Vertical and Traditional Mixers

Vertical Mixer Design and Operating Mechanics

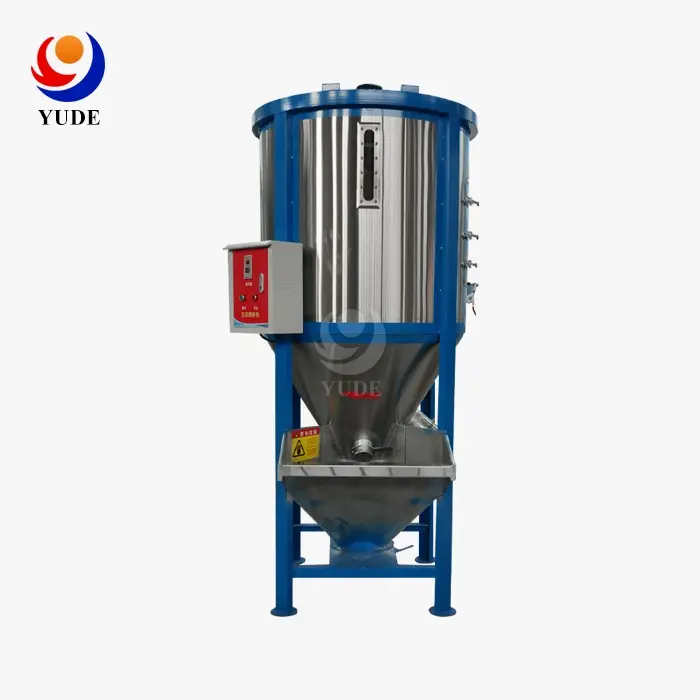

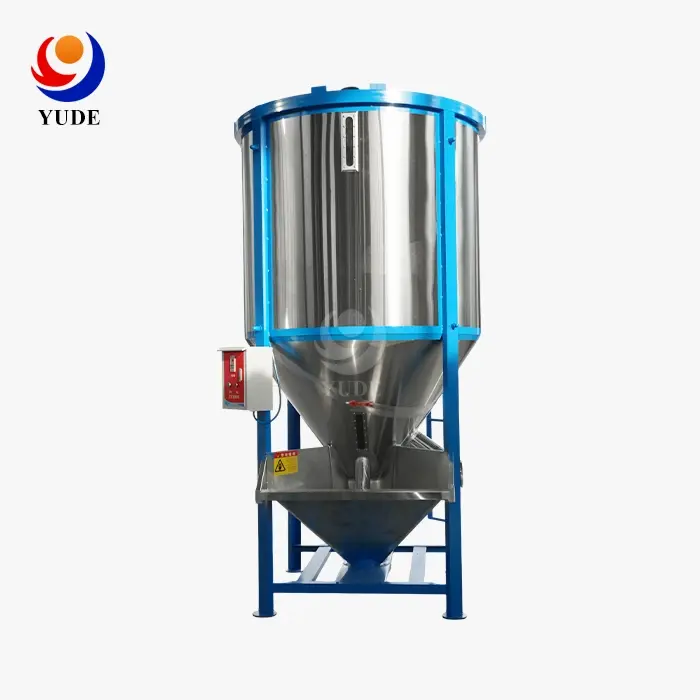

Vertical plastic mixers have a circular silo shape and an Archimedean screw in the middle that runs along the vertical axis. The screw spins at 250 to 350 RPM while it's working, moving material from the bottom discharge area to the top surface in a pattern that looks like a continuous fountain. This makes three-dimensional material flow where motorized stirring and gravity work together.

The 2000kg vertical plastic particle mixer usually has a drum that is 1600 mm in diameter and 2000 mm high, which means that it can mix between 3000 and 3200 liters of material. The surfaces that come into contact with the materials are made of 304 stainless steel, which keeps them clean and prevents contamination. The vertical size takes up about 2 square meters of floor space, and there needs to be at least 6 inches of headroom above it for loading from the top.

Horizontal Mixer Characteristics and Limitations

The mixing basin of a horizontal mixer is flat on the floor, and ribbon or paddle agitators move the material side to side. This setup works fine for smaller amounts and apps that don't need a lot of power, but it has some problems when the capacity gets higher. Material near the center drive shaft is often stirred more than material at the ends of the room. This creates uniformity gradients that make mixing take longer.

Discharge happens through gates that are fixed at the bottom, which can have material bridge issues with some pellet shapes. For drive repair, bearing inspection, and chamber cleaning, the horizontal layout needs access room on more than one side. As the length of the chamber increases, the efficiency of energy transfer decreases. This means that higher motor power ratings are needed for larger batches than with vertical designs.

Application Context and Selection Criteria

When large batches of the same material are fed to downstream equipment at regular times, vertical mixers work best in environments where production is continuous. The best places to use them are injection molding shops that make parts for cars, pipe production lines, and polymer mixing shops. The technology is especially helpful for businesses that mix fresh resin with 20–40% regrind, because the different densities of the materials make mixing less effective.

Horizontal designs are still better in some situations, like when mixing needs to happen in less than 5 minutes, when the temperature of the hot jacket needs to be controlled throughout the room, or when the materials being mixed are sticky or clumpy and could clog vertical screw mechanisms. When comparing configurations, procurement teams have to look at things like the properties of the materials, the production volume, and the limitations of the facility.

Advantages of the 2000kg Vertical Plastic Particle Mixer Over Traditional Mixers

The improvements in engineering that have been made to current vertical mixing systems have a direct effect on the cost of production and the quality of the result. Figuring out the return on investment (ROI) helps to support capital investment when you know about these benefits.

Superior Mixing Efficiency and Uniformity

ASTM D6940 statistical sampling methods say that vertical mixers can achieve homogeneity levels of more than 98%. This behavior comes from the random advection pattern that is made when material falls from the distribution point at the top. Random paths are taken by each particle through the mixing space, which makes sure that small parts like color powders or flame retardant additives are thoroughly mixed in.

Testing done in polymer processing plants shows that vertical systems reach the desired level of uniformity in 10 to 18 minutes, depending on the characteristics of the material. This is compared to the 25 to 35 minutes it usually takes horizontal ribbon blenders to do the same amount of work with the same batch weight. This decrease in time directly raises production capacity without the need to buy more equipment. Manufacturers who make multiple batches every day say that shorter mixing processes alone increase efficiency by 15 to 20 percent.

The consistent mixing action gets rid of differences in concentration in certain areas that can make clear or partially clear products look bad. Injection molders who make clear polycarbonate parts say that their scrap rate dropped from 3–4% to less than 1% after they switched to vertical mixing equipment. This means that they save a lot of money on material costs in high-value resin applications.

Reduced Energy Consumption and Operating Costs

When material falls from the screw discharge point, vertical mixing technology uses gravitational potential energy to its advantage. This means that less mechanical work is needed than with horizontal systems, which have to fight gravity the whole time they're mixing. 2000kg vertical plastic particle mixers need between 7.5kW and 11kW of motor power, which is about 25–30% less than horizontal mixers that handle the same batch amounts.

An annual study of energy costs shows big saves. A facility that uses a vertical mixer for three 2000kg batches every day, 250 days a year, uses about 5,625-8,250 kWh, while a similar horizontal unit uses 8,000-11,000 kWh. At industrial energy rates of $0.08 to $0.12 per kWh, this means that each mixer will save between $190 and $340 per year, which isn't a lot on its own but a lot when installed in groups.

Besides using less motor power, vertical designs also produce less frictional heat when they mix. This trait is important when working with temperature-sensitive resins because too much heat can damage the material's qualities. Less heat production also means less cooling needs in climate-controlled production spaces, which saves energy in two ways.

Optimized Space Utilization and Installation Flexibility

Real costs come with manufacturing floor space, such as building lease or mortgage payments, temperature control costs, and the chance costs of putting other equipment somewhere else. The small size of the 2000kg vertical plastic particle mixer makes it useful in places with limited room. A 2000kg vertical unit takes up about 2 square meters of space, while horizontal equipment of the same capacity takes up 6–8 square meters.

Another benefit is that installation can be done in different ways. Vertical mixers can be mounted directly on load cells for automatic group weighing. They also work well with overhead material handling systems and use gravity-fed chutes to empty directly into equipment further down the line. This arrangement makes it easier to move materials and cuts down on the number of steps that can get dirty.

When planning a structure, height standards should be taken into account. Including motor mounts and access platforms, units are about 3 to 3.5 meters tall. Installing things may be hard in places where the ceiling is less than 4 meters high. Most new factories, on the other hand, can fit these measurements without any changes.

Simplified Maintenance Access and Procedures

How well maintenance is done affects how available equipment is and how much it costs to run in the long run. Wear parts for vertical mixers like the drive motor, screw bearings, and mechanical seals are grouped together in easy-to-reach places near the base of the unit. Technicians do regular maintenance and checks without having to go into a tight area or take things apart a lot.

The vertical screw design wears more evenly than horizontal ribbon agitators, which have uneven stress distribution because of the way the material is loaded. Replacement times get longer as a result. For example, screws usually need to be reconditioned every 18 to 24 months when they are in continuous operation, while horizontal ribbons only need to be replaced every 12 to 15 months.

It takes less time and work to clean between color or material changes. Operators get into the mixing chamber through inspection ports on top, and they use compressed air to get rid of any leftover material. Bottom release gates let all the stuff go without any help from a person. Because of these design features, the time it takes to switch between horizontal mixers is cut from 45 to 60 minutes to 20 to 30 minutes. This makes it easier to plan production schedules.

Enhanced Safety Features and Noise Reduction

Workplace safety rules are having a bigger impact on how people choose what tools to use. Vertical mixers have a number of safety benefits. The raised motor and drive assembly keeps rotating parts above the work area of the operator, which lowers the risk of getting them tangled up. Safe maintenance practices are enforced by interlocked access covers that stop operation when inspection ports are open.

During normal operation, noise levels are below 80dB, which means that they meet OSHA standards for workplace exposure and don't require nearby workers to wear hearing protection during short exposures. Because of the impact of the material on the ribbon agitators, horizontal mixers usually make 82 to 87dB, which means that hearing protection is needed and they can't be put in certain areas of the production area.

Material control is another safety issue to think about. Compared to horizontal mixers with side-mounted entry doors, the enclosed vertical chamber with top-loading design makes less dust during filling operations. This enclosure lowers the amount of dust that workers are exposed to and the amount of cleaning that needs to be done, making workplaces better and safer.

How to Choose the Right Vertical Plastic Particle Mixer for Your Business Needs?

Assessing Operational Requirements and Production Parameters

Before you can choose equipment, you need to be clear on what you need to handle. Look at how much material you use each month and how long your normal production runs are to figure out your average batch size. The 2000kg capacity is good for businesses that process 40 to 60 metric tons per month and care more about batch-to-batch consistency than ongoing blending.

Carefully look at the qualities of your cloth. The 2000kg grade is based on the idea that the bulk density is between 0.6 and 0.8 g/cm³, which is normal for most common thermoplastics like polyethylene, polypropylene, and polystyrene. It's possible that engineering resins with bigger bulk densities will have less useful volume capacity. On the other hand, low-density regrind flakes might make it impossible to get a batch weight below the stated maximum.

Consider how much space your facility has. Figure out how much floor space you have available, making sure to account for operator access, maintenance clearance, and the movement of material handling equipment. Check that the ceiling height allows for the unit's 3-3.5-meter installation height and enough space for systems that load materials from above. The electrical system needs to be able to handle a 380V/50Hz three-phase power supply with the right circuit protection.

Evaluating Manufacturer Capabilities and Support Infrastructure

Selecting a reputable manufacturer guarantees that the tools will work well for a long time and receive prompt help. Yude Plastic Machinery shows a number of signs of a good supplier. Their customer service is available 24 hours a day, seven days a week, which helps businesses that have multiple jobs and need to fix machine problems right away.

When looking at delivery schedules, manufacturing capacity is important. When suppliers make a lot of equipment, they keep a store of parts and keep supply chains running smoothly, which speeds up the process of filling orders. Yude has supplied thousands of customers in the United States and other countries, which shows that their production scale is strong enough to keep their delivery promises.

When stock features don't exactly meet your needs, the ability to customize becomes important. Manufacturers who offer technical support can change the size of the mixing chamber, choose different materials that are resistant to chemicals, or add special features like ports for collecting dust. This gives you the freedom to choose equipment that really works with your needs, rather than forcing you to make process compromises.

Additional Technical Considerations

During packing and unloading, dust is made, which affects the air quality in the workplace and the need to clean up afterward. Check to see if the extra dust collection systems are useful for the materials you use and the way your building ventilates. Systems that use bag filters or cyclone separators can get rid of fine particles, but they cost an extra $1,200 to $2,500.

When using industrial plastics that are sensitive to water, temperature control choices should be thought about. Some 2000kg vertical plastic particle mixers come with heating jackets or hot air pumping systems that can be added as extras to let the material dry before it is mixed. This unified method gets rid of the need for different drying equipment, but it makes things more complicated, which raises the original cost and maintenance needs.

The lead time you expect should match the schedule for your project. Standard setup equipment usually gets sent out in three to four weeks. Depending on how complicated the changes are, custom specifications may push back delivery to 6 to 8 weeks. International shipping adds two to four weeks to the time it takes to get goods from factories in China to places in North America. This means that production start dates need to be planned ahead of time.

Conclusion

The 2000kg vertical plastic particle mixer is better than horizontal mixing equipment because it uniformises the mix better, uses less energy, makes better use of room, and is easier to maintain. Better product quality, lower running costs, and more production freedom are all direct results of these benefits. Vertical mixing technology that consistently achieves ≥98% homogeneity within 10–18 minute cycles gives manufacturers who work with large amounts of plastic materials a competitive edge. The small size of the equipment, ease of serviceability, and track record of dependability in a wide range of uses make it a good buy for businesses that value both performance and long-term value. When purchasing mixing equipment, procurement teams should think about how the benefits of vertical configuration fit with their unique production needs and building limitations.

FAQ

What is the typical operational lifespan of a 2000kg vertical plastic particle mixer?

Quality vertical mixers will work reliably for 15 to 20 years before they need major repairs if they are used normally and properly maintained. The mixing screw usually needs to be reconditioned or replaced every 18 to 24 months, but this depends on how hard it is used and how rough the material is. With regular maintenance, drive motors last between 8 and 12 years. Long-term serviceability is ensured by manufacturers who offer replacement parts and expert assistance throughout the lifecycle of their products.

Can vertical mixers handle multiple plastic resin types simultaneously?

Yes, vertical mixers are great at mixing different kinds of glue, thicknesses, and particle sizes together in the same batch. The most common uses are mixing new pellets with used pellets, adding color masterbatch to base resin, and spreading stabilizers or flame retardants. The 2000kg capacity lets you mix materials in proportions ranging from 1:99 to 50:50, depending on how well they work together. Thorough cleaning between batches prevents cross-contamination when switching between incompatible material families.

How does mixing uniformity directly impact final product quality?

When you don't mix something well enough, concentration gradients form, which leads to defects and inconsistent performance. Color fading in molded parts is caused by masterbatch that is not spread out evenly. Different production lots have different mechanical properties because the additives are not distributed evenly. Surface flaws like splay marks are caused by changes in the amount of moisture present. Getting ≥98% uniformity, which is what good vertical mixers do, gets rid of these quality problems. This lowers the amount of waste and customer rejects while also boosting the brand's image.

Partner with a Trusted 2000kg Vertical Plastic Particle Mixer Manufacturer

Yude Plastic Machinery offers engineered mixing solutions that combine tried-and-true vertical technology with the kind of customer service that buying teams rely on. Our 2000kg vertical plastic particle mixer gets ≥98% uniformity within 10–18 minute rounds and only uses 7.5–11kW of power, which lowers your energy costs and makes your batches more consistent. Our full production facilities and skilled technical teams allow us to quickly make changes to meet non-standard needs, provide international control interfaces, and make changes that are in line with regional standards. Our well-established after-sales network offers technical help 24 hours a day, seven days a week, and a local on-site answer within 24 hours, so you can keep making things. Contact our team at sales@yudemachinery.com to talk about your specific mixing needs and get a detailed technical proposal with competitive pricing from a supplier you can trust to help you succeed in the long term.
