What is the loading capacity of 1000kg vertical plastic particle mixer?

When looking at industrial mixing equipment for processing plastics, it's important to know how much it can hold so that you can plan your production and choose the right equipment. According to calculations, the 1000kg vertical plastic particle mixer can hold up to 1000 kilograms of solids with bulk densities between 0.6 and 0.8 g/cm³. This means that the useful amount is about 1500 to 1600 liters, which means that processors can handle large batches while keeping mixing uniformity above 98% for 8 to 15 minutes per cycle. In facilities that handle new resins, recycled flakes, masterbatches, and compound formulations, the capacity standard has a direct effect on the production flow, running costs, and logistics for moving materials.

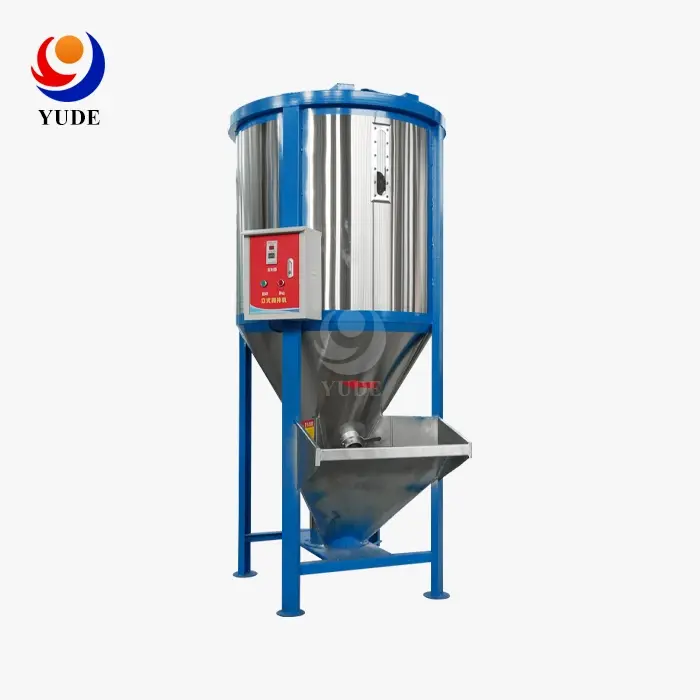

Loading Capacity of a 1000kg Vertical Plastic Particle Mixer

As you can see, loading capacity is more than just a number. It tells you the range of operations where your 1000kg vertical plastic particle mixers will work well and last a long time. There are a number of important factors that procurement teams must consider when choosing tools that cause nominal capacity and real working load to be different.

Nominal Versus Operational Load: What Procurement Teams Must Know

The 1000kg rating is based on the assumption that the bulk density of common thermoplastics like polypropylene (PP), polyethylene (PE), and acrylonitrile butadiene styrene (ABS) is between 0.6 and 0.8 g/cm³. Materials that don't fall in this density range need to have their loads changed. High-density polyethylene (HDPE) pellets with densities close to 0.95 g/cm³ lower the safe volumetric fill, which could limit loads to 850–900 kg to keep the motor from overheating and putting too much mechanical stress on the screw shaft. On the other hand, expanded polystyrene (EPS) beads that are light and have densities of 0.02-0.05 g/cm³ allow for higher volumetric fills while still staying under the 1000kg weight limit to keep the mixing dynamics correct.

Other than density, the qualities of a material affect its practical loads. Free-flowing spherical pellets act differently than uneven regrind flakes or fillers that are made of fibers. Powders that stick together, like talc or calcium carbonate, cause problems with bridging inside the mixing chamber, which lowers the effective capacity even though the powders weigh less overall. Operators with a lot of experience try the first batches at 80 to 85 percent of their full ability to account for these factors.

How Mixer Design Influences Effective Volume

The helical screw mechanism in 1000kg vertical plastic particle mixers pulls stuff from the bottom of the chamber, making a 'fountain effect' as bits fall through the middle. This pattern of motion homogenizes the mixture, but it needs enough headspace—usually 20 to 25 percent of the total room volume—to keep the mixture from spilling out and let the particles move freely. The 1500–1600 liters of effective capacity can fit this operating clearance and the 1000kg load.

The shape of the chamber affects how well it mixes at full capacity. Conical-bottom designs make it easier for all the material to drain and reduce dead zones where it builds up. At full capacity, cylindrical tanks with flat bottoms need longer mixing cycles to make sure that material from the bottom layer gets into the flow pattern. Good companies, like Yude Plastic Machinery, design chamber profiles that are perfect for the loads they need to hold. They do this by adjusting the screw pitch, flight angle, and rotational speed so that their entire product line can handle loads ranging from 600 kg to 10 tonnes.

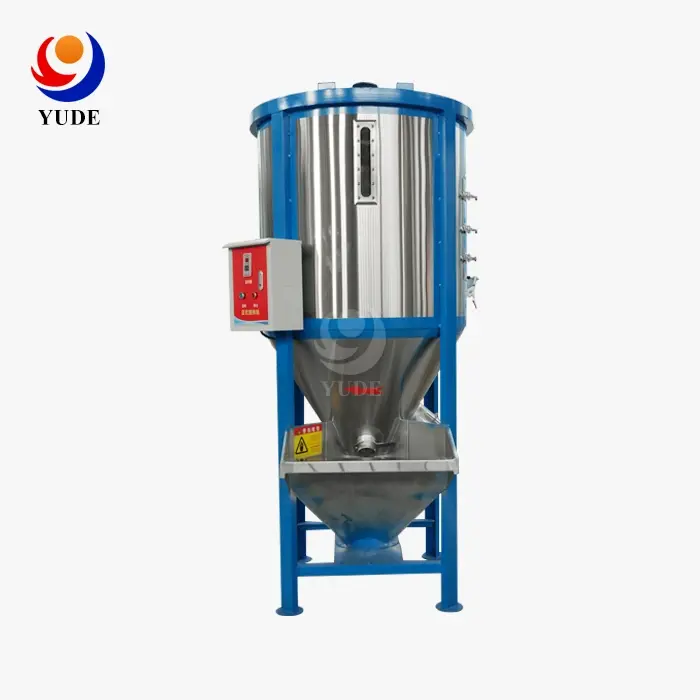

Technical Specifications and Features Relevant to 1000kg Mixers

When choosing 1000kg vertical plastic particle mixer, it's important to look at all of the technical factors that affect how well it works, how much energy it uses, and how often it needs to be maintained. The following specs tell you what kind of performance you can expect from industrial-grade vertical mixing tools in this size range.

Core Technical Parameters for Industrial Applications

The motor power for 1000kg vertical plastic particle mixers is usually between 5.5 and 7.5 kilowatts, which is enough to keep the mixer rotating even when it's fully loaded. When you pair heavy-duty motors with cycloidal pin-wheel reducers or belt-drive systems, you get the high-torque, low-speed operating you need for thorough mixing without making too much friction heat. Spindle speeds of 280 to 350 spins per minute are just right for moving materials quickly without building up too much heat, which can damage temperature-sensitive plastics like polyvinyl chloride (PVC) or polyamides.

Care should be taken when choosing building materials. Stainless steel grades SUS304 or SUS316 keep metals from getting contaminated and don't rust when cleaning chemicals or materials that absorb water touch them. Internal surfaces that are mirror-polished and have a roughness value below 0.8 micrometers make it easy to switch colors quickly and keep pigment residue from building up between batches. When manufacturers don't meet standards, they sometimes use lower-grade SUS201 steel instead, which doesn't fight corrosion as well when working with strong additives or flame retardants. Positive Material Identification checking with X-ray fluorescence analyzers makes sure that the types of materials being inspected are real.

The 1000kg vertical plastic particle mixer for mixing uniformity of ≥98% makes sure that the additives are spread out evenly throughout the batch. This level of performance is very important for masterbatch production because pigment concentrations of 2–4% must be spread out widely to keep finished molded parts from having color streaks. Before the equipment is accepted, coefficient of variation tests on sample pulls from different chamber locations make sure that the uniformity meets the requirements.

Energy Efficiency and Noise Reduction Features

When a facility does several mixing cycles every day, the costs of running it add up quickly. Compared to regular motors, energy-efficient motor designs with premium-efficiency ratings use 15-20% less electricity, which saves money over the life of the equipment. Variable frequency drives let operators change the mixing speeds based on the properties of the material. This saves energy and allows for both quick mixing of similar materials and longer cycles for mixing formulations that are hard to mix.

Noise levels below 80 decibels meet safety rules for the workplace and make things better there. Motor housings that are insulated, precision-balanced screw joints, and vibration-dampening mounts all help to lower operating noise. Testing the central screw shaft's dynamic balance makes sure that the error stays below 0.1 millimeters during high-speed spinning. This stops vibrations that make noise and speed up the wear of parts.

Material Compatibility Across Plastic Types

This range of 1000kg vertical plastic particle mixers can mix a wide range of thermoplastic materials, such as common resins (PE, PP, PS), engineering plastics (ABS, PC, PA), recycled waste, and special compounds. It is possible to mix new pellets with colorants, stabilizers, flame retardants, and fibers that strengthen them. Different types of materials can run through the chamber, from pellets that don't stick together to powders that do, without having to change the equipment.

Temperature-resistant seals and bearings make it possible to work with materials that need to be heated up first or that come straight from drying systems into the mixer. Heat-traced room walls keep the fluidity of compounds that are sensitive to heat and stop condensation from forming when working with hygroscopic plastics like nylon or polyethylene terephthalate (PET) that have been dried out.

Procurement Considerations for a 1000kg Vertical Plastic Particle Mixer

To make sure long-term worth and operational success, strategic equipment purchasing requires looking at more than just the original purchase price. Professionals in procurement have to weigh current budget limits against the total cost of ownership and the dependability of suppliers.

Aligning Capacity with Production Requirements

To choose the right capacity, you must first look at how much is being produced now and then guess how much more will be made over the next 10 to 15 years. Facilities that process batches of 800 to 900 kg find that a 1000kg capacity gives them enough room for modest volume growth without having to replace equipment too soon. If a business is thinking about growing a lot, it might choose 1500–2000 kg units even though they aren't being used as much right now to avoid future capacity problems.

Batch frequency estimates show if production plans and capacity match up. With good cycle management, a plant that needs 8,000 kg of mixed material every day can get it in eight batches of 1,000 kg each. Multiple smaller mixers give you more production options and backup in case one of your machines breaks, but they take up more floor room and cost more to buy than a single bigger unit.

Financial Considerations and Customization Options

Depending on the building materials, motor specifications, and automation features, industrial-grade 1000kg vertical mixers usually cost between $8,000 and $15,000. Stainless steel building costs more than carbon steel, but it doesn't let contamination happen and lasts longer in corrosive settings. Advanced control systems with touch-screen interfaces and recipe management features cost more, but they make operations more efficient and require less training for operators.

Customization choices meet the needs of individual applications. Explosion-proof motors and electrical parts are needed in places that work with materials that make flammable dust for safety reasons. Jacketed chamber designs let you control the temperature of materials that are sensitive to heat. Integrated drying systems that mix and circulate hot air get rid of the need for separate drying steps for plastics that absorb water. Yude Plastic Machinery supports their large export business by offering customization services such as language control interfaces and changes that meet regional industrial standards. These services help them serve over 30 countries.

Supplier Selection and After-Sales Support

When buying a capital 1000kg vertical plastic particle mixer, the reputation and service skills of the supplier are very important. Implementation risks are lower with established makers who have documented setups and customer references than with new suppliers who offer low prices. A warranty that lasts between 12 and 24 months protects you against premature component failures and mistakes in the manufacturing process.

Infrastructure for after-sales service is essential for keeping output interruptions to a minimum. Suppliers with domestic service networks can quickly fix problems with equipment and can often send help to the site within 24 hours. When spare parts are available, important parts like seals, bearings, and electrical controls can be shipped quickly and without long production delays. Technical support hotlines with experienced staff help workers fix problems from a distance, which could save them from having to make service calls altogether.

When looking at Chinese manufacturers, international buyers should look for providers who have been exporting for a while and offer expert help in English. Companies like Yude Plastic Machinery that have worked with customers from other countries for a long time know what paperwork is needed, how to ship goods, and what the rules are for following them. This makes the buying process easier and communication problems less likely.

Conclusion

The 1000kg vertical plastic particle mixer's loading capacity is the result of carefully engineering specs that balance the need for throughput, the properties of the material, and the machine's limits. Knowing that the 1000kg rating only applies to materials with certain bulk densities lets workers change the loads correctly for different types of plastic while keeping the 98% mixing uniformity and 8–15 minute cycle times that describe how well the equipment works. Technical features like the right size motor, building from stainless steel, and safety interlocks make sure that the equipment works reliably at full capacity and protects the investment. Instead of just looking at the original buy price, it's better to think about practical needs, provider skills, and total ownership costs when making procurement choices. Proper use and regular upkeep extend the life of equipment and improve output efficiency, giving the mixer measured value over its entire service life.

FAQ

Can a 1000kg vertical mixer handle multiple material types simultaneously?

Yes, vertical mixers are great at mixing different kinds of materials, like new pellets with recycled ones, base resins with colorants, and plastics with different kinds of additives. Materials with different densities and particle sizes are mixed together well by the fountain-flow pattern. Paying close attention to the order of addition improves mixing when combining parts with very different densities, making sure that the mixture is evenly spread out throughout.

What energy consumption should facilities expect during operation?

Depending on the type of material and the length of the cycle, a 1000kg vertical mixer with a 5.5–7.5 kW motor uses 1.5–2.5 kilowatt-hours of electricity per mixing cycle. Energy costs vary monthly based on batch regularity and power rates in the area. Facilities that make 15 to 20 batches a day can expect mixing processes to use 30 to 50 kWh per day. By setting the motor speed to the best level for each material, variable frequency drives save energy.

How often does equipment require maintenance intervention?

Every day, the machine is cleaned and inspected, and every week, the tension on the belt is checked. Every month, the bearings are oiled, and every three months, all the parts are carefully inspected. Major service intervals happen once a year, when the gearbox is serviced and a full wear assessment is done. When equipment is properly kept, it works for 5 to 7 years before it needs major parts replaced. In high-volume processes, wear may happen more quickly, so bearings and seals may need to be replaced more often.

Partner with a Trusted Vertical Mixer Manufacturer

Choosing the right industrial mixing tools will affect the quality and speed of production for many years to come. Every vertical mixer Yude Plastic Machinery makes, from small 300 kg lab units to large 10-ton industrial systems, is made with decades of production experience. Our network of 1000kg vertical plastic particle mixer suppliers provides equipment built for tough production conditions to processing plants in North America, Europe, and Asia. We make sure that every mixer meets our high standards before it is shipped by keeping a close eye on quality throughout the whole process, from checking the raw materials to trying their end performance. Our technical team offers full application support to help you find the best mixing conditions for your materials and production needs. Email our sales team at sales@yudemachinery.com to talk about your mixing needs and get specific information that fits your business.
