What are the specifications of a 2000kg vertical plastic particle mixer?

When sourcing large-capacity blending equipment for plastic processing operations, understanding the exact specifications of a 2000kg vertical plastic particle mixer becomes essential. This industrial-grade equipment is engineered to handle up to 2000 kilograms of plastic granules per batch, with an effective mixing volume ranging from 3000 to 3200 liters. Designed around a vertical screw mechanism, it achieves mixing uniformity exceeding 98% within 10 to 18 minutes, depending on material characteristics. The unit typically operates with motor power between 7.5 and 11 kilowatts, ensuring energy-efficient performance while maintaining low noise levels below 80 decibels, making it suitable for high-volume production environments.

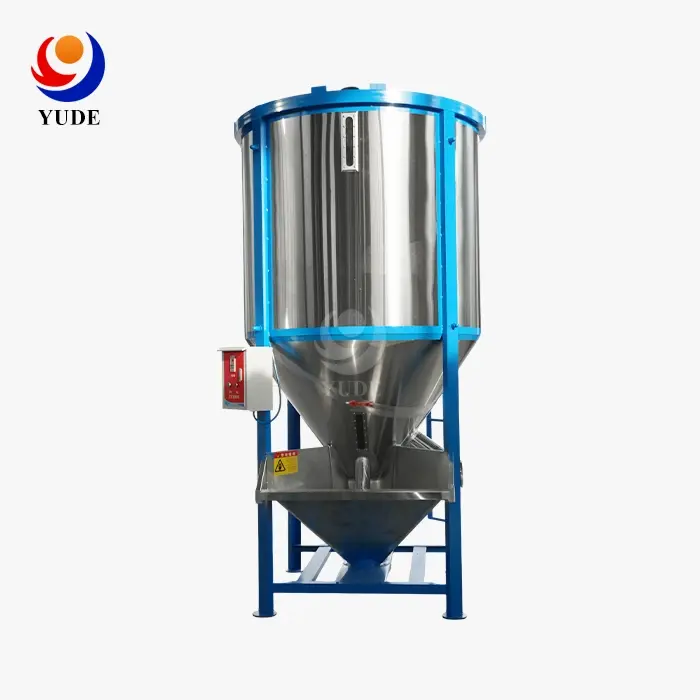

Overview of the 2000kg Vertical Plastic Particle Mixer

For large-scale plastic production, you need solid tools that can handle large amounts of material without affecting the quality of the blend. Because it is based on the idea of gravity-assisted movement, the 2000kg vertical plastic particle mixer meets this need. When material is put into the cylinder-shaped drum, it moves up using a central helical screw and then falls in a continuous fountain pattern. This makes sure that all of the new resins, recycled regrind, colour masterbatches, and chemical additives are thoroughly mixed.

This machinery is very important in many fields, from making cars through injection moulding to extruding pipes and recycling. Procurement managers like how it can get rid of colour streaks, stop material stratification, and keep quality consistent from batch to batch, all of which have an effect on the integrity of the final product. When compared to horizontal options, vertical configurations naturally take up less floor space, which lets manufacturers make the most of their production areas.

International safety and quality standards are still very important to these mixers. Most units are made with 304 stainless steel touch surfaces to keep them clean and free of corrosion. This is especially important when working with materials that will be used in medical or food packing. Built-in safety features like emergency stop systems, overload protection, and enclosed mixing rooms that keep dust out are good for operators.

Core Function and Mixing Principle

Plastic particles are sucked up from the bottom discharge zone by the vertical screw. They are then pushed up through the center shaft and spread out across the top chamber. This three-dimensional movement makes many touch points between different parts of the material, which makes the final product much more uniform than when it was blended in a static state. The process works well with a lot of different bulk densities, but it usually works best with materials that have densities between 0.6 and 0.8 grams per cubic centimetre.

Typical Industrial Applications

These mixers are used by companies that make bumpers and panels for cars to mix UV stabilisers and impact modifiers with polypropylene or ABS resins. The equipment makes sure that the colours are spread out evenly across big parts, which stops visible flaws that could cause quality control teams to reject the parts. In places that make pipes, the mixer mixes new HDPE or PVC with calcium carbonate fills and internal regrind to make the material homogeneous. This keeps the wall thickness and pressure levels the same throughout production runs.

Recycling operations especially benefit from the mixer's ability to level out differences in the melt flow index between batches of recycled materials. By mixing well washed PET or PE flakes from different sources, recyclers can predict how the material will behave during pelletisation, which lowers the amount of waste and improves the performance of extrusion further down the line.

Key Technical Specifications of a 2000kg Vertical Plastic Particle Mixer

By knowing the specific technical parameters, procurement engineers can figure out if a certain 2000kg vertical plastic particle mixer meets the needs of the production process and the limitations of the facility. The following details describe how normal 2000-kilogram size units work and how much space they take up.

The 2000kg vertical plastic particle mixer maximum weight limit is based on plastic pieces with bulk densities of 0.6 to 0.8 grams per cubic centimetre. This includes polyethylene, polypropylene, ABS, and polystyrene, which are some of the most popular thermoplastics. The useful mixing volume is between 3000 and 3200 litres, which leaves enough space above the material bed for the fountain circulation pattern to work without spilling or overflowing.

A statistical sample of the colour masterbatch dispersion or additive concentration across the batch shows that mixing uniformity always reaches or goes beyond 98%. For uses where material inconsistency could hurt the material's mechanical properties or appearance, this performance level meets strict quality standards. The time it takes to mix a single batch can be anywhere from 10 to 18 minutes, depending on the material's size, shape, and how it reacts to static electricity.

Power and Electrical Requirements

The motor's power is usually between 7.5 and 11 kilowatts, and is chosen based on the density of the material and the level of mixing that is wanted. The equipment works with 380 volts and 50 hertz, which is a normal industrial three-phase power source that most factories around the world can use. Compared to pneumatic blending systems, this one uses about the same amount of energy, which helps keep costs down over the equipment's lifetime.

The speed of the mixer is set to be between 250 and 350 spins per minute so that the particles don't break down too much. Slower speeds are best for fragile materials that tend to get dusty, while faster speeds speed up the mixing cycle for granules that are thick but still flow easily.

Physical Dimensions and Material Construction

The long, thin drum is about 1600 millimetres in diameter and 2000 millimetres high, so there needs to be enough space above it for loading and maintenance. All areas that come into touch with materials are made of 304 stainless steel, which prevents corrosion and makes it easy to clean between colour changes or material changes.

During operation, noise levels stay below 80 decibels, which is in line with most jurisdictions' safety rules for the workplace. The sealed design keeps dust from getting into the air, which protects the health of workers and keeps working areas clean. Discharge ports at the base of the drum make it easy for all the material to leave, which lowers the risk of cross-contamination and waste.

Safety and Compliance Features

Built-in safety interlocks stop the machine from working when the access doors are open, keeping people safe from moving parts. Monitoring motor current, overload sensors turn off the system automatically if there is too much resistance, which could mean a mechanical problem or too much filling. With emergency stop keys at eye level, the power can be cut off right away in case of an emergency.

A lot of manufacturers include dust collection ports that work with industrial vacuum systems. These ports catch the small bits that are made when the ingredients are mixed. This feature is especially helpful when working with recycled materials or mixtures that have powdered ingredients that could be harmful to your lungs.

Advantages of Using a 2000kg Vertical Plastic Particle Mixer Compared to Alternatives

If you choose 2000kg vertical plastic particle mixer technology over horizontal ribbon blenders or tumbler mixers, you will save space, use less energy, and have easier maintenance. Because of these benefits, the total cost of ownership is lower and production is more flexible.

The vertical footprint takes up about 40% less floor space than horizontal mixers of the same capacity. This lets makers add more processing equipment or make production lines bigger without having to change the layout of their building. This small design also makes it easier to move materials because mixers can be put right on top of feeding hoppers or extrusion equipment, using gravity to move the materials instead of air systems.

Most of the time, vertical mixers use 15 to 25% less energy per kilogram of mixed material than horizontal ones. This is because they use gravitational forces to help the material move instead of just mechanical agitation. The continuous fountain flow pattern also exposes particle surfaces to heat more efficiently when drying functions are added as an option. This cuts down on the time and energy needed to remove moisture.

The simple mechanical design with a single rotating screw and shaft assembly means that it doesn't need much maintenance. Bearings usually don't need to be oiled for more than 2000 hours of use, and wear parts like screw flights keep their shape through thousands of mixing cycles. Horizontal mixers, on the other hand, have many paddle or ribbon parts that are attached to shafts that run the length of the room. This makes it harder to fix and increases the number of places where things could wear out.

Operational Efficiency and Batch Consistency

When compared to tumbler mixers, which use cascading motion that can leave material areas unmixed, the three-dimensional mixing action gets the desired level of regularity in less time. This efficiency is especially useful in just-in-time production settings, where reducing the time needed to prepare batches has a direct effect on throughput.

The vertical form stops material separation during discharge, which improves accuracy from batch to batch. In horizontal mixers, lighter particles can gather near the discharge gates. But in vertical units, the bottom-center discharge design gets the same amount of material from all radial zones, making sure that the material makeup stays the same during the emptying process.

User-Centered Design and Safety

Access to control panels and inspection ports from the ground level is helpful for operators because they don't have to use platforms or steps to do simple jobs. The enclosed chamber design keeps dust and smells inside better than open tumblers, which makes working conditions better and reduces the amount of cleaning that needs to be done. Cleaning goes quickly between colour changes thanks to access doors that are placed in a way that lets compressed air or vacuum clean the inside surfaces without taking apart major parts.

Conclusion

Choosing and buying a 2000kg vertical plastic particle mixer is a big investment in plastic processing companies' production capacity and quality control. The equipment is suitable for hard industrial uses in the recycling, extrusion, and injection moulding sectors, as shown by the specs in this guide. For example, the mixing uniformity is over 98%, and the motor settings are energy-efficient. It is important to carefully look at technical parameters, supplier qualifications, and after-sales support infrastructure to make sure that procurement decisions are in line with both short-term operational needs and long-term strategic goals. By learning about the pros and cons of different types of vertical mixing technology and working with reliable makers in a planned way, buying teams can set up their companies for better production efficiency and consistent material quality.

FAQs

What maintenance procedures extend mixer lifespan?

As part of regular maintenance, the screw flight edges are checked for wear once a week, the bearing assemblies are oiled once a month according to the manufacturer's instructions, and the motor mounting bolt torque is checked every three months. To stop cross-contamination, clean the areas that touch materials between products. Professional inspections of drive components and electrical systems once a year find problems before they break down, which cuts down on unnecessary downtime.

How does energy consumption compare to alternative mixing methods?

Vertical mixers usually use 15 to 25% less energy per kilogram than horizontal ribbon blenders. This is because gravity helps the material move through the mixer. When compared to pneumatic mixing systems that need a constant source of compressed air, vertical mixers use about 40% less energy. Actual consumption depends on the properties of the material and how long it needs to be mixed for.

Can the mixer handle powder additives and specialized materials?

These mixers work great with coarse materials and can add powders that make up up to 15% of the total batch weight. When powder concentrations are high, problems can happen at the screw base zones. When there is more than 30% powder in the mixture, horizontal ribbon blenders work better. Talk to your providers about which materials will work with hygroscopic engineering resins or temperature-sensitive chemicals.

Partner with Yude Plastic Machinery for Superior Mixing Solutions

With well-designed mixing tools, Yude Plastic Machinery is a reliable 2000kg vertical plastic particle mixer supplier to the plastic production industries around the world. We can make everything, from making parts to putting them together for the first time. We use strict quality control procedures to make sure that every unit meets international performance standards. Our technical team has worked on projects in Southeast Asia, the Middle East, Europe, and South America, so they know how to deal with different legal and operational settings.

We offer full support throughout the whole procurement process, from the initial consultation on specifications to the commissioning of the installation and training of operators. Customisation services help with handling problems that are specific to your facility, integrating equipment, and moving things around.

Our technical support system is available 24 hours a day, 7 days a week, so we can quickly answer any operational questions. Service partners who are strategically located can also help you on-site when you need it. Email our team at sales@yudemachinery.com to talk about your mixing needs and get a detailed quote that fits your production goals.
