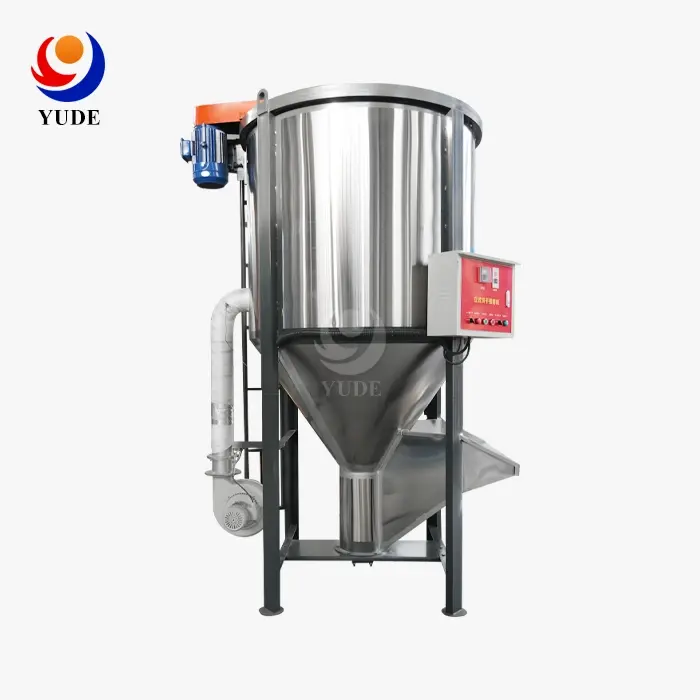

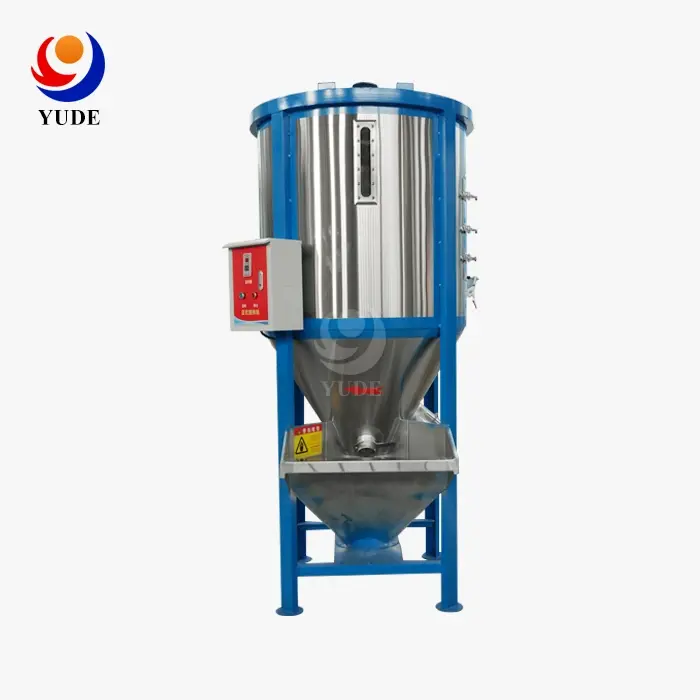

500kg vertical plastic particle mixer for plastic recycling plant

A 500kg vertical plastic particle mixer is an important piece of machinery used in recycling centers to mix plastic granules, regrind, and masterbatches together. This mixer has a strong vertical screw mechanism that blends materials evenly over an 8–12 minute cycle. It can handle a maximum load of 500 kg at bulk densities of 0.6–0.8g/cm³. Its useful volume of around 800 to 850 litres makes it compatible with medium-sized recycling operations. It also mixes uniformly, which has a direct effect on the quality and regularity of the recovered plastic output. When procurement engineers try to scale up production lines, they always have to deal with problems like material segregation and uneven colour dispersion. This equipment solves those problems.

How Does a 500kg Vertical Plastic Particle Mixer Work in Plastic Recycling Plants?

When purchasing managers understand how vertical plastic mixing equipment works, they can decide if this technology meets the output and quality standards of their organization.

Core Mixing Mechanism and Material Flow Dynamics

A high-torque motor, usually rated between 3kW and 5.5kW, turns a center spiral screw, which is what the vertical mixing principle is based on. The screw moves at 250 to 350 RPM and pulls plastic pellets from the cone-shaped base chamber up through the mixing column. At the top, material comes out in a fountain-like pattern and falls along the cylinder walls as new material keeps coming in through the screw intake. This constant flow makes thousands of particle-to-particle interactions every minute. This makes sure that coloured masterbatches, additives, virgin pellets, and post-consumer regrinds are spread out at the molecular level. The cylindrical bottom shape gets rid of dead zones where unmixed material could build up, making sure that the whole batch is homogeneous before it is discharged.

Key Structural Components and Their Functions

A number of carefully designed parts work together to keep the 500kg vertical plastic particle mixer's working stability. The mixing box is usually made of SUS304 or SUS201 stainless steel, which is resistant to corrosion and necessary when working with industrial resins that absorb water, such as ABS or polycarbonate. A pneumatic or human release gate at the base lets material leave quickly, so there is less chance of contamination between runs. Limit switches built into the lid access panel cut power to the machine when the lid is opened during operation to protect the operator. Overload protection relays watch the motor amperage and turn off the system automatically if the torque goes too high because of material bridging or an outside object getting in. These fail-safe features protect production schedules from unplanned downtime and make equipment last longer.

Common Applications in Recycling Workflows

500kg vertical plastic particle mixers are used at key points in the material preparation lines of plastic recycling plants. Mixed-color HDPE bottles or PE film pieces need to be blended to get consistent melt flow properties after they have been washed and dried. The mixer evens out the batches before they are fed into the extruders. This keeps the pelletised product from having colour streaks. To keep tensile strength standards, facilities that mix recovered PET with new plastic need to mix them in the right proportions. Auto parts recyclers use these machines to mix ABS, PP, and TPO regrinds with compatibilizers to make sure that the shapes stay the same in injection moulding jobs. The 500kg capacity size is good for plants that process 5 to 8 tonnes of material every day, which is in between small test operations and big industrial blending silos.

How to Choose the Best 500kg Vertical Plastic Particle Mixer for Your Plant?

To choose 500kg vertical plastic particle mixer that works with certain operational parameters, you need to do more than just look at the price at first.

Critical Performance Specifications

Ratings of processing power need to be carefully interpreted. A theoretical capacity of 500kg is based on a material's bulk density being between 0.6 and 0.8g/cm³, which is normal for standard pelletised resins. When film is recycled, fluffy regrind with a bulk density of 0.3 to 0.4g/cm³ lowers the batch size to 300 to 350 kg, which changes how throughput estimates are done. Check the motor's horsepower against the properties of the material. For example, abrasive glass-filled nylon compounds need more torque reserves than soft polyolefins. Specifications for mixing time don't matter as much as results in uniformity; an 8-minute cycle with 98.5% homogeneity does better than a 6-minute cycle with 95% uniformity when the quality of the finished product is what makes the plant profitable.

Supplier Reliability and Support Infrastructure

When procurement teams use global sourcing, they have to make sure that the risks are managed by carefully evaluating each supplier. Check for more than just generic CE markings. Look for ISO 9001 manufacturing paperwork and material test results that confirm the grade of stainless steel. Ask for client reference lists that include contact information for plants that handle similar types of materials. Carefully look over the warranty terms; 18–24 months of full covering for both parts and labour shows that the maker is confident in the quality of the build. Lead times of 45 to 75 days need to be coordinated with production ramp schedules. Suppliers who offer faster production windows give you strategic flexibility during projects to increase capacity.

Total Cost of Ownership Analysis

The purchase price of the 500kg vertical plastic particle mixer is only 60–70% of what it will cost to own for five years. Consider the cost of shipping, which can add anywhere from $800 to $1,400 for heavy gear going to U.S. ports, based on where it comes from and how it's being sent. Under HTS code 8479.82, customs taxes are currently between 2.5% and 3.9% for most sources. The average cost of installation, which includes hooking up the electricity, integrating the pneumatic line, and commissioning, is $1,200 to $2,000. The annual costs of upkeep, new parts, and energy use round out the budget. A mixer that is priced 15% below the market average but needs custom replacement parts that take 8 weeks to get may end up costing a lot more over its lifetime than a high-end unit with parts that can be bought from local dealers.

When procurement managers understand these selection criteria, they can make decisions based on value instead of just price, which is better for both the initial investment and the long-term performance of the business.

Vertical vs Horizontal Plastic Particle Mixers: Which One Fits Your Business?

When choosing a technology, it's important to make sure that the features of the equipment fit the working setting and the way that materials are moved.

Performance Comparison Across Key Metrics

500kg vertical plastic particle mixers work great in situations where colours need to change quickly and there isn't much contamination left over. The conical release design lets 99.5%+ of the material escape, leaving almost no heel that could contaminate later runs. When moving between white and black masterbatch recipes, horizontal ribbon blenders need to be purged heavily because they tend to hold on to 2-4% of the batch volume in the end zones and bearing housings. For homogenising materials with big differences in density, vertical designs work better because the mixing cycle times are shorter. For example, blending 70% PET flake (0.7g/cm³) with 30% glass fibre (2.5g/cm³) takes 10 minutes vertically, but 18–22 minutes horizontally.

Space and Installation Considerations

500kg vertical plastic particle mixers have a small footprint that can work well in plants with ceilings higher than 4 meters. On the other hand, horizontal units may be easier to install in low-profile plants. Gravity feeding into most injection moulding machine hoppers is possible at vertical output heights of 1.8 to 2.2 meters, without the need for extra transport. For horizontal mixers to work, they need elevated platforms or transfer augers, which makes installation more difficult and costs more. When it comes to structural loading, vertical units focus 800-1,000 kg over 1.5m², which is why older buildings need reinforced floors. Horizontal designs, on the other hand, spread weight out over 3–4m² and have smaller point loads.

Operational Efficiency in Real-World Conditions

Two 500kg vertical units were added to three 300kg horizontal mixers at a bottle recycling center in the Midwest that processes 6 tonnes of mixed-color HDPE every day. Cycle times were cut from 16 minutes to 9 minutes, which increased effective capacity by 38% while lowering monthly electricity use by 420 kWh. A European company that recycles car parts kept horizontal equipment that was only used for mixing long glass fibre mixtures when protecting the fibre length was more important than other factors. The vertical fountain action sometimes broke more fibres than was acceptable. This shows that there isn't a single technology that works best for all situations.

When procurement teams understand these trade-offs, they can match technology skills with practical goals. This keeps equipment features from not matching production needs, which can be expensive.

Conclusion

To choose the right 500kg vertical plastic particle mixer, you have to weigh the technical specs against the practicalities of the job and the total cost. The 500kg capacity segment works best for medium-sized recycling plants because it provides the consistency needed for consistent processing further down the line without the need to spend a lot of money on large-scale systems. Vertical designs are clearly better than horizontal ones when it comes to mixing regularity, energy efficiency, and space utilisation. However, procurement managers need to make sure that these benefits work with the materials they're using and the way they make things. The risks that come with buying equipment from other countries can be lessened by carefully planning logistics, evaluating suppliers in a structured way, and doing a full cost analysis. Plants that match the mixer's capabilities to their real output needs, put provider support infrastructure at the top of their list, and plan their total ownership costs will be set up for long-term success.

FAQ

What types of plastic materials work best with a 500kg vertical plastic particle mixer?

Polyethylene, polypropylene, polystyrene, ABS, PET, and nylon are just some of the plastics granules that vertical mixers can handle. They work best when recycled regrind is mixed with new resin or masterbatches. The best performance comes from materials with bulk densities of 0.3 to 0.8g/cm³. Stay away from chemicals that are sticky or sensitive to heat and might clump during mixing rounds.

How often does a vertical mixer require maintenance?

As part of routine care, the inside is cleaned once a month, bearings are oiled every three months, and the motor is inspected every six months. Professional service once a year includes checking the dynamic balance and testing the electricity system. When units are well taken care of, they can work for 5 to 8 years before major parts need to be replaced. Bearings and seals wear out the fastest.

Can I customize a mixer for specific recycling requirements?

Manufacturers like Yude Plastic Machinery can make changes to their products, such as adding stainless steel grade upgrades, motors that won't explode in dangerous settings, automatic release valves, and PLC integration to keep the production line running smoothly. Custom hopper setups can be made to fit different methods for feeding materials. During the estimate process, talk about specific needs to make sure the quote fits.

Partner with a Trusted 500kg Vertical Plastic Particle Mixer Manufacturer

Yude Plastic Machinery is an expert at developing and making vertical mixing equipment that is specifically made for recovering plastic. Our 500kg vertical plastic particle mixer seller can serve more than 30 foreign markets, and we offer full technical support and quick customer service. Before it is shipped, each unit goes through strict quality control checks, such as full-load amp draw testing and mixing regularity proof. This makes sure that the equipment you receive works as expected from the start.

Whether you're mixing post-consumer regrind, making masterbatches, or homogenising multi-resin streams, our engineering team can make solutions that are just right for your needs. We make international buying easier and offer great value by offering factory-direct prices, clear warranty terms, and established logistics partnerships. You'll never be alone if you have questions during installation or use because we offer technical support 7 days a week, 24 hours a day.

Please email our team at sales@yudemachinery.com to talk about your mixing capacity needs, material requirements, and schedule. To make sure this mixer fits with your business goals, we'll give you competitive quotes, detailed technical documentation, and the chance to see the equipment in person or online.
