How does a 3000kg vertical plastic granule mixer improve mixing efficiency and uniformity?

A 3 Ton vertical plastic particle mixer dramatically improves mixing efficiency and uniformity through its unique vertical screw conveyor mechanism that lifts material from the bottom cone, dispersing it in a continuous fountain pattern across the entire mixing chamber. This vertical circulation creates a statistically random particle distribution that achieves mixing uniformity exceeding 98% within 12-20 minutes, far surpassing traditional horizontal tumblers. The gravity-assisted downward flow combined with upward mechanical conveyance eliminates dead zones and stratification, ensuring consistent color dispersion and property homogenization across the full 4,500-4,800 liter effective volume, making it indispensable for high-volume plastic processing operations requiring batch-to-batch consistency.

When I first worked with procurement teams at injection molding facilities across the Midwest, one challenge kept surfacing: inconsistent color batches ruining entire production runs. The root cause? Inadequate blending equipment that couldn't handle large volumes efficiently. That's when I discovered how transformative a properly engineered vertical plastic granule mixer could be for operations processing 3,000 kilograms per batch.

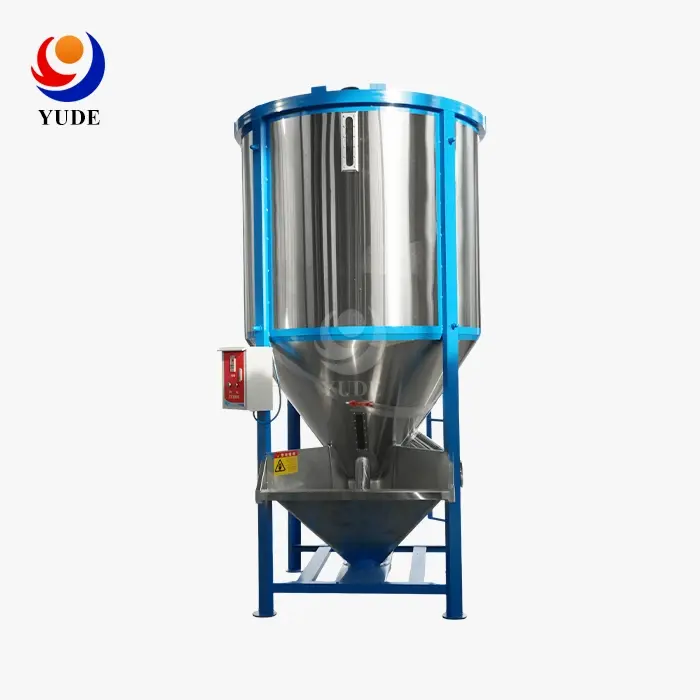

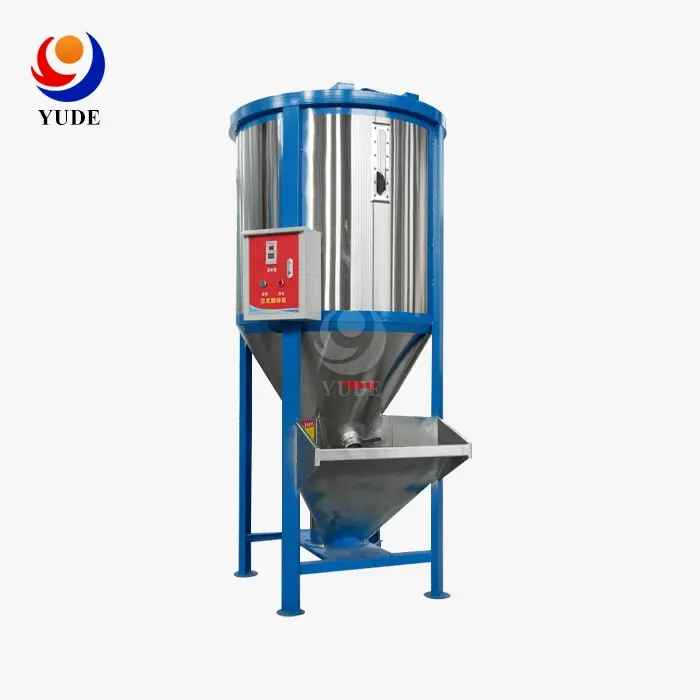

Understanding the 3 Ton Vertical Plastic Granule Mixer

3 Ton vertical plastic particle mixers are a special kind of industrial mixing equipment that was made to make thermoplastic pellets more uniform. In contrast to regular horizontal tumblers or ribbon blenders, these machines have a center vertical auger inside a cylinder-shaped bin. In order to make a continuous recirculation pattern, the design uses both mechanical movement and gravity.

Core Components and Operating Principles

The vertical screw mechanism is what this device is all about. It is usually driven by an 11–15kW motor running at 380V/50Hz. Material goes into a drum that is about 1800 mm in diameter and 2200 mm high through a hopper on top or a gas moving line. Granules are lifted by the rotating screw from the conical bottom section to the top of the chamber, where they fall in an umbrella shape. This makes a three-dimensional mixing action that stops particles from separating because of the different bulk densities of the virgin resin, regrind, colourants, and additives.

The 3 Ton vertical plastic particle mixer capacity is unique because it is designed to work best with bulk densities between 0.6 and 0.8 g/cm³, which is the range for most common and engineering thermoplastics, such as polyethylene, polypropylene, PVC, and ABS. The 4,500–4,800-liter effective mixed volume can handle this weight while still leaving enough room for particles to move around properly. Material touch surfaces are made of 201 or 304 stainless steel, which keeps them clean and makes colour changes easier thanks to maintenance doors placed around the drum body in key spots.

Technical Specifications That Drive Performance

To get mixing uniformity above 98%, engineering parameters must be carefully set. The single mixing time of 12 to 20 minutes can be changed depending on the different particle sizes and specific gravities in your mixture. Smaller pieces and components with closer matched densities speed up homogenisation. On the other hand, large differences in size or density need longer cycle times. The industrial push-button control panel lets operators fine-tune these factors while keeping an eye on how the cycle is going.

The mixing chamber's diameter-to-height ratio affects the speed of movement and the spread of residence time. A well-designed unit keeps bypass flows to a minimum and makes sure that each particle goes through several lift-and-fall cycles during each batch. Instead of just using shear forces, this statistical mixing method uses less energy than high-intensity mixers and stops heat from being created, which could damage or soften heat-sensitive plastics like PVC compounds or low-melt polyolefins.

Core Factors Enhancing Mixing Efficiency and Uniformity

When procurement engineers look at blending tools, they should really focus on performance factors that can be measured, like cycle time, energy use, and most importantly, the coefficient of variation in tracer studies. When properly matched to the needs of the application, 3 Ton vertical plastic particle mixers offer measurable benefits across all of these metrics.

Vertical Circulation Eliminates Stratification

There is a problem with horizontal mixing chambers: particles naturally separate based on density as they spin, with heavy parts moving toward the edges and lighter parts gathering near the center. 3 Ton vertical plastic particle mixers stop this from happening by moving the material around all the way up the column. No matter how heavy the particles are, the upward mechanical transport uses the same lifting force. On the other hand, the gravitational drop lets the particles fall through the chamber naturally, causing randomisation.

This idea is especially helpful when mixing recycled regrind with brand-new resin. Compared to pure pellets, regrind often has a wider range of particle sizes and a more variable bulk density. In horizontal systems, regrind can create pockets of concentrated material that can make final moulded parts weak or show flaws. The vertical fountain flow pattern separates these clumps and spreads the regrind evenly across the batch, making sure that the mechanical traits and surface finish are always the same.

Reduced Energy Consumption and Operational Costs

A 3 Ton vertical plastic particle mixer usually needs 11 to 15kW of power to run, which is a lot less than high-intensity mixers of the same capacity, which can need 25 to 30kW or more. This is because the mixer relies on gravity for half of the path each particle takes through the mixing cycle. The motor only gives power to the lift going up; the lift going down happens automatically. This power difference saves a lot of money over thousands of hours of operation each year, especially in places where industrial energy rates are high.

In addition to saving money on energy, 3 Ton vertical plastic particle mixers also make parts last longer. Compared to high-shear devices, the moderate rotational speeds produce less heat and mechanical stress from friction. When properly sealed and oiled, bearing systems can work effectively for years before they need to be serviced. The contact surfaces are made of stainless steel, which doesn't rust or wear down easily. They also stay within the right dimensions so that the mixing works well for as long as the equipment lasts.

Maintaining Peak Mixing Quality Through Preventive Care

To meet the stated 98% uniformity standard, basic upkeep tasks must be carefully carried out. Lubricating the screw shaft bearing assemblies on a regular basis keeps them from getting stuck, which would mess up the flow patterns. Fines or broken-down resin can build up in the bottom cone area, lowering the useful volume over time and causing dead zones where material doesn't move. These leftovers are removed before they hurt the quality of the next batch by regularly cleaning through the maintenance access doors and blasting with compressed air.

When working with mixtures that have a lot of powder in them, you should pay extra attention to the special bearing seals that are talked about in technical literature. The mixer does a great job with small amounts of pigment powder, but when the powder content goes above 5–10%, small particles can get past standard seals and contaminate the bearing grease, which could lead to early failure. Upgrading to better seal designs and putting in place pulse dust collection systems protect the integrity of the bearings when the powder content is high.

Selecting the Right 3 Ton Vertical Plastic Granule Mixer for Your Business

The most important specification decision is the choice of capacity. When you undersize, you have to do more than one batching cycle, which wastes time and money on labour. When you oversize, you waste money and floor space. A lot of medium- to large plastic processors find the 3 Ton vertical plastic particle mixer capacity to be just right.

Matching Mixer Capacity to Production Scale

Think about how much your later processing tools can handle. A cell for injection moulding that uses several 500-ton presses to make car parts might need 200–300 kg of material every hour. A 3 Ton vertical plastic particle mixer batch can run continuously for about 10 to 15 hours, which is long enough for a full work shift plus extra stock. Batch size also helps extrusion lines that make 400–500 kg/hour of pipe or profile because it lets material preparation stay ahead of line demand without tying up too much working capital in mixed inventory.

The practical mixing amount of 4,500 to 4,800 litres allows for the expansion of the materials as they are mixed. Plastic granules don't pack like a solid mass; the air between the particles means that the volumetric capacity is higher than what would be expected based only on bulk density. This growth factor is very important when adding light substances like foaming agents or when mixing materials with very different particle sizes, as smaller pieces fill the spaces between bigger ones.

Evaluating Suppliers and After-Sales Support

The quality of the manufacturing process and the ongoing support systems have a big impact on how reliable the equipment is. When looking at possible suppliers, you should look at how they control quality and how much they can produce. Manufacturers who have their own manufacturing and full-service machining facilities can keep tighter standards on important parts like the straightness of the screw shaft and the concentricity of the barrel, which directly affect the regularity of the mixing.

Documentation for certification shows that production standards have been met. The ISO 9001 quality management certification shows that the process is controlled in a planned way, and the CE marking on electrical products shows that the company pays attention to the specifications of the parts and how they are put together. When it comes to multinational companies with standard buying rules across regional facilities, these certifications become even more important.

After-sales support infrastructure tells the difference between suppliers who see selling equipment as a transaction and partners who care about the success of your business. Technicians are stationed in major industry areas as part of domestic service networks that make it easy to get help quickly when fixing is needed. Overseas buyers benefit when their suppliers have built relationships with local service providers who know how to fix the equipment. This gets rid of the communication problems and shipping delays that can make it take longer to replace a part.

The best suppliers keep thorough files on each piece of equipment they sell to customers that list its configuration, the date it was installed, and any repair records. This paperwork is very helpful when ordering replacement parts years after the original purchase. It makes sure that the part specifications are correct without having to take a lot of measurements or order things by trial and error. Having access to expert support staff who can help you understand mixing performance data and suggest changes to parameters can help you get the most out of your operations as your materials or production needs change.

Return on Investment Considerations

When comparing prices, you should look at the total cost of ownership, not just the cost of buying something. A 3 Ton vertical plastic particle mixer that costs 15% less than similar units but uses 25% more energy will cost more in the long run. In the same way, equipment that needs to have bearings replaced often or mixing parts that wear out too quickly leads to ongoing upkeep costs that eat away at the original savings.

Since the equipment is always on in most facilities, energy efficiency needs extra attention. Figure out how many hours the motor runs each year and multiply that number by the electricity rate in your area. It may not seem like much of a difference between an 11kW and 15kW motor, but over 5,000 hours of use per year at $0.12/kWh, that difference adds up to $2,400 in ongoing costs. When added up over the life of a piece of equipment, changes in how much energy it uses can be bigger than the difference in price at first.

Adding features like built-in heating systems or variable frequency drives costs more up front but gives you more options for how the business runs. Warming the material slowly before mixing can help the colour spread better and cut down on the cycle time needed for mixtures that have parts with very different melting points. Variable speed control lets you adjust the mixing intensity based on the properties of the material. This saves energy during normal blending and adds more agitation when the complexity of the formulation calls for it.

Conclusion

The 3 Ton vertical plastic particle mixer improves mixing efficiency and uniformity by using gravity to help the vertical circulation design. It can reach 98% consistency in 12 to 20 minute cycles while using less energy than other technologies. This capacity works perfectly for medium- to large-sized plastic processing businesses that need to keep the quality of each batch the same over thousands of production runs every year. To be successful, you need to make sure that the specifications of your equipment match the needs of your production, that you follow strict maintenance procedures, and that you work with suppliers who offer full technical support. If you choose and take care of these mixers correctly, they will work well for years, helping you meet your quality goals while keeping costs low.

FAQs

Can this mixer handle formulations with high powder content?

The unit can handle powder ingredients of up to 5% without any changes, making it good for adding colour pigments or processing aids. Formulations with more than 10% powder need better bearing seal designs to keep small particles from getting into bearing systems. When processing high-powder blends, pulse dust collection attachments protect equipment even more by keeping filters from getting clogged and bearings in good shape.

What cycle time should I expect for a complete 3 ton batch?

Due to the high-speed vertical circulation pattern, mixing new pellets evenly with masterbatch usually takes 15 to 20 minutes. The length of the cycle depends on how the particles are distributed in size and how dense the formulation is. When you mix materials whose properties are very similar, they blend faster. But when you mix ingredients whose properties are very different, it may take longer cycles, up to 20 minutes at most, to get the 98% precision that is required.

How do I prevent cross-contamination during color changes?

The sliding gate at the bottom lets all of the heavy stuff out. Front and back maintenance doors at the base and mid-body let compressed air blow down any leftover pellets from the screw flights and chamber walls. The mirror-polished 304 stainless steel inside keeps things from sticking. Important colour changes can be helped by using purge batches of sacrificial material to get rid of any last traces of the old formulation before adding the new production formulation.

Partner with Yude Plastic Machinery for Superior Mixing Solutions

Yude Plastic Machinery has well-designed vertical mixing tools ready to help your plastic making business. Our 3 Ton vertical plastic particle mixer manufacturer can make changes to meet your unique production needs, such as changing the voltage or adding multilingual control interfaces that meet local industry standards. We've helped thousands of customers in more than 30 countries by sending them tools with precision-machined parts and full support after the sale.

Our technical team can look at the properties of your material and the amount you're making to figure out the best way to set up your mixer so that you get the efficiency gains and level of consistency your business needs. We know how to match the right tools to the job, whether you're working with recycled plastics, moulded goods, or auto parts. Get in touch with our experts at sales@yudemachinery.com to talk about your needs and get more information. As a well-known 3 Ton vertical plastic particle mixer supplier, we offer clear pricing, open terms, and the quality guarantee that comes from decades of making great products. Let us show you how the right mixing equipment can change the way you make things.
