Plastic Raw Material Pre-treatment Mixing Drying Machine for Plastic Industry

One of the best plastic pre-treatment solutions is the 5 ton vertical plastic particle mixer with drying function, which can combine and dry materials. Vertical spiral mixing and hot air circulation are used in this machine. It improves mixing consistency over 98% and moisture below 0.5%. Avoiding separate drying rooms for PE, PP, ABS, and PVC particles speeds up operations. This reduces injection molding, film blowing, and extrusion cycle times and enhances product uniformity.

5 Ton Vertical Plastic Particle Mixer with Drying Function

Core Purpose and Industrial Applications

Plastic manufacturers have a persistent issue: raw materials with too much moisture cause surface bubbles, unstable dimensions, and poor mechanical properties. Traditional mixing and drying are done separately, making handling harder and taking up more space. These issues can be solved with the integrated 5 ton vertical plastic particle mixer with drying function, which combines two crucial pre-treatment procedures into one cooler unit.

Material movement is easier with the upright layout. A middle screw draws particles from the base and spreads them in a fountain-like pattern to combine them. Fixed hot air temperatures between room temperature and 85°C are blasted through the moving particle bed. This accelerates moisture evaporation without increasing temperature. This two-step method works well for color masterbatches, recycled pellets, and additives where homogeneity and dryness affect process stability.

Key Components and Operational Framework

Understanding the 5 ton vertical plastic particle mixer with drying function's basic design helps explain its success. The Q235 carbon steel mixing box is insulated. Even with 5,000 kg of load, it maintains thermal efficiency. A 37–45 kW motor drives vertical circulation for equal mixing. Carbon steel spirals are thicker.

The drying system uses 80–100 kW electric heating tubes. Boiler houses can use steam heating. Both moisture-sensitive industrial plastics and commodity resins can be employed with adjustable temperatures. The sealed filling holes prevent hot air from escaping, saving energy and keeping personnel safe. Most plastic granules have bulk densities of 0.6 to 0.8 grams per cubic centimeter, therefore 7,500 to 8,000 liters is useful.

Operational cycles average 35 to 50 minutes per batch, significantly faster than passive heat transfer static silo dryers. This time advantage helps processors with strict production schedules operate faster, especially when switching materials or colors.

Benefits Driving Adoption

Better raw material consistency is a major benefit. Incorrect mixing can generate color streaks, uneven filler distribution, and melt flow behavior that is hard to anticipate when extruding or shaping. Preventing these dangers requires 98% accuracy or greater. It improves process control and reduces scrap.

Interwoven design saves energy. Operating one piece of equipment uses less power than running mixers and dryers simultaneously. The covered barrel retains heat, and material movement improves convective heat transmission compared to static drying bins.

The enclosed workplace reduces pollution. When material handling procedures are minimized, dust and contamination between batches are less likely. Clear or light-colored items require this quality since even a little amount of contamination might cause clients to reject them.

Vertical Mixer vs. Horizontal Mixer for Plastic Particle Pre-treatment

Structural and Functional Differences

Vertical mixers feature a central axis perpendicular to the floor and a mixing screw. This compact size is ideal for spaces with little floor space but high ceilings. Horizontal designs extend the mixing chamber to the sides, taking up more floor space but making hand cleaning and checking easier.

Functionally, the 5 ton vertical plastic particle mixer with drying function prevents separation. The upward spiral motion keeps heavy and light particles traveling together. The natural separation of particles with differing densities is stopped. Horizontal paddles are good for gently mixing similar materials, but they might struggle with high-density fillers or light flakes without the correct blade shapes.

Energy Consumption and Cost-Effectiveness

Comparisons of energy indicate considerable variances. A 5-ton vertical plastic particle mixer with drying function utilizes 120 to 145 kilowatts for the mixing motor and heating element. However, a horizontal mixer and rotor dryer frequently require over 180 kilowatts. Long-term savings from this 25–30% energy consumption differential are significant. North American firms with rising power bills need this.

The cost-effectiveness goes beyond electricity savings. Vertical units are cheaper to maintain due to their simpler bearing arrangements and lower abrasion risk. Horizontal mixers with several paddle gears require additional oiling and seal replacement, increasing downtime and part costs.

Performance Factors and Operational Reliability

Vertical systems have pigment distribution coefficients of variation of less than 2% in controlled mixing uniformity trials, whereas horizontal systems have 3–5%. This narrower spread reduces color shifts and batch rejections during quality tests.

Drying prefers upright arrangements. Every particle passes across the heated region many times during the cycle due to material mobility. This eliminates horizontal dryer cold spots caused by items near the walls receiving less heat. Temperature differential measurements in vertical batches often remain within ±3°C, whereas in horizontal systems generally remain within ±7°C. This ensures accurate drying.

Real-life injection molding case studies demonstrate these benefits. A Midwest auto parts manufacturer switched from a horizontal mixer and hopper drier to a vertical machine. This reduced pre-processing time by 40% and energy costs by 28%. The move freed up 45 square feet on the production floor for a molding press.

How to Choose the Right 5 Ton Vertical Plastic Particle Mixer with Drying Function?

Capacity, Throughput, and Drying Technology

Equipment capability must match output required by procurement engineers. A 5 ton vertical plastic particle mixer with drying function batch capability may be used by medium-sized organizations that handle 40 to 120 tons per month, or two to three batches each day. Facilities with high production should consider 8- or 10-ton versions. 3-ton units may be cheaper for smaller companies.

When calculating throughput, consider the 35- to 50-minute cycle time and loading and discharge intervals. Manually filling hoppers takes longer than automated air conveying systems. These devices can reduce cycle durations to under 60 minutes when combined.

Material hygroscopicity affects drying method. Standard power heating works for PE and PP since they don't absorb much water. Nylon and polycarbonate engineering resins benefit from higher temperatures and longer drying periods. This requires improved shielding and heating elements.

Energy Efficiency and Environmental Compliance

Examine energy-saving methods thoroughly. Find motors with variable frequency drives, which adjust speed dependent on demand and consume less electricity when not in use. PID temperature controls reduce heating system overshoot. Energy is saved and heat-sensitive additives are preserved.

Environmental protection influences shopping decisions more. A 5-ton vertical plastic particle mixer with drying function with ISO 50001 energy management requirements and low-noise designs under 80 dB fulfills safety and environmental regulations. Buyers selling to Europe or California should ensure the goods has the CE mark and fulfills California Air Resources Board standards.

Pricing Structures and Supplier Credibility

When evaluating pricing, consider the overall cost of ownership, not just the purchase price. Models built of robust Q235 carbon steel and thicker coils cost more but last longer and require less maintenance, lasting over 15 years. Affordable alternatives using smaller gauge materials may require parts changed every five to seven years, costing more over time.

Trustworthiness of a provider must be checked. Older manufacturers with lots of documentation, such as material approvals, dynamic balancing test results, and thermal uniformity proof data, care about quality. Expert advice in numerous languages and replacement parts reduce operational risk, especially for overseas purchasers operating equipment remotely.

Customization options make the strategy more beneficial. Suppliers can readily add to current production lines by changing barrel size, adding sticky material valves, or adapting control interfaces to plant automation protocols. Buyers considering multi-location rollouts or fleet development benefit from bulk purchase discounts and priority manufacturing schedule.

Industry Insights and Future Trends in Plastic Raw Material Pre-treatment

Smart Automation and IoT Integration

Combining industrial and digital tools is modifying plastic pre-treatment parameters. Many contemporary 5 ton vertical plastic particle mixer with drying function models contain sensors that monitor temperature, mixing speed, and power utilization. Data transmitted to centralized control systems by predictive maintenance algorithms alert workers to worn bearings and heating components before they break.

Process control improvements driven by machine learning optimize cycle parameters automatically. Systems that employ moisture content input adjust heating time and temperature to adapt for ambient humidity or material variances without human intervention. This flexibility to alter maintains product quality while conserving energy, which is very useful for industrial operations without power.

Innovations in Energy-Efficient Heating

Heating technology improvements save even more energy. Infrared heating devices focus thermal energy on particle surfaces, reducing heat loss compared to turbulent hot air systems. Induction heating is too costly for most applications, but it can accurately regulate temperature for manufacturing high-value industrial resins.

Waste heat recovery systems warm incoming materials and chilly building sections using exhaust air heat. In northern places with longer heating seasons, retrofits pay for themselves in 18–24 months. This makes them more desirable since natural gas prices fluctuate.

Market Demand and Regulatory Drivers

North American and European businesses increasingly use vertical mixers with drying characteristics. Many factors contributed to this. Tighter volatile organic compound pollution standards promote covered processing equipment that emits particles and smells. Energy-saving laws require processors to utilize combination systems that consume fewer kWh/kg.

Being greener drives demand for equipment that can handle more recyclable materials. Contaminated and moist post-consumer plastic flakes require significant pre-treatment. Therefore, adaptable mixers that can handle various material conditions are optimal. Integrated mixing-drying systems are predicted to expand faster than individual equipment groups by over 6% each year until 2030.

Conclusion

Plastic manufactures may cut expenses and enhance material pre-treatment efficiency with the integrated 5 ton vertical plastic particle mixer with drying function. You can tackle injection molding, extrusion, and film manufacturing challenges by continuously reducing moisture and blending in a small unit. As energy prices rise and quality requirements tighten, companies need technology that improves uniformity, productivity, and energy consumption. By assessing the provider's expertise, calculating the total cost of ownership, and following disciplined repair procedures, you may ensure these systems last.

FAQ

What is the typical lead time for ordering a vertical plastic particle mixer with drying function?

Four to six weeks following purchase confirmation, standard options ship. It allows time for manufacture, quality testing, and export documentation. Custom requirements like stainless steel contact surfaces for pharmaceuticals or explosion-proof electrical parts for solvents might increase wait times by eight to ten weeks, depending on part sourcing.

Can these mixers process multiple plastic material types simultaneously?

Make sure various glues work together before combining them. Since HDPE and LLDPE have similar chemical structures and melt temperatures, mixing them is safe. Mixing incompatible polymers like PET and PVC can render both batches unsafe. Purging carefully between materials prevents carryover, although high-purity activities are best done with distinct instruments for each resin family.

How do integrated vertical mixers compare to separate equipment for energy efficiency?

Combining mixing and drying systems usually saves 25–35% more energy than utilizing individual mixers and spinning dryers. No more steps are needed to transfer materials, less heat is wasted during handling, and a single insulated space gives superior temperature control. Daily batch processors save a lot of money annually. They generally pay back the extra expenses of their tools in two to three years by saving on utilities.

Partner with Yude Plastic Machinery for Superior Pre-treatment Solutions

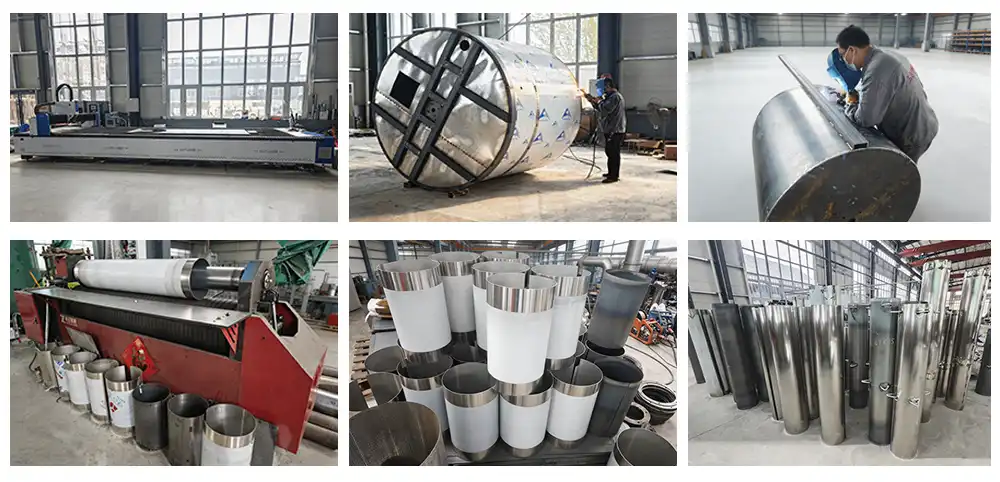

Yude Plastic Machinery has made industrial-grade 5 ton vertical plastic particle mixer with drying function solutions for over 10 years. Our units are composed of durable Q235 carbon steel and include PID-controlled heating systems and precision-balanced mixing rings for PE, PP, ABS, and PVC materials. We understand the need of reliable equipment, fast professional service, and low total cost of ownership as a supplier to North American processors.

To simplify operator training, Yude can adjust discharge configurations for sticky materials and make control interfaces bilingual. Our after-sales service includes installation instructions, operator training, and timely delivery of supplementary parts supported by carefully arranged inventories. To increase production capacity, update aging equipment, or install new processing lines, our technical team can create tailored solutions that suit your flow objectives and budget. Email our experts at sales@yudemachinery.com to discuss how our proven mixing and drying technology may help you handle your materials better and generate better products.

References

1. McKeen, L. W. (2021). Plastics Design Library: The Effect of Temperature and Other Factors on Plastics and Elastomers. William Andrew Publishing.
2. Rauwendaal, C. (2019). Polymer Mixing: A Self-Study Guide. Hanser Publications.
3. Tadmor, Z., & Gogos, C. G. (2020). Principles of Polymer Processing. John Wiley & Sons.
4. Wang, K., & Isayev, A. I. (2018). Advanced Material Processing Technologies for Industrial Applications. Society of Plastics Engineers.
5. European Plastics and Rubber Machinery Association. (2022). Energy Efficiency Standards for Polymer Processing Equipment. EUROMAP Technical Report 88.
6. Society of Manufacturing Engineers. (2020). Best Practices in Plastic Material Handling and Pre-treatment Systems. SME Technical Paper Series TP20PL45.
