Is stainless steel vertical mini mixer machine movable or fixed installation?

A stainless steel vertical mini mixer machine can be configured for either movable or fixed installation, depending on your production setup. Compact models designed for laboratory use or small-batch processing typically come with casters or a portable frame, allowing operators to reposition the unit between workstations. Larger units intended for continuous production lines are generally anchored to the floor for stability. The right choice depends on your facility layout, batch frequency, and compliance requirements—and both options are available from specialized manufacturers.

Understanding Stainless Steel Vertical Mini Mixer Machines

It's helpful to know what the equipment does and why the materials and styles you pick are important for your business before you choose the type of installation.

What the Machine Does

In the middle of a vertical pellet mixer is a spiral screw or paddle stirrer that moves stuff from the bottom of the drum up and down the outside wall. It only takes 5 to 10 minutes for this three-dimensional convective flow to mix things evenly by more than 98%. In tests that compare vertical screw mixers with ribbon and tumble blenders, this number has been shown over and over again.

Material Construction

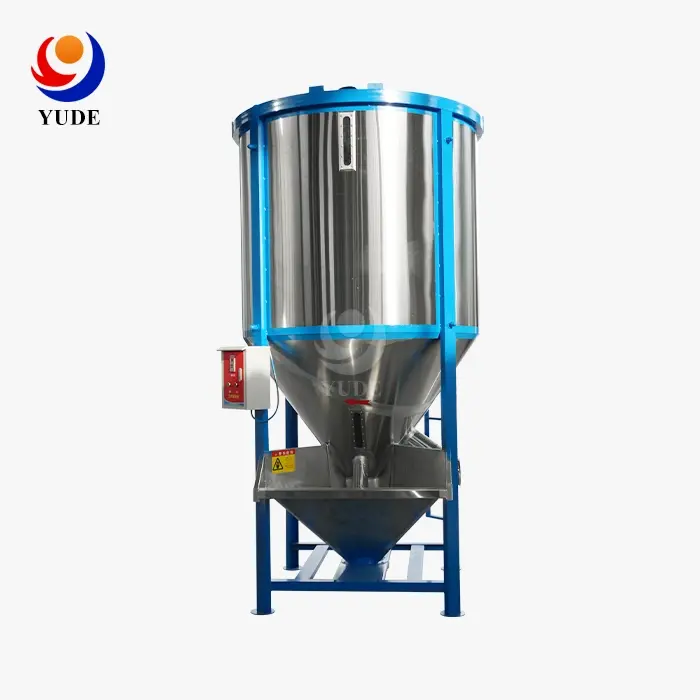

The base and all of the parts that touch the pellets to mix them are made of 304 stainless steel on the Yude stainless steel vertical mini mixer machine. When Grade 304 austenitic stainless steel is introduced to water, light acids, or cleaning products, it doesn't rust. This means that it can be used in places that work with medical- and food-grade plastics. If you work with materials that are high in acid or salt, molybdenum-added 316L stainless steel will stop limited rust better.

Key Performance Specifications

This mixer can hold up to 300 kg of weight at most, and it has an 80- to 500-liter work area. The three-phase motor that turns the moving shaft goes from 30 to 60 r/min. It is protected against overload, overheating, and phase loss right from the start. The inside has a mirror polish finish (Ra ≤ 0.8 μm), which keeps things from sticking and makes it easy to switch between runs of products.

Movable vs. Fixed Installation: Definitions and Characteristics

The type of installation is important because it changes daily chores, cleaning routines, and the cost of long-term maintenance. If procurement teams understand the difference, they will not have to do costly work over again in the future.

What Movable Installation Means

The stainless steel vertical mini mixer machine can be moved with the help of small wheels or locked casters. The unit can be rolled from one mixing area to another, put next to a line for filling, or taken to a cleaned area to be cleaned. This design works well in places that handle a lot of different products during a shift, like factories that package food or makeup and need to switch materials often without having to worry about contamination. Most lab doors and freight elevators can fit in the small space, which is less than 1 m².

What Fixed Installation Means

The stainless steel vertical mini mixer machine is stable when it is either bolted to a concrete floor or built right into the wall of a production line. This method helps the material stay together better when it is mixed quickly or with a lot of force. Fixed setups are good when there are a lot of materials to mix and the mixer only needs to run with one type at a time. This is because they don't need to be moved around as often. They also make it easy to connect lines for spray nozzles and output ducting for clean-in-place (CIP).

Side-by-Side Comparison

• Movable units give you flexibility to serve multiple production zones with one machine, lower initial installation cost, and easier physical access for manual cleaning or inspection.
• Fixed units offer greater vibration damping during operation, simpler integration with automated discharge conveyors, and reduced operator effort for larger batch sizes above 200 kg.

Either/or doesn't always work. Some places set up a main unit that stays in place and keep a smaller mixer that can be moved around for test runs or quick changes.

Factors Influencing Installation Choice

Several practical considerations should guide your decision before placing a purchase order with any vertical mixer supplier.

Production Scale and Batch Frequency

If your facility runs 8 to 12 different plastic formulations per day, a movable unit reduces the time spent walking materials across the floor. If you run one formulation continuously for 12-hour shifts, a fixed unit keeps the process stable and reduces operator fatigue from repositioning.

Space and Facility Layout

Clean room environments impose strict constraints on equipment placement. A movable stainless steel mixer allows facilities to reconfigure zones during GMP audits or when production lines are rearranged. Fixed installations, by contrast, require advance planning and may limit future layout changes.

Compliance and Safety Requirements

GMP and FDA-compliant facilities in food packaging, pharmaceutical packaging, and medical device manufacturing often require documented equipment placement as part of IQ (Installation Qualification) records. Movable units must include locking wheel mechanisms to satisfy safety auditors. Fixed units simplify the IQ documentation process because the position does not change between audits.

Total Cost of Ownership

Movable units carry lower installation labor costs upfront. Fixed installations may reduce long-term maintenance costs by minimizing vibration-related wear on the gearbox and motor bearings over multi-year service cycles.

Case Studies and Industry Examples

Seeing how different operations actually deploy these machines makes the installation decision more concrete.

Small Packaging Manufacturers

A cosmetics packaging company running 15 to 20 color masterbatch changeovers per week would typically choose a movable stainless steel vertical mini mixer machine. They roll the unit to the relevant production bay, complete the blend, clean the interior using the mirror-polished barrel design, and move on. Downtime between SKUs drops significantly compared to cleaning a fixed, hard-piped unit.

Pharmaceutical Pilot Plants

Research and development labs testing active pharmaceutical ingredient (API) blends with excipients in 50 to 200 kg batches prefer movable equipment because formulation testing often moves between fume hoods, cleanrooms, and standard labs. The vertical screw design minimizes dead zones, which is important when working with expensive raw materials where every gram counts.

Large-Scale Food Packaging Lines

A large-scale food packaging facility processing polyethylene or polypropylene pellets at volumes above 300 kg per batch typically anchors the mixer in a fixed position adjacent to an automated filling station. This removes manual handling steps and reduces particulate contamination risk in a GMP-controlled environment.

Hybrid Deployment Models

Some food and medical packaging manufacturers purchase one fixed unit for their primary high-volume line and one movable unit for product development or overflow production. This hybrid approach spreads investment across operational needs without requiring two full-sized fixed installations.

Making an Informed Procurement Decision

Before contacting any stainless steel vertical mini mixer machine manufacturer, it helps to prepare specific answers to a short set of questions.

Questions to Ask Your Supplier

Clarify whether the supplier provides third-party material certification reports for 304 or 316L stainless steel. Ask whether IQ-OQ-PQ validation documents are available for GMP-regulated environments. Confirm whether the caster design on movable units includes locking mechanisms rated for the loaded weight of the drum.

What to Verify About the Product

Check that the interior surface finish meets your process standard—Ra ≤ 0.8 μm is the accepted threshold for food and pharmaceutical contact surfaces. Verify that the motor protection package includes overload, overheating, and phase-loss functions, which are standard on quality units but not always present on budget alternatives.

Customization and After-Sales Support

Reputable suppliers can adapt the control interface language, voltage configuration, and drum size to match local standards and space constraints. Confirm that spare parts are stocked domestically or available within an acceptable lead time to avoid costly production interruptions.

FAQ

Can a fixed vertical mixer be converted to a movable configuration later?

Yes, most of the time. Once the frame is built, locking wheels can be added by a skilled professional if they weren't already there. However, this change should be recorded in new records for plants that are regulated by GMP.

How does installation type affect cleaning time?

When units are mobile, workers can roll the mixer to a set area to be cleaned, which can speed up the CIP process. Some fixed units with built-in spray nozzles can do the job in about the same amount of time if the plumbing is already there. This is because they have automated CIP cycles.

What safety features should a movable mixer include?

In factories, moving parts must have at least locking casters that can hold the whole unit, an emergency stop button, a lid interlock that stops the motor if the cover is opened while it's running, and protection against overload.

Does installation type affect mixing uniformity?

Not at all. A level of mixing uniformity of at least 98% depends on the type of agitator, the speed of the shaft, and the size of the batch. It doesn't matter if the unit is on wheels or not.

Is a three-phase power supply required for both installation types?

Yes. They need a stable three-phase source no matter how they are set up because they have a three-phase asynchronous motor. It is important to check that the facility's electrical panel can handle the maximum power before installation.

Connect With Yude Plastic Machinery for Your Next Mixer

From Yude Plastic Machinery, you can get both mobile and fixed-configuration small vertical mixers. They are made of full-304 stainless steel, have been certified by a third party as safe, and come with paperwork that is compatible with GMP standards. We offer factory prices, OEM customization, and after-sales service 24 hours a day, seven days a week for our stainless steel vertical mini mixer machines because we make them ourselves. You can email our sales team at sales@yudemachinery.com or visit yudemachinery.com to get a price quote on a product.

Conclusion

One way to move a stainless steel vertical mini mixer machine is to set it down and leave it there. The choice you make will depend on three useful factors: how often you change your production plan, what paperwork you need for compliance, and the total cost of ownership over a three- to five-year service cycle. If you need to handle a lot of different SKUs, don't have a lot of space, or just want to study, moving units are a good choice. Fixed units work well with automated, high-volume, or lines that only use one material. It doesn't matter what kind of installation you have as long as the material standard, surface finish, and motor protection package are good.

References

1. American Institute of Chemical Engineers (AIChE). Chemical Engineering Progress: Mixing Equipment Selection Guide. 2021.
2. European Hygienic Engineering and Design Group (EHEDG). Guidelines on Hygienic Design of Closed Equipment for the Processing of Liquid Food. 2019.
3. U.S. Food and Drug Administration (FDA). Equipment and Utensils — Current Good Manufacturing Practice in Manufacturing, Processing, Packing, or Holding of Drugs. 2023.
4. ASTM International. ASTM A276/A276M: Standard Specification for Stainless Steel Bars and Shapes. 2022.
5. International Society for Pharmaceutical Engineering (ISPE). ISPE Baseline Guide Volume 5: Commissioning and Qualification. 2019.
6. Powder and Bulk Engineering Magazine. Selecting and Specifying Vertical Screw Mixers for Pharmaceutical and Food Applications. 2020.
