What’s the residual moisture after plastic particle hot air drying?

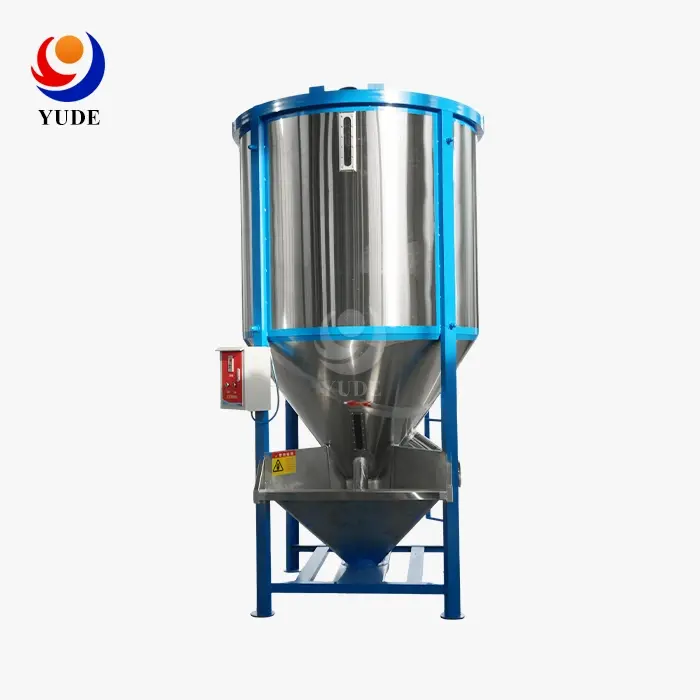

It is very important to get the right moisture level when making plastic pellets so that you can make high-quality finished goods. Modern tools, such as the 3 ton vertical plastic particle mixer with drying function, can dry materials with hot air to leave behind as little as 0.5% moisture or less, based on the type of material and the working conditions. This system combines controlled hot air drying with vertical spiral circulation to make sure that the whole batch gets rid of the same amount of moisture. These mixers dry materials consistently in 30 to 45 minutes per cycle by keeping the temperature precisely controlled, which can be set anywhere from room temperature to 85°C. This makes them perfect for high-volume operations that need reliable pre-processing before extrusion, injection moulding, or film blowing.

Understanding Residual Moisture in Plastic Particle Hot Air Drying

Residual moisture is the amount of water that is still in the plastic particles after the drying cycle is over. For engineering-grade resins, the industry standard for residual moisture is between 0.02% and 0.1%. However, for some uses, levels up to 0.5% are fine. Too much moisture makes flaws that can be seen in moulded parts, like bubbles, surface marks, and differences in size. High levels of moisture cause steam pockets to form during extrusion, which hurts the stability of the process and the uniformity of the melt.

Coordinated heating, moisture drainage, and constant airflow movement make hot air drying work in vertical mixers. The structure's vertical curve makes it easier for materials to move up, which makes sure that every pellet gets the same amount of heat contact. As hot air moves through the powder bed, water moves from inside the pellets to the surfaces, where it evaporates. The sealed design of the feeding port keeps hot air from escaping, which keeps the drying chamber's temperature evenly distributed.

How Material Properties Affect Moisture Removal

Different plastic resins have different drying and moisture-attracting properties. Hygroscopic fabrics, like Nylon and PET, easily soak up water from the air and need to be dried in a very thorough way. Resins that don't absorb water, like PE and PP, let surface water evaporate more easily. However, they can still benefit from controlled drying to get rid of processing flaws. The bulk density of the materials also affects how well they dry. Materials with a higher bulk density need longer exposure times to get the same amount of wetness decrease across the whole batch.

Temperature and Time Parameters

To keep the material from breaking down, the drying temperature must be the same as the resin's heat sensitivity. PVC needs lower temperatures, around 80°C, to keep its colour, but PP can handle higher temperatures, around 85°C, without losing quality. Processing time depends on how wet the material is to begin with and what our goals are. Manufacturers can standardise drying processes, improve consistency from batch to batch, and cut down on energy use while still meeting strict moisture requirements by keeping an eye on both temperature and length.

Key Factors Influencing Residual Moisture in Vertical Plastic Particle Mixers with Drying Function

To get the best leftover moisture levels, you need to pay close attention to a lot of different handling factors. Controlling the temperature is the most important factor—keeping the heat at the right level makes sure that evaporation works well without changing the properties of the resin. PID digital temperature controllers in equipment make it accurate to within ±2°C, so operators can fine-tune settings for different types of materials. In industrial-scale units, the power of the heating tubes, which is usually between 60 and 75kW, provides enough heat to successfully process three-ton amounts.

How much time is spent drying has a direct effect on the final moisture content and how well the process works. Shorter cycles use less energy, but they might leave pellets with too much water, and longer cycles waste resources and risk damaging them with heat. This balance is best achieved by vertical mixers that also dry things because they keep the material moving, which speeds up heat transfer compared to static drying methods. The upward circular circulation structure makes sure that all parts are exposed to the same amount of heat, so longer working times are not needed.

Energy management is another important thing to think about for factory businesses that want to be environmentally friendly. Insulation layers around the drying room keep heat from escaping, which makes the design about 45% more thermally efficient than versions that don't have insulation. This design cuts down on operational costs while keeping temperatures stable inside. Less energy is used per batch, which helps manufacturers compete on price and supports environmental goals that are becoming more important to buying decision-makers.

It is important to remember that mixing consistency and drying efficiency are linked. 3 ton vertical plastic particle mixer with drying function that can mix regularity above 98% makes sure that wetness is spread out evenly before and during drying, so there aren't any wet spots that lower the quality of the batch. Thickened carbon steel spirals for mixing don't wear down easily when used continuously, so they keep mixing well after thousands of processing cycles. This durability supports long-term dependability, which is important in high-volume production settings where equipment downtime has a direct effect on profits.

Advantages of Using a 3 Ton Vertical Plastic Particle Mixer with Drying Function

Plastic processing processes are changed when drying and mixing functions are combined into a single vertical unit. This combination gets rid of the need to move things from one piece of equipment to another. This cuts down on the work needed to move things and the chances of pollution. When compared to operations that use separate dryers and mixers, facilities that use combined systems report faster cycle times and more flexible production schedules. Vertical designs have a small footprint, which makes them good for places with limited space as well as high-throughput operations that need to make the most of their floor space.

Enhanced Process Control and Consistency

Manufacturers can keep tight tolerances across production runs with the help of advanced temperature and moisture control systems. Digital controls with programmable logic let workers save recipes for various types of materials. This makes sure that the processing factors stay the same when moving between PE, PP, ABS, and PVC formulations. Real-time tracking lets production teams know right away how the drying is going, so they can find and fix any problems with the process before they affect the quality of the product. This level of control meets the tracking needs of supply chains in the electronics and car industries, where consistent parts are a must.

Reduced Maintenance Requirements

Industrial 3 ton vertical plastic particle mixer with drying functions are built to last because they don't need as much maintenance over their lifetimes. Barrels made of Q235 carbon steel and insulated to protect them from rust and heat stress will keep their structural integrity for years of use. Sealed entry ports keep material from building up in mechanical parts, which lowers the need for cleaning and increases the time between service intervals. Routine maintenance tasks include simple checks like lubricating bearings, checking the condition of the heating elements, and calibrating the temperature sensors. Trained operators can do these tasks without having to take the equipment apart a lot.

Cost Efficiency Across Operations

Along with the direct energy savings that come from building with insulation, integrated vertical mixers also save money in other ways. When compared to buying different mixers and dryers, single-equipment operation lowers the original capital cost. When workers only have to coordinate one machine instead of two or more, labour costs go down. Better drying consistency lowers the number of rejected products, which saves money on materials and repairs. Because of these long-term saves, vertical mixers are great investments for buying teams that look at the total cost of ownership instead of just the purchase price.

Being able to quickly adjust to changes in batches is useful in production settings that are always changing. Operators can change the drying parameters in the middle of a cycle to account for differences in the recycled content's initial moisture levels. This level of adaptability keeps output rates steady even when working with difficult feedstock, which is very important for facilities that process post-consumer recycled plastics, whose properties change a lot from batch to batch.

Procurement Considerations for 3 Ton Vertical Plastic Particle Mixers with Drying Function

When looking for industrial mixing equipment, you need to carefully consider the technical specs, the supplier's skills, and the infrastructure for long-term support. Capacity alignment is the most important thing to think about when buying something. A 3 ton batch capacity works well for medium- to large-sized production operations that process 50 to 80 tonnes of material every week. Buyers should check the effective volume specifications, which are usually between 4500 and 4800 litres for 3 ton vertical plastic particle mixer with drying function. This is to make sure there is enough room for the materials to move around properly during the mixing and drying stages.

When reviewing specifications, the temperature control range should be looked at very carefully. The most popular plastic resins can be used with equipment that can be adjusted from room temperature to 85°C. People who are buying heating systems to process special materials should make sure that the system's ability meets their specific temperature needs. Having different steam heating choices gives sites that already have steam infrastructure more practical freedom. This could lower running costs compared to electric heating in places where energy prices are low.

Power needs affect both buying decisions and getting the facility ready. For mixing machines rated at 22–30kW and heating elements using 60–75kW, the right electrical equipment is needed. The procurement team needs to work with the buildings management to make sure there is enough service capacity or a budget for any electrical changes that need to be made. Total connected load sets running costs. That's why energy-saving features like insulated building and smart heating controls are important to look for when comparing different brands of equipment.

A supplier's evaluation goes beyond just looking at the product specs. It also looks at how well they can make the product and their support system. Reputable producers show they control quality by writing down inspection methods that include checking the quality of raw materials, checking the quality of work in progress, and trying the finished product. Certifications and proof of compliance show that the equipment meets foreign standards that are important for sale markets. After-sales service skills, such as the availability of expert help, spare parts inventory, and quick response times for field service, have a direct effect on how well and how often equipment works throughout the ownership period.

Customisation features let buyers ask for changes to be made to equipment to meet specific operational needs. Some options could be special coatings on the inside for certain types of resin, changed discharge configurations to make them work with equipment further down the line, or improvements to the control system that let it talk to automation platforms across the whole plant. When you talk about customisation options early on in the procurement process, you can make sure that the equipment's specs match your operational needs and get a better idea of how much it will cost and when it will be delivered.

Payment terms, delivery schedules, and warranty terms need to be negotiated in a way that is in line with the company's purchasing policies. Knowing the wait time for manufacturing—usually 6 to 10 weeks for normal configurations—helps coordinate the delivery of equipment with production plans and activities to get the facility ready. A full guarantee that covers all major parts for 12 to 24 months protects you financially against production flaws and makes it clear who is responsible for service during the first few months of use.

Conclusion

Controlling the amount of residual wetness in plastic particle processing has a direct effect on the quality of the product, how efficiently the process works, and how much it costs to make. Hot air drying systems built into vertical mixers consistently lower the amount of wetness to goal levels at or below 0.5%, meeting strict requirements for a wide range of resin types. The 3 ton capacity design is best for medium- to large-sized businesses that need solid batch processing with few handling steps and the most energy-efficient setup.

Vertical mixing equipment has technical benefits like better thermal distribution, a small footprint, and lower maintenance needs. These make these systems the best choice for procurement teams that want to focus on operational excellence. When you look at how much energy different drying methods use, how uniform the drying process is, and the total cost of ownership, you can see that investing in combined vertical equipment is a good idea.

Effective procurement strategies combine scientific requirements with suppliers' abilities, making sure that the equipment chosen meets instant output needs and is backed up by a full network of after-sales service facilities. Manufacturers have a competitive edge when they use properly specified vertical mixing equipment that also dries products. This is because it improves consistency in controlling moisture, lowers the number of defects, and speeds up the processing flow.

Get Superior Moisture Control with Yude Plastic Machinery

Yude Plastic Machinery makes vertical mixing systems that are strong enough to be used in harsh production settings. Our 3 ton vertical plastic particle mixer with drying function uses tried-and-true spiral circulation technology and precise temperature control to make sure that the amount of moisture left over always meets your needs. As a well-known manufacturer and supplier that works with over 30 countries, we offer equipment that is built to meet international quality standards and can be fully customised to fit your needs.

Our systems are made of Q235 carbon steel and have insulation layers. They can mix evenly above 98% of the time and dry at temperatures up to 85°C. No matter if you're working with PE, PP, ABS, or PVC, our tools can handle all of them reliably. We support your success by providing full after-sales service, which includes expert advice, quick access to extra parts, and quick help with fixing problems.

Get in touch with our team at sales@yudemachinery.com to talk about your moisture control needs and get full specs that are made to fit your production needs. You can look at all of our equipment at yudemachinery.com, where you can also find technical information that will help you make smart purchasing decisions. When you work with Yude Plastic Machinery, you get the solid results your business needs.

FAQ

What residual moisture levels should I expect after hot air drying?

After hot air drying in vertical mixers, the amount of moisture that is usually left over runs from 0.02% to 0.5%, based on the type of material and the processing conditions. Resins that don't absorb water, like PE and PP, can easily get levels below 0.2%, which is good for most extrusion and moulding tasks. To get moisture levels below 0.1%, engineering plastics that are hygroscopic may need special drying tools or longer processes. Changing the temperature and cycle time can help get the best results for certain resin mixtures while keeping energy use in check and quality standards met.

How does drying efficiency compare to dehumidifying dryers?

Dehumidifying dryers use desiccant systems to get dew points as low as -40°C. This makes them perfect for drying materials that absorb a lot of water, like Nylon or PET. When working with non-hygroscopic or slightly hygroscopic resins, hot air vertical mixers are great at getting rid of surface moisture. They can get moisture levels as low as 0.05% and as high as 0.2%. Vertical mixers work well as pre-dryers for processing industrial plastics because they lower the original moisture content before the final drying in specialised dehumidifying equipment. This staged method makes the whole process more efficient and uses less energy.

What maintenance tasks make sure that the drying works the same way every time?

As directed by the maker, routine maintenance includes checking the heating element, calibrating the temperature monitor, and greasing the bearings. By checking the state of the heater tube every three months, you can keep the performance from dropping due to element wear or corrosion. Every year, calibrating temperature monitors keeps the control accurate, which is needed for consistent results. Cleaning sealed feeding ports and checking the integrity of insulation stops heat loss that makes energy use go up. With regular repair, equipment lasts longer and keeps drying uniformity and dependability over thousands of processing rounds.
