Difference Between 300kg Mixing Only Mixer and 3 ton Mixer With Dryer

Procurement managers often have to make a tough decision when looking for industrial mixing equipment for plastic processing operations: should they buy a small 300kg vertical plastic particle mixer that is only meant for mixing, or should they go with a bigger 3 tonne mixer that can also dry the materials? The choice depends on how much is being made, how sensitive the material is to moisture, and how important it is to integrate the process. A 300 kg unit that only mixes is very good at mixing PE, PP, ABS, and PVC particles evenly through vertical spiral circulation, reaching 98% uniformity in 8 to 15 minutes per batch. On the other hand, a 3-ton mixer with dryer combines drying and mixing into a single step, which cuts down on manual labour and keeps hygroscopic industrial plastics like Nylon and Polycarbonate from breaking down when they are used to make parts for cars or electronics.

Understanding the Core Functional Differences

At the most basic level, the way these two types of equipment work is different, which makes them suitable for different working settings.

Mixing Mechanism and Workflow Architecture

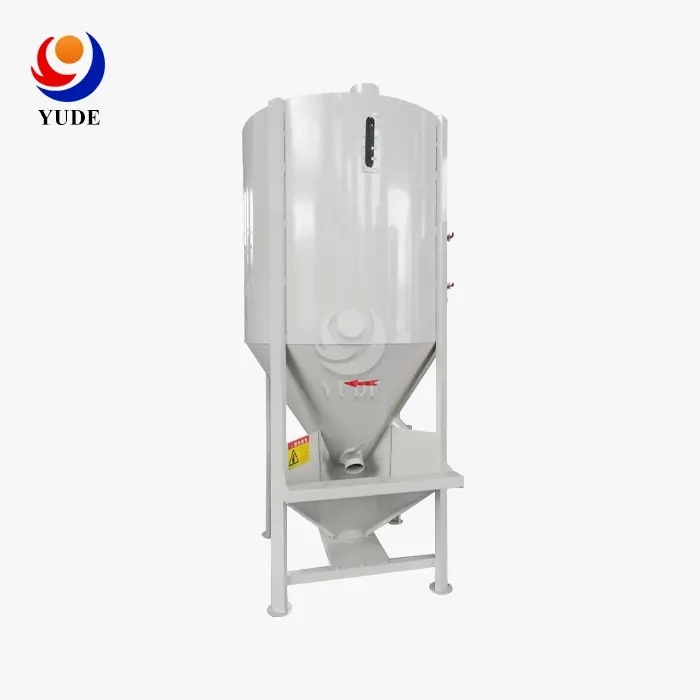

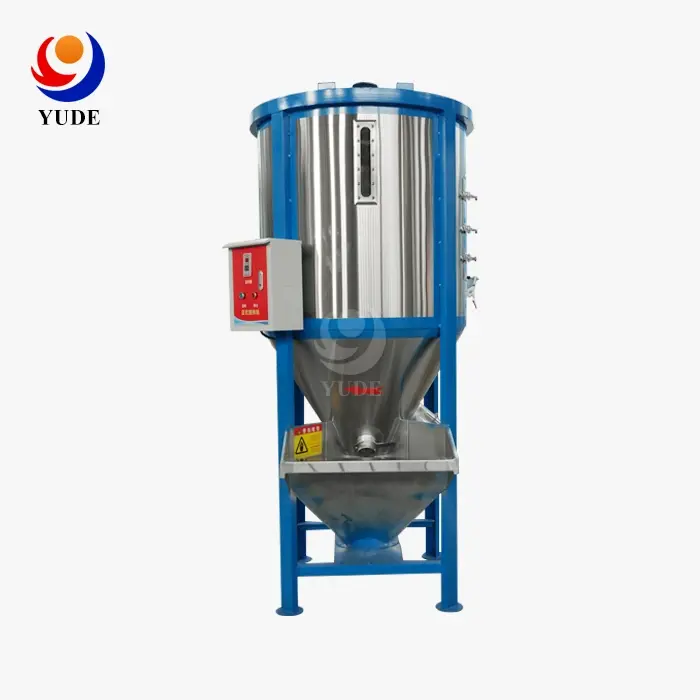

A standard 300kg vertical plastic particle mixer works with a helical screw that raises granular materials from the base chamber and spreads them out in a fountain-like pattern at the top. The cycle is then finished by gravity recirculating the materials. This kind of pure mechanical stirring is only used to mix new pellets with colour masterbatches, regrind, or additions such as UV stabilisers and calcium carbonate fillers. The process assumes that the materials that come in have already been dried on the outside or have the right amount of wetness for the extrusion or injection moulding equipment that comes after.

The three-ton mixer that can also dry things adds heat treatment before or during mixing. While the screw mechanism keeps mixing, hot air circulation systems inside the mixing chamber actively remove moisture from the surface and the spaces between the particles. This two-in-one design is very useful for working with washed recycled flakes, freshly pelletised compounds, or engineering resins that soak up water from the air while they are stored. The thermal part usually works at controlled temperatures between 60°C and 120°C. This keeps the material from breaking down during heating and keeps the moisture level below 0.02% for plastics that are sensitive to moisture.

Impact on Processing Time and Throughput

The two designs have very different levels of processing speed. A unit that only mixes things together can quickly finish homogenisation cycles, which usually take between 8 and 15 minutes, depending on how dense the materials are and how complicated the additions are. This improved flow helps facilities that work with pre-dried materials or that have their own dehumidifying dryer systems, which lets them turn over batches more quickly during production shifts.

Integrated drying, on the other hand, adds 30 to 60 minutes to the total processing time for each batch, based on the starting moisture content and the desired level of dryness. On the surface, this seems less efficient, but the consolidated workflow gets rid of the need to move materials between separate dryers and mixers. This lowers the risk of contamination and the amount of work that needs to be done. For factories with continuous production lines, this integration cuts down on the delays that come from coordinating separate drying and mixing schedules.

Material Handling and Contamination Control

Vertical mixers that don't dry materials have simpler touch surface shapes, which makes them easier to clean between batches of material. The SUS201 or SUS304 grade stainless steel used to make the barrel keeps rust from getting inside and makes it easy to purge quickly when switching between colour batches or polymer families.

Dryer-equipped mixers add to the complexity by having heating elements, airflow ducts, and insulation layers that could be places where contamination could hide. Cleaning methods that are more thorough take more time and skill, especially when working with materials that react differently to heat. This operating issue is especially important for contract makers who work with many clients and have strict rules about keeping products from getting contaminated.

Technical Specifications and Performance Metrics

A close look at the technical side of things shows how differences in design affect how things work, which in turn affects purchasing choices.

Energy Consumption and Operating Costs

The motor power of a standard 300kg vertical plastic particle mixer ranges from 3kW to 4kW, and it spins at speeds between 250 and 300 RPM. The amount of energy used stays pretty low, and the main thing that affects operational costs is how long the motor has to run during mixing cycles. Since there are no heating elements, the demand for electricity is stable and easy to handle with the current facility power infrastructure.

Large-capacity mixers that can also dry things need a lot more energy to run. The motor power needed for mechanical agitation increases with the batch weight. For 3 tonne units, the drives usually need to be 15 to 22 kW. Heating devices add an extra 30–50kW, based on the drying temperature needed and how well the chamber is insulated. When processing times are extended, the total amount of energy used per kilogram of material processed goes up by a lot. When procurement teams look at the total cost of ownership, they have to compare these differences in operations costs to the efficiency gains that come from combining processes.

Maintenance Requirements and Service Intervals

Vertical mixers that are standard have simple upkeep needs. As part of routine maintenance, the tightness of the belt is checked, the bearings are oiled, and the integrity of the seals on the release gates is checked. Because the machinery is so simple, there isn't much downtime. Most preventative maintenance can be done during scheduled breaks in production without the need for specialised technical knowledge.

When dryers are built into systems, there are more upkeep issues to think about. How long a heating element lasts depends on how stable the working temperature is and how often it cycles between hot and cold. To keep drying effectively, airflow systems need to have their filters cleaned and blowers checked on a regular basis. Temperature sensors and control electronics add more places where things could go wrong, so you need to be able to diagnose problems and keep spare parts on hand. Facilities that don't have their own electricity repair experts may have to wait a long time for service techs, especially in areas that are far from supplier support networks.

Material Compatibility and Quality Outcomes

Specifications for mixing regularity have a direct effect on the quality of the end product in processes that come after. The 300kg vertical plastic particle mixer gets more than 98% homogeneity by optimising the screw shape and chamber measurements in a way that makes circulation patterns constant. This level of performance is good enough for most common plastics uses where small differences in composition are acceptable.

When working with engineering plastics to make precision moulds for things like automotive connectors, medical device housings, or optical components, the amount of moisture in the mix is just as important as how uniform it is. During high-temperature injection moulding, residual moisture leads to hydrolytic breakdown, which makes holes, lower tensile strength, and surface flaws. Dryer-equipped mixers get rid of this quality risk right where it starts, giving you material that is ready for tough jobs without having to go through extra steps of preparation.

Comparing Use Cases and Industry Applications

Practical deployment situations show how choosing the right tools fits with how things actually work in different manufacturing settings.

Small to Medium Batch Production Environments

Facilities that make plastic pipe fittings, housings for consumer goods, or field film usually work with batch numbers that are the same as 300 kg mixing capacities. These operations put capital efficiency and production flexibility ahead of getting the most work done as quickly as possible. The mixing-only setup gives the best cost-benefit ratio when sources offer resin that has already been dried or when production plans allow drying overnight in standalone hopper dryers.

The small vertical footprint (about 1200 mm in diameter and 1600 mm in height) makes it easy to use in production areas with limited space. Installation doesn't need much floor support, and the equipment works perfectly with existing hoover loaders and lines for moving materials. The 300kg vertical plastic particle mixer is easy to get, which makes it a great choice for tier-2 and tier-3 makers who serve regional markets with modest volume needs.

High-Volume Continuous Production Lines

Automotive OEM providers, companies that make wrapping films, and large-scale pipe extrusion plants all use different ways to figure out their costs. Tonnes per hour production runs create practical imperatives that favour process integration and labour efficiency. In these settings, a 3-ton mixer that can also dry becomes important infrastructure because it serves as a conditioning hub for several moulding or extruders further downstream at the same time.

The combined process gets rid of areas where materials are stored between drying and mixing, which saves room in the building even though the equipment is bigger. When operators are in charge of fewer process steps, they are better able to divide up their work, which cuts down on mistakes and makes it easier to find things. Fixed losses are spread out over bigger batch sizes, which balances out the higher raw power demand. This means that energy use per kilogram goes down as scale goes up.

Recycling Operations and Regrind Processing

Post-consumer recycling centers have special problems that affect the choice of tools they use. Even after being mechanically dried, washed plastic flakes still have a lot of moisture on the surface, which makes the quality inconsistent when mixed with new pellets for compound formulation. The 300kg mixing-only unit needs extra drying equipment, which raises the cost of capital and makes the work process more complicated.

Integrated drying mixers directly deal with this problem by preparing the regrind while it is being mixed. Controlling the temperature keeps polymers that have already been treated from getting damaged by heat, and getting rid of the wetness keeps the melt flow properties stable. This skill comes in handy when making recycled content compounds for building uses, since consistent material properties are a big part of getting good scores for structure performance and following the rules.

Conclusion

The capabilities of the equipment must be carefully matched with the operational priorities and financial constraints before choosing between a 300kg vertical plastic particle mixer and a 3 tonne dryer-equipped system. Small mixing-only units make homogenisation affordable for factories that don't need to make a lot of things at once, use materials that are already dry, or have flexible production plans. Integrated drying systems are a smart investment for high-volume operations that work with industrial plastics that are sensitive to moisture or recycled material and need to make sure that quality is consistent and work flows smoothly. To make sure that the equipment chosen supports long-term manufacturing goals, it is important to carefully look at things like projected production volumes, the properties of the materials, the facility's infrastructure, and the service capabilities of the suppliers.

FAQs

Does adding drying functionality significantly increase mixing time?

The total working time goes from 8 to 15 minutes for mixing-only units to 30 to 60 minutes, based on the starting moisture level and the final requirements. The longer run is based on the needs for thermal conditioning rather than mixing physics. Separate equipment works better for places that need to quickly turn over batches of pre-dried materials, while combining processes saves time for places that need to be sure they can control the moisture level.

Can existing 300kg mixers be upgraded with drying capability?

Most of the time, adding drying systems to normal vertical mixers is both technically difficult and not worth the money. To get rid of moisture effectively, you need chambers that are insulated, heating elements that are built in, controlled airflow paths, and thermal safety systems that are built into the original equipment architecture. Adding parts and making changes to the engineering usually costs more than 70% of the cost of a new integrated system and lowers its reliability. Facilities that need to be able to dry things out do better when they buy dedicated 300kg vertical plastic particle mixers instead of trying to retrofit old equipment.

What maintenance differences should operations teams expect?

Standard vertical mixers need basic mechanical upkeep like checking the belts, lubricating the bearings, and making sure the seals are working properly. This can be done by someone with general maintenance skills every month to three months. For dryer-equipped systems, it's necessary to check the heating elements, clean the airflow system, and calibrate the temperature controls, which may require electrical knowledge and special troubleshooting tools. The number of maintenance intervals goes up, and thermal components are added to the inventory of spare parts. When putting in integrated drying mixers, facilities that don't have their own electricity staff should plan to pay for contract service deals.

Partner with Yude Plastic Machinery for Reliable Mixing Solutions

Choosing the right vertical plastic mixer provider affects how well the equipment works for as long as it is in use. Yude Plastic Machinery offers reliable solutions for a wide range of industrial needs by combining strong manufacturing skills with a full service infrastructure. Our 300kg vertical plastic particle mixers are made with precision-engineered stainless steel, screw geometries that achieve 98%+ uniformity, and control systems that are easy for anyone to use. In addition to basic configurations, our technical team can customise tools to fit the specifics of each material and the needs of the production process.

Our dedication goes far beyond just delivering tools. The 7×24-hour service system makes sure that technical support is available whenever problems arise in production, and the domestic service outlets allow for quick response on-site. International clients can get help from partnerships that have been built with local service providers in Southeast Asia, the Middle East, and other places. Our sourcing specialists offer thorough technical advice and cheap quotes, regardless of whether your business needs a small 300kg vertical plastic particle mixer for sale or a solution with a 10-ton capacity. Please email our team at sales@yudemachinery.com to talk about your unique mixing needs and get equipment suggestions that are in line with your production goals.

References

1. Richardson, T. (2021). Industrial Mixing Technology for Plastics Processing: Equipment Selection and Process Optimization. Society of Plastics Engineers Technical Papers.
2. Chen, M., & Roberts, K. (2020). "Comparative Analysis of Vertical vs. Horizontal Mixing Systems in Polymer Compounding." Polymer Engineering & Science, 60(8), 1847-1859.
3. Manufacturing Equipment Standards Committee. (2022). Performance Specifications for Plastic Material Handling and Conditioning Equipment. American Society for Testing and Materials.
4. Wu, J. (2019). "Moisture Control in Hygroscopic Engineering Plastics: Impact on Mechanical Properties and Processing Stability." Journal of Applied Polymer Science, 136(42), 48156.
5. Global Plastics Processing Association. (2023). Equipment Investment Guidelines for Small to Medium Scale Plastic Fabrication Facilities. Industry Best Practices Report.
6. Thompson, D., & Li, H. (2020). Total Cost of Ownership Analysis for Industrial Process Equipment: A Procurement Manager's Guide. Manufacturing Technology Press.
