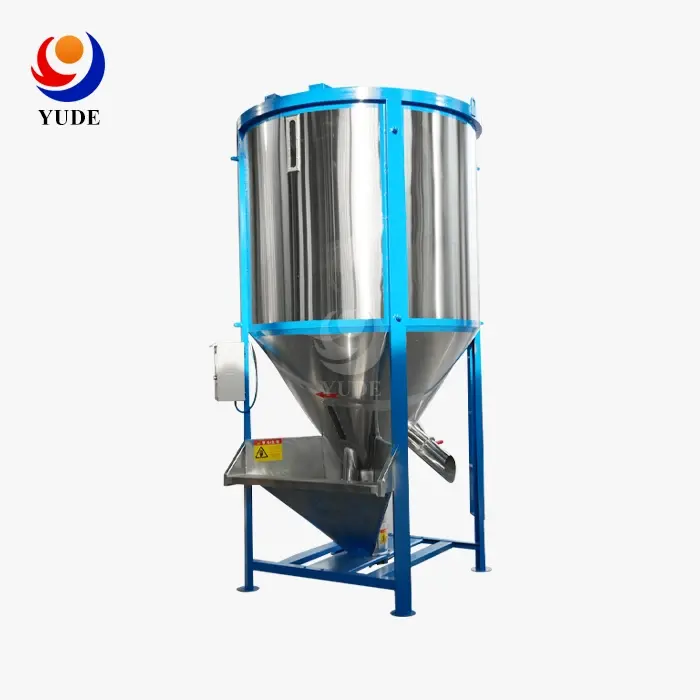

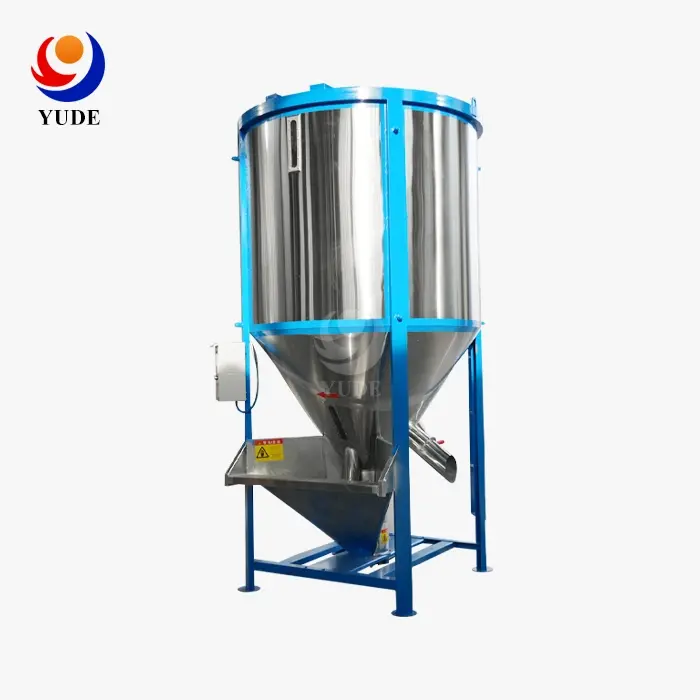

Is a 5-ton vertical pellet mixer suitable for a large plastic processing plant?

A 5 ton vertical plastic particle mixer with drying function can work well for large plastic processing plants as long as their production needs match its 5,000 kg batch capacity and 35 to 50 minute cycle times. This machine does both mixing and temperature conditioning in one space. It achieves a mixing consistency of ≥98% and a moisture content of ≤0.5%, which is well below the strict requirements for pre-processing materials used in injection moulding, extrusion, and film blowing. This unified method helps big plants make the best use of their floor space, labour costs, and energy use while keeping batch stability during busy production times.

Performance Comparison: Vertical Mixers with vs. without Drying Function

Workflow Integration Benefits

Before material can be processed in a standard vertical mixer that doesn't dry it, it needs to be prepared with hopper dryers or desiccant systems. This makes a two-step process that needs to move materials, use extra handling tools, and have two separate process control systems. The combined method gets rid of the need for transfer steps, which saves time and reduces the risk of contamination during handling. Since one unit replaces two separate machines and their interconnecting conveyance systems, a lot less floor space is needed.

Process control gets easier too. Instead of organising separate mixing and drying processes, operators control a single piece of equipment. This makes training easier and lowers the chance of making operational mistakes. It's easier to keep track of batches when the identity of the material stays the same during preparation. This is especially helpful for facilities that deal with different resin grades or custom formulas that have strict quality paperwork requirements.

Energy Consumption and Operating Economics

The total amount of energy used needs to be looked at in more detail. A vertical mixer that works on its own might use 30 to 40kW while it's running, and a separate hopper dryer can add 40 to 80kW, based on the drying method and volume. Both machines use a total of 70–120kW of power. The 5 ton vertical plastic particle mixer with drying function combines 120 to 145kW into a single unit, but it works for less time overall because processes happen at the same time instead of one after the other.

When heat is lost less, thermal efficiency goes up. Moving hot things from a dryer to a mixer causes the temperature to drop by a lot, which wastes the energy used to heat them. Integrated units keep their heat energy throughout the process, so they need less energy to get to the right temperature. Over thousands of hours of operation each year, these improvements in efficiency lead to measurable cost savings—usually 15–30% less energy use per kilogram of processed material compared to sequential processing.

Optimizing the Use of 5-Ton Vertical Mixers in Large Plants

Drying Parameter Optimization

To get the goal moisture level without breaking down the material, you need to carefully manage the parameters. The temperature must stay below the thermal limits of the resin. For example, ABS and PVC are very sensitive to heat and should only be processed at 60–75℃. Polyolefins, on the other hand, can handle higher temperatures up to 85℃. How long something takes to dry depends on how wet it was to begin with, how thick it is, and how fast air moves through the bed.

Operators should check the humidity levels of the air coming out of the vents to see how drying is going. The difference in humidity between the air coming in and going out gets smaller as the moisture content goes down. As soon as this difference stops changing, the batch's moisture content will be close to balance. Adding more time to the drying process after this point doesn't help much and wastes energy. By taking samples of the material and analysing its moisture during commissioning, standard cycle times are set for each type of resin and environment.

Maintenance Schedules and How Long Parts Last

Regular repair keeps 5 ton vertical plastic particle mixer with drying function reliable and stops it from breaking down when you least expect it. When working with glass-filled or mineral-reinforced materials, the mixing screw and barrel interior are constantly in touch with rough surfaces. Visual inspections done at regular maintenance times find wear patterns before they affect the quality of the mixing. Bearing assemblies that support the vertical screw shaft need to be oiled regularly according to the manufacturer's instructions. Not enough oil speeds up wear and increases power use.

Heating sources should also be looked at. Scale that forms on electric heating tubes makes it harder for heat to move and uses more energy. Cleaning and checking keep heat efficiency high. Air filters that protect the blower intake keep the drying system from getting dirty. When screens get clogged, airflow is limited, which makes cleaning take longer and could lead to the motor overheating. Checking and cleaning or replacing the filter once a month keeps it working at its best.

Troubleshooting Common Operational Issues

Uneven mixing is often caused by screw parts that are worn out or not properly loaded. Instead of dumping the whole batch at once, the material should be fed slowly. Rapid loading makes layers that are hard to blend. When screw steps are worn out, they make pulling less effective, which lets material settle before it can get enough circulation. Most mixing problems can be fixed by checking the screw geometry and loading the machine correctly.

Not enough cooling points to a number of possible reasons. If the heating ability isn't enough for the batch size or the temperature outside, the cycle time has to be longer or the batch amount has to be smaller. Thermal losses happen when air leaks through worn door seals or feeding ports. This makes drying less effective. Moisture analysis of raw materials can sometimes show that they have a surprisingly high starting moisture content, which means that the processing settings need to be changed.

When a motor gets too hot, it usually means that it is overloaded, doesn't have enough air flow, or has bearing problems. Mechanical overload can be avoided by comparing the actual batch weight to the rated capacity. Cleaning the motor housing's ventilation holes makes sure that cool air can flow through them. Unusual bearing noise or vibration is a sign of a possible failure. Acting on these warnings stops catastrophic failures and long periods of downtime.

Procurement Considerations for a 5-Ton Vertical Mixer with Drying Function

Supplier Evaluation and Selection Criteria

Certification guidelines are the first set of factors for screening. ISO 9001 certification shows that quality management systems have been in place for a while, and CE marking shows that products meet European safety standards, which are important for businesses in the US as well because they show that strict engineering standards have been met. Manufacturers that sell to foreign markets usually keep paperwork packages that make it easier to clear customs and follow the rules.

Production capacity and wait times have a big effect on how long a job takes to finish. Standard setups usually have lead times of 8 to 12 weeks from well-known makers with production lines just for vertical mixers. Custom specifications that need engineering changes may make the wait time 14 to 18 weeks. Making wait times clear during the first talks helps keep schedules from clashing, especially for plants that have to coordinate installing equipment with building new facilities or adding to production lines.

Customization and Scalability Options

Standard five-ton units can be used in a lot of different situations, but they can also be customised to meet specific operational needs. Plants that work with corrosive materials should use stainless steel instead of carbon steel for construction. The higher initial cost is worth it because corrosion-related maintenance and contamination are no longer needed. Facilities that already have thermal equipment can use other heating methods, like steam coils or thermal oil jackets, which could lower their running costs. The 5 ton vertical plastic particle mixer with drying function remains a flexible choice for various plant layouts.

Total Cost of Ownership Analysis

The purchase price is only one part of the total cost of ownership. The costs of installation, which include foundations, electrical connections, and integrating material handling, depend on the conditions of the facility. Energy costs over the equipment's 10–15-year life often go over the price of buying it, so energy economy is a very important factor in choosing it. Estimates of maintenance costs, such as spare parts, materials, and labour, should be made using data from the maker and experience in the field.

Effects on productivity are very valuable. Cutting down on cycle times or making products better directly leads to more money coming in. A mixer that consistently makes material that meets specifications cuts down on the costs of scrap and rework further down the line. To figure out how much these benefits are worth, you need to know how the current process works economically. However, they often make it worth it to buy high-end tools that might seem expensive at first glance.

During the important early working time, warranty coverage and service agreements lower risk. Standard guarantees usually cover 12 to 18 months from the date of starting and protect against problems with the way the product was made and parts that break too soon. Extended warranty choices and preventive maintenance plans put some of the risk on the maker while still making sure that the customer gets skilled service. It's easier to see which piece of equipment is the best value when you look at its total cost, which includes these risk-reduction measures.

Case Studies and Industry Insights

Automotive Component Manufacturer Implementation

A factory in the Midwest that makes parts for the inside of cars used a vertical mixing device to fix quality problems with glass-reinforced nylon materials. In the past, mixing and drying were done separately in hoppers, which allowed moisture to be reabsorbed during material transfer. The built-in mixer got rid of the need for transfer steps while heating the material to 70°C, which made injection moulding machines less thermally demanding.

The results showed that the cycle time for thick-walled parts like structural brackets was cut by 22%. This was because the barrel didn't have to stay at room temperature for as long to reach processing temperature. By keeping the wetness level steady, the amount of scrap from splay marks and holes dropped by 35%. Even though peak power demand was higher, the amount of energy used per kilogram of treated material went down by 18% because unnecessary heating processes were taken out. With efficiency gains and quality changes, the facility got its money's worth in just 28 months.

Recycled Plastics Processing Plant

When mixing recovered flakes with new resin and colour powders, a California recycling plant that used HDPE had trouble keeping the batches consistent. The amount of moisture in recycled materials changed a lot depending on the time of year and the humidity, which made drying times in different machines unpredictable. Adding an integrated vertical mixer kept the moisture level stable no matter how the input changed.

The operation was able to keep batch preparation times at 42 minutes no matter what time of year it was, which made production scheduling reliable. Colour uniformity got a lot better—spectrophotometer readings showed that colour differences between batches of basically similar formulations dropped by 40%. Because the product was always the same, the company got more customers from quality-sensitive applications, like consumer product packaging, that used to turn down recycled content because it looked different. The extra money made from premium apps more than covered the cost of the tools in the first year of business.

Conclusion

The 5 ton vertical plastic particle mixer with drying function is a useful tool for large plastic processing plants that want to streamline the steps needed to prepare materials while still meeting quality standards. It can hold up to 5,000 kg and has cycle times of 35 to 50 minutes, which works well for businesses that handle large amounts of work every day across multiple shifts. Compared to different mixing and drying systems, the integrated design saves room, uses less energy, and makes the process easier. But for implementation to go well, parameters need to be optimised, maintenance processes need to be followed, and the right provider needs to be chosen. Instead of just looking at the initial purchase price, plants should compare this type of equipment to their unique output needs, the properties of the materials they use, and the space limitations of their facilities. They should also think about the total cost of ownership.

FAQs

What drying time should I expect for different plastic materials?

Different materials dry at very different rates. Polyolefins, such as PE and PP, don't absorb a lot of water, so they usually reach their target levels in 35 to 40 minutes. ABS and nylon, which are engineering plastics, soak up more water and may need 45 to 50 minutes. Initial moisture content has a big effect on cycle time. Materials that are kept in climate-controlled buildings dry faster than those that are in humid places. Running a material moisture study while the equipment is being set up sets the baseline for what to expect for your unique materials and the environment.

How does energy consumption compare between integrated systems and separate equipment?

The 5 ton vertical plastic particle mixer with drying function uses about 90 to 110 kWh of electricity over 35 to 50 minutes for every five-ton batch. Separate equipment for mixing and drying might use less peak power, but it will run for longer when processing and moving materials is taken into account. In the traditional method, the total energy used for each batch is usually between 100 and 130 kWh. The integrated design stops heat loss during material transfer and cuts down on unnecessary heating cycles. In most cases, this saves 15 to 30 percent of energy per kilogram processed.

Can the mixer handle batches containing multiple material types?

Yes, the machinery does a good job of mixing new resins with recovered materials, colour masterbatches, and useful additions. The vertical spiral circulation mixes the parts thoroughly, even if their densities are different. Achieving ≥98% mixing consistency makes sure that the qualities of the whole batch are the same. When working with materials that are very sensitive to heat in different ways, the temperature settings should be able to handle the most heat-sensitive part to keep it from breaking down, while also allowing for longer drying times for materials that are stronger.

Partner with a Trusted 5 Ton Vertical Plastic Particle Mixer with Drying Function Manufacturer

Yude Plastic Machinery is ready to meet your needs for large-scale production with the 5 ton vertical plastic particle mixer with drying function that has been tested and proven to work. We know how to make everything from 300 kg small units to 10 ton industrial systems, and we make sure that quality is always high during production and assembly. Before it is shipped, every mixer goes through a lot of tests to make sure it mixes evenly, works well with heat, and has a working control system.

We know that procurement teams need more than just equipment specs. You need quick technical help, clear communication, and solutions that can be changed to fit the needs of your building. Our engineering team works directly with your plant staff to suggest the best configurations, taking into account things like material properties, throughput goals, and the need to connect to existing production infrastructure. Customisation choices include different building materials, heating systems, and control platforms that work with the way you want to run your business.

Certified quality control systems and following international standards make sure that the whole project goes smoothly, from getting the quote to turning it over to the client. Our after-sales support team stays in touch with customers regularly throughout the service life of their equipment, offering technical support and quick parts delivery to ensure maximum uptime. Get in touch with our experts at sales@yudemachinery.com to talk about your specific needs and get thorough technical ideas that show how our 5 ton vertical plastic particle mixer with drying function supplier can help you improve the quality and efficiency of your production.
