Is barrel of the stainless steel vertical mini mixer machine made of 304 stainless steel?

If you've been sourcing a compact pellet mixer for food packaging, pharmaceutical, or lab use, one question likely comes up fast: what exactly is the barrel made of? The short answer is yes — the barrel of Yude's stainless steel vertical mini mixer machine is constructed from food-grade 304 stainless steel. Both the barrel and all internal mixing components meet this material standard, making the machine suitable for hygiene-sensitive production environments where contamination is simply not an option.

Barrel Material of Vertical Mini Mixer Machines

What Is 304 Stainless Steel?

Steel 304 is an austenitic alloy that is made up of 18% chromium and 8% nickel. Because it has these parts, it doesn't rust or react badly with most poisons. It is widely used in areas that process food and medicine around the world and in the US because it is a good balance between price, durability, and the ability to kill bacteria in industrial mixing equipment.

How Does 304 Compare to Other Materials?

Most of the time, procurement teams have to choose between 304 SS, 316L SS, and some polymer options when they are looking at barrel materials. How do they compare?

• 304 Stainless Steel: Ideal for general plastic pellets, non-corrosive food powders, and standard pharmaceutical excipients. Cost-effective, easy to fabricate, and widely certified for GMP and FDA-compatible use.
• 316L Stainless Steel: Contains added molybdenum, which improves resistance to chloride-induced pitting. Preferred when materials contain salts, acids, or require sterile pharmaceutical-grade processing.
• Plastic or Carbon Steel Barrels: Lower upfront cost, but susceptible to surface degradation, contamination risk, and poor chemical resistance — generally unsuitable for regulated production environments.

Features and Benefits of 304 Stainless Steel Barrels in Compact Vertical Mixers

Durability That Reduces Downtime

When pellets hit 304 stainless steel over and over again, they don't wear it down quickly. It can handle a wide range of temperatures. This means that the machine will need less maintenance and last longer than plastic-lined or mild steel options for small-batch production that goes on all the time.

Hygiene Performance for Sensitive Applications

The inside of Yude's stainless steel vertical mini mixer machine has a finish that looks like mirror light, with Ra ≤ 0.8 μm. There are no tiny cracks on this smooth of a surface where powder or resin residue can build up between batches. For production lines that move between medical-grade materials and food packing resins, this design gets rid of the chance of cross-contamination at the point where the materials touch.

Consistent Mixing Quality

The main factors that show how reliable this machine is at mixing are the following:

• Rated loading capacity: 50 to 300 kg per batch
• Effective volume: 80 to 500 L
• Mixing uniformity: ≥ 98%
• Stirring shaft speed: 30 to 60 r/min
• Motor type: Three-phase asynchronous motor with overload, overheating, and phase-loss protection

The shaft that stirs moves at 30 to 60 r/min.- Type of motor: three-phase asynchronous motor that protects against overload, burning, and phase loss

Maintenance and Care Tips for 304 Stainless Steel Mixer Barrels

Routine Inspection Points

Check the inside of the barrel every 200 hours. Check for small cracks in the weld seams, make sure the butterfly valve seal on the discharge port is still good, and make sure the surface is smooth and doesn't have any spots or changes in color. When surface damage is found early on, it stops bacteria from finding a place to live.

Cleaning Practices That Protect the Surface

Mildly alkaline or pH-neutral soaps can be used to clean stainless steel. Things that bleach with chlorine will make 304 metal pit faster, so stay away from them. If you change SKUs a lot when packing food or making makeup, you can keep the barrel clean between runs without taking it apart by running a spray rinse cycle that is compatible with CIP and then a dry air purge.

Preventive Maintenance Schedule

When the stainless steel vertical mini mixer machine manufacturer says to, which is generally every 500 hours of constant service, you should oil the bearing seats on the stirring shaft. Before the mechanical seals at the discharge port start to show signs of wear, you should get new ones. Fine powder can get into the drive system through worn-out seals. Yude gives you all the scientific information you need and helps you with extra parts, so your equipment always works within the allowed limits for as long as it lasts.

How to Choose the Right Compact Vertical Mixer with a 304 SS Barrel?

Key Technical Factors to Evaluate

Match the range of capacities of the stainless steel vertical mini mixer machine to the size of your batch. You can put 50 to 300 kg on the Yude vertical pellet mixer, which is enough for most small-batch and lab-scale job needs. Think about how much motor power you need compared to how dense the material is in general. To keep the motor from getting too tired, denser pellets need more torque at slower shaft speeds.

Vertical vs. Horizontal Mixer Design

It can be used in cleanrooms, labs, and production areas that need to clear high objects but don't have a lot of floor space because it takes up less than 1 m² of space. With a horizontal ribbon mixer, it takes up a lot more floor room and is harder to clean between tasks. If you use more than one type of resin during your shift, the vertical format lets you get things done faster.

Evaluating Supplier Credibility

To make sure you have the right paperwork before you buy stainless steel vertical mini mixer machine, make sure you have the 304 SS mill test report with chemical makeup data. Ask the seller if they can help you with the paperwork for IQ, OQ, and PQ equipment approval. International customers can get full compliance paperwork packages from Yude. They can also get access to the office for audits and use the after-sales system 24 hours a day, seven days a week.

Procurement Best Practices for Compact Stainless Steel Pellet Mixers

Balancing Price Against Material Authenticity

Even though they say they are made of 304 SS metal, some of these cheap mixers use metals that aren't as good. As part of the bidding process, ask any chosen suppliers to send you third-party chemical composition test results (XRF analysis). Before it gets to the production floor, this one step gets rid of any tools that don't follow the rules.

Customization and Logistics Considerations

Yude can make changes to meet local electrical standards and OEM configuration needs, such as those for control interfaces that work in more than one language, custom panel labels, and so on. When a customer buys from a business in another country, they can ship their goods in a consolidated container or in fumigated wooden crates that have been treated to stop rust. The lowest amount that a first-time buyer can order is not set in stone.

Before making a contract with a company that sells a stainless steel vertical mini mixer machine and has experience sending across borders, the buyer should make sure that the company has spare parts and can offer technical help from afar. People in Southeast Asia, the Middle East, and Europe can get help from Yude with their problems after the sale, when it's most convenient for them.

Conclusion

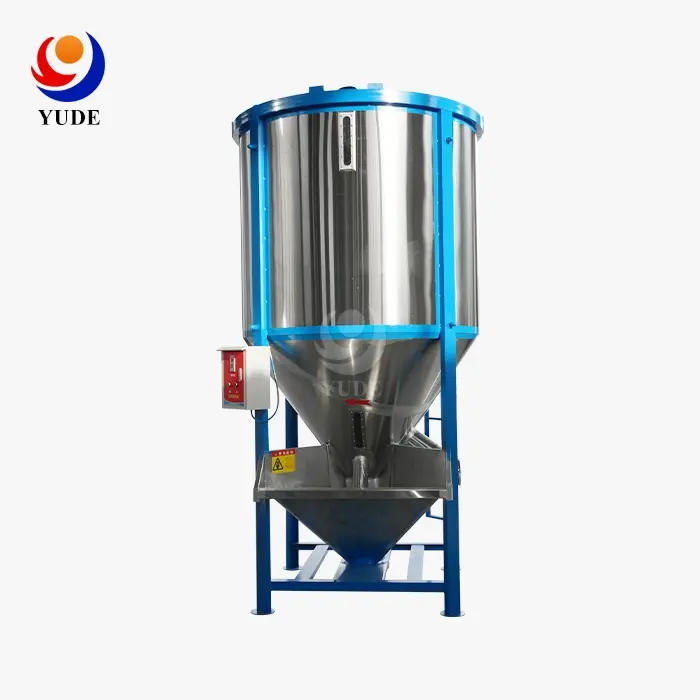

The stainless steel vertical mini mixer machine from Yude has a barrel made of food-grade 304 stainless steel that comes with certification paperwork. The inner surface is mirror-polished and made for GMP and FDA-approved settings. This machine meets the material, capacity, and cleanliness standards that controlled production needs. It doesn't matter if you are in charge of a food packing line, a drug research and development lab, or a company that sells industrial mixing equipment to local markets. Look at the mill's test results, ask for proof that they are following the rules, and run a sample batch before making a full promise.

FAQ

Is 304 stainless steel standard for all vertical pellet mixer barrels?

Not universally. Some lower-cost machines use carbon steel with a surface coating or unverified alloys. Always request the material mill test report and third-party XRF composition analysis to confirm genuine 304 SS construction before purchase.

How do I verify that a mixer barrel is genuinely 304 stainless steel?

Ask the supplier for the raw material mill certificate (showing Cr 18%, Ni 8% composition range) and an independent third-party test report. Reputable manufacturers like Yude provide this documentation as part of the standard order package.

What is the difference in cleaning between a stainless steel barrel and a plastic one?

Stainless steel barrels tolerate repeated chemical wipe-downs and CIP spray cycles without surface degradation. Plastic barrels can absorb colorants and chemical residues over time, creating cross-contamination risks that are difficult to validate away in a GMP audit.

Can this machine handle both food packaging resins and medical-grade plastics?

Yes. The 304 SS barrel with Ra ≤ 0.8 μm mirror polish supports material changeovers between food packaging plastics, medical-grade resins, and cosmetic packaging compounds without residue carryover, provided proper cleaning procedures are followed between batches.

Does Yude provide IQ/OQ/PQ documentation for equipment qualification?

Yes. Yude supports equipment validation documentation requirements for clients in pharmaceutical and food manufacturing environments, including installation qualification and operational qualification documentation upon request.

Get a Quote from Yude Plastic Machinery Today

The approved stainless steel vertical mini mixer machines that Yude Plastic Machinery makes are made to meet the needs of making food and drugs. Our little pellet mixer comes with full 304 SS material certification, compliance paperwork, and support that doesn't end when the sale does. You can get a price list, a specification sheet, or a sample arrangement for your production line by emailing sales@yudemachinery.com or visiting https://yudemachinery.com/.

References

1. American Society for Testing and Materials (ASTM). ASTM A240/A240M: Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications. ASTM International, 2023.
2. U.S. Food and Drug Administration (FDA). Current Good Manufacturing Practice (CGMP) Regulations for Finished Pharmaceuticals, 21 CFR Part 211. FDA, 2022.
3. European Hygienic Engineering and Design Group (EHEDG). EHEDG Guideline Document 8: Hygienic Equipment Design Criteria. EHEDG, 2021.
4. International Organization for Standardization. ISO 14159: Safety of Machinery — Hygiene Requirements for the Design of Machinery. ISO, 2022.
5. Brydson, J.A. Plastics Materials, 7th ed. Butterworth-Heinemann, 1999.
6. Rosato, D.V., and Rosato, M.G. Injection Molding Handbook, 3rd ed. Springer Science & Business Media, 2000.
