How to heat plastic mixer​?

Heating a plastic mixer correctly is one of the most important steps in achieving consistent, high-quality output in polymer processing. When you apply controlled heat to a plastic mixer, the resin softens, flows more freely, and bonds evenly with colorants, fillers, and additives. This reduces color variation, lowers reject rates, and shortens each batch cycle. Whether you operate a mid-sized injection molding plant or a compounding facility, understanding the proper heating method for your specific mixer type directly affects your production efficiency and bottom line.

Basics of Heating a Plastic Mixer

What Is a Plastic Mixer and How Does It Differ from a Resin Mixer?

It is the job of a plastic mixer to turn pellets, powders, pigments, and other additives into a smooth mixture that can be fed into lines to be shaped or extruded. In chemical processing, a resin mixer, on the other hand, works with polymer resins that are liquid or almost liquid. Solid-phase pellet mixing is used by companies that do blending and injection molding. The hardest part is making sure that the dry ingredients are spread out properly at the particle level. The power to heat is so important because of this.

Why Controlled Heating Changes the Outcome

If you heat the plastic mixer chamber to a certain temperature range, which is usually between 60°C and 120°C for most materials, the surface will stick a little more. If you do this, the color masterbatch and small additives will stick to the pellets instead of splitting at the bottom. Polymer processing studies have shown that mixing consistency can be above 98% when temperature and motion speed are both set to the same level. When thick fillers like calcium carbonate or talc are used, it is much harder to get to that point without heat.

Heating Methods Used in Industrial Mixers

These days, hot plastic powder mixers move heat in two main ways. Electric heaters are built into the wall or jacket of the chamber to heat it through conduction. Putting metal against metal transfers heat directly. When heating is done with convection, warm air or fluid is moved around the vessel. Most high-speed vertical mixers heat the jacket and the parts that rub against each other. Lower-speed vertical screw mixers, on the other hand, use outside jacket systems with PID temperature settings to keep the temperature within 1.5°C of the exact value.

How to Heat a Plastic Mixer Correctly: Step-by-Step Process

Pre-Heating Safety Inspection

Before you turn on the heating system, make sure the plastic mixer is in good shape. Check that the heating jacket's links are tight and that they don't have any coolant or water on them. The PID controller should give you the right temperature reading for the room. Make sure the temperature monitor is in the right place. Small pieces of plastic dust going into bearing housings is a big reason why they break so quickly. Check to see if the stirrer shaft seal is worn down. A five-minute check-up before the machine starts up can keep it from breaking down for hours on end.

Setting Temperature and Ramp Rate

Decide what temperature you want to use based on the glue. Powder mixes of PE and PP work best at 60–80°C, but mixes of PVC powder need 80–100°C. Raise the setpoint by 10°C every three to five minutes instead of going straight to the goal. An easy ramp is what this is called. Heat spikes that happen quickly can damage things close to the heating element and put stress on the walls of the room. Once they are set up, most modern mixers with PID technology can handle this ramp on their own.

Continuous Monitoring During the Heating Cycle

Once the temperature goal is reached, keep the agitator going at the speed suggested by the maker. Keep an eye on both the discharge sensor and the jacket sensor. In bigger rooms, they may be 5–10°C apart. If the temperature changes more than this, check to see if the wiring for the heater is clogged or if the stirrer blades are worn and preventing the flow of the substance. As soon as the right temperature is reached, the normal pellet blending mixing cycle lasts for 10 to 15 minutes. It is possible for the pellet surface to melt when you mix things too much at high temperatures. This makes the discharge stickier.

Comparison of Heating Plastic Mixers: Types, Features, and Efficiency

Mixers with Built-In Heating vs. External Heating Add-Ons

Mixers with built-in heating coats and PID control can keep the temperature more accurately and respond more quickly. External heating blankets are less accurate when added to regular mixers, and they create uneven hot spots on the wall of the room. The best way to mix things when the spread of the filler directly impacts how well they work mechanically is with integrated systems. This is the case with mineral-filled ABS or glass fiber. Less batch failures in the first year of business make up for the extra cost up front.

Blade Design and Its Effect on Heat Distribution

How the heat moves through the material bed is based on the agitator's shape. Single spiral agitators can only move things in one direction. This is fine for pellets with a medium density, but it can cause temperature differences in batches that fill up quickly. When two circle designs are used, the material streams spin in the opposite direction of the clock, which makes the temperature of the whole batch even faster. When the power grade is the same, a stainless steel vertical mixer with two spirals mixes heavy fillers about 20–30% faster than one with only one spiral.

Top Equipment Options for Heated Mixing in 2024

There are many types of hot mixing tools made by Yude Plastic Machinery. These can be used with various amounts of material and at various production levels. If you want to buy something, here are the main lines:

• Heating Plastic Particle Mixer—Features an embedded heating jacket with PID temperature control, designed for PP, PE, PVC, and ABS pellet blending where temperature-assisted adhesion is required.
• Plastic Particle Drying and Mixing Machine—Combines drying and blending in a single cycle, reducing moisture content below 0.2% while homogenizing additives; ideal for hygroscopic materials like ABS and nylon.
• Double Spiral Plastic Particle Mixer — Counter-rotating spiral agitators distribute heat uniformly across high-fill batches, achieving mixing uniformity above 98%.

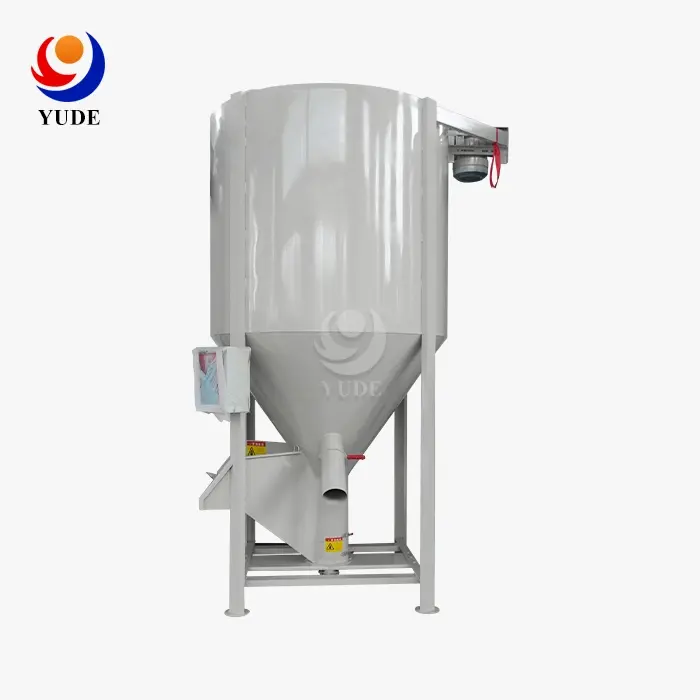

• Large capacity plastic mixer—Available from 600 kg to 10 tons per batch, with full heating jacket integration and automated discharge, suited for large-scale injection molding supply lines.

Troubleshooting and Maintenance Tips for Heated Plastic Mixers

Common Heating Issues and Their Root Causes

If different parts of the batch don't have the same temperature, it's likely because the circulation pump or the heating jacket is partly blocked. Readings of the temperature change more than 3°C during steady-state operation. This means that either the thermocouple is worn or the link between the PID sensor and the controller is not tight. Most heating elements in electric jacket systems break after 8 to 12 hours of use. If you regularly replace them before they break, you can avoid sudden shutdowns that cost a lot more in lost work than planned maintenance.

Preventive Maintenance Checklist for Heating Components

To keep the heating system running at the same level of efficiency, it needs to be fixed in a planned way. To keep the heating system and the mixing area safe, you need to

• Inspect PID sensor calibration every 500 operating hours against a certified reference thermometer.
• Flush and refill the heating jacket fluid annually to prevent scale buildup that reduces thermal conductivity.
• Check agitator blade wear every 1,000 hours, especially when processing glass-fiber or mineral-filled compounds.
• Verify that bottom bearing seals show no dust ingress; external bearing designs or air-purged seals significantly extend service life.

If you work with glass-fiber or mineral-filled materials, check the wear on the stirrer blades every 1,000 hours.- Check to see if dust has gotten into the bottom bearing seals. Seals that are air-purged or have external bearing designs will last a lot longer.

Procurement Considerations for Heated Plastic Mixers

Evaluating Technical Specifications

When you are looking at different providers, you should check how exact the temperature control is (PID ±1.5°C), what the chamber is made of (SUS304 stainless steel to fight corrosion and make cleaning easier), how safe the motor overload is, and how much energy the service uses. For color and chemical dispersion, injection-grade materials should have a CV (Coefficient of Variation) of less than 5%. To get test results for batch uniformity, ask for them.

Assessing Supplier Reliability and After-Sales Support

A reliable supplier of plastic mixers should have proof that the quality has been checked, spare parts that can be sent within 48 hours, and help with installation on-site. Lead times for standard models should be 15 to 25 days. When you ask a maker to make changes, how quickly they respond tells you a lot about how flexible they are when it comes to non-standard setups like custom chamber sizes, special alloy liners for abrasive fillers, and control interfaces that can be used in more than one language.

Balancing Price Against Total Cost of Ownership

There's more to it than just the price. Think about how much energy the service will use each year, how much extra parts will cost, and how much each day of downtime will cost before you choose a provider. Over three years, a mixer that costs a little more but comes with all the parts you need may cost more than one that costs a little more but uses 20% more energy and can't be delivered for five days.

Conclusion

The plastic mixer's quality of the batches, its longevity, and how quickly it can be used all depend on how well it is heated, from the inspection before it starts to the management of the temperature ramp and the regular maintenance. There shouldn't be a big difference in color between prints if you use the right tools and follow strict steps. There is no limit to the size or type of production that these ideas can be used with. They work with standard PE pellets or glass-fiber-reinforced compounds. Taking the time to make sure that your heating system meets the needs of your products will show in your quality data.

FAQ

Which mixer types are safe for heating?

Some vertical mixers, like heating plastic particle mixers and drying and mixing tools for plastic particles, are made to work with heat. They are made of stainless steel and have heating jackets built right in. People who don't have jacket systems on their standard cold-blend vertical mixers shouldn't add heat after the fact unless the maker says it's okay.

What maintenance does a heated mixer need most?

Accuracy of the PID sensor, the state of the fluid in the heating jacket, and the wear on the agitator blades are the three most important things. The monitor should be checked every 500 hours, the jacket should be cleaned once a year, and the blades should be checked every 1,000 hours. In the most common ways, heated mixing systems don't break down because of these three things.

How does heating improve mixing quality?

The sides of pellets are easier for additives to stick to when controlled heat is used to smooth them. This lowers the chance that the thin fills and small colors will split, which makes the mixing more even to at least 98%. The coatings on the pellets' surfaces become less viscous, which lets the color masterbatch spread out more evenly with less mixing time.

Can one mixer handle both PVC powder and PE pellets?

Many times, no. Stabilizers and lubricants need to be spread through friction in PVC powder, which can only be done with high-speed turbo mixing. PE pellets need to be stirred in a spiral at a slower speed and with gentle heat. If you use the same tool for both types of material, one might not spread out enough and the other might melt on the top. Use different tools for each type of material because they are made to work best with them.

Get a Quote from Yude Plastic Machinery — Trusted Plastic Mixer Manufacturer

There is a lot of hot mixing equipment for sale at Yude Plastic Machinery. It ranges from small 300 kg vertical color mixers to big 10 tons plastic mixers. They have prices that come straight from the plant, delivery that usually takes 15 to 25 days, and customer service that's open seven days a week. Customers in more than 30 countries trust us to make good plastic mixers. OEM customization, multilingual interfaces, and free sample arrangements are all things we can do for you. Send us an email at sales@yudemachinery.com or visit yudemachinery.com to get a price right away.
