How Does PE Plastic Pellet Vertical Mixer Improve Polyethylene Processing Efficiency?

Achieving uniform blend quality has a direct effect on the consistency of the final product when polyethylene materials are processed in high-volume industrial settings. A PE plastic particle mixer designed for vertical mixing tasks solves the important problem of mixing resin pellets, colorants, additives, and regrind materials evenly before they go into injection molding or extrusion systems. This special machine uses gravity-fed spiral stirring that is designed to work with polyethylene's unique flow properties. It achieves mixing consistency of over 98% and stops particle separation and agglomeration problems that lower the quality of production.

Understanding PE Plastic Pellet Vertical Mixers

Core Architecture and Operational Principles

When it comes to how they work, PE plastic particle mixer for polyethylene pellets are very different from tumble blenders or horizontal ribbon setups. The machine has a cylinder-shaped mixing room with an auger or screw conveyor in the middle that spins at controlled speeds, usually between 40 and 80 RPM based on the size of the batch. As the spiral blade takes stuff from the bottom of the chamber, gravity pulls the pellets back down through the rising column. This creates a steady flow pattern that makes sure the masterbatches and additives are evenly spread out in the virgin resin base.

The structure of the mixing tank is based on the features of polyethylene. Manufacturers choose types of stainless steel that can handle being rubbed against pellets over and over again while keeping the surface smooth to avoid static buildup and material sticking. Polished inner walls with roughness levels below 0.4 micrometers make it easier to clean between production runs and take less time to clean when changing colors.

Differentiation from Alternative Mixing Technologies

When procurement teams look at mixing tools for PE processing lines, PE plastic particle mixers come across a number of technologies that are competing with each other. Horizontal paddle mixers have a gentle tumbling action that is good for fragile materials, but they take up a lot of floor room and usually need longer cycle times to get the same level of unity. Tumble blenders do a good job of making simple two-component mixes, but they have trouble with the different densities of new pellets and recycling regrind, which causes stratification during discharge.

When mixing polyethylene, vertical screw mixers work best because the upward movement pattern stops the material from naturally sinking. When mixing HDPE pellets with 2% to 3% carbon black concentrate for pipe extrusion, the vertical arrangement keeps the heavier masterbatch from building up at the outlet point. This mechanical advantage is especially useful when working with LDPE film formulas that have slip agents and antiblock additives in concentrations below 1%. In stretched film uses, even small differences in distribution can show up as flaws.

Advantages and Applications of PE Plastic Pellet Vertical Mixers

Performance Benefits in Production Environments

When PE plastic particle mixer is used to handle polyethylene, it leads to measured improvements in a number of operational areas. Space economy is one of the most obvious benefits, since vertical layouts usually take up 60% less floor space than horizontal ones with the same capacity. This simplicity is especially useful in factories that are updating old production lines or that don't have a lot of space.

When the batch size is more than 300 kilograms, vertical arrangements use less energy. Gravity-assisted material movement needs less motor horsepower to keep mixing going. For example, 3-5 kW is enough for 500 kg batches, while 7-9 kW is needed for horizontal paddle systems that handle the same amount of material. When you look at yearly production plans with multiple shifts, these efficiency gains add up to big cost savings.

Here are the core advantages vertical mixers provide for polyethylene processing:

Mixing Homogeneity: When engineering factors are set to the density and flow properties of PE pellets, blend uniformity coefficients of variation drop below 2%. This makes sure that melt flow index numbers stay the same across production runs. The spiral lifting system stops "dead zones" where unmixed material can build up, which is a typical problem with designs for fixed vessels.

Material Integrity Preservation: Smooth barrel surfaces and controlled spinning speeds keep frictional heat from building up and pellets from breaking. This careful handling keeps the qualities of fresh resin while adding up to 30% regrind without making fines that get stuck in filter screens and stop extrusion dies from working.

Rapid Batch Turnover: For normal polyethylene formulas, it takes 8–12 minutes to go from adding to discharging in a full mixing cycle. Quick-release bottom gates let all the material out without leaving any heels behind. This helps color changeover practices that need to be followed on short production plans.

Static Elimination: Grounding systems built in and ionizing air bars that can be added reduce electrostatic charges that would otherwise stick pellets to vessel walls. This trait is very important when working with LDPE powders or adding dry colors that tend to stick together.

These features directly fix problems that often happen in injection molding and extrusion processes. Facilities that make HDPE pressure pipe say that wall thickness variation has gone down a lot since they started using vertical mixing methods. This is because better carbon black distribution gets rid of the structural weak spots that cause hydrostatic test failures. Manufacturers of films say that reject rates for fisheye flaws go down when vertical mixers replace older tumble mixing systems. They say this is because the additives are better distributed throughout the LLDPE base resin.

Real-World Application Scenarios

Processing polyethylene involves making many different kinds of products, and each one has its own mixing needs. To get UV protection rates, pipe extrusion lines used to make city water distribution systems need to be loaded with the right amount of carbon black. Vertical mixers that are set up to work with HDPE pellets make sure that the 2.5% masterbatch concentration stays the same during long production runs. This stops the color streaking that happens when the mixture isn't mixed well enough.

Rotational casting processes have mixing needs that are very different from other situations. For this method, crushed PE powders are used instead of pellets, and high-intensity fluidization is needed to coat color particles on polymer surfaces. Vertical mixers with high-speed dispersion paddles create the mechanical shear needed for powder coating. They do this in a way that is soft enough to avoid making too much dust, which can affect the air handling systems in the facility.

Injection molding plants that make housings for consumer goods benefit from vertical mixing making the addition of regrind more uniform. When mixing 25% post-industrial waste with new ABS resin to make parts for appliances, the vertical circulation pattern stops the separation caused by density that would normally put a lot of regrind material in certain mold holes, making final parts with noticeable color differences.

Choosing the Right PE Plastic Pellet Vertical Mixer for Your Needs

Technical Specification Evaluation Framework

The first step in matching a PE plastic particle mixer's powers to the needs of the production process is to accurately estimate its capacity. Manufacturers list mixing amounts in terms of both their highest geometric capacity and their working capacity. Working capacity is usually between 70 and 80% of the total space of the tank so that materials can move freely. Depending on the bulk mass of the material, a 500-liter geometric capacity unit can process 350 to 400 kg of polyethylene pellets per batch.

The size of the motor needs to take into account both the mixing force and the material lifting needs. When thick masterbatch concentrates settle to the bottom of vessels, undersized drive systems have a hard time starting up. This can cause motor overload trips that stop production. Good vertical mixers have variable frequency drives that let them have soft-start ramp patterns that slowly speed up vessels that are full while keeping an eye on the current draw to keep the equipment from breaking.

In current production settings, the skills to integrate automation should be carefully looked at. Simple two-component formulations with reliable recipes can be run on basic manual control screens. Programmable logic controls that store recipe parameters like mixing time, speed profiles, and discharge sequence are helpful for facilities that handle multiple product lines with different additive packages. Modern setups have loss-in-weight feeding systems that measure out exact amounts of virgin resin, colorant, and additives and send them straight into mixing tanks based on saved formulas.

Comparative Analysis and Supplier Selection

Knowing the trade-offs in performance between types of tools helps buying teams make smart choices. Vertical screw mixers are good at mixing free-flowing pelletized materials, but they don't have the high-shear dispersion that is needed to mix fine powders. If a facility processes both pellets and powders, it might need separate equipment for each type of material, or it could buy mixed designs with agitator setups that can be switched out.

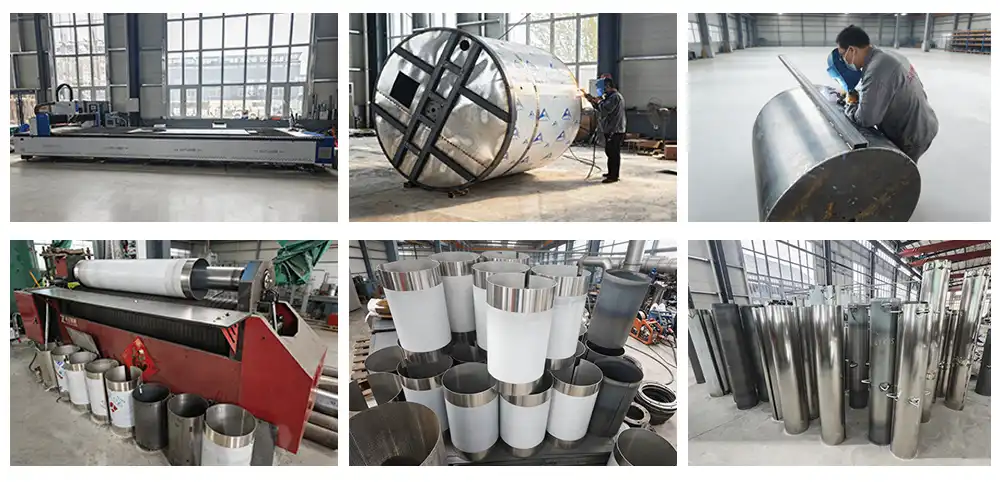

When evaluating possible suppliers, it's important to look at more than just written specs. Manufacturing quality indicators are also important. Mixer tanks made from a single piece of stainless steel plate with full-penetration welds get rid of places where material leftovers could get contaminated. Externally fixed bearings with air-purged seals stop fine dust from getting in and causing wear and unexpected repair downtime.

Long-term ownership costs are affected by after-sales support systems in a big way. Quick expert help is very helpful when trying to fix problems with the process or find the best mixing conditions for new formulas. Maintaining spare parts stocks and giving fast shipping are two things that suppliers can do to keep production running smoothly when replacement parts are needed. Warranty terms that cover both parts and labor for 12 to 24 months protect your finances while the equipment is being set up and production is ramping up.

Conclusion

To choose the right PE plastic particle mixers for processing polyethylene, you need to carefully look at its technical skills, operational needs, and the qualifications of the seller. When compared to other technologies, vertical mixers that are especially made for PE pellets offer better blend consistency, space efficiency, and energy performance. Planning for capacity, customization needs, and after-sales support are all important parts of successful buying that ensures long-term operating value. When facilities install properly designed vertical mixing systems, they get better control over operational costs, consistent product quality, and production speed in both injection molding and extrusion uses.

FAQ

What capacity range suits different production scales?

For working polyethylene, vertical mixers come in a range of sizes, from 300 kg classroom units to 10,000 kg industrial systems. Small injection molding businesses that make batches of 100 to 150 kg usually ask for 300 to 500 kg working capacity units. Medium-sized extrusion plants that work with 500-1000 kg batches choose tools that can handle 1000–1500 kg. Large pipe makers with continuous extrusion lines put in 3000-5000 kg mixers that can handle production runs that last for hours at a time without having to switch between batches.

How does energy efficiency compare to horizontal mixers?

When the same amount of water is mixed, vertical configurations use about 40% less energy per kilogram than horizontal paddle designs. The rhythm of gravity-assisted motion needs less motor power to keep things moving. A 500 kg vertical mixer usually needs 3–4 kW to run, while a similar horizontal unit needs 6–8 kW. Savings on energy costs each year can be anywhere from $800 to $1500, based on the price of power and the schedule of production.

Can mixers be customized for specific formulations?

Reliable makers allow for a lot of customization to meet a wide range of processing needs. Drives with variable speeds let you change the mixing strength for different types of pellets. When working with hygroscopic chemicals, heated jackets stop moisture from condensing. Vessels that can work in vacuum help with degassing. Different types of agitators can be used for both powders and pellets that don't stick together. Talking about specific formulation problems during the design phase makes sure that the tools can handle what the application needs.

Partner with Yude Plastic Machinery for Superior Mixing Solutions

Yude Plastic Machinery is a reliable company that makes PE plastic particle mixers for injection molding and extrusion plants in North America, Europe, and Southeast Asia. Our vertical mixing systems are designed to work with polyethylene and have a mixing consistency of over 98% while taking up very little floor room in your production area. With capacities ranging from 300 kg to 10,000 kg and customization choices like variable speed controls, heated jackets, and automatic recipe management, we can make sure that the tools we send you exactly meets your needs. Our expert support team is available 24/7, and our warranty plans cover all of your equipment's parts for the life of the equipment. Contact our purchasing experts at sales@yudemachinery.com to talk about the problems you're having with processing polyethylene and to get full specs and low prices for vertical mixers that will meet your production needs.
