/ Vertical Plastic Particle Mixer with Drying Function

3 Ton Vertical Plastic Particle Mixer with Drying Function

Name: 3 Ton Vertical Plastic Particle Mixer with Drying Function
SKU: N/A

Integrated design of mixing and hot air drying, adopting a vertical spiral upward circulation structure. It is suitable for color mixing, modification, and dehydration drying of plastic particles such as PE, PP, ABS, and PVC.
Core parameters: Rated loading capacity 3000kg (3 tons) (bulk density 0.6~0.8g/cm³), effective volume approximately 4500~4800L, mixing uniformity ≥98%, moisture content after drying ≤0.5%.
Power and drying system: Mixing motor 22~30kW, heating tube power 60~75kW (electric heating, optional steam heating), hot air temperature adjustable from room temperature to 85℃.
Material and craftsmanship: Q235 carbon steel barrel (with insulation layer), thickened carbon steel mixing spiral, and sealed feeding port to prevent hot air leakage.
Application scenarios: Solves processing defects of particles with high moisture content, meets the pre-processing requirements for plastic granulation, injection molding, film blowing and other pre-processes. The single mixing and drying time is 30~45min.

Send Inquiry

Product Description

3 Ton Vertical Plastic Particle Mixer with Drying Function - Professional Industrial Solutions

Transform Your Plastic Processing with Our 3 Ton Vertical Plastic Particle Mixer with Drying Function

Our 3 Ton Vertical Plastic Particle Mixer with Drying Function delivers exceptional performance for large-scale plastic processing operations. This progressed gear combines high-capacity blending with coordinates drying innovation, making it culminate for handling plastic packs, bundling materials, and different thermoplastic items. You'll involvement streamlined operations whereas keeping up prevalent quality benchmarks. This industrial-grade arrangement addresses basic challenges in plastic fabricating by dispensing with moisture-related abandons and guaranteeing steady fabric homogeneity. Your generation line will advantage from decreased vitality utilization and made strides item quality.

Technical Specifications of 3 Ton Vertical Plastic Particle Mixer with Drying Function

Parameter	Specification
Rated Loading Capacity	3000kg (3 tons)
Bulk Density Range	0.6~0.8g/cm³
Effective Volume	4500~4800L
Mixing Uniformity	≥98%
Moisture Content After Drying	≤0.5%
Mixing Motor Power	22~30kW
Heating Tube Power	60~75kW (electric heating)
Hot Air Temperature Range	Room temperature to 85℃
Material Construction	Q235 carbon steel barrel with insulation
Mixing Time	30~45 minutes
Spiral Design	Thickened carbon steel mixing spiral

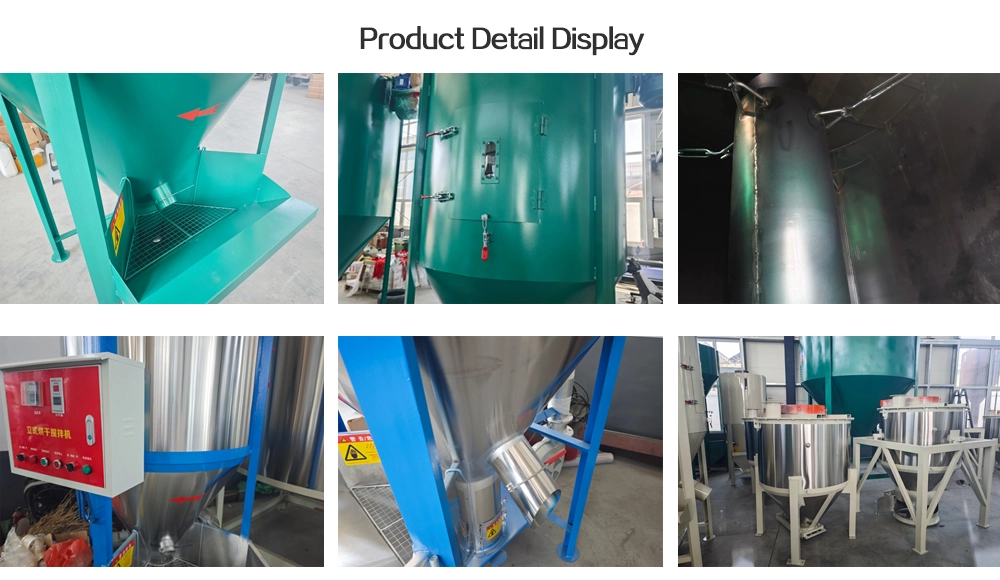

2000kg Vertical Plastic Particle Mixer with Drying Function

How Our Vertical Plastic Particle Mixer Works

The working guideline centers on imaginative vertical circulation innovation. Crude materials enter the expansive funnel shaped steel drum where a capable central twist drill lifts particles from foot to best. This makes an umbrella-shaped scattering design that guarantees uniform blending without fabric damage.

The coordinates drying framework works at the same time through an electric warming coat. Warm exchanges through the drum divider whereas an discretionary hot-air circulation framework improves dampness evacuation. This dual-action prepare conveys flawlessly mixed and dried fabric in one operation.

You'll appreciate how this plan dispenses with dead zones and gives ceaseless fabric stream. The result is extraordinary homogeneity with negligible handling time.

3 Ton Vertical Plastic Particle Mixer with Drying Function

Key Features and Benefits

Integrated Processing Solution

Combine mixing and drying in one robust unit. This eliminates the need for separate equipment and reduces material handling.

Large-Scale Capacity

Handle up to 3 metric tons per batch. Perfect for high-volume production environments requiring consistent output.

Precision Temperature Control

Digital PID controllers maintain accuracy within ±2°C. Multiple heating zones ensure uniform thermal distribution throughout the batch.

Energy-Efficient Design

Insulated construction reduces thermal loss by approximately 45%. Smart heating logic activates only during operation cycles.

Premium Construction Quality

Stainless steel components resist corrosion and contamination. Mirror-polished interior surfaces facilitate easy cleaning and color changeovers.

Applications Across Industries

Plastic Bag Manufacturing

Perfect for preparing PE and PP materials with consistent moisture content. Your plastic bag production will achieve superior strength and clarity.

Packaging Material Production

Ideal for processing multilayer film materials requiring precise color matching and moisture control.

Recycling Operations

Effectively processes post-consumer materials mixed with virgin plastics. Removes moisture from recycled flakes before granulation.

Injection Molding Preparation

Prepares materials for complex molding applications where consistency is critical. Prevents defects like silver streaks and bubbles.

Masterbatch Processing

Ensures uniform color dispersion in large batches. Critical for maintaining color consistency across production runs.

Our 3 Ton Vertical Plastic Particle Mixer with Drying Function serves polymer compounding plants, industrial recycling facilities, and automotive suppliers worldwide.

2000kg Vertical Plastic Particle Mixer with Drying Function

Operation Guidelines

Pre-Operation Setup

Verify your power supply meets requirements (380V/50Hz/3-phase). Check that discharge gates are properly closed and safety systems are functional. Load materials evenly without exceeding capacity limits.

During Operation

Set appropriate drying temperatures based on your material type. Monitor real-time parameters including motor current and drum temperature. Never open access doors while equipment operates above 60℃.

Post-Cycle Protocol

Allow cooling to below 60℃ before discharge. Clean using dry methods only - compressed air or lint-free cloths. Avoid water contact with electrical components.

Maintenance Schedule

Monthly greasing of gearbox components and belt inspections. Quarterly thermocouple calibration and heating element checks. Annual auger blade and structural integrity assessments.

Why Choose Yude Plastic Machinery

Proven Manufacturing Excellence

We bring decades of experience in plastic machinery production. Our quality control system ensures every unit meets international standards before delivery.

Comprehensive Service Support

Our 7×24-hour service system provides immediate assistance when you need it. Domestic customers receive on-site response within 24 hours.

Global Market Presence

We serve customers across 30+ countries with localized support. Our products meet various international industry standards and regulations.

Customization Capabilities

Our building group adjusts hardware to your particular necessities. We give multilingual interfacing and compliance adjustments for distinctive markets.

Trust our skill picked up from serving thousands of fulfilled clients around the world. Your venture in our item will provide quantifiable advancements in generation proficiency and item quality.

3 Ton Vertical Plastic Particle Mixer with Drying Function

Frequently Inquired Questions

Q: What sorts of plastic materials can this blender process?

A: Our hardware handles PE, PP, ABS, PVC, and other thermoplastic particles viably. It's especially reasonable for materials utilized in plastic sack and bundling production.

Q: How long does a commonplace blending and drying cycle take?

A: Total cycles run from 30-45 minutes depending on fabric sort and dampness substance. The coordinates plan altogether diminishes add up to handling time compared to isolated operations.

Q: What control prerequisites does this hardware have?

A: You'll require 380V/50Hz/3-phase control supply. Add up to control utilization ranges from 82-105kW counting blending engine and warming elements.

Q: Can the temperature be balanced for diverse materials?

A: Yes, our computerized PID controller permits exact temperature alteration from room temperature to 85℃. Higher temperatures are accessible upon ask for particular applications.

Q: What support is required for ideal performance?

A: Standard support incorporates month to month gearbox adjusting, quarterly temperature calibration, and yearly mechanical reviews. Our benefit group gives point by point support schedules.

Q: Do you give establishment and preparing services?

A: Completely. We offer total establishment bolster and administrator preparing to guarantee ideal hardware execution from day one.

Contact Us

Ready to upgrade your plastic processing capabilities with 3 Ton Vertical Plastic Particle Mixer with Drying Function? Contact our team at sales@yudemachinery.com for detailed specifications and customization options.
