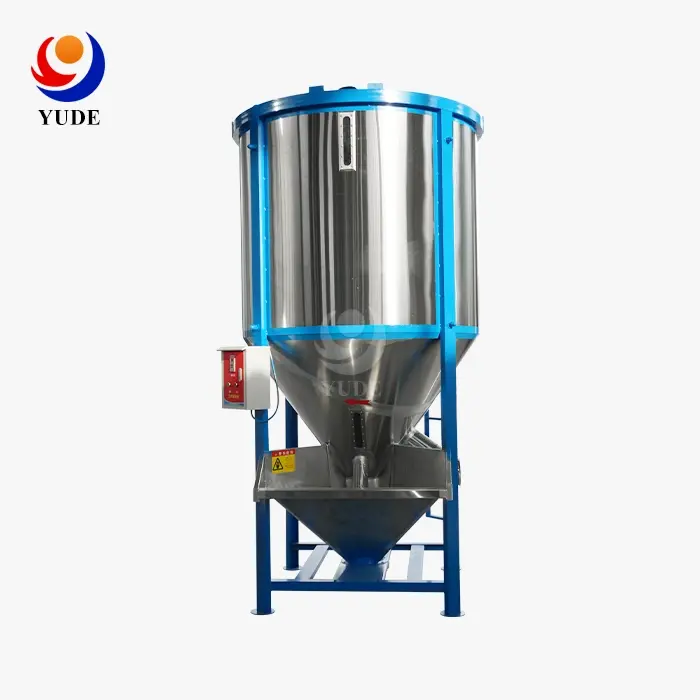

Vertical Color Mixer for Plastic Pellets

If you produce color masterbatch or work with modified plastic compounds, you already know how one poorly blended batch can derail an entire production run. A pellets vertical color mixer is the piece of equipment that stands between consistent, sellable product and costly color rejects. Designed specifically for blending color masterbatch with base resin pellets, this mixer uses a vertical spiral lifting structure to circulate material continuously from the bottom of the cone to the top, achieving mixing uniformity of ≥99% — a benchmark that serious masterbatch producers cannot afford to ignore.

Understanding Vertical Color Mixers for Plastic Pellets

How the Vertical Spiral Structure Works?

It's a cylinder or cone-shaped jar with a spiral screw in the middle that spins slowly, about 8 to 25 rpm. This is the mixing chamber. The material goes in at the bottom, the screw lifts it up, and then the material slowly falls down the polished inner wall. This slow, fountain-like flow keeps going around and around. The amount of masterbatch and the type of pellet will determine how long it takes for a normal batch to reach a uniform color spread.

Main Components You Should Know

The power box, the vertical screw stirrer, the mixing silo, and the release valve at the bottom are the main parts. When the motor is abused or gets too hot, the control box protects it. This makes it less likely that the equipment will break down in the middle of a batch. This is because of how the discharge valve is built, good units don't have dead spots where pigment can build up between color changes.

Vertical vs. Horizontal and Ribbon Mixers

Because horizontal ribbon blenders use more mechanical force, they can mix powders better, but they can damage sensitive pellets and build up static electricity. It's not as uniform when using a drum and tumble mixer; most of the time, they only get to 90–95%. Cross-contamination is most likely to happen when going from dark to light shades. The vertical design is better because it takes up less floor space, is easier on the pellets, and changes colors faster.

Benefits and Performance of Vertical Color Mixers

Color Consistency That Meets Industry Standards

For most packages and high-gloss injection-molded parts, the difference in color from one batch to the next (Delta E) must be less than 1. The vertical circulation mixer mixes things in a way that is at least 99% consistent, which directly helps reach that goal. A study from 2022 on plastics processing says that color differences are still the main reason why masterbatch production doesn't work. In other words, the accuracy of the tools is not only a technical choice, but also a direct financial one.

Here are the main benefits of this kind of equipment in the real world of work:

• ≥99% mixing uniformity — color powder and masterbatch distribute evenly throughout the base resin, preventing local color patches or streaking in finished parts.
• 15–40 minute cycle time — shorter than most drum and tumble alternatives, which supports higher order throughput for small-batch, multi-color production schedules.
• 304 stainless steel interior option — mirror-polished surfaces and a no-dead-corner discharge valve cut color changeover cleaning time dramatically, reducing downtime between different color runs.
• Integrated heating option — PID temperature control (±1.5°C) assists pigment dispersion in applications where heat activation improves coating of color onto the pellet surface.

Space Efficiency and Scalability

The vertical ribbon blender takes up a lot less floor room than the horizontal one that can hold the same amount of food. As Yude's production grows, a single platform of equipment can keep up without having to rebuild the building. Each batch of goods ranges from 300 kg to 10 tons.

Energy and Maintenance Cost Comparison

As long as the material is moving downwards, the motor can only move the screw lift up. Independent energy tests show that vertical screw mixers use 30–40% less power per ton of mixed material than horizontal paddle blenders of the same size. Every year, less maintenance is needed because there aren't as many moving parts.

How to Choose the Right Color Mixer for Your Plastic Pellet Processing?

Match Capacity to Your Actual Batch Size

Don't pick the mixer's size based on how much power it can theoretically put out. Do not fill the vessel more than 90% of the way it's supposed to be filled to keep the right tumbling flow. When things are too full, they can't move around as easily, which directly affects how evenly they mix. You should get a 500 kg unit instead of a 300 kg one if your biggest batch size is 400 kg.

Material Construction Matters for Color Producers

Q235 carbon steel construction is a cheap way to make something last for jobs with a lot of one color. People who make masterbatches and whose colors change a lot, especially from dark to light, should use 304 stainless steel with internally mirror-polished surfaces. Metal ions can't change soft white or pastel colors because of the type of steel used. Make sure you look at the material certificates (304 SS mill records) before you buy.

Evaluate Supplier Verification and Customization Support

A good pellets vertical color mixer supplier should let you mix their products with your own materials before you buy them. Make sure the seller can provide odd spiral shapes or vessel sizes if your recipe calls for them. Ask to see proof that the seller is CE or ISO approved. Decisions about this kind of gear usually take between four and eight weeks. Test time should be added to that schedule.

Maintenance, Troubleshooting, and Operational Best Practices

Daily and Periodic Cleaning Protocol

Always put the masterbatch in after the base pellets. This helps the first layer spread out more. Do not clean between color changes with water or a cleaner that is ATEX-rated. When electrical parts get wet, they can hurt both people and the tools. Check the release valve's seal once a month. Pigment dust can build up and mess up the next batch if the seal is worn.

Common Mechanical Issues and Fixes

Most of the time, uneven mixing after a full cycle is caused by one of three things: too much material (more than 90%), a worn screw flight that makes lift less effective, or not enough mixing time for the masterbatch ratio being used. Check how far the screws are from the wall of the vessel once a year. The overload protection circuit on the control cabinet keeps track of any electrical problems, like a motor trip. Before you change any parts, look over this record.

Operator Training and Automation

People who work in the plant need to know how mixing time, masterbatch percentage, and pellet bulk density are related. You don't have to guess because modern units have timer controls that work on their own. For light-colored masterbatch and plastics that are prone to static electricity, like PP or PS, you need to ground the machine. This is because static electricity makes the pigment stick to the walls of the tank, which lowers the quality overall.

Procurement Insights: Buying a Vertical Color Mixer

Identify Verified Manufacturers Early

Plastic mixing tools are sold all over the world by companies in China, Germany, and Italy. Chinese factories, especially those in Shandong and Guangdong, have everything they need to make things and have prices that are competitive. When you are looking at a pellets vertical color mixer for sale, make sure to ask for plant audit records, material certificates, and contact information for present users in the same field as your application.

Purchase, Lead Time, and Customization

In two to four weeks, most of the models are sent out. Configurations that aren't standard can include custom vessel sizes, heating systems that aren't standard, or different screw geometries. These can add two to three weeks to the production wait time. Find out ahead of time how many of a unique item you need to place an order. Shipping costs per unit are lower for businesses that buy a lot of units when they use mixed-model container packages.

Compliance and After-Sales Support

Things must be CE-certified and meet all safety standards for electricity if they are to be sold in the US or Europe. Check to see if the supplier offers after-sales service seven days a week, twenty-four hours a day, and keeps replacement parts for worn parts like screw flights and discharge valve seals in stock.

Conclusion

A good vertical color mixer is one of the best ways for a company that makes masterbatch or modified plastics to save money on quality control. It is not nice to have features like mirror-polished stainless steel construction, mixing regularity at ≥99%, the ability to change colors quickly, and the ability to heat up automatically in a pellets vertical color mixer. These are production necessities when your customers need Delta E below 1.0 and tight consistency from batch to batch. For each color run, make sure you have the right amount of capacity, material grade, and provider support for your process. This will protect the quality of your products and cut down on downtime.

FAQ

How does a vertical spiral mixer achieve better color consistency than a tumble blender?

The vertical screw continuously lifts material from the bottom and disperses it from the top in a repeating cycle. This three-dimensional circulation eliminates the dead zones that tumble blenders create at the vessel's center. The result is a more thorough pigment coating on every pellet surface.

What mixing uniformity should I require as a minimum specification?

For color masterbatch production, ≥99% mixing uniformity is the accepted industry benchmark. For modified plastics and filled compounds, ≥98% is the standard minimum. Request verified test data — not just a claimed figure — from the equipment supplier before purchasing.

Is 304 stainless steel necessary, or will carbon steel work?

Carbon steel (Q235) works well for single-color, high-volume production where color changeover is infrequent. For masterbatch producers switching colors regularly — especially dark-to-light transitions — 304 stainless steel with a polished interior is the correct choice to prevent contamination and simplify cleaning.

How long does a standard mixing cycle take?

Most pellet blending jobs complete in 15 to 40 minutes. The actual time depends on masterbatch concentration, pellet size, bulk density, and whether heating assistance is active.

Can the mixer handle both color masterbatch and functional additives in the same run?

Yes. The vertical circulation design handles combined loads of color masterbatch, antistatic agents, UV stabilizers, and other additive pellets simultaneously, provided the total load stays within 90% of rated capacity.

Get a Custom Quote from Yude Plastic Machinery

There are different types of vertical color mixers made by Yude Plastic Machinery. They range from small 300 kg units for small batches to 10-ton production silos. They are all made of 304 stainless steel, have PID controls for the heat, and are CE approved. Our engineering team will help you find the best answer, whether you need a standard source for pellets vertical color mixer or a fully customized one for a special mix. You can get a free trial mixing review and factory-direct price by emailing sales@yudemachinery.com or visiting https://yudemachinery.com/.
