Is 300L vertical plastic mixing machine suitable for lab sample test?

A 300L vertical plastic mixing machine, typically rated at 300kg loading capacity, is suitable for lab sample testing when pilot-scale validation or larger batch prototype development is required. This 300kg vertical plastic particle mixer delivers uniform blending of plastic resins like PE, PP, ABS, and PVC with color masterbatches or additives, achieving over 98% homogeneity within 8 to 15 minutes. Its capacity bridges the gap between benchtop mixers and full production equipment, making it ideal for R&D centers needing scalable sample preparation.

Understanding the Role of a 300L Vertical Plastic Mixing Machine in Lab Sample Testing

Working Principles of Vertical Plastic Mixers

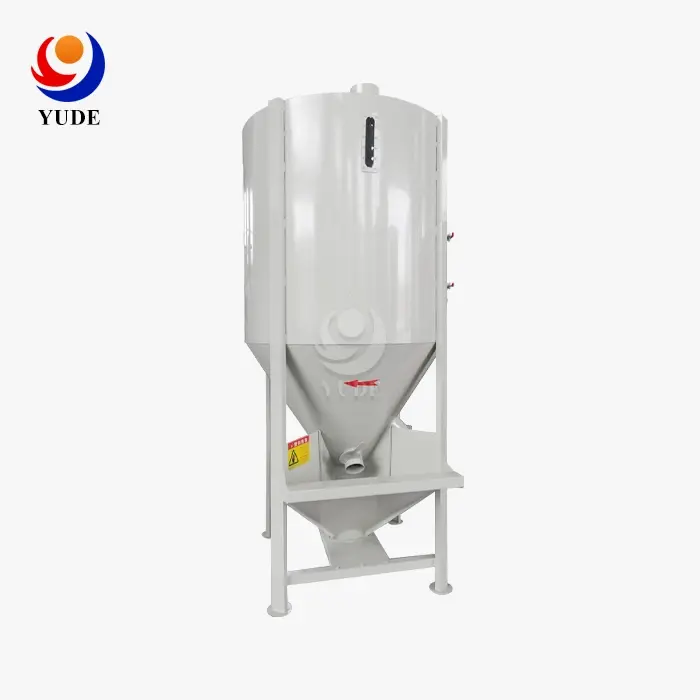

A 300kg vertical plastic particle mixer works with the help of a helical screw in the middle that moves granules from the bottom hopper to the upper chamber. When the material reaches the top, centrifugal force spreads the pellets out in an umbrella-like pattern, which lets them fall along the walls of the vessel. This constant fountain-flow cycle makes particles touch each other over and over, making sure that additives, colour masterbatches, or recycled regrind are spread evenly throughout the batch.

Why 300kg Capacity Suits Lab and Pilot Testing

For lab-scale testing, batch sizes are usually between 50 kg and 400 kg, but this depends on the testing protocol. A vertical mixer with a volume of 300 kg gives you options across this range. The machine's total volume of about 500 litres allows for effective mixing at loading efficiencies of 80% or higher. This means that operators can run partial batches for smaller tests or full loads for pilot production runs. Because it can be changed, study sites don't need as many different-sized mixers.

Advantages Over Horizontal and Tumbler Designs

When it comes to labs, where room is valuable, vertical mixers are much better because they take up much less floor space than horizontal ribbon blenders. The vertical circular mixing action cuts down on dead zones where unmixed material can build up, which is a problem that often happens with tumbler designs. The mixing steps take only 8 to 15 minutes, which is shorter than many horizontal options. This means that lab workers can do more than one test run in the same shift. Options for building contact parts out of stainless steel keep things clean between material changes, which supports clean testing protocols.

Evaluating Suitability: Performance and Operational Factors for Lab Use

Capacity Alignment with Testing Protocols

The 300kg vertical plastic particle mixer can handle batches that are big enough for sample runs for injection moulding, tests of blown film, and tests of extrusion profiles. Material scientists who test engineering resins like Nylon with glass fibre reinforcement or Polycarbonate for electronic housings can make enough samples to do a full evaluation of their mechanical properties without having to worry about scaling issues. The mixer can handle plastic pieces with bulk densities of 0.6 to 0.8 grams per cubic centimetre, which includes most common and industrial thermoplastics.

Energy Consumption and Laboratory Environment Compatibility

The motor power for these mixers is usually between 3kW and 4kW, so they use a reasonable amount of energy and can be connected to standard lab electrical systems. Noise levels stay below 80 decibels while they're working, so they can be put near testing stations without needing their own soundproofed shelters. Unlike some high-speed horizontal mixers, which make noise that isn't appropriate for controlled lab settings, this is a good thing.

Operational Safety and Maintenance Simplicity

Modern vertical mixers have limit switches that stop the machine from working when the inspection doors are still open. This keeps lab workers safe while the material is being loaded. The slide-gate discharge system lets the whole batch empty without having to be scooped out by hand, which lowers the amount of dust and particles that are released. Maintenance needs are still very low. Cleaning between material changes is usually done in 20 to 30 minutes by wiping down smooth stainless steel surfaces with compressed air. The exposed screw design lets you see if the blades are worn, which you can't do with covered ribbon blenders where the state of the blades inside is hidden until a part fails.

Compact Footprint and Modular Integration

With a footprint diameter of about 1000 millimetres, the vertical design saves valuable lab space while keeping the discharge height at a comfortable level for filling containers. The machinery works well with systems that move things around and use gravity-fed hoppers or air conveying output. Sequential process studies labs like that the mixer can be put in front of extruders, injection moulders, or analysis equipment without having to make a lot of changes to the facility.

Procurement Considerations for a 300L Vertical Plastic Particle Mixer

Critical Technical Specifications for Evaluation

The procurement teams should compare the material's real bulk density to its estimated loading capacity. A 300kg vertical plastic particle mixer that is rated for 300 kg at 0.7 g/cm³ density can handle different loads of materials with different densities. Instead of general percentage comments, use coefficient of variation data to back up claims about mixing consistency. Check the motor's specs to see if it has a continuous duty rating instead of an intermittent operation classification that limits daily use. When there are health and safety rules at work, noise emission certificates become important for labs.

Material compatibility goes beyond just plastics. When labs work with glass-fiber reinforced compounds, they need screw coatings that don't wear down easily so the compounds don't break down too quickly. Facilities that test hygroscopic materials like Nylon can use extra hot air movement systems to keep the materials dry while they are being mixed. Make sure that the discharge height is right for your material handling containers and doesn't require any changes to the platform.

Supplier Reliability and After-Sales Support

Choosing a well-known company like Yude Plastic Machinery, which has served thousands of customers in more than 30 countries, lowers the risk of the procurement process. Look into warranties that cover both parts and labour for at least one year after the installation. Make sure that spare parts for things like motor drives, limit switches, and bearing kits are available and have wait times of less than two weeks. When labs go down, testing plans get thrown off, so companies that keep up regional service networks or relationships provide real value.

Customer references from labs that use similar products can judge long-term performance. Ask your providers for contacts at R&D centers or quality labs that run testing programs that are similar to yours. Certification paperwork, such as CE marks for European markets or UL listings for North American ones, shows that the product meets quality standards.

Pricing Models and International Logistics

The starting price for a 300kg vertical plastic particle mixer from a reliable producer usually falls between $9,000 and $14,000. People who buy a lot of equipment for more than one lab spot may be able to get 8–12 percent off orders of more than three units. When shipping items to other countries, it's important to follow packaging rules that keep them from getting damaged in transit. When sending equipment that weighs between 300 and 400 kilograms, it needs to be put on pallets and secured in a way that is suitable for ocean or air freight.

Import taxes are different for each country they go to. The current rates for plastic mixing machines in the United States' Harmonised Tariff Schedule range from 2.5% to 4.2%, based on the subheading. Customs processing fees, which can be anywhere from $200 to $500, and possible inspection costs should be added to the total landing cost. Export paperwork experts can make this process easier by giving you the business invoices, packing lists, and certificates of origin that customs officials need.

Conclusion

A 300L vertical plastic mixing machine is very useful for labs that need to do pilot-scale testing, formula development, and quality evaluation for a wide range of plastic processing tasks. The 300kg vertical plastic particle mixer has scientific features like 98% mixing uniformity, cycle times of 8 to 15 minutes, and compatibility with popular resins PE, PP, ABS, and PVC. It also has practical benefits like a small size, easy upkeep, and safety during operation. When throughput and space are important, comparative analysis shows that vertical options are better in terms of performance and cost than horizontal and tumbler options. To be successful at procurement, you need to compare technical specs to testing methods, choose sellers with a history of good after-sales service, and take into account the total landed costs when you buy something from another country. Case studies from real life show that these mixers speed up testing programs and prepare materials in a reliable, uniform way, which is necessary for getting valid lab results.

FAQ

What plastic materials can a 300kg vertical mixer process effectively?

Most thermoplastic resins can be mixed in the 300kg vertical plastic particle mixer, such as polyethylene, polypropylene, ABS, PVC, polystyrene, and industrial plastics like Nylon and polycarbonate. For best loading, the bulk density of the material should be between 0.6 and 0.8 g/cm³. Wear-resistant screw coats are needed for glass-fiber reinforced materials to keep parts from wearing out faster.

How long does a typical mixing cycle take for lab samples?

Standard mixing processes finish in 8 to 15 minutes, but this depends on the type of material and the level of homogeneity that is needed. When the concentration is 2%, colour masterbatch mixing usually takes 10 minutes. When the concentration is higher, regrind addition may take up to 15 minutes. Over-mixing loses energy and doesn't make things more equal.

What maintenance does the equipment require between material changes?

To clean, empty any leftover material through the slide-gate outlet and then wipe the stainless steel screw and vessel walls with clean rags and compressed air. It takes twenty to thirty minutes to do this. Parts that touch the cloth don't need to be oiled. According to the maker, motor bearings need to be greased once a year.

Can the mixer handle partial batches smaller than 300kg?

Yes, the equipment can still mix well when loaded at levels as low as 40% of its rated capacity, which means that batches as small as 120 kg are possible. Even though the loading is lower, the mixing consistency stays above 95%. The cycle time may need to be slightly changed to make sure that everything gets circulating.

Contact Yude Plastic Machinery: Your Trusted 300kg Vertical Plastic Particle Mixer Manufacturer

As a company that knows how to make things well and provides great customer service, Yude Plastic Machinery makes 300kg vertical plastic particle mixers that are perfect for lab testing environments. Our 300kg vertical plastic particle mixer line is made of stainless steel, was carefully designed, and has proof that it works. We know what research centers and pilot plants need because we've been a maker and supplier for a long time and have users in North America, Europe, and Southeast Asia. Our 7x24 technical support team answers questions quickly about equipment, and our spare parts inventory keeps downtime to a minimum. We can make solutions just for you, like operation interfaces that work in multiple languages and changes to equipment that meet local safety standards. Email our team at sales@yudemachinery.com to talk about your lab testing needs, get full specs, or set up a time to see how our equipment works. Let us help you find the best mixing option that will speed up the process of making your product while staying within your budget.

References

1. Tadmor, Z., & Gogos, C.G. (2013). Principles of Polymer Processing (2nd ed.). Wiley-Interscience.
2. Rauwendaal, C. (2014). Polymer Mixing: A Self-Study Guide. Hanser Publications.
3. ASTM D6866-20. (2020). Standard Test Methods for Determining the Biobased Content of Solid, Liquid, and Gaseous Samples Using Radiocarbon Analysis. ASTM International.
4. Society of Plastics Engineers. (2018). Plastics Technician's Toolbox: Mixing and Blending Equipment Selection. SPE Technical Paper Series.
5. Manas-Zloczower, I. (2009). Mixing and Compounding of Polymers: Theory and Practice (2nd ed.). Hanser Gardner Publications.
6. European Committee for Standardization. (2019). EN 12012-1: Plastics Machinery - Size Reduction Machines - Part 1: Safety Requirements for Blade Granulators. CEN Standards.
