Is the 5,000 kg capacity based on actual batch loading or theoretical volume?

When I first started evaluating large-capacity mixing equipment for PVC pipe production lines, the capacity number printed on a spec sheet confused me. A 5 ton vertical plastic particle mixer sounds straightforward — until you ask whether that 5,000 kg rating reflects what you can actually load per batch, or just how much space the tank holds on paper.

The short answer: the 5,000 kg rated loading capacity is based on actual batch loading, calculated using plastic particle bulk density of 0.6–0.8 g/cm³. It is not a raw geometric volume figure. The effective mixing volume sits at approximately 7,500–8,000 liters — a larger number that represents the physical interior of the tank, not the recommended working load. Getting this distinction right before signing a purchase order protects your production schedule and your budget.

Understanding Capacity Metrics of 5 Ton Vertical Plastic Particle Mixers

Theoretical Volume vs. Rated Loading Capacity

Liters are used to measure theoretical volume, which is the total amount of space inside the mixing chamber. For this kind of gear, that number is between 7,500 and 8,000 L. A material density factor is used for estimated loading ability, on the other hand. PVC, PE, and PP pellets have a bulk density of around 0.6 to 0.8 g/cm³. This means that 7,500 to 8,000 liters of chamber room can hold 4,500 to 6,400 kilograms of stuff. The rating of 5,000 kg that was made public is right in that range. This means it is a real number that has been tried under load and not a theoretical limit.

How Bulk Density Changes Everything?

It only takes one material switch to make a big difference in how much your batch weighs. Glass-fiber-filled nylon has a much higher bulk mass than polyethylene that isn't filled with fibers. In the event that you add something heavy to the chamber, the drive system might become too busy. It is possible for the machine to be too light if you feed it a lighter regrind. This makes it move more slowly. If you want to choose a model, you should always check the rated loading capacity against the bulk density of the resin blend you use.

Why the Discrepancy Matters for Procurement?

When buying teams look at three or four mixer brands, they often compare the total amounts that can be mixed. These amounts are given in the product names and brochures. In order to make that comparison, you need to know what the mass density is. If you ask for the estimated loading capacity at a certain bulk density, like Yude's 0.6–0.8 g/cm³, you can get a good idea of how much mass is being made.

How Does a 5 Ton Vertical Plastic Particle Mixer Work?

Vertical Screw Auger Circulation

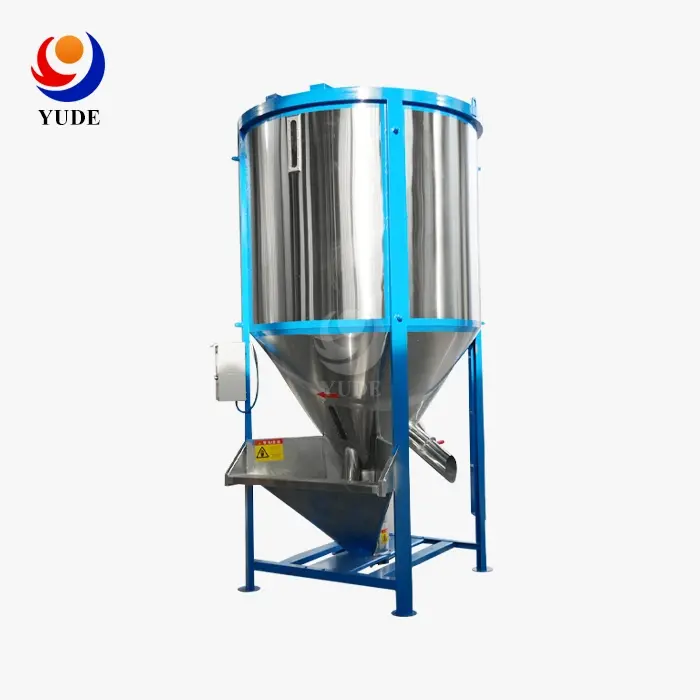

The main part that mixes a 5 Ton vertical plastic particle mixer is a big vertical screw auger that is put in the silo's middle pipe. Things are being pulled up from the bottom of the tank by the auger. It starts out as an umbrella-shaped curtain and falls back down along the room's walls. The batch is turned over from bottom to top without using high-speed paddle impact. This means that fragile pellets are under less shear stress and there is less heat buildup from friction.

Heating Integration for Hygroscopic Resins

The heating models have a 45–75 kW heating system that is managed by a PID temperature controller with a digital screen that keeps the temperature within 1.5°C of the set point. There is a huge difference in the amount of heat transfer touch area between a static hopper dryer and a falling material screen. In one step, this method of drying and mixing gets rid of surface moisture and volatiles. This saves time and floor space for materials like PA or ABS that are sensitive to moisture.

Motor, Gearbox, and Structural Integrity

It works with the help of a heavy-duty gear reducer, a 15–22 kW motor, and overload protection. Most mixing tanks are made of 304 stainless steel, but 316L stainless steel can be used in places where it might rust or where food is present. Most of the time, plant managers who run extrusion lines with more than one shift tell me that these material and technical choices allow for 24-hour operations with little unplanned downtime.

Vertical Plastic Particle Mixer Capacity Explained: Batch Loading or Theoretical?

Industry Norms Around Capacity Rating

In the business of making mixing tools, the imaginary amount is sometimes used as the main number because it looks bigger and worse. Of course, honest sellers add a note about the bulk density. Yude says that the 5,000 kg number is based on a bulk density of 0.6 to 0.8 g/cm³, which is about the same as most thermoplastics used to make pipes, profiles, and masterbatch.

Validating Claims Before Purchase

I think you should do these two things before you order capital tools. For starters, ask for a factory acceptance test (FAT) that uses real materials and weights. Ask for batch weight logs from a system that is like the one you are looking at as well. You can use these records to show that the rated capacity works in real life, not just in the lab.

Regulatory and Certification Benchmarks

Industrial equipment, including a 5 Ton vertical plastic particle mixer, that is meant to be used all the time should meet CE safety standards and ISO quality control standards. Some of the most important safety features that need to be checked during the technical review are the motor's overload protection, closed entry doors, and an auto-shutdown feature for overheating.

Benefits and Limitations of Using Theoretical Volume as a Capacity Metric

You should know the theoretical amount so that engineers can check to see if the tank will fit in the space they have for it before they start working on the specifics. But buying something based on that alone is a very risky thing to do.

These are the main decisions that procurement teams have to make:

• Benchmarking advantage: Theoretical volume (7,500–8,000 L in this case) allows quick cross-brand size comparison and confirms silo dimensions for civil foundation planning.
• Overestimation risk: Using volume without a density factor can lead buyers to expect 6,000+ kg per batch when the safe working load is 5,000 kg, potentially overloading the drive system and accelerating gearbox wear.
• Batch consistency impact: Operating above rated capacity reduces mixing uniformity below the ≥98% threshold, which directly affects color consistency in pipe extrusion and filler dispersion in compounding.
• Energy efficiency implications: Mixing at the correct rated load allows the 15–22 kW motor to operate within its designed efficiency band, while overloading increases specific energy consumption per kilogram processed.

Both the quality of the work and the life of the tools can be affected by these trade-offs. Do not just write the chamber volume when writing a procurement specification. Always base it on the rated loading capacity at a set bulk density.

Choosing the Right Large-Capacity Mixer for Your Production Line

Match Capacity to Extrusion Line Feed Rate

First, figure out how much resin you'll need every hour for an extrusion process that runs 24 hours a day. Next, figure out how many times the mixer needs to run through each batch during each shift. Multiple downstream extruders can work with a 5,000-kg batch at the same time, which cuts down on the time wasted waiting for material to be changed. Each cycle takes 15–25 minutes.

Evaluate Automation and Control Features

When working with a 5-ton batch, full PLC automation that includes auto-loading, mixing-cycle control, and auto-discharge cuts down on the work that needs to be done by hand by a large amount. Cycle-by-cycle data logs are kept by the digital PID temperature control system. These help meet quality traceability standards for pipe pressure ratings or automotive compound specifications.

Assess Long-Term Service and Parts Availability

When there is downtime at a big extrusion plant, it can cost over $1,000 an hour. Check that the seller keeps important extra parts in stock, like the auger screw, gear reducer, and heating elements, and can offer remote technical support within four hours. This is just as important as the machine specs themselves.

Conclusion

That's the actual, batch-tested weight that this kind of vertical mixing equipment, including a 5 Ton vertical plastic particle mixer, can hold, not just an idea of how much space it would take up. The geometric center size is between 7,500 and 8,000 L, and at a bulk density of 0.6 and 0.8 g/cm³, the highest amount that can be processed safely and effectively in a cycle is 5,000 kg. This machine works well in tough continuous production environments because it has a single cycle time of 15–25 minutes, a mixing accuracy of ≥98%, and a PID heating option built right in. This is something you should always do before you buy something: compare the material's bulk density to what the manufacturer says it can hold.

FAQ

Can I load more than 5,000 kg per batch if my material is denser?

Not at all. With a rating of 5,000 kg, this means that the drive system, gearbox, and frame can safely carry the full load. Adding more weight than this could damage the gearbox, put stress on the machine, and make the mixing less even, even if the material fits in the cylinder.

How do I calculate the right batch size for my specific resin?

Multiply the right amount of stuff to mix (7,500–8,000 L) by its bulk density in kilograms per liter. For a resin with a bulk density of 0.65 g/cm³, the biggest batch weight that could be made is between 4,875 kg and 5,200 kg. Do not carry more than 5,000 kg.

What maintenance schedule does this equipment require?

Once a week, check the auger screw for wear, once a month, check the oil in the gear reducer, and every three months, check the heating elements and temperature monitors. Having the auger, the seals, and the motor overload relay on hand as two sets of important spare parts cuts down on unplanned downtime.

Does the heating version affect mixing cycle time?

The heating function warms things up a little bit before they start mixing. Because of the goal temperature and the temperature of the material when it starts, the first batch will take 10 to 20 minutes longer. The heat that is kept in helps later batches, which greatly reduces the time needed to warm up.
