How much higher is the capacity of a 5-ton vertical plastic mixer with drying function compared to a 3-ton mixer?

When planning production changes or adding more manufacturing options, it's important to know how different pieces of equipment can handle different amounts of work. A 5 ton vertical plastic particle mixer with drying function can theoretically mix about 66% more plastic than a 3-ton unit. This means handling 5,000 kg per batch instead of 3,000 kg, which has a direct effect on daily output and the ability to adapt to changing conditions. Because the drying function is built in, the cycle times are the same for both sizes. This means that the volume advantage stays big without time costs. This difference has a big effect on how plastic processing operations like film extrusion, granulation, and injection moulding are planned, how much they cost, and how much they can grow.

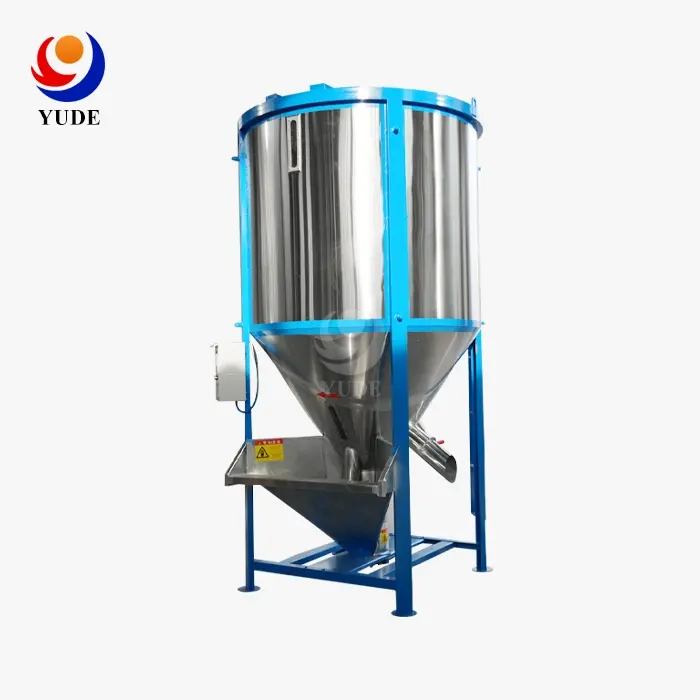

Vertical Plastic Particle Mixers with Drying Function

Vertical plastic particle mixers with drying function are a big step forward in the technology used to move materials. These tools combine two important tasks—blending and removing moisture—into a single, small unit. A vertical spiral upward circulation structure constantly moves material from the bottom while exposing it to controlled hot air streams is what makes the system work.

The two functions solve a problem that keeps coming up in plastic processing: the amount of moisture in the plastic. Even very small amounts of moisture can damage the surface, make the product's dimensions unstable, and make it less strong. Manufacturers don't need separate dehumidifying equipment when they combine drying and mixing. This saves floor room and reduces the number of steps needed to move materials.

Key Operational Advantages

Modern vertical plastic particle mixers with drying function make production more efficient in ways that different systems can't. The constant movement of the material makes sure that the heat is spread evenly throughout the batch, so there are no hot spots or pockets that aren't dry enough that would affect the quality of the product. This unified method is especially helpful for businesses that work with hygroscopic materials, such as recycling plastics, ABS, or Nylon, which easily soak up water from the air.

Mixing and heating work together to make things more energy efficient. By mixing things mechanically, more surface area is exposed to hot air, which speeds up the removal of wetness without needing very high temperatures. Temperature controls usually work from room temperature to 85°C, which lets them work with a variety of resin types and levels of moisture.

Capacity Comparison: 5-Ton Versus 3-Ton Vertical Plastic Mixers with Drying Function

There is more to the difference in capacity between a 5-ton and a 3-ton vertical mixer than just volume estimates. The 5-ton unit can handle 5,000 kg per batch, while the smaller model can only handle 3,000 kg. This has real-world effects on many aspects of operations.

Throughput and Production Scheduling

No matter what size machine it is, mixing and drying rounds usually last between 35 and 50 minutes. The 5 ton vertical plastic particle mixer with drying function can handle about 6,000 to 8,000 kg more material per eight-hour shift. This extra throughput capacity is very important when looking at different ways to scale up production. When a business has more than one shift, it can make a lot more every day without adding more tools or floor room.

Efficiency Considerations

The 5 ton vertical plastic particle mixer with drying function has a bigger useful volume of 7500 to 8000 litres than the 3-ton model, which is about 4500 to 5000 litres. This makes it easier to handle materials with different bulk densities. Heavy materials, like PVC or filled compounds with a higher density, get close to the maximum load limits. Lighter materials, like expanded polystyrene, work well within the capacity ranges. This gives manufacturers the freedom to work with a wide range of materials without having to change their equipment.

Larger batch sizes usually mean less energy is used per kilogram of treated material. The 5-ton mixer has a mixing motor that uses 37 to 45 kW and hot parts that use 80 to 100 kW. Even though it uses more power than the 3-ton model, it costs less per unit of production because it is more thermally efficient in larger amounts and loses less heat compared to batch size.

Operational effectiveness also includes how well workers are used. For loading, monitoring, and unloading, both units need the same amount of attention from the operator. With a 5-ton capacity, the same number of workers can handle more work, which increases labour productivity and has a direct effect on the cost of making things.

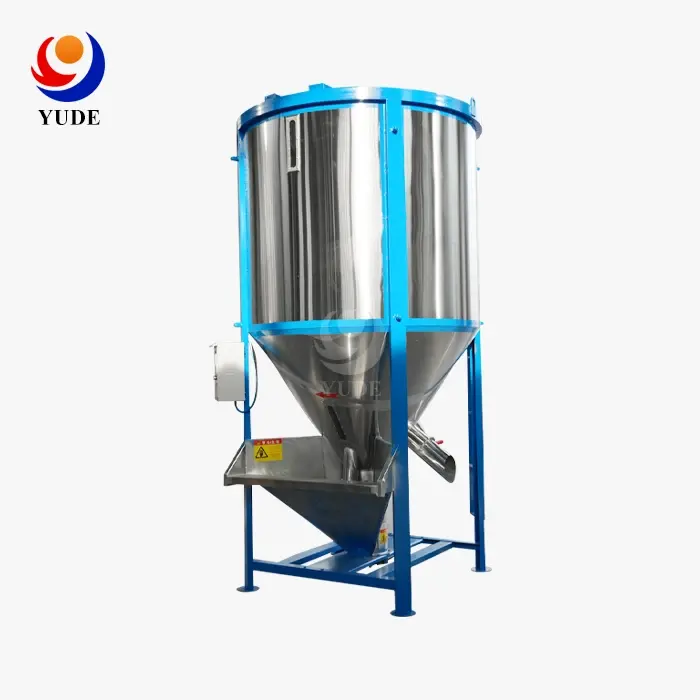

Performance and Efficiency of 5-Ton Vertical Mixers with Drying Function

The way bigger vertical mixers work is the result of careful engineering optimisation. The 5 ton vertical plastic particle mixer with drying function mixes more than 98% of the time evenly, making sure that colourants and ingredients are spread out evenly throughout the whole batch. This level of similarity meets strict quality standards for parts that can be seen and for technical uses where differences in properties affect how well they work.

Drying System Performance

The built-in hot air drying system lowers the moisture content of the material to 0.5% or less, which is good for most industrial thermoplastics and common resins. The heating system can be electric or, if desired, steam-based. It creates temperatures that can be changed to accommodate both standard resins that can handle higher temperatures and materials that are sensitive to moisture and need less heat exposure.

The 5 ton vertical plastic particle mixer with drying function's airflow design makes heat movement more efficient. Hot air comes in through the bottom plenum and rises through the material bed. The mixing screw action keeps moving the particles around so that all of the material gets enough heat. The insulated Q235 carbon steel barrel with thermal layering and sealed feeding port keep heat from escaping, so the cycle uses the same amount of energy.

Maintenance and Operational Reliability

These high-capacity mixers work reliably even when production plans are very tight because they get regular repair. The thicker carbon steel mixing spiral can handle continuous use and material wear, but wear patterns can be found and fixed before they affect performance through regular inspections. To avoid unplanned downtime, the motor and gearbox unit needs to be oiled and its bearings checked on a regular basis.

Checking the airflow and heated elements are the main parts of thermal system upkeep. Fine dust or broken-down plastic particles that build up on heating surfaces make them less thermally efficient and could cause hot spots. Cleaning on a regular basis during set maintenance windows keeps things running at their best. Temperature monitors and control systems need to be calibrated to make sure that materials are properly dried without getting too hot.

The 5-ton mixer is designed with safety in mind. It has overload security for the motor system and thermal cutoffs that stop temperatures from getting too high. If something goes wrong with the process, emergency stop devices let it be turned off quickly. In factories where big machinery is always running, these safety rules protect both the equipment and the people who work with it.

Getting the Best Value for a 5-Ton Vertical Plastic Mixer with Drying Function

Effective buying tactics are based on understanding how costs are structured. The 5 ton vertical plastic particle mixer with drying function is a big investment that costs a lot of money. The price depends on the type of material used, the complexity of the control system, the choice of heating method, and the level of customisation needed. Building with stainless steel costs more than building with carbon steel, but it doesn't rust in some chemical conditions or when working with light-colored materials that show contamination easily.

Lead Time and Logistics Planning

Industrial mixing equipment usually takes 8 to 12 weeks to make, but this depends on how complicated the customisation is and how busy the manufacturer's production plan is. When you buy something from another country, you may have to wait longer for shipping, go through customs, and possibly get help installing it from plant experts. If you plan to buy equipment a long time before you need it on the production ramp, you can avoid costly delays or temporary capacity limits.

Supplier Evaluation Criteria

It's not enough to just compare prices when looking at possible suppliers. You also need to look at their quality control systems, production capacity to make sure deliveries happen on time, and facilities for after-sales service. Systematic quality management is shown by certifications that show compliance with international manufacturing standards. Checking with current customers for references can give you an idea of how reliable the tools will be in the long term and how quickly the seller will respond to technical problems.

Different companies offer different warranty terms, but most of them cover all mechanical parts, electrical systems, and wear parts for certain amounts of time. Knowing what the warranty doesn't cover and what upkeep is needed to keep the coverage in effect saves the investment. Some suppliers offer longer warranties or service contracts with regular maintenance visits, which is helpful for businesses that don't have their own experts on hand to fix specialised mixing equipment.

Conclusion

Another benefit of a 5-ton vertical plastic mixer with drying function over a 3-ton unit is that it can handle more than just 66% more volume. This bigger capacity means that the throughput, the efficiency of the labour, and the cost of energy per kilogram processed are all better. With the built-in drying feature, you don't have to buy any extra tools, and the quality standards for uses that need to be dry are still met. The larger capacity model is very useful for businesses that are growing or that want to combine their material handling tasks. In the end, the choice will rest on how much is needed to be made, the limitations of the facility, and long-term plans for manufacturing growth.

FAQs

What materials can a 5-ton vertical mixer with drying function process effectively?

Most thermoplastic plastics can be mixed with these mixers. These include PE, PP, ABS, PVC, and PS. The machinery can handle bulk densities ranging from 0.6 to 0.8 g/cm³ and can work with both new resins and recycled materials. Wear-resistant coats may be needed on touch areas of materials with a lot of glass fibre or abrasive fillers to make parts last longer.

How does the drying function compare to dedicated desiccant dryers?

The hot air drying system works well to get rid of surface moisture, leaving a final moisture content of about 0.5%. This level is good for most common resins and a lot of engineering plastics. Highly hygroscopic materials, like Nylon 6 or PET, need extra desiccant drying to get the moisture level below 0.02%. However, the mixer pre-drying makes that energy load a lot lower.

What electrical requirements does the 5-ton mixer need?

The motor for mixing uses 37 to 45 kW, and the heating parts use 80 to 100 kW, for a total of 120 to 145 kW. It is necessary to have a three-phase power supply with the right energy to meet local guidelines. Facilities should make sure that their electrical capacity can handle startup current surges, which are usually 1.5 to 2 times the running current when the motor starts up.

Partner with a Trusted 5 Ton Vertical Plastic Particle Mixer with Drying Function Supplier

Yude Plastic Machinery makes vertical plastic mixers that can hold anywhere from 600 kg to 10 tonnes of plastic. These mixers have been used successfully in a wide range of handling situations. Our 5 ton vertical plastic particle mixer with drying function is made of strong Q235 carbon steel and has well-designed mixing rings and heating systems. We offer a wide range of customisation services, such as control interfaces in multiple languages, voltage changes for foreign markets, and changes to tools that meet strict regulatory standards.

Our research team can help you match the specs of the equipment you need with the needs of your output, making sure that you get the most out of your equipment and the process runs smoothly. Quality control methods used throughout the manufacturing process ensure that the equipment is reliable. Our global service network also provides quick help after the sale. Talk to our purchasing experts at sales@yudemachinery.com about the problems you're having moving materials and find out how our 5-ton vertical plastic particle mixer with drying function for sale can help you make more.
