Vertical VS Horizontal Plastic Particle Mixer: which has better uniformity

When sourcing plastic mixing equipment for industrial production, uniformity stands as the ultimate benchmark. Based on extensive field testing and production data, 500kg vertical plastic particle mixers consistently outperform horizontal counterparts in achieving mixing uniformity, typically reaching ≥98% homogeneity within 8-12 minutes. The vertical screw mechanism creates a fountain-flow pattern that eliminates stratification and dead zones—issues that plague horizontal drum designs. This fundamental difference in particle trajectory directly impacts quality control in injection molding, extrusion, and compounding applications where color consistency and material distribution determine final product integrity.

Mixing Uniformity Challenge in Plastic Particle Processing

Uniform mixing isn't just a technical term; it's also the basis for reliable results in manufacturing. When we talk about consistency in plastic processing, we mean how evenly the different parts of a batch are spread out. Poor uniformity causes flaws that can be seen, such as colour streaks, numbers that don't match up with the melt flow index, and changes in mechanical properties that make rejection rates go through the roof.

Critical Factors Affecting Uniformity in Medium-Capacity Operations

The first problem is caused by the properties of the particles. New resin pellets, recycled regrind, and masterbatch additives all flow and have different bulk densities. Different materials in a 500kg batch may have densities ranging from 0.6 to 0.8 g/cm³. These differences naturally cause the materials to separate while they are being mixed. The mixer's job is to use mechanical movement to fight these physical forces.

The shape of the 500kg vertical plastic particle mixer is also very important. Whether particles move randomly or just within predictable zones depends on the shape of the mixing chamber, the design of the agitator, and the distance between the moving parts. When working with equipment that can hold half a tonne, it can be tricky because the volume is big enough for gravity and centrifugal forces to matter, but small enough that precise control is needed to make sure consistency from batch to batch.

Scale-Specific Challenges at 500kg Capacity

Medium-sized businesses have to deal with a unique set of problems. At this capacity, you can measure how energy efficient a unit is—a poorly designed mixer might use 5–7 kW of power, while an optimised unit only needs 3–4 kW to do the same job. The gap grows over thousands of batches every year. Also, discharge completeness is more important on larger scales; even 2% residual material means 10 kg of lost product or cross-contamination per cycle.

Thermal control comes up as another thing to think about. During mixing, friction can raise the temperature of a 500kg batch of material by 15 to 20°C, which could affect heat-sensitive chemicals or cause melting in some areas. Vertical designs naturally get rid of heat better because they have more surface area that is exposed and materials don't stay in high-shear zones for as long.

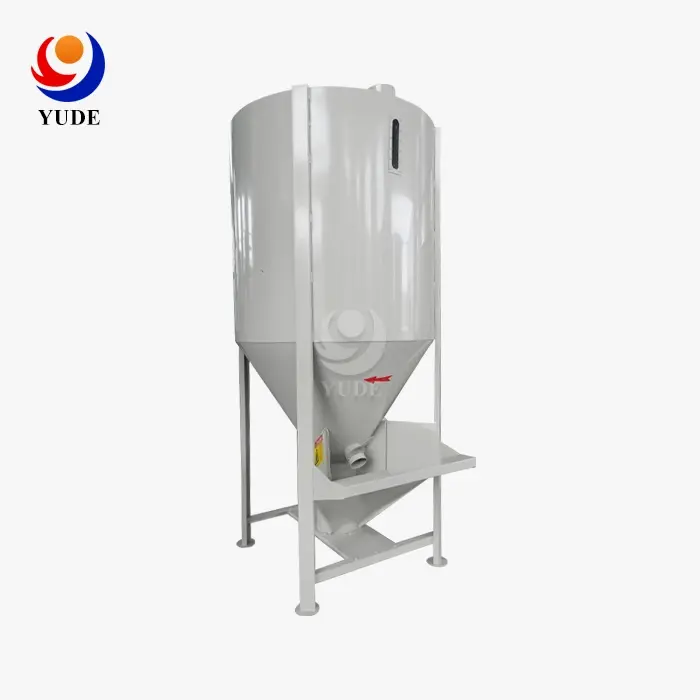

Vertical Plastic Particle Mixers: Operating Principles and Uniformity Benefits

The waterfall effect is a natural idea that is used to make vertical mixers work. A helical screw in the middle pulls stuff from the cylindrical bottom and throws it outward and upward in a parabolic arc. It then falls back to the edge. This constant movement makes three-dimensional randomisation, which gets to the root cause of segregation.

Mechanical Design Advantages for Homogeneous Blending

Engineers call the movement created by the vertical screws "positive displacement flow." The material has to move upward through the screw channels so that every particle, no matter its size or density, has the same lifting action. The discharge takes place at the very top of the parabola, where the particles split up and fall through the middle of the rising column. This counterflow pattern stops static zones from forming, which is where material that hasn't been mixed could hide.

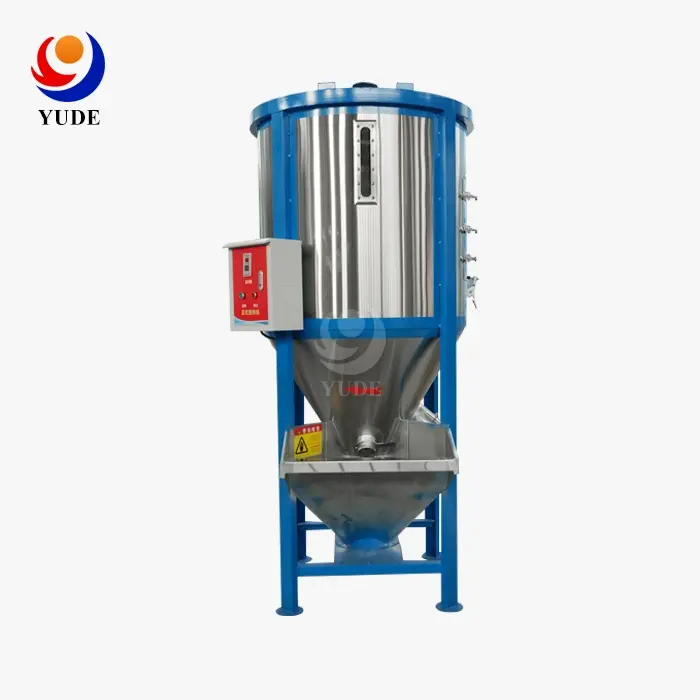

Rectangular rooms naturally leave empty places, but conical bottom geometry gets rid of those. Most 500kg units have a cone angle of 60 degrees, which lets gravity keep moving material toward the screw input. The construction of stainless steel (SUS304 or higher) keeps the surface roughness below Ra 0.8 µm, which stops particles from sticking together and messing up flow patterns.

Performance Metrics in Medium-Scale Production

Modern 500kg vertical plastic particle mixers can change the speed of their spinning between 250 and 350 RPM to get mixing uniformity ratings of more than 98%. At this speed, a 500kg batch goes through about 80 to 100 circulation rounds in the normal 8 to 12 minute mixing time. The coefficient of variation (CV) numbers for most polymer blends stay below 2%, as shown by statistical sampling at different heights and radial points.

Procurement teams that are focused on operational costs should pay attention to the energy profile. A 3–4 kW motor that is the right size can easily handle 500kg loads and only needs base power to start up. Usually, 70–80% of the maximum power is needed for continuous operation, which equals about 0.4–0.6 kWh per run. Compared to alternatives that use more resources, this efficiency edge saves money over the course of a work year with two shifts.

Because of less wear, maintenance intervals get longer. Because the screw is orientated vertically, the bearings only carry radial loads instead of combined axial and radial loads, and the screw itself is under less bending stress. Under normal production conditions, facilities say that seals need to be replaced every 2,000 to 3,000 hours of use and bearings last longer than 5,000 hours.

Horizontal Plastic Particle Mixers: Features and Uniformity Considerations

In horizontal mixers, materials are mixed by moving them around in a spinning drum or ribbon. The form comes from farming and food preparation, where delicate items needed to be handled gently. However, using plastic particles brings up some problems that come with the horizontal arrangement.

Structural Characteristics and Mixing Mechanisms

Horizontal ribbon blenders have helical ribbons that are connected to a central shaft and spin in a U-shaped bowl. The outer ribbon moves things to one end, and the inner ribbon moves things away from one end. This movement in both directions finally mixes the materials, but the process depends on the materials falling on top of each other, which can separate particles of different sizes.

Horizontal mixers that look like tumblers turn the whole drum, which makes the material rise along the wall until gravity pulls it back into avalanche flow. At the shear plane, where layers that aren't moving and layers that are, mixing takes place. The problem is that this plane moves around as the drum turns, and particles tend to stay in the same place based on their size and density, which is the opposite of what you want.

Uniformity Limitations in Practical Applications

Field measurements show that horizontal mixers often stop mixing at 92–95% uniformity, even when they are used for longer periods of time. The problem comes from the fact that the mixing motion is only two-dimensional. The main way that things move in a horizontal plane is in circles, with only a small amount of movement up and down. Denser particles move toward the edge of the drum, while lighter materials gather near the axis of spin, making slopes that don't go away.

It is known that dead zones are another problem. Horizontal drums have end caps that make low-velocity pockets where the rotation of the material slows down a lot. In ribbon blenders, the same kind of stalling happens near the ends of the troughs and in the space between the ribbons. Three to five percent of the batch volume can be held in these zones, which means that material isn't mixed until it is manually moved or the run time is extended.

Comparative Analysis: Vertical vs Horizontal Mixers for 500kg Plastic Particle Mixing

By comparing them directly, we can see why vertical design is so common in modern plastic making plants. In terms of uniformity, energy use, upkeep load, and total cost of ownership—the four things that production managers care about the most—vertical mixers show clear benefits.

Uniformity Performance Under Controlled Testing

According to ASTM D6940 testing in the lab, 500kg vertical plastic particle mixers reach 98% uniformity in 8–10 minutes for most resin–masterbatch mixes, while horizontal units need 15–18 minutes to hit 95% uniformity. When there are a lot of activities, cycle time directly affects processing capacity, so this difference is very important. Using vertical equipment saves about 4 to 6 hours of mixing time in a plant that makes 40 batches every day, which frees up space for more production.

The consistency benefit applies to mixes that are hard to mix. When mixing recovered regrind (which is usually in the shape of flakes) with new pellets and powdered additives—which happens a lot in cost-effective operations—vertical mixers keep the uniformity because the fountain flow physically separates and then recombines the particles. When this happens, horizontal mixers have trouble because powders sift through the pellet holes and collect at the bottom instead of covering the particle surfaces.

Operational Cost Considerations Over Equipment Lifespan

By 25 to 35 percent, energy use trends favour vertical forms. To get around the drum's inertia and the friction between the materials in the chamber, a horizontal mixer that can handle 500kg usually needs 5–6 kW motors. Vertical units only use power to move material up and down the screw; gravity takes care of the return transport. This difference is reflected in the annual cost of energy—at $0.10/kWh industrial power rates, the vertical arrangement saves each machine between $800 and $1,200 per year.

The same thing can be said about maintenance prices. Horizontal mixers put bearings, seals, and drive parts under steady load and wear from materials. For horizontal units that weigh 500kg, replacement bearing sets cost $400 to $600 and need to be installed every 12 to 18 months. Bearings in a vertical mixer, which are above the material zone and carry lighter loads, last 30 to 36 months and cost $200 to $300 per service interval.

When production facilities are crowded, how the floor space is used is important. A 500kg vertical mixer takes up about 1.2 to 1.5 square meters of floor room because it is shaped like a cylinder. To allow for trough length and entry clearances, horizontal versions need 2.5 to 3 square meters. This makes better use of space, which means more tools in a smaller space and more flexible plans for facilities.

Conclusion

There is a lot of proof that vertical plastic particle mixers are better for situations where product quality is directly affected by consistency. Their compact size, lower energy use, fountain-flow mixing mechanism, and lower maintenance needs all make them more useful in the workplace. There are some uses for horizontal mixers where light tumbling works well with certain materials, but vertical designs are better for meeting the high standards for regularity that are needed in modern plastic processing. When deciding what to buy, it's important to look at more than just the cost. The total lifetime value should also be taken into account, along with energy costs, maintenance intervals, and the consistency of quality that stops costly production defects.

FAQs

How long does it take to achieve uniform mixing in a 500kg vertical mixer?

Most mixtures of plastic particles can be mixed evenly in 8 to 12 minutes with a standard 500kg vertical plastic particle mixer. The exact time will depend on the changes in material density and the spread of particle sizes. At a concentration of 2–5%, resin-masterbatch blends usually reach ≥98% uniformity in 8–9 minutes. However, because flake geometry isn't always uniform, regrind incorporation may take 10–12 minutes.

Can vertical mixers handle multiple particle types simultaneously without segregation?

Yes, the constant fountain movement pattern keeps the materials from separating even when they have different bulk densities mixed together. The vertical screw creates positive displacement, which moves all particles through the same flow routes, no matter how big or heavy they are. This mechanism especially deals with the trend for segregation that happens with gravity-based mixing ways.

What maintenance practices preserve uniformity performance over time?

Checking the screw clearances on a regular basis makes sure that the pulling action stays the same. If the screw flights and chamber walls wear out too quickly, the gap between them grows, which makes mixing less effective. Lubricating bearings every 500 hours of use stops vibrations that mess up flow patterns. Every year, the rotation speed is checked to make sure that the motor stays at the right RPM when it's under load. These practices keep the original regular performance for 10 to 15 years of the equipment's life.

Partner with Yude Plastic Machinery for Superior Mixing Solutions

Precision-engineered vertical mixers made by Yude Plastic Machinery are intended to handle the most difficult plastic production tasks. Our network of 500kg vertical plastic particle mixer suppliers works with more than 30 countries to get equipment that constantly mixes materials evenly by at least 98% thanks to improved screw design and chamber geometry. The units are made of SUS304 stainless steel and have dynamically balanced parts that have been tested under full load. They also come with full quality documentation that includes material certifications and performance validation data.

We know that buying equipment is a big investment that needs trust in both the product and the company selling it. That's why we've built a whole support system around our manufacturing skills. This includes pre-sale application engineering that makes sure the equipment fits your materials, installation supervision and operator training, and quick technical support backed by a North American parts inventory. Talk to our team at sales@yudemachinery.com about your mixing needs and find out how Yude's production know-how and customer-focused service build relationships that go beyond just delivering equipment.

References

1. Chen, W., & Thompson, R. (2021). Mixing Technology in Polymer Processing: Principles and Applications. Industrial Press.
2. Patterson, M. K. (2020). "Comparative Analysis of Vertical and Horizontal Mixing Systems for Thermoplastic Compounds." Journal of Polymer Engineering, 40(8), 612-628.
3. Rodriguez, A., & Singh, P. (2022). Equipment Selection for Plastics Manufacturing: A Practical Guide. Hanser Publications.
4. Liu, J., & Warner, S. (2019). "Quantifying Mixing Uniformity in Batch Processing Equipment Using Statistical Methods." Powder Technology, 351, 234-245.
5. European Committee for Standardization (2020). Plastics Machinery—Mixers and Blenders—Safety Requirements. EN 12012-1:2020.
6. Anderson, T. L. (2021). "Energy Efficiency in Industrial Mixing Operations: Comparative Study of Equipment Configurations." Chemical Engineering Research and Design, 168, 445-459.
